In The Lab: ATEN 4K KVM Over IP Extenders

by Adam Armstrong

Today in the lab we are looking at something a bit different, but something that fits right in with our needs: ATEN 4K KVM over IP Extenders. These remote KVM Over IP Extenders are designed to allow displays or projectors to connect up with computers that are separated by distances greater than what direct-attached cables can support. The benefit to this technology is that it near universally compatible with equipment that support HDMI or DisplayPort connections, with USB for keyboard and mouse control. These extenders can support direct connection, allowing simple setup, or larger deployments where end-points can be remapped or managed through a central location.

Today in the lab we are looking at something a bit different, but something that fits right in with our needs: ATEN 4K KVM over IP Extenders. These remote KVM Over IP Extenders are designed to allow displays or projectors to connect up with computers that are separated by distances greater than what direct-attached cables can support. The benefit to this technology is that it near universally compatible with equipment that support HDMI or DisplayPort connections, with USB for keyboard and mouse control. These extenders can support direct connection, allowing simple setup, or larger deployments where end-points can be remapped or managed through a central location.

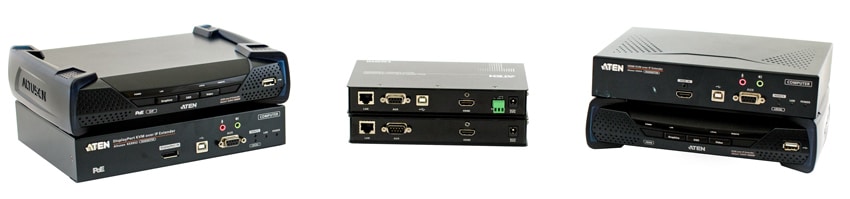

KVM over IP family

ATEN has an entire line of KE KVM over IP extenders as well as its KE Matrix Management software. So, what sets ATEN products apart? For starters, there is no distance restriction, ideal for large buildings or campus locations. As the name implies, the extenders have up to 4k (3840×2160 @ 30HZ) at up to 24-bit color and fast switching between resolutions. ATEN KE extenders can switch between receivers intuitively in larger deployments as well.

Our hands-on video is here:

For large deployments, the biggest benefit of ATEN 4K KVM Over IP Extenders is in the form of is strong centralized management, KE Matrix Management Software. The Management software enables simple orchestration through an easy to use, yet powerful GUI. We’ll dive deeper into the software below.

Looking at the hardware there are three main models. This is further broken down by each model having a transmitter (T) and receiver (R). The model and pricing are as follows:

  • KE8900SR – $795
  • KE8900ST – $795
  • KE8950R – $1645
  • KE8950T – $1645
  • KE9952R – $1845
  • KE9952T – $1845

ATEN KE8900S

KVM over IP KE8900S front

The ATEN KE8900S is the cost-effective model and is also known as the Slim HDMI KVM over IP extender. About the size of a trade paperback book, the KE8900S can fit on most desktops without taking up much space, though it comes with mounting options as well. The mounting options are more important on the transmitter side where it can be mounted in a rack (with 0U mounting options).

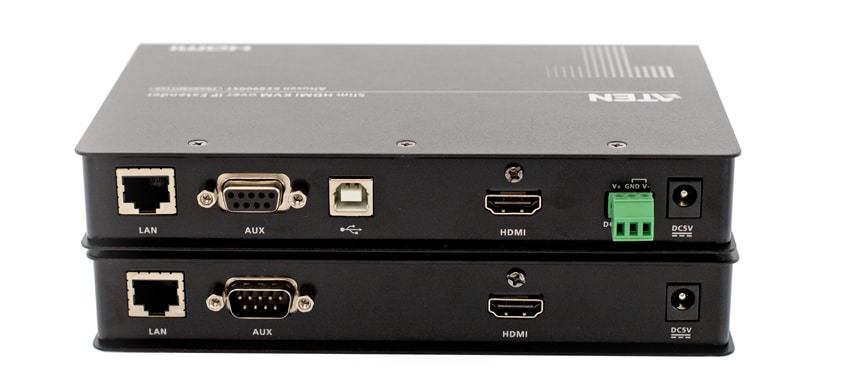

KVM over IP KE8900S rear

As the sub title implies, this is the HDMI model. The KE8900ST supports HDMI video input from the computer while the KE8900SR supports one HDMI monitor output. This gives users resolutions up to 1920 x 1200. The KE8900S offers lossless video compression quality with minimal latency while also supporting Virtual Media function and RS-232 serial commands.

KE8900S Specifications

Function KE8900SR KE8900ST
Connectors
Virtual Media 2 x USB Type A Female (Black) N/A
Console Ports 2 x USB Type A Female (Black) N/A
1 x HDMI Female (Black)
1 x DB-9 Male (Black)
KVM Ports N/A 1 x USB Type B Female (White)
1 x HDMI Female (Black)
1 x DB-9 Female (Black)
Power 1 x DC Jack (Black) 1 x DC Jack (Black)
1 x 3-Pole Terminal Block Connector (Green)
LAN Ports 1 x RJ-45 (Black)
Switches
Reset 1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mbps 1 (10: Orange / 100: Orange & Green / 1000: Green)
Power 1 (Blue)
Emulation
Keyboard / Mouse USB
Power Consumption DC 5V / 4.35W DC 5V / 4.3W DC
48V / 6.61W
Video Resolution Up to 1920 x 1200 @ 60Hz
Environmental
Operating Temperature 0° – 50°C
Storage Temperature -20° – 60°C
Humidity 0–95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 0.64 kg 0.65 kg
Dimensions (L x W x H) 18.20 x 11.75 x 2.87 cm

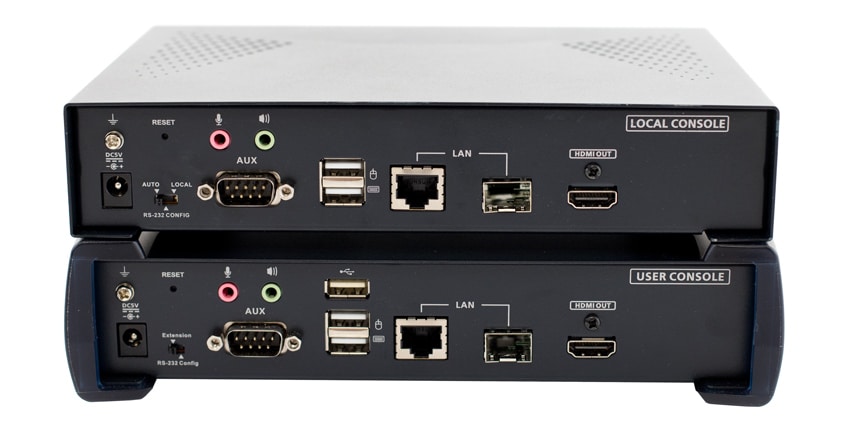

ATEN KE8950/KE8952

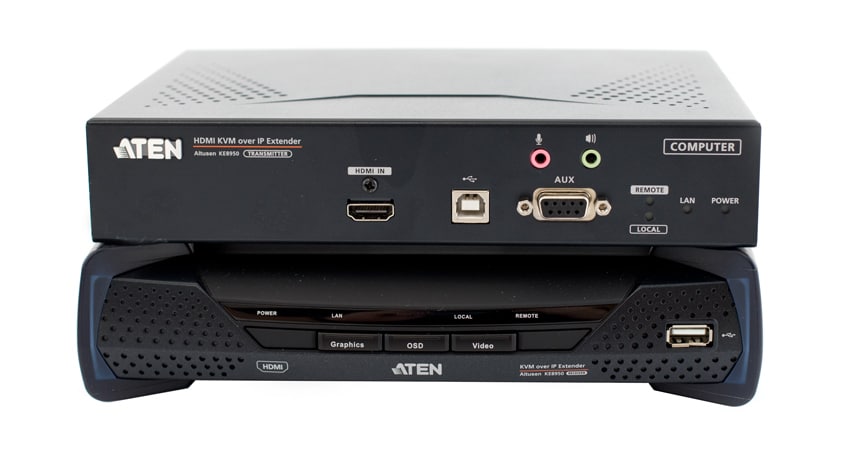

KVM over IP KE8950 front

Next up in the batch of extenders we have is the KE8950/KE8952. Not really a midrange, but it is the first 4K extender we’ll look at here. In fact, its name is the KE8950/KE8952 4K HDMI KVM over IP Extender. Touted as allowing access to a computer system from a remote USB console to anywhere over an intranet, the KE8950/KE8952 are HDMI-based though this time they support up to 4K resolution (2K is supported as well). Unlike the KE8900S, this level of extenders comes with the option of 1Gbps SFP fiber module expansions. Fiber optic network transceivers enable long-range usability, measured up to tens of miles, between point to point connections. The KE8950/KE8952 also supports PoE eliminating the need for power adapters on either side of the setup.

Again each pair consists of a transmitter and receiver. The transmitter connects at the computer end and the receiver connects to the display side at a separate location. The display connects via a standard TCP/IP network via Cat 5e/6 cable (or SFP+) that allows point-to-point, point-to-multipoint, multipoint-to- point, and multipoint-to-multipoint administration or through a high-speed network, over a copper-based or fiber-based LAN.

ATEN KE8950/KE8952 Specifications

Function KE8950T KE8952T KE8950R KE8952R
Connectors Virtual Media N/A 2 x USB Type A Female (White)
Console Ports Keyboard 1 x USB Type A Female (White)
Mouse 1 x USB Type A Female (White)
Video 1 x HDMI Female (Black)
Speaker 1 x Mini Stereo Jack Female (Green)
MIC 1 x Mini Stereo Jack Female (Pink)
RS-232 1 x DB-9 Male (Black)
KVM Ports Keyboard / Mouse 1 x USB Type B Female (White) N/A
Video 1 x HDMI Female (Black) N/A
Speaker 1 x Mini Stereo Jack Female (Green) N/A
MIC 1 x Mini Stereo Jack Female (Pink) N/A
RS-232 1 x Mini Stereo Jack Female (Pink) N/A
Power 1 x DC Jack (Black)
LAN 1 x RJ45 Female (Black) 1 x RJ45 Female (Black, PoE) 1 x RJ45 Female (Black) 1 x RJ45 Female (Black, PoE)
1 x SFP module port
LEDs LAN Status 1 (Orange / Green)
Power 1 (Blue)
Local 1 (Green)
Remote 1 (Green)
Switches OSD Mode 1 x Pushbutton
Video Mode 1 x Pushbutton
Graphics Mode 1 x Pushbutton
RS-232 Function Selection 1 x Slide Switch
Reset 1 x Semi-recessed Pushbutton
Emulation Keyboard / Mouse USB
Power Consumption DC 5V, 7.22 W DC 5V, 5.65 W
Video Resolution Up to 3840 x 2160 @ 30 Hz (4:4:4)
Environmental Operating Temp. 0° to 50° C
Storage Temp. -20° to 60° C
Humidity 0 – 95% RH, Non-condensing
Physical Properties Housing Metal
Weight 1.10 kg 1.13 kg 1.23 kg 1.26 kg
LxWxH (cm) 21.5 x 16.29 x 4.18 22.17 x 17.16 x 5.48

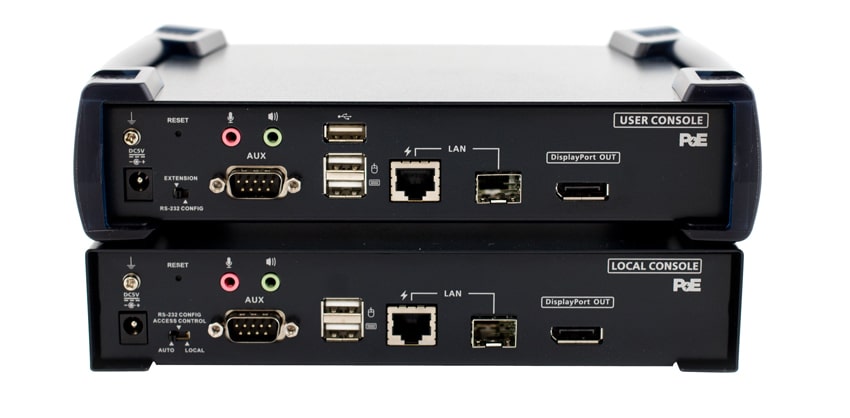

ATEN KE9950/KE9952

The last set of hardware we are going to look at is the ATEN KE9950/KE9952. The full name here is ATEN KE9950/KE9952 4K DisplayPort Single Display KVM over IP Extender giving us a good idea right up front what we are in for and how it will be used. Obviously, this extender set leverages DisplayPort for up to 4K resolution. As with the above, the KE9950/KE9952 supports flawless and lossless video compression quality with extremely low latency.

For connectivity the KE9950/KE9952 leverages RJ-45 as well as having an SFP slot for 1Gbps connections. The transmitter and receiver can be directly connected to each other or over a copper-based or fiber-based LAN. While these models support PoE also, they also come with dual power supplies for added redundancy. These extenders are still small enough to fit on a work station but have mounting options as well.

ATEN KE9950/KE9952 Specifications

Functions KE9950R KE9952R KE9950T KE9950T
Connectors
Virtual Media 2 x USB Type A Female (White) N/A
Console Ports 2 x USB Type A Female (White)
1 x DisplayPort Female (Black)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Male (Black)
KVM Ports N/A 1 x USB Type B Female (White)
1 x DisplayPort Female (Black)
1 x Mini Stereo Jack (Green)
1 x Mini Stereo Jack (Pink)
1 x DB-9 Female (Black)
Power 2 x DC Jack (Black) 1 x DC Jack (Black) 2 x DC Jack (Black) 1 x DC Jack (Black)
LAN Ports 1 x RJ-45 (Black) 1xRJ-45(Black,PoE) 1 x RJ-45 (Black) 1xRJ-45(Black,PoE)
1 x SFP Slot
Switches
OSD 1 x Pushbutton N/A
Video 1 x Pushbutton N/A
Graphics 1 x Pushbutton N/A
Reset 1 x Semi-recessed Pushbutton
LEDs
10/100/1000 Mb/s 1 (10: Orange / 100: Orange & Green / 1000: Green)
Power 1 (Blue)
Local 1 (Green)
Remote 1 (Green)
Video Resolution 3840 x 2160 @ 30Hz (4:4:4)
Emulation
Keyboard / Mouse USB
Power Consumption DC5V :8.03W DC48V: 10.04W DC5V: 9.51W DC48V :11.88W
Environmental
Operating Temp. 0-50°C
Storage Temp. -20-60°C
Humidity 0-95% RH, Non-condensing
Physical Properties
Housing Metal
Weight 1.24kg 1.27kg 1.12kg 1.15kg
Dimensions (LxWxH) 22.75 x 17.16 x 5.48 cm 21.5 x 16.29 x 4.18 cm

KE Matrix Management Software

While the hardware is interesting and has obvious benefits, the real magic happens in the software, like most things. Leveraging a GUI for ease of use, the ATEN KE Matrix Management Software gives users all the tools they need to centralize the control and management of KE series devices in their IT environment. ATEN claims the GUI is intuitive, which means less training and thus higher productivity. The GUI offers a multilingual interface. This is ideal for control centers, such as for Air Traffic Control.

The software lets one do all the things expected with type of device: configure, administer, control, and maintain all KE series devices. It also provides advanced features for username and password authentication, user authorization and auto-detection of all devices. And of course the main point of the software is to allow one-to-one, one-to-many, many-to-one and many-to-many TX/RX connections.

Other benefits of ATEN KE Matrix Management Software include:

  • Intuitive Dashboard – System Status, Device Connections, Scheduled Profiles, and User Sessions
  • Boundless Switching – simply move the mouse cursor across screen boundaries to switch between different receivers
  • Unlimited Video Walls – create multiple video walls with up to 8 x 8 (64 displays max) in each layout
  • Advanced Scheduling – improves efficiency and saves costs by allowing media playback to be set based on time and date
  • Video grouping of up to 4 sets of KE series devices to support Multi-Display applications

Usability

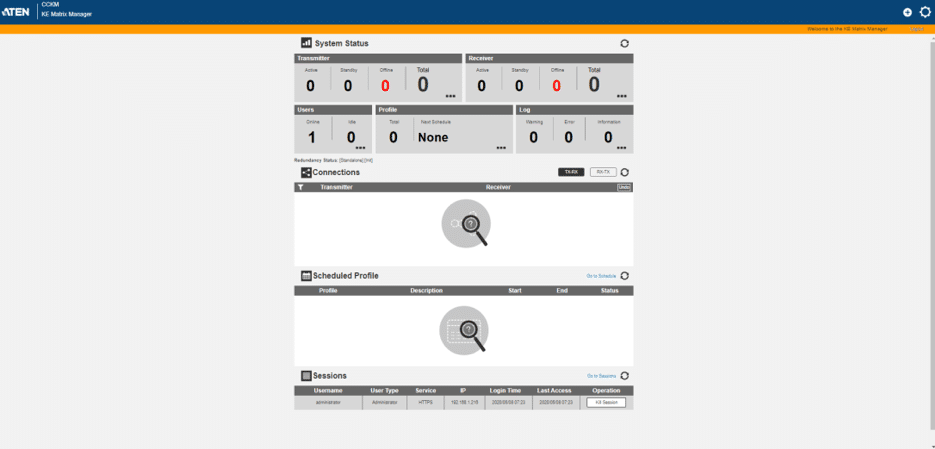

After the hardware is where it needs to be and the software is successfully installed, we’re ready to dive into usage. After logging in directly to the CCKM through the browser setup, users are brought to the main dashboard. Here users can add TX’s / RX’s by clicking the + sign on the top right.

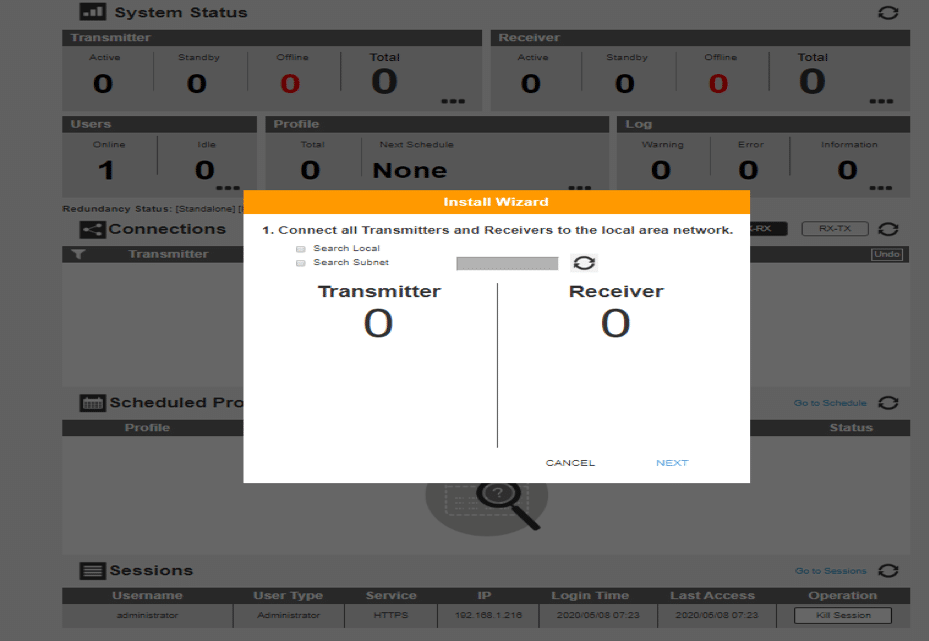

Once one clicks the +, they can search for Transmitters and Receivers to add.

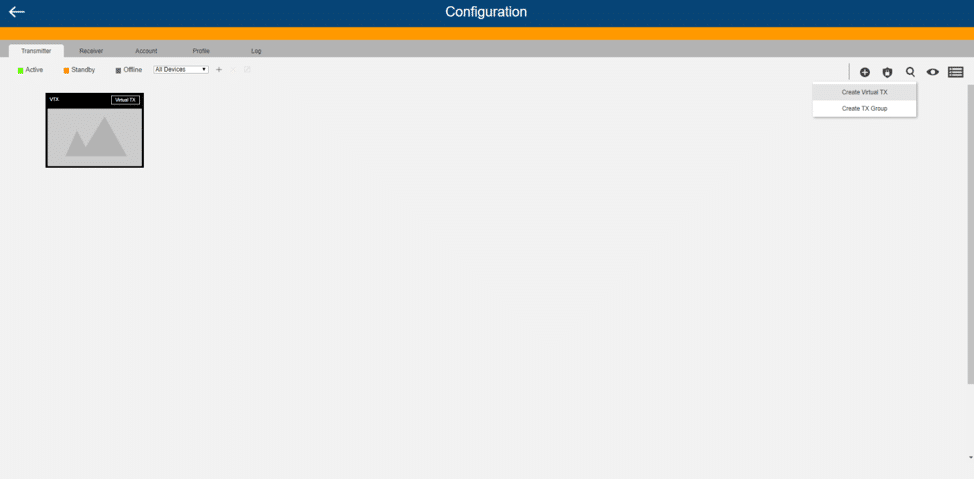

After adding the desired transmitter and/or receivers users can configure the devices as needed.

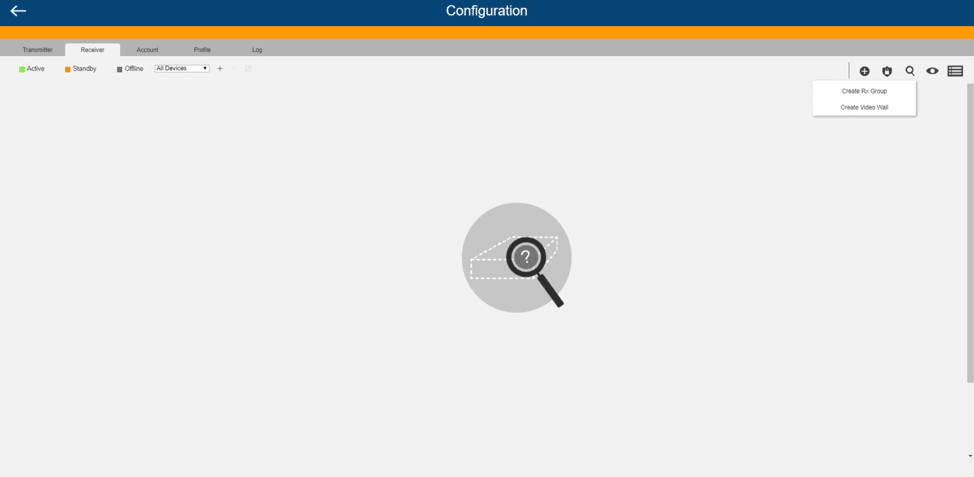

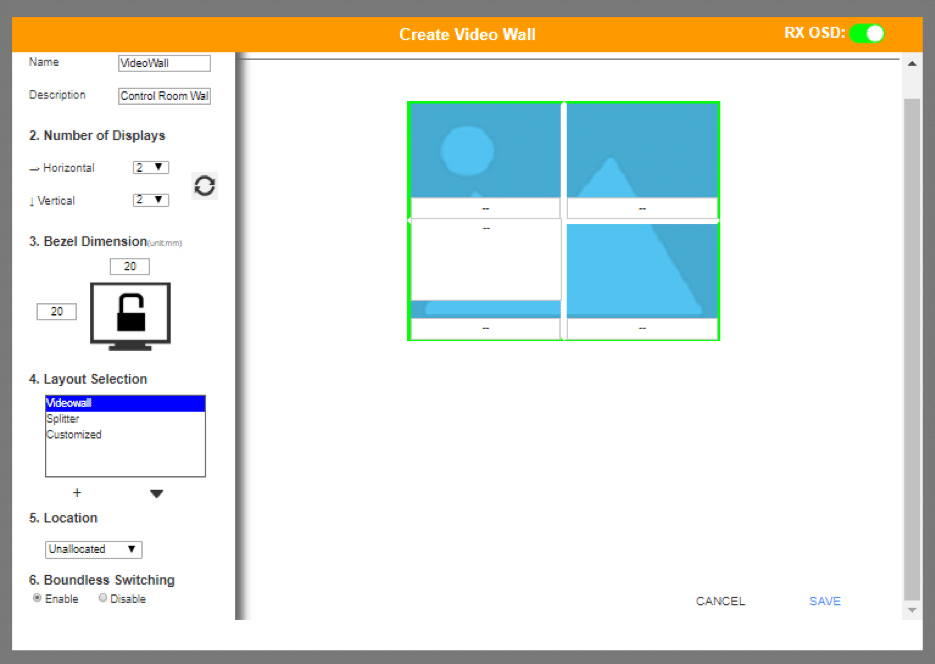

Once the transmitters and receivers are added and configured, users have the option of adding other devices such as virtual TX’s, Transmitter Groups, Receiver Groups, and create a video wall scenario.

With adding any of the options users also have the option of Boundless Switching.

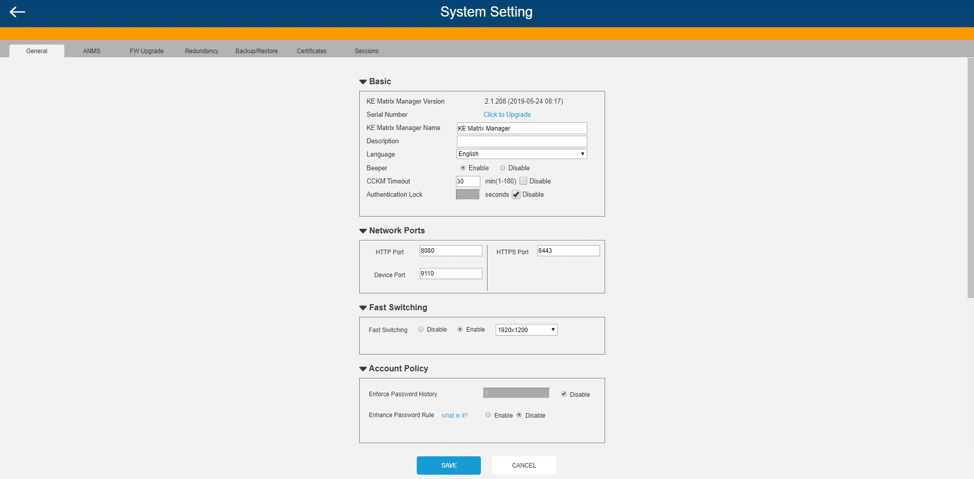

CCKM also enables additional features such as fast switching, the ability to perform firmware upgrades, remote authentication, set up redundancy, and backup/restore.

Concluding Thoughts

For enterprise and retail deployments of monitors, displays and billboards, ATEN has a number of easy to deploy solutions to almost every scenario of video interconnect and networking backend. In our lab the ATEN transmitters and receivers connected instantly to one another with virtually no fuss, requiring minimal work for a point to point link. Obviously larger deployments can also be centrally managed, for which ATEN offers their CCKM KE Matrix Management suite. Overall the ATEN KVM over IP Extender suite of products offers a solution for almost every long-distance display need, with the management software to bring it all together.

ATEN 4K KVM over IP Matrix System
