The Seagate 2-bay NAS, along with the recently reviewed 4-bay configuration, is part of Seagate's latest NAS line release. The Seagate NAS line is aimed at small or home offices without dedicated IT resources. It includes a Marvell 1.2GHz processor, 512MB of DDR3 RAM, and ships with Seagate NAS HDDs for a maximum capacity of 10TB (users can choose to receive their NAS drive-less or equipped with two 2TB, 3TB, 4TB, or 5TB drives). All hardware, software, and drives are made by Seagate allowing all parts of the NAS to work together seamlessly. Unlike its larger sibling, the 2-bay NAS only has a few RAID options (RAID0 and RAID1, with a JBOD option) but comes preconfigured to save setup time but users can change the configuration through SimpleRAID technology built into the OS.
The Seagate 2-bay NAS, along with the recently reviewed 4-bay configuration, is part of Seagate's latest NAS line release. The Seagate NAS line is aimed at small or home offices without dedicated IT resources. It includes a Marvell 1.2GHz processor, 512MB of DDR3 RAM, and ships with Seagate NAS HDDs for a maximum capacity of 10TB (users can choose to receive their NAS drive-less or equipped with two 2TB, 3TB, 4TB, or 5TB drives). All hardware, software, and drives are made by Seagate allowing all parts of the NAS to work together seamlessly. Unlike its larger sibling, the 2-bay NAS only has a few RAID options (RAID0 and RAID1, with a JBOD option) but comes preconfigured to save setup time but users can change the configuration through SimpleRAID technology built into the OS.
NAS OS 4 has a redesigned Device Manager to allow effortless management of data. Its App Manager and Sdrive allow for remote access on Android and iOS devices, so the user’s data is always available and can be accessed wherever there is Internet connection. The device creates a private cloud that physically resides on Seagate NAS, keeping files centrally located while allowing access for outside parties like clients and family. It can also be easily integrated with other cloud services such as Amazon S3 and Box. NAS OS 4 is thanks in large part to LaCie design team (that has now fully integrated with Seagate). The new operating system is an easy-to-use and intuitive OS. It is a web-based interface that simplifies setup and management and is designed specifically for the Seagate NAS line.
The Seagate 2-bay NAS carries a price tag of $169 (drive-less), $349 (4TB), $499 (8TB) and $599 (10TB) and is backed by a 3-year warranty.
Specifications
- Models and total capacities:
- 2-bay: up to 10TB (2 x 5TB)
- Form Factor: Small desktop
- CPU frequency: 1.2GHz
- Memory: 512MB DDRIII
- Interface: Gigabit Ethernet
- External Ports:
- 2 x USB 3.0
- 2 x 10/100/1000 Base-TX
- Hot-swappable HDD trays
- Physical Dimensions (2-bay):
- Height: 6.69"
- Width: 4.72”
- Depth: 8.58”
- Weight: 3.86lbs
- Environmental Specifications:
- Operating: 0 to 40°C
- Non-operating: -40 to 65°C
- Relative Humidity, Operating/Nonoperating (non-condensing, %): 0 to 80/0 to 95
- Power Consumption (2-bay x 2 HDD/4-bay x 4HDD):
- Operation mode: 16W/32W
- Power-saving mode: 7W/13W
- WOL mode: 0.55W/0.95W
- Operating system: NAS OS 4 (embedded Linux)
- 3-year warranty
Design and Build

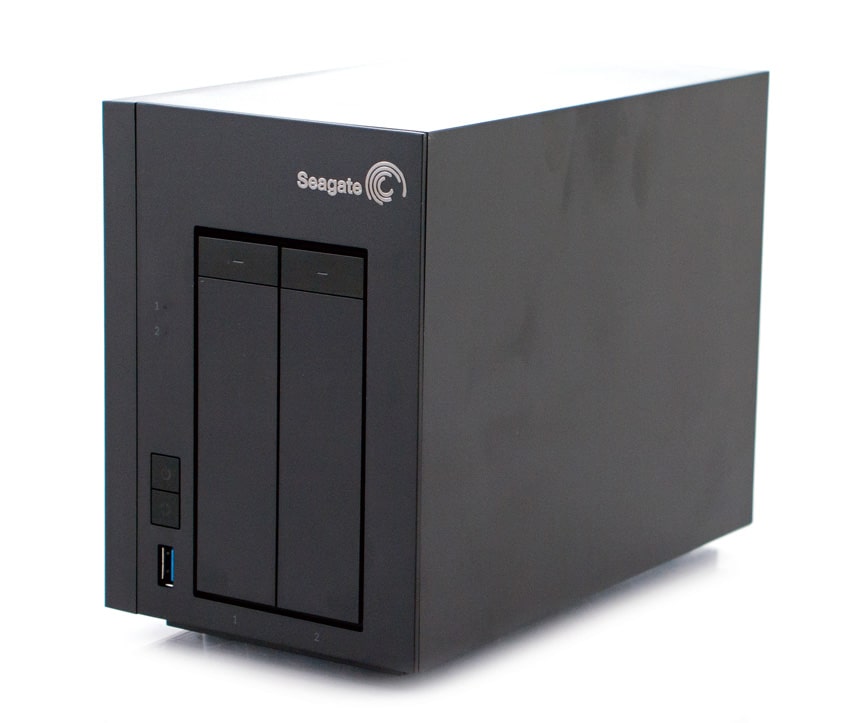

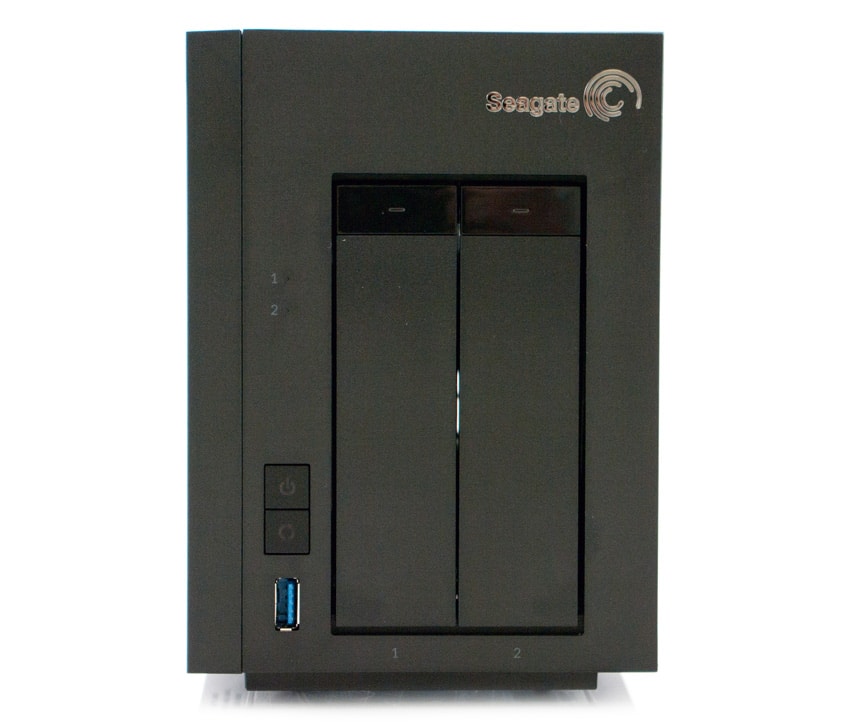

The Seagate 2-bay NAS is quite small with sturdy black molded plastic making up its chassis. The users can access the two drives at the front of the device through the two hot-swappable bays. There is Seagate branding on the top right hand side. On the left hand side starting from top to bottom are two LED lights corresponding to drive status, a power button, a backup button, and a USB 3.0 port.

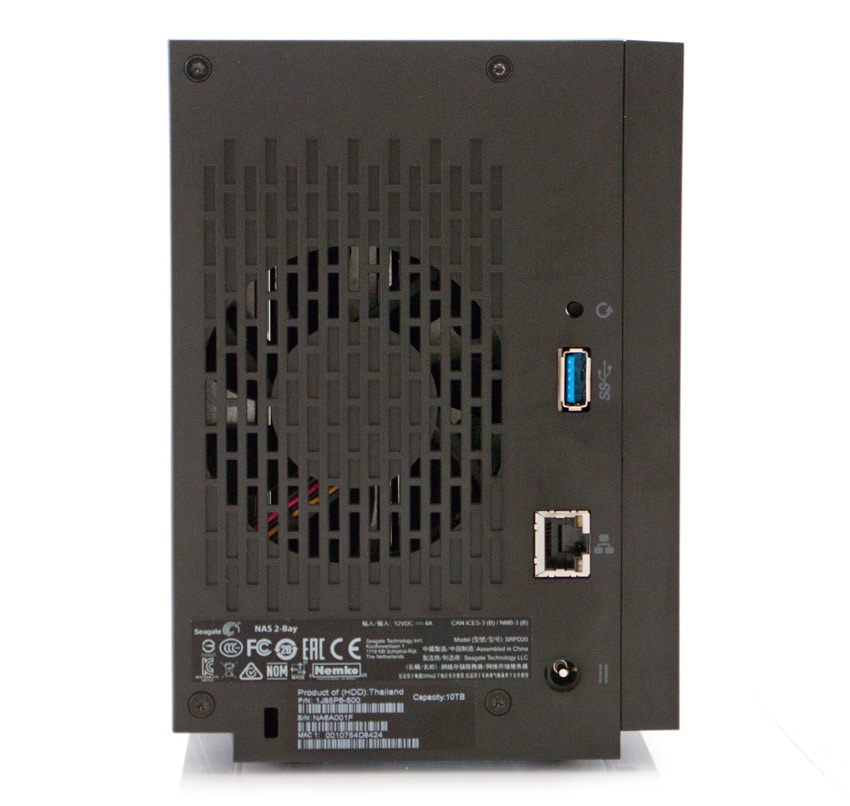

The back of the device is composed mostly of the fan. To the right of the fan is a reset button, USB 3.0 port, a network port, and the AC power adaptor interface. The device can also be secured via its Kensington Lock port on the bottom left hand corner.
Drive trays for the Seagate NAS are toolless, using a unique side bending mechanism to snap the drives into place. The trays are very well engineered, when swapping drives, having such an easy clip and go design is great. Most other toolless designs still require extra pieces that snap into place.
Usability

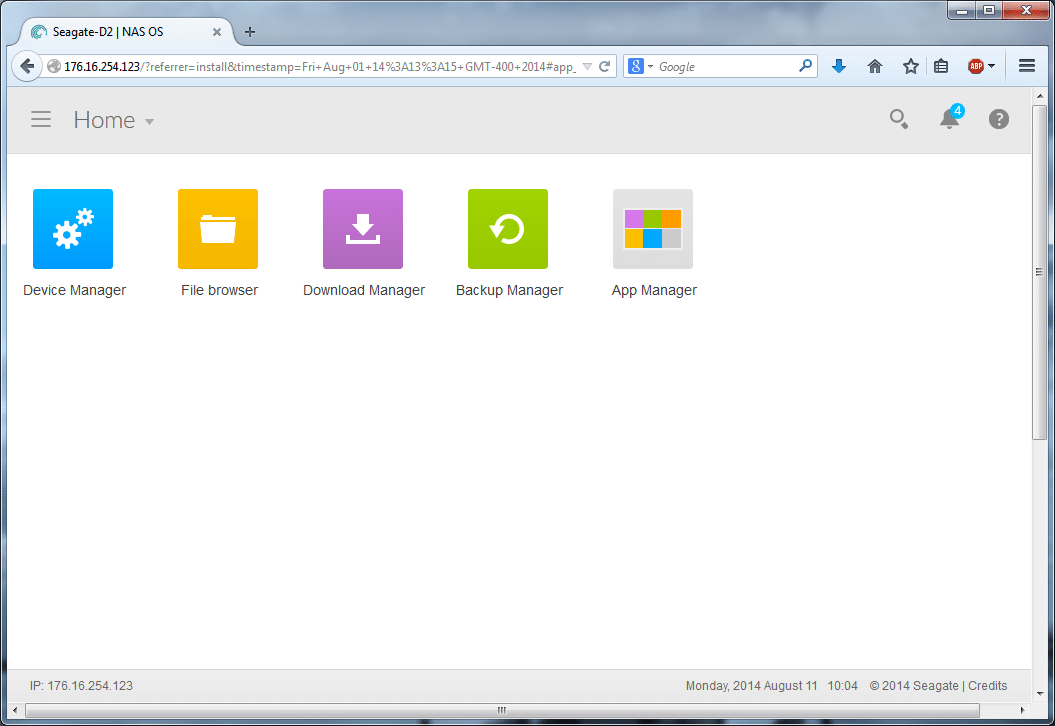

The Seagate NAS comes preconfigured with the desired capacity making setup simple for most, though a bare version is available. Connect an Ethernet cable, a power adapter, and press the power button and you are ready to go. Once you’re logged in, you’ll find a redesigned home screen with icons for Device Manager, File Browser, Download Manager, Backup Manager, and App Manager. The home screen also gives you the option to switch between NAS, restart, or put the device to sleep.

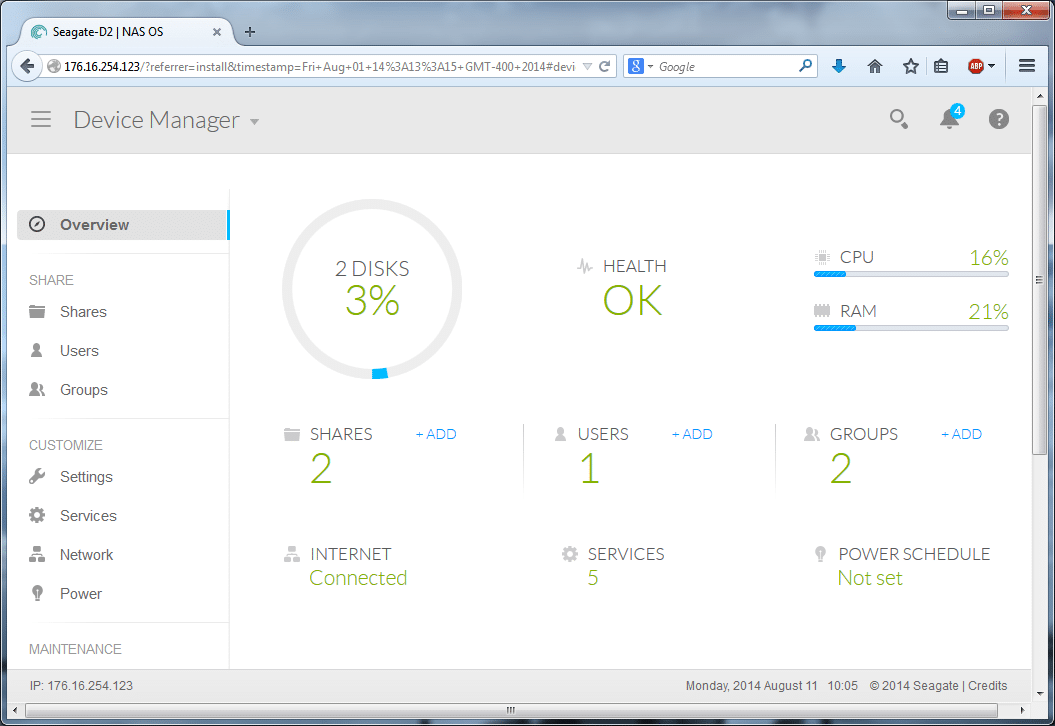

The Device Manager provides overall NAS status and health, informing the user on the device's number of shares, users, group, CPU and RAM usage, and allowing access to settings.

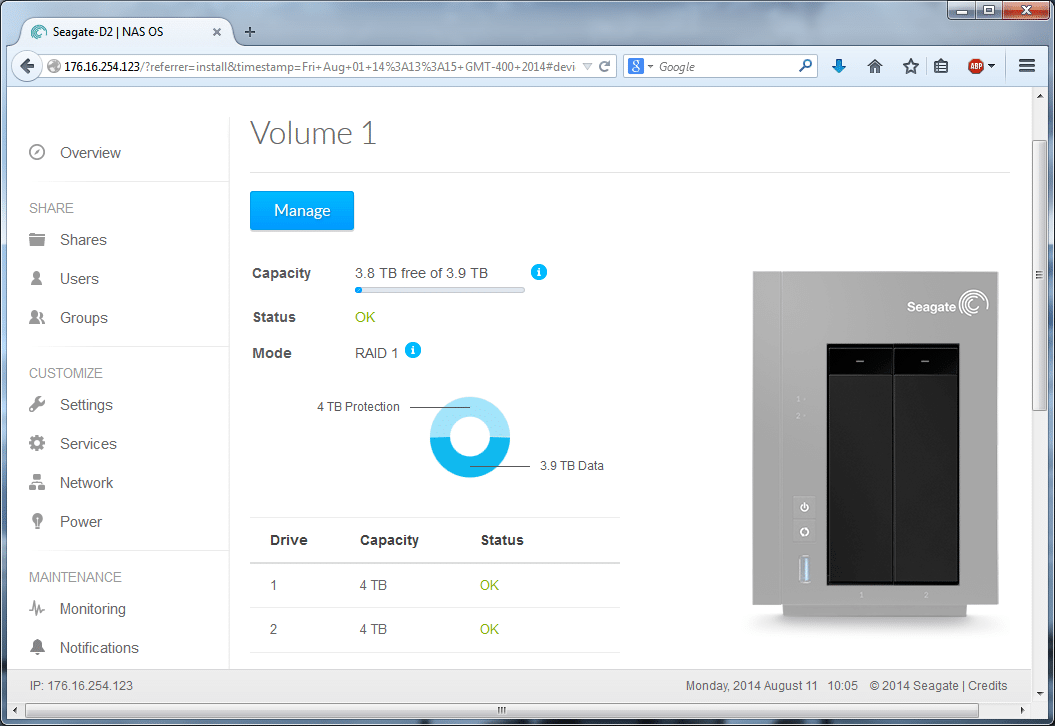

Through the Storage Overview tab, specific volumes can be managed. This tab gives you detailed capacity information, available space, and used space. It also shows drive status and RAID configuration.

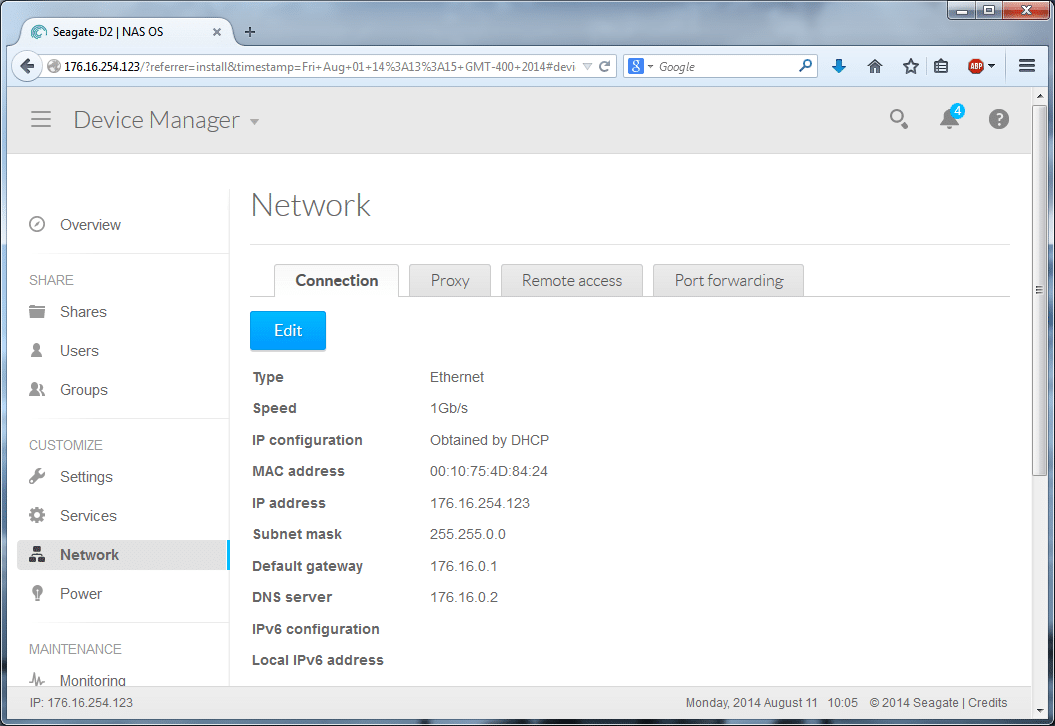

Through the Network tab, you can check network connections, IP addresses, status, and speed.
Overall the web interface is very simple and easy to use without advanced NAS experience. Users can manage their system without getting overwhelmed with minute administrative options. The NAS OS 4 has a few other features: through the Device Manager you can use the Services tab to make the device compatible with your devices on your network. Through Backup Manager, you can schedule various backups, restore from an existing backup, and do a network backup to another NAS OS device or cloud backup. App Manager allows you to download Seagate and third party apps. With File Browser you can view, upload, and download your various files. And Download Manager allows for easy downloads directly to your NAS.
Performance
We tested both CIFS/SMB and iSCSI performance in the Seagate NAS using 4TB Seagate NAS 3.5" drives, which are suited for operation in NAS environments. We also compared the Seagate NAS to the Synology DS214se and theWD MyCloud EX2, which we tested both CIFS/SMB and iSCSI performance with the WD Red 4TB.
Drives tested for this review:
- RAID1 CIFS/SMB
- RAID1 iSCSI
In order to fairly evaluate the performance of the Seagate NAS we need an environment that ensures that the NAS is the I/O bottleneck rather than the network. Therefore this review employs a Lenovo ThinkServer RD240 running multiple Windows Server 2012 VMs in an ESXi 5.1 environment connected via a quad-port Intel i350-T4 NIC through a Netgear ProSafe GS752TXS switch.
- 2 x Intel Xeon X5650 (2.66GHz, 12MB Cache)
- Windows Server 2008 Standard Edition R2 SP1 64-Bit running on VMware ESXi 5.1
- Intel 5500+ ICH10R Chipset
- Memory – 32GB (4 x 8GB) 1333Mhz DDR3 Registered RDIMMs
Netgear ProSafe GS752TXS Smart 52-port Switch
- 48 1GbE Ports, 4 10GbE SFP+ Uplink Ports
- 176Gbps Aggregate Bandwidth
- Enterprise Synthetic Workload Analysis
Our shared storage benchmark process preconditions each NAS into steady-state with the same workload the device will be tested with under a heavy load of 16 threads with an outstanding queue of 16 per thread, and then tested in set intervals in multiple thread/queue depth profiles to show performance under light and heavy usage. Since HDD-based shared storage reaches its rated performance level very quickly, we only graph out the main sections of each test.
Preconditioning and Primary Steady-State Tests:
- Throughput (Read+Write IOPS Aggregate)
- Average Latency (Read+Write Latency Averaged Together)
- Max Latency (Peak Read or Write Latency)
- Latency Standard Deviation (Read+Write Standard Deviation Averaged Together)
Our Enterprise Synthetic Workload Analysis includes four profiles based on real-world tasks. These profiles have been developed to make it easier to compare to our past benchmarks as well as widely-published values such as max 4k read and write speed and 8k 70/30, which is commonly used for enterprise drives.
- 4k
- 100% Read or 100% Write
- 100% 4k
- 8k 70/30
- 70% Read, 30% Write
- 100% 8k
- 8k (Sequential)
- 100% Read or 100% Write
- 100% 8k
- 128k (Sequential)
- 100% Read or 100% Write
- 100% 128k

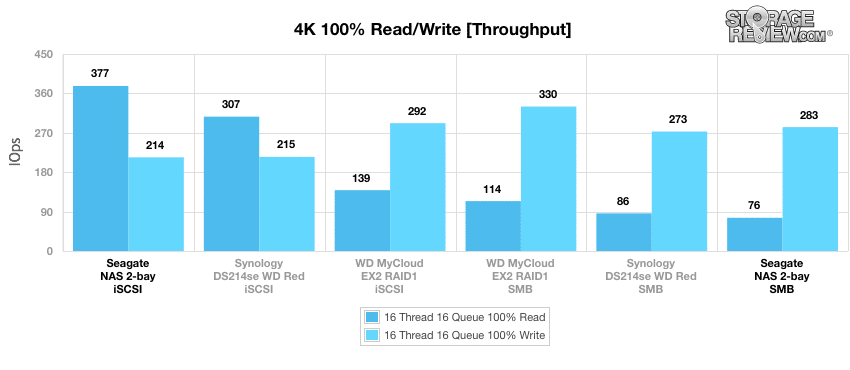

In the first of our workloads, we measured a long sample of random 4k performance with 100% write and 100% read activity to get our main results. In this benchmark, iSCSI configured drives tended to achieve better read performances than the CIFS configured drives, while the CIFS configured drive achieved better write performances than the iSCSI configured drives. The Seagate 2-bay NAS configured in iSCSI showed the fastest read performance of all of the devices tested (although its CIFS configuration had the slowest read performance overall), and the WD MyCloud EX2 configured in CIFS had the fastest write performance.

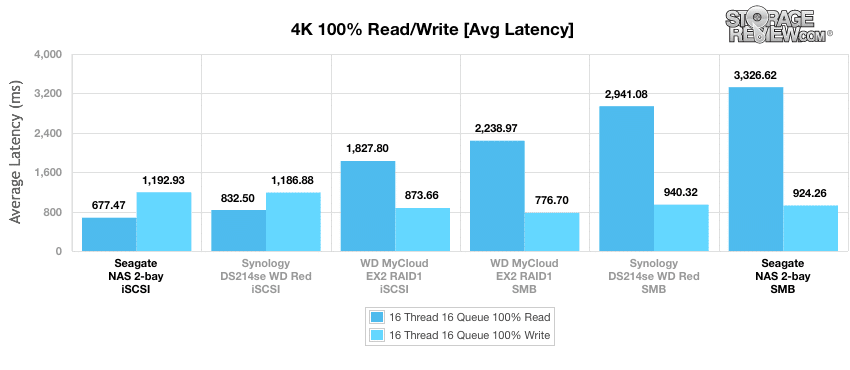

Once again, the iSCSI configured drives tended to perform better in read functions than the CIFS configured drives, which performed better in write functions. The Seagate 2-bay NAS configured in iSCSI had the fastest read performance overall with 677ms (and the slowest write performance with 1192ms), but its CIFS configuration had the slowest read performance overall (3326ms). The WD MyCloud EX2 configured in CIFS had the fastest write performance with 776ms.

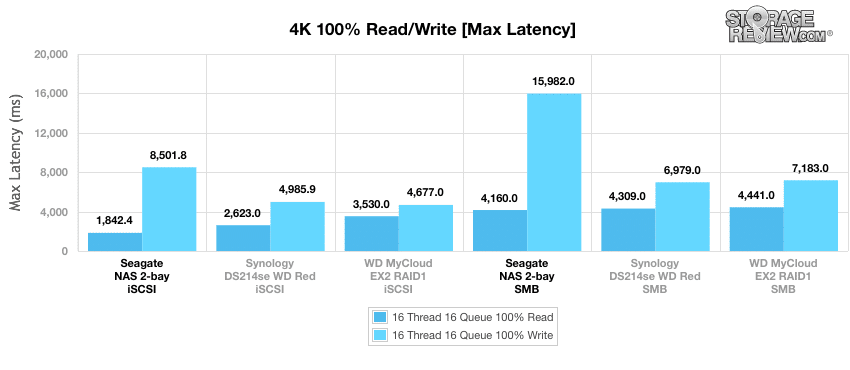

The iSCSI configuration of the Seagate 2-bay NAS showed the fastest read latency again with 1842ms, though its CIFS configuration had the slowest write latency with 15982ms. The CIFS configuration of the WD MyCloud EX2 had the slowest read latency (4441ms), although its iSCSI configuration had the fastest write latency with 4677ms.

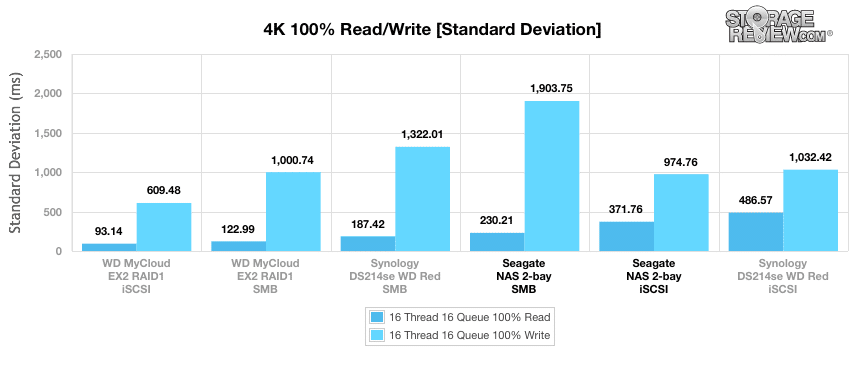

The WD MyCloud EX2 in iSCSI dominated our standard deviation benchmark, achieving the most consistent results in both read and write (93.14ms and 609.48ms, respectively). The Seagate 2-bay NAS configured in iSCSI performed reasonably consistently in write functions (975ms), and its CIFS configuration did well in read functions (230ms), but it had the least consistent write performance with 1903ms (which was well above all of the other drives and configurations). The Synology DS214se configured in iSCSI had the least consistent read performance (486ms).

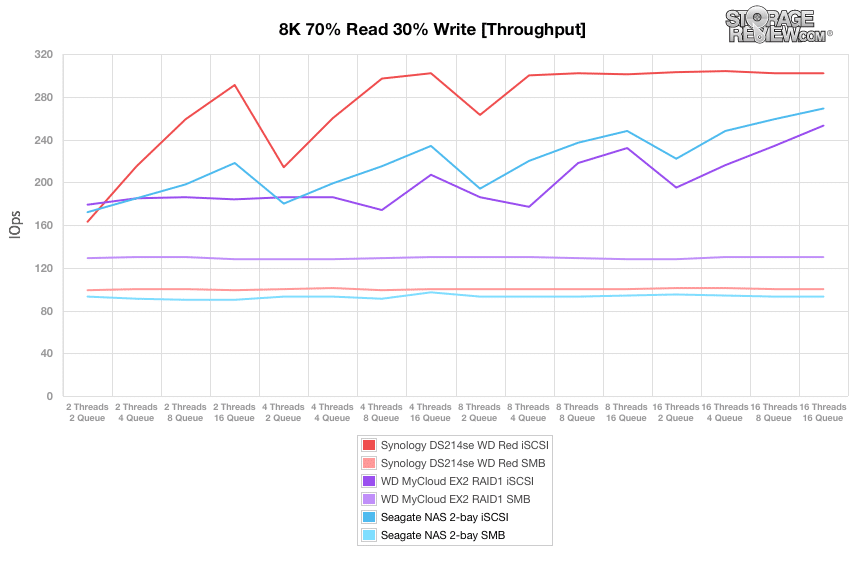

Our next benchmark measures 8k sequential throughput with a 16T/16Q load in 70% read and 30% write operations. The Synology DS214se configured in iSCSI dominated the majority of this benchmark. The Seagate 2-bay NAS configured in iSCSI held second place through the test, but its CIFS configuration was the slowest through the duration (although the CIFS configuration of the Synology DS214se performed relatively poorly as well).

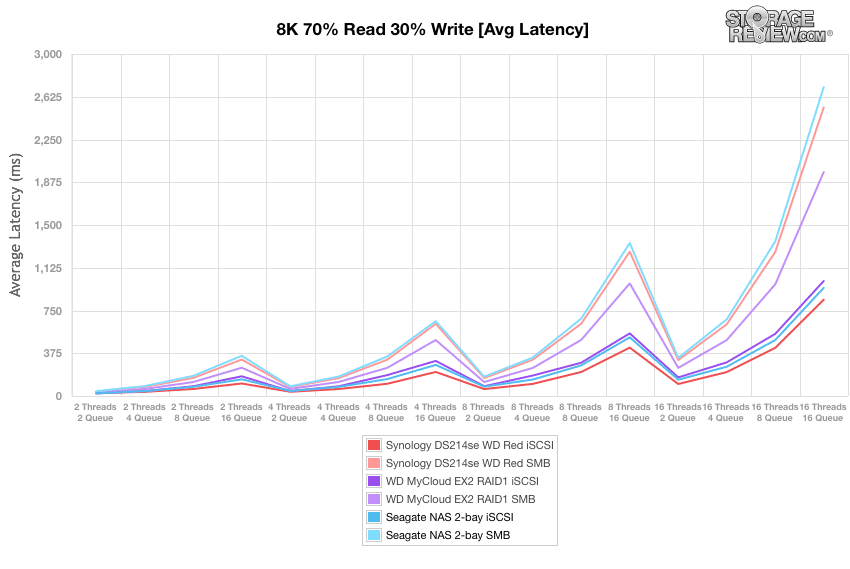

The results of the average latency benchmark almost exactly mirror the results of the throughput benchmark; The iSCSI configuration of the Synology DS214se and Seagate 2-bay NAS were the fastest and second fastest drives, respectively, and their CIFS configured drives were the second slowest and slowest, respectively.

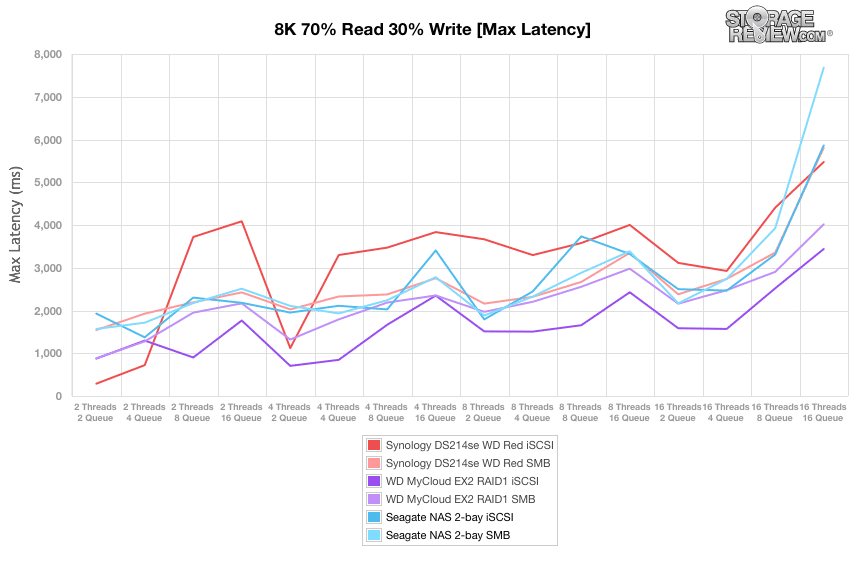

For the majority of the max latency benchmark, the iSCSI configuration of the Synology DS214se was the slowest, while its CIFS configuration and both configurations of the Seagate 2-bay had average performances. The WD MyCloud EX2 had the best performance; its iSCSI and CIFS configurations were the fastest and second fastest, respectively.

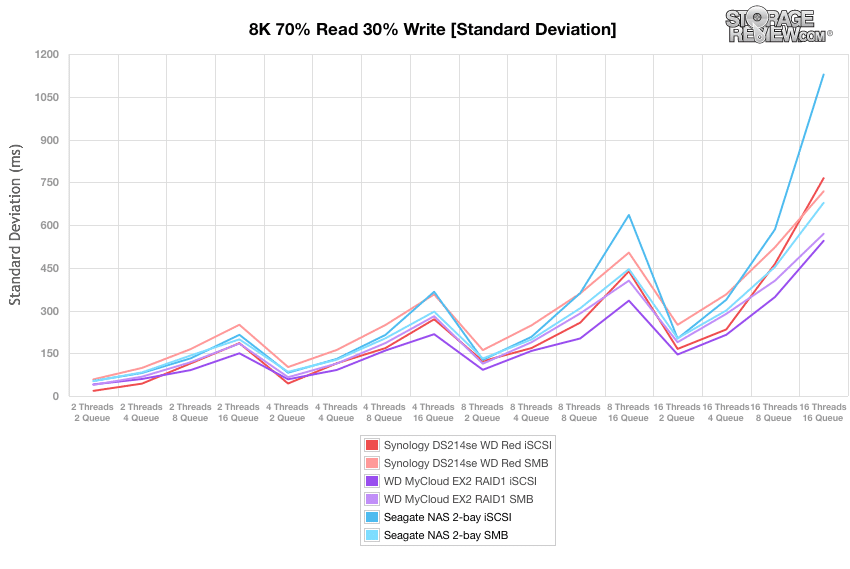

The iSCSI configuration of the Synology DS214se and WD MyCloud EX2 were the neck and neck top performers through the duration of the standard deviation benchmark. The iSCSI configuration of the Seagate 2-bay NAS seemed to be the least consistent drive for most of the test, while its CIFS configuration was generally average.

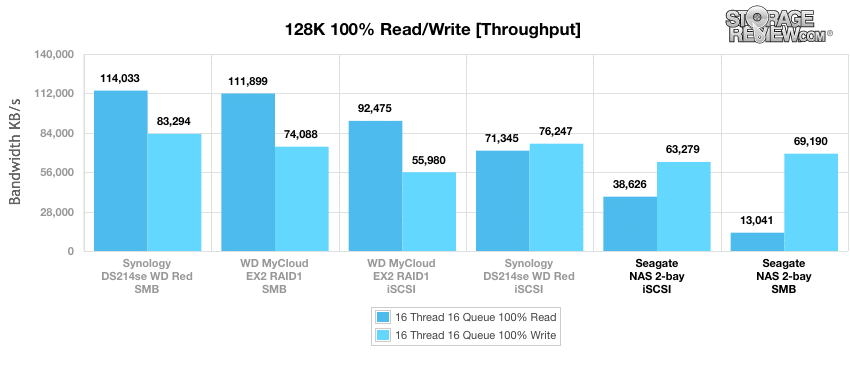

The last test in our small NAS Synthetic Workload testing is the 128k test, which is a large block sequential test that shows the highest sequential transfer speed. The Seagate 2-bay did not perform well in terms 128k performance, especially in read functions, which only reaching 39MB/s and 13MB/s in iSCSI and CIFS, respectively. Its write speeds were closer to average, but still weren't great compared to the other devices tested (63MB/s and 69MB/s in iSCSI and CIFS, respectively). The Synology DS214se and WD MyCloud EX2 (CIFS configurations) were the top performers in read functions, achieving 114MB/s and 112MB/s, respectively.
Conclusion
The Seagate NAS line is a 2-bay desktop form factor NAS aimed at home users and SOHO with no IT infrastructure. It comes equipped with a Marvell 1.2GHz processor, 512 MB DDR3 ram, and can run up to 10TB in raw capacity. The device runs the new operating system NAS OS 4, which is designed for simplification and ease-of-use. The Seagate NAS ships with the Seagate NAS HDDs, meaning everything–from the software, hardware, and drives–are all made by Seagate and designed to work together well. It's always a welcomed feature to have in-house components for storage devices like these, as it usually means greater longevity and reliability, or at a minimum, one phone number to call for support.
As far as performance goes, we measured both CIFS/SMB and iSCSI configurations in the Seagate NAS and compared it to two other SOHO NAS units in a similar price category. Though it performed fairly well in our 4K tests in the iSCSI protocol, overall it wasn't a strong performer compared to the other units. However the Seagate NAS line is designed to be simple to use right out of the box for those with little IT experience, and that's exactly what it delivers. On that score the Seagate NAS does well, it's incredibly simple to use and has a very clean and intuitive UI; all with a competitive price point to boot.
Pros
- Great iSCSI read performance
- 3-year warranty
- Single support contact for drives/system
Cons
- Poor multi-threaded sequential read performance
- Poor CIFS performance overall
The Bottom Line
The Seagate 2-bay NAS is a good option for home users or small office situations that need a simple NAS that is ready to use right out of the box.
