Cisco UCS X-Series Deep Dive

by Adam Armstrong
Cisco UCS X

At the beginning of June Cisco hosted a Future Cloud event it showcased several of its cloud innovations. From our view, the event was highlighted by the new Cisco UCS X-Series, powered by Cisco Intersight. X-Series is a bit different than past rack or blade models, as it blends systems and node types into a highly flexible infrastructure that is cloud-managed.

At the beginning of June Cisco hosted a Future Cloud event it showcased several of its cloud innovations. From our view, the event was highlighted by the new Cisco UCS X-Series, powered by Cisco Intersight. X-Series is a bit different than past rack or blade models, as it blends systems and node types into a highly flexible infrastructure that is cloud-managed.

Cisco UCS X

what is Cisco UCS X-Series?

The Cisco Unified Computing System (UCS) is a very long-running project. First installed at customers’ sites way back in 2009, UCS has been through many iterations as it adapted to the changing market. The core idea at inception and still today, is a server that is composed of many key features such as compute hardware, virtualization support, switches, and management software. UCS is quite popular, racking up over 55,000 customers since it first debuted. The company has released several versions including Mini and HyperFlex Edge units for smaller locations.

The IT landscape is continuing to change and now it is looking more and more cloud-centric. Everyone has some cloud strategy and it is mainly hybrid and/or multi-cloud. The Cisco UCS X-Series is a new modular UCS that is managed from the cloud.

The new series comes with the ability to respond with the performance or scale modern workloads need. The main thrust of the Cisco UCS X-Series is highly adaptable hardware or hardware that acts more like software. While this new UCS can be aimed at any number of use cases, the specific ones Cisco calls out are virtualized workloads, private cloud, enterprise applications, Database management systems, Infrastructure applications, cloud-native applications, in-memory databases, Big data clusters, and GPU-accelerated AI/ML workloads.

Currently, the Cisco UCS X-Series comes in two pieces though it will expand to more as time goes on. Let’s take a look at the available components.

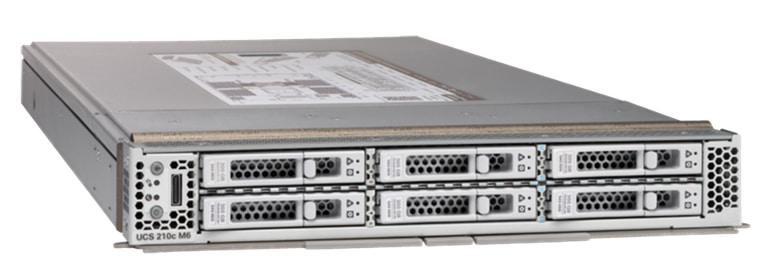

Cisco UCS X210c Compute Node

Cisco UCS X compute

On the compute side of things, Cisco is offering the Cisco UCS X210c compute node. The company is stating that this node is a merging of the density and cabling advantages of a blade server and the expandability of a rack server. The X210c offers plenty of I/O, storage, and networking. It also comes with a vertical orientation that the company claims will provide better cooling. As with the rest of the UCS, the X210c is managed by Cisco Intersight.

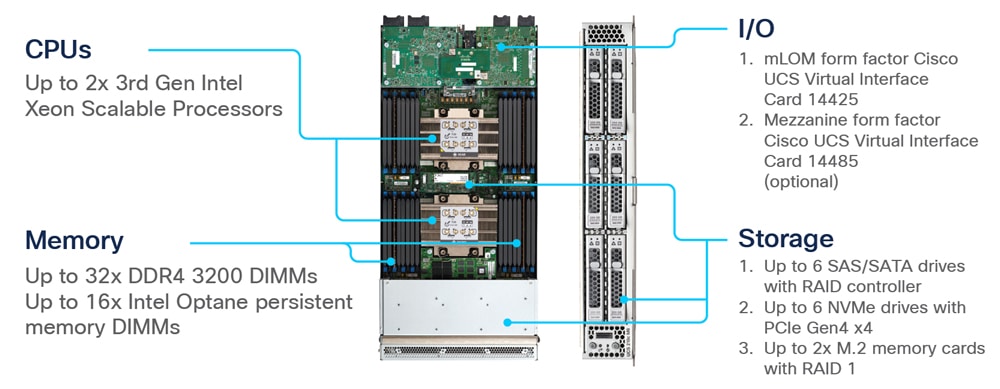

Let’s get into the nuts and bolts. For hardware, the server comes with up to two 3rd gen Intel Xeon Scalable processors with up to a total of 80 cores. There are 32 DIMM slots total, sixteen per socket. This can translate into up to 8TB of 3200 MHz DDR4 RAM. Since it is Intel-based, users also have the option of adding up to 16x Intel Optane Pmem modules that can bring the total memory to 12TB.

The server node comes with the VIC 14425 modular LAN on the motherboard for two 25Gb ports. There is a rear mezzanine slot for two more 25Gb VIC 14825 ports. The front mezzanine slot is for either a Cisco FlexStorage RAID controller or a Cisco FlexStorage passthrough. For storage, there are six drive bays that can house SAS, SATA, or NVMe storage along with two M.2 slots with hardware RAID support.

Cisco UCS X210c Specifications

Processors Up to 2 3rd Gen Intel Xeon Scalable Processors (1 or 2)
Memory 32 DDR4 DIMM slots (16 DIMMS per CPU): 16, 32, 64, 128 at up to 3200 MHz
Intel Optane DC persistent memory 16 DIMM slots: 128, 256, and 512 GB at up to 3200 MHz
mLOM mLOM slot for Cisco UCS VIC 14425
Mezzanine adapter (rear) Cisco UCS VIC 14825 mezzanine card with a bridge connector
Mezzanine module (front) Front mezzanine module options:

  • NVMe passthrough controller (for NVMe drives only)
  • RAID controller with 4GB cache (for SSD and mix of SSD and NVMe drives)
  • No front mezzanine module
Internal storage Front mezzanine storage options:

  • Up to 6 x 2.5-inch SAS and SATA RAID-compatible SSDs
  • Up to 6 x 2.5-inch NVMe PCIe drives A mixture of up to six SAS/SATA or NVMe drives
  • Mini storage module with 2x M.2 (up to 960GB per drive) with hardware RAID
Management Cisco Intersight software (SaaS, virtual appliance, and private virtual appliance)
Temperature: operating 50° to 95°F (10° to 35°C)
Temperature: nonoperating -40° to 149°F (–40° to 65°C)
Humidity: operating 5% to 93% noncondensing
Humidity: nonoperating 5% to 93% noncondensing
Altitude: operating 0 to 10,000 ft (0 to 3000m); maximum ambient temperature decreases by 1°C per 300m
Altitude: nonoperating 40,000 ft (12,000m)

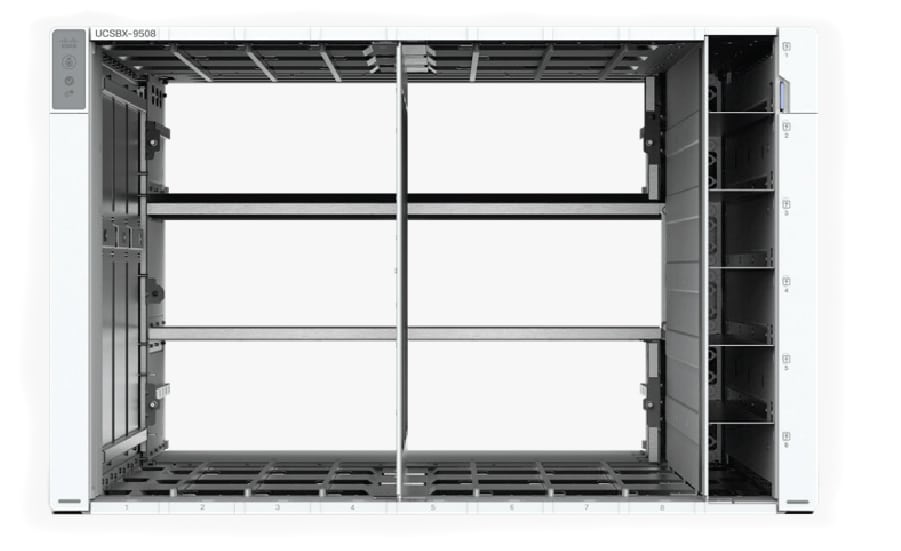

Cisco UCS X9508 Chassis

Cisco UCS X chassis

The Cisco UCS X9508 is a midplane-free chassis. The compute nodes are inserted through the front in a vertical fashion where they connect to I/O connectivity modules (horizontally oriented) in the rear.

The chassis is 7U in size and has eight slots for a variety of nodes. Currently, the above compute nodes are all that are available, but there will be future support for GPU, FPGA, and storage nodes.

The chassis sports two Cisco UCS 9108 Intelligent Fabric Modules for unified Ethernet fabric (with future support for other standards). There are six 2800W PSUs as well as four 100mm fans for cooling.

Cisco UCS X9508 Chassis Specifications

Height 12.05 in (30.6 cm); 7 RU
Width 17.55 (44.6 cm); fits standard 19-inch square-hole rack
Depth 34.81 in (88.4 cm)
Node slots 8
Intelligent Fabric Module (IFM) 2 x Cisco UCS 9108 Intelligent Fabric Module with 8x 25G SFP28 ports
X-Fabric module slot 2x Cisco UCS X-Fabric module rear blank slots (for future expansion)
Fan module 4 x 100mm hot-swappable dual-rotor fans
Power supply bays 6
Power supplies 2800W Titanium certified
Input voltage 100 to 127 V AC 200 to 240V AC
Maximum input VA 3200 VA at 230 VAC
Maximum output power per power supply 2800 W @200-240 VAC Nominal 1400 W @100-127 VAC Nominal
Frequency 50 to 60 Hz
Output voltage 54 VDC
Power connector IEC320 C20
Power redundancy Nonredundant, N+1, N+2, and Grid (N+N)
Power Entry Module (PEM) 2x PEM for AC inputs, PEM1 (PSU1,2,3), PEM2 (PSU4,5,6)
Management Cisco Intersight software (SaaS, Virtual Appliance, and Private Virtual Appliance)
Temperature: operating 50 to 95°F (10 to 35°C) (as altitude increases, maximum temperature decreases by 1°C per 300m)
Temperature: nonoperating -40 to 149°F (-40 to 65°C); maximum altitude is 40,000 ft
Humidity: operating 10% to 90% noncondensing, 28°C max
Humidity: nonoperating 5% to 93% noncondensing, 38°C max
Altitude: operating 0 to 10,000 ft (0 to 3000m); maximum ambient temperature decreases by 1°C per 300m
Altitude: nonoperating 40,000 ft (12,000m)
Sound pressure level 83 dBA – at normal operating temperature

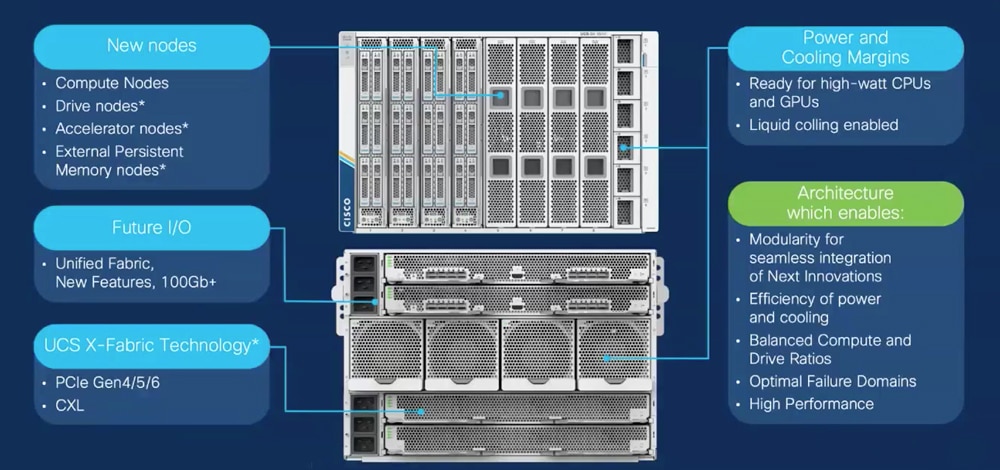

Putting it All Together

As it stands, users would slide in the compute nodes vertically from the front. These then connect to the provided Cisco 9108 Intelligent Fabric Modules granting up to 200 Gbps of unified fabric connectivity per compute node. The IFMs connect to the Cisco Integrated Management Controller. This gives it a single point of connectivity and management. Here the system connects to either a Cisco UCS 6454 or 64108.

The whole kit and kaboodle are controlled by Cisco Intersight. Instead of having multiple things to go through, there is just a single GUI to deploy and manage it all. There is only one compute node offered at the moment but as new nodes become available, Intersight will incorporate them as they are plugged in through UCS’s X-Fabric technology. As noted, Cisco intends to add nodes specifically for GPUs and FPGAs, a storage node with NVMe drives, and a memory/persistent memory node for in-memory computing.

When modern apps are leveraged, various apps needed various resources. In the past, one would have to just really pump up their servers with performance, storage, and accelerators like GPUs. The Cisco UCS X-Series intends to deliver the resources needed in a simple manner or cloud-like. This means that the new X-Series will be better set for future apps as well.
