Home Consumer QNAP TS-464 (4-bay) and TS-664 (6-bay) NAS Solutions Now Available

QNAP TS-464 (4-bay) and TS-664 (6-bay) NAS Solutions Now Available

by Lyle Smith

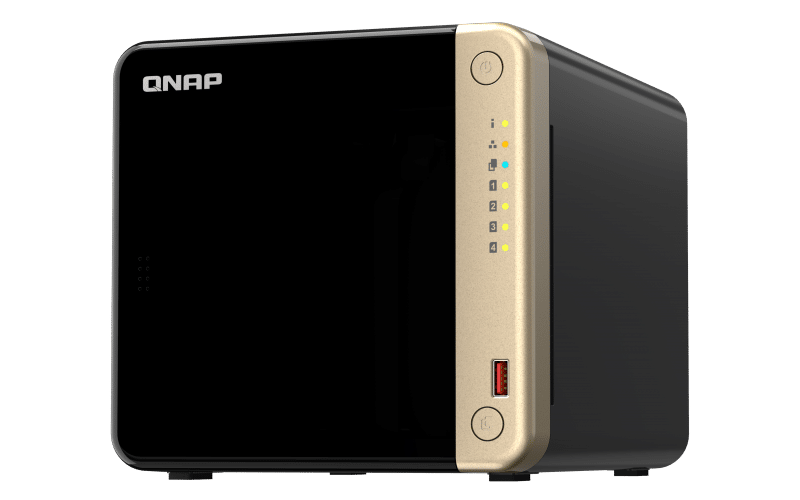

QNAP TS-464-4G front

QNAP has announced the launch of their 4-bay TS-464 and 6-bay TS-664 quad-core 2.5GbE NAS solutions. Ideal for professionals and office users with high-speed demands, the new TS-x64 series comes equipped with M.2 NVMe SSD slots and 4K HDMI output as well as PCIe Gen3 expansion capabilities for 10GbE or 5GbE connectivity and QM2 cards for M.2 SSD caching.

QNAP has announced the launch of their 4-bay TS-464 and 6-bay TS-664 quad-core 2.5GbE NAS solutions. Ideal for professionals and office users with high-speed demands, the new TS-x64 series comes equipped with M.2 NVMe SSD slots and 4K HDMI output as well as PCIe Gen3 expansion capabilities for 10GbE or 5GbE connectivity and QM2 cards for M.2 SSD caching.

QNAP indicates both models are also ideal for virtual machine displays and smooth multimedia streaming while offering Snapshot support to help protect data from ransomware threats.

QNAP TS-464-4G front

The TS-x64 series features an Intel Celeron N5105/N5095 quad-core 4-thread processor (burst up to 2.9 GHz) with Intel AES-NI encryption engine and can be outfitted with up to 16GB of dual-channel memory (4GB comes standard). For connectivity, they feature two 2.5GbE ports, two USB 2.0 (480Mbps) ports, and two USB 3.2 Gen 2 (10Gbps) ports that provide speedier data transfers and backups. Its M.2 PCIe Gen3 slot allows for cache acceleration or SSD storage pools to help improve overall performance.

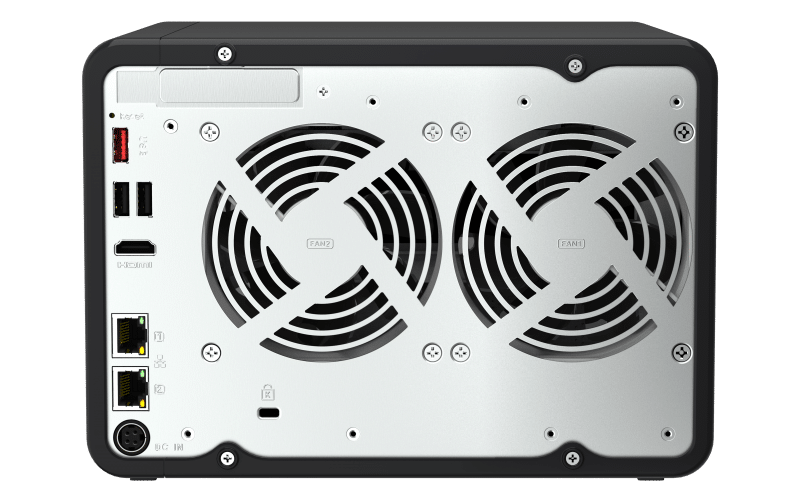

QNAP TS-664-4G back

As indicated above, users can also add a 10GbE network card for speedy wired connectivity, or a QM2 card for NVMe SSD caching or Qtier. The TS-x64 series can also scale as your storage needs grow via QNAP’s TL and TR storage expansion enclosures.

Like all QNAP NAS solutions, the TS-x64 series is managed by the latest QTS 5.0 operating system, which features a comprehensive range of NAS home and business applications. This includes:

  • HBS (Hybrid Backup Sync) realizes efficient local/remote/cloud backup jobs
  • Block-based snapshots make data protection and recovery easier, helping to mitigate the threat of ransomware
  • HybridMount provides cloud storage gateways that integrate private and public cloud storage and enable local caching
  • Virtualization Station and Container Station enable light virtualization applications
  • QVR Elite helps deploy a cutting-edge smart surveillance system

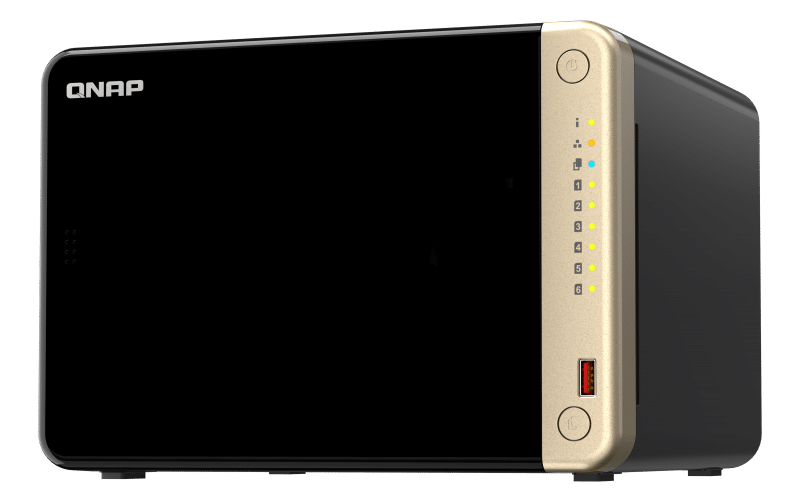

  • Multimedia applications like PlexQNAP TS-664-4G front

QNAP TS-x64 Key Specifications

  • TS-464-4G: 4 x 3.5-inch SATA 6Gb/s drive bays, 4 GB DDR4 memory
  • TS-664-4G: 6 x 3.5-inch SATA 6Gb/s drive bays, 4 GB DDR4 memory
  • Intel Celeron N5105/N5095 quad-core processor (burst up to 2.9 GHz); DDR4 SODIMM dual-channel memory (supports up to 16 GB); hot-swappable 2.5/3.5-inch SATA 6Gbps HDD/SSD; 2 x M.2 2280 PCIe Gen 3 x1 slots, 1 x PCIe Gen3 x2 slot; 2 x 2.5GbE RJ45 ports, 1 x HDMI 2.0 4K output; 2 x USB 3.2 Gen2 ports, 2 x USB 2.0 ports

QNAP TS-x64 Detailed Specifications

CPU Intel Celeron N5105/N5095 4-core/4-thread processor, burst up to 2.9 GHz
CPU Architecture 64-bit x86
Graphic Processors Intel UHD Graphics
Floating Point Unit Yes
Encryption Engine (AES-NI)
Hardware-accelerated Transcoding Yes
System Memory 4GB SODIMM DDR4 (1 x 4 GB)
Maximum Memory 16 GB (2 x 8GB)
Memory Slot 2 x SODIMM DDR4

  • For dual-DIMM configuration, you must use a pair of identical DDR4 modules.
Flash Memory 4GB (Dual boot OS protection)
Drive Bay
  • 4 x 3.5-inch SATA 6Gb/s (TS-464-4G)
  • 6 x 3.5-inch SATA 6Gb/s (TS-664-4G)
  • The system is shipped without HDD
Drive Compatibility
  • 3.5-inch SATA hard disk drives
    2.5-inch SATA hard disk drives
    2.5-inch SATA solid state drives
Hot-swappable Yes
M.2 Slot 2 x M.2 2280 PCIe Gen 3 x1
SSD Cache Acceleration Support Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot Slot 1: PCIe Gen 3 x2
USB 2.0 port 2
USB 3.2 Gen 2 (10Gbps) Port 2 x Type-A
IR Sensor  (Optional QNAP RM-IR004 remote control)
HDMI Output 1, HDMI 2.0
Form Factor Tower
LED Indicators Power/Status, LAN, USB, HDD1-4
Buttons Power, USB copy, Reset
Dimensions (HxWxD) 6.61 × 6.69 × 8.9 inch / 6.61 × 9.25 × 8.9 inch
Weight (Net) 4.98 lbs / 6.39 lbs
Weight (Gross) 7.94 lbs / 10.05 lbs
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 90W adapter, 100-240V
Power Consumption: HDD Sleep Mode 21.618 W
Power Consumption: Operating Mode, Typical 40.536 W

Tested with drives fully populated.

Fan 1 x 120mm, 12VDC
System Warning Buzzer
Kensington Security Slot Yes
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 1500

QNAP TS-x64 Availability and Pricing

The TS-464 and TS-664 (diskless) are available now for $950 and $1,230, respectively.

QNAP TS-464

QNAP TS-664
