Home Consumer Lenovo ThinkPad X1 Extreme Gen 2 Review

Lenovo ThinkPad X1 Extreme Gen 2 Review

by Lyle Smith

The ThinkPad X1 Extreme Gen 2 is a thin, lightweight mobile workstation that focuses on a balance between power and portability. Featuring 9th Generation Intel Core processor and NVIDIA GeForce GTX graphics, this 15-inch laptop is designed for a range of different use cases including IT and content creators looking for less expensive options compared to the company’s other options like the Lenovo P73.

The ThinkPad X1 Extreme Gen 2 is a thin, lightweight mobile workstation that focuses on a balance between power and portability. Featuring 9th Generation Intel Core processor and NVIDIA GeForce GTX graphics, this 15-inch laptop is designed for a range of different use cases including IT and content creators looking for less expensive options compared to the company’s other options like the Lenovo P73.

Lenovo ThinkPad X1 Extreme Gen 2

Under the hood shows some decent choices for hardware. Users have the option of outfitting the Gen 2 X1 with a 9th Generation Intel Core i5-9300H Processor (2.40GHz, up to 4.10GHz with Turbo Boost, 4 Cores, 8MB Cache) up to an Intel Core i9-9880H with vPro (2.30GHz, up to 4.80GHz with Turbo Boost, 8 Cores, 16MB Cache). Standard memory is just 8GB; however, this can be expanded to a generous 64GB DDR4 of RAM. Graphics options only include the NVIDIA GeForce GTX 1650 Max-Q 4GB, a mid-range professional graphics card, while users have the option of upgrading their build (from a 256GB PCIe SSD) to add a 1TB model. This will add a significant cost to the overall price, however.

For connectivity, the ThinkPad X1 Extreme Gen 2 includes 4 x USB 3.1 ports, including two Gen 1 and two Gen 2 Type-C Thunderbolt 3. It also features SD and smart card readers, HDMI 2.0, headphone/mic combo, and an optional RJ45 port via the Ethernet extension adapter (which is sold separately). The X1 Extreme supports up to four independent monitors.

One of the X1’s most important highlights is Lenovo’s claim of a 14-hour battery life, which is very extremely high and thus very attractive to the mobile professional. Moreover, its Rapid Charge technology allows you to get an 80% battery boost in just an hour, which equals to an additional 12 hours of light usage.

Backed by a 3-year warranty, our build consists of an Intel Core i7-9850H, 32GB of RAM, an NVIDIA GeForce GTX 1650, and a Samsung (MZVLB1T0HBLR-000L7) SSD.

ThinkPad X1 Extreme Gen 2 Specifications

Processor
  • 9th Generation Intel Core i5-9300H Processor (2.40GHz, up to 4.10GHz with Turbo Boost, 4 Cores, 8MB Cache)
  • 9th Generation Intel Core i5-9400H with vPro (2.50GHz, up to 4.30GHz with Turbo Boost, 4 Cores, 8MB Cache)
  • 9th Generation Intel Core i7-9750H Processor (2.60GHz, up to 4.50GHz with Turbo Boost, 6 Cores, 12MB Cache)
  • 9th Generation Intel Core i7-9850H with vPro (2.60GHz, up to 4.60GHz with Turbo Boost, 6 Cores, 12MB Cache)
  • 9th Generation Intel Core i9-9880H with vPro (2.30GHz, up to 4.80GHz with Turbo Boost, 8 Cores, 16MB Cache)
Operating System
  • Windows 10 Home
  • Windows 10 Pro
Display
  • 15.6″ FHD (1920 x 1080) IPS, anti-glare with Dolby Vision HDR 400, 500 nits
  • 15.6″ FHD (1920 x 1080) IPS, anti-glare, 300 nits
  • 15.6″ UHD (3840 x 2160) IPS, anti-glare with Dolby Vision HDR 400, 500 nits
  • 15.6″ UHD (3840 x 2160) OLED, anti-reflection/anti-smudge, touchscreen with Dolby Vision HDR 500, 400 nits
Graphics NVIDIA GeForce GTX 1650 Max-Q 4GB
Camera
  • 720p HD Camera with microphone
  • IR & 720p HD Camera with microphone (optional)
Memory Up to 64GB DDR4 2666 MHz
Storage Up to 1TB SSD PCIe
Battery
  • Up to 14 hours*, 4 cell, 80Wh
  • Supports Rapid Charge with 135W AC adapter
*Based on testing with MobileMark 2014. Battery life varies significantly with settings, usage, and other factors.
Audio
  • Dolby Atmos speaker system
  • Dual 360° far-field microphones
Security
  • Fast Online Identity (FIDO) authentication capabilities
  • dTPM 2.0
  • Match-on-Chip Touch fingerprint reader
  • Windows Hello with facial recognition software (requires optional IR Camera)
  • ThinkShutter
  • Kensington lock slot
Ports/Slots
  • 2 x USB 3.1 Gen 1** (one always on)
  • 2 x USB 3.1 Gen 2 Type-C / Intel Thunderbolt 3 (Power Delivery, DisplayPort, Data transfer)
  • SD card reader
  • HDMI 2.0
  • Smart card reader (optional)
  • Headphone / mic combo
  • RJ45 via Ethernet Extension adapter (sold separately)
  • Kensington lock slot
Connectivity
  • Intel AX200 Wi-Fi 6 802.11AX (2 x 2)
  • Bluetooth 5.0
  • RJ45 via Ethernet Extension adapter (sold separately)
Dimensions (H x W x D) 361.8mm x 245.7mm x 18.4mm (18.7mm w/ touch) / 14.2″ x 9.7″ x 0.7″
Weight Starting at 3.76 lbs ( 1.7 kg)
Keyboard
  • Spill resistant
  • Backlit with white LED lighting
Supported Docking
ThinkPad Thunderbolt Workstation Dock
*Docking station sold separately.
What’s in the box
  • ThinkPad X1 Extreme Gen 2
  • 135W AC adapter
  • 4 cell 80Wh internal battery
  • Quick start guide

Design and build

At less than an inch thick and weighing at under 4lbs (starting at 3.76lbs), the ThinkPad X1 Extreme is a very portable device. In comparison, Lenovo’s power-drive P73 mobile workstation is over 7 pounds with a 17-inch monitor, which sacrificed portability for power.

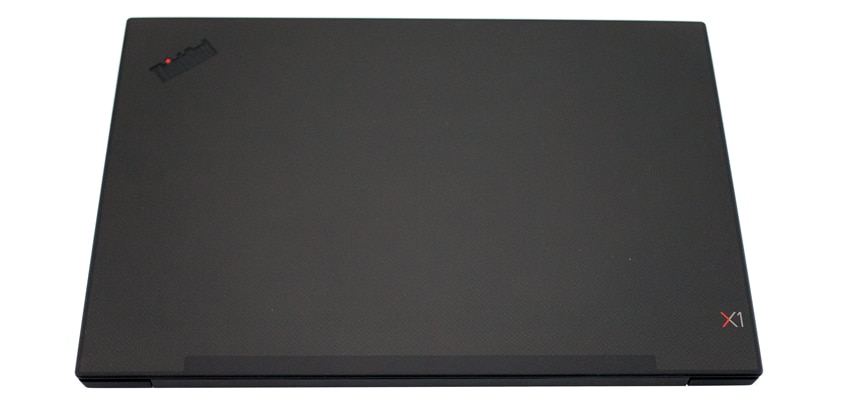

Lenovo ThinkPad X1 Extreme Gen 2 closed

The overall build quality of the new Lenovo workstation is quite good. While doing day-to-day work, it didn’t get loud or hot. In addition, the hinge designed is good quality and we don’t see it being damaged easily. It also feels very solid for a super lightweight laptop.

Users have four display options: two FHD IPS HDR 1920 x 1080 models (one with Dolby Vision) and two 4K models (one OLED with touchscreen and Dolby Vision support). Our ThinkPad X1 Extreme (2nd Gen) features a 15.6″ UHD (3840×2160) Dolby Vision HDR screen with IPS, Anti-glare, 500 nits brightness, a 16:9 aspect ratio, a 1200:1 contrast ratio, and the Adobe 100% color gamut. With the Dolby Vision HDR technology you see more detail with better color accuracy. Pairing the 100% Adobe color gamut with UHD display results in image quality being increased substantially. All these features paired together create a display ideal for creative professionals.

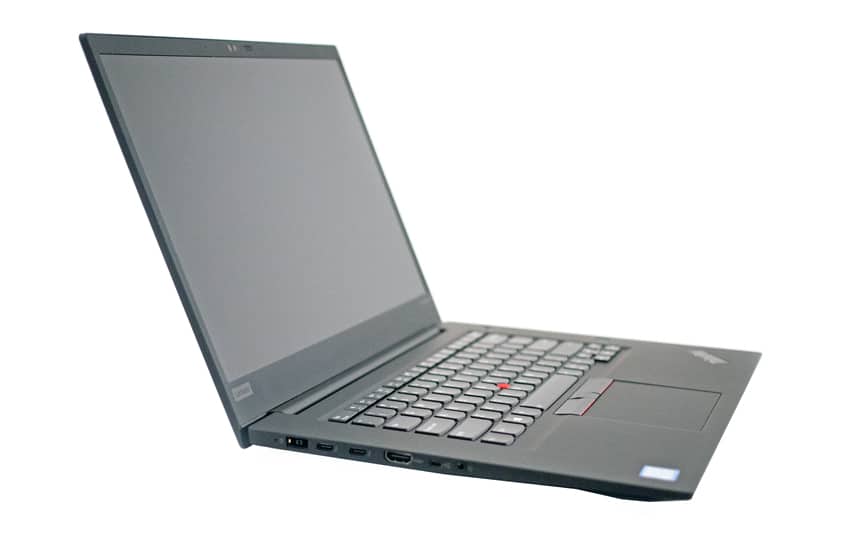

All connectivity resides on the sides of the laptop. On the right are the power input, USB-C Thunderbolt, HDMI 2.0, RJ45 Ethernet dongle and headphone/mic combo ports. On the left is the smart card reader (optional) and SD card reader as well as two USB-A 3.1 Gen ports (one always on) and a Kensington lock slot.

For graphics, we are using the lower-to-mid-range NVIDIA GeForce GTX 1650 Max-Q 4GB (the only option Lenovo offers for this workstation) professional graphics card, which is powered by the NVIDIA Turing architecture and is designed more to handle gaming use cases. It combines point and integer operations, adaptive shading technology, and a new unified memory architecture while featuring twice the cache of its predecessor.

NVIDIA GeForce GTX 1650 Max-Q 4GB Specifications

Architecture Turing
Boost Clock 1125 – 1560
Frame Buffer 4 GB GDDR5
Memory Speed Up to 8 Gbps

Lenovo ThinkPad X1 Extreme Gen 2 Performance

To gauge its performance, we put the Lenovo ThinkPad X1 mobile workstation through four resource-intensive tests, which also allows us to view the capabilities of the equipped. We compared the Lenovo mobile workstation with the HP ZBook x360 throughout the tests, which is equipped with an Intel Core i9-8950HK and NVIDIA Quadro P2000 professional graphics card.

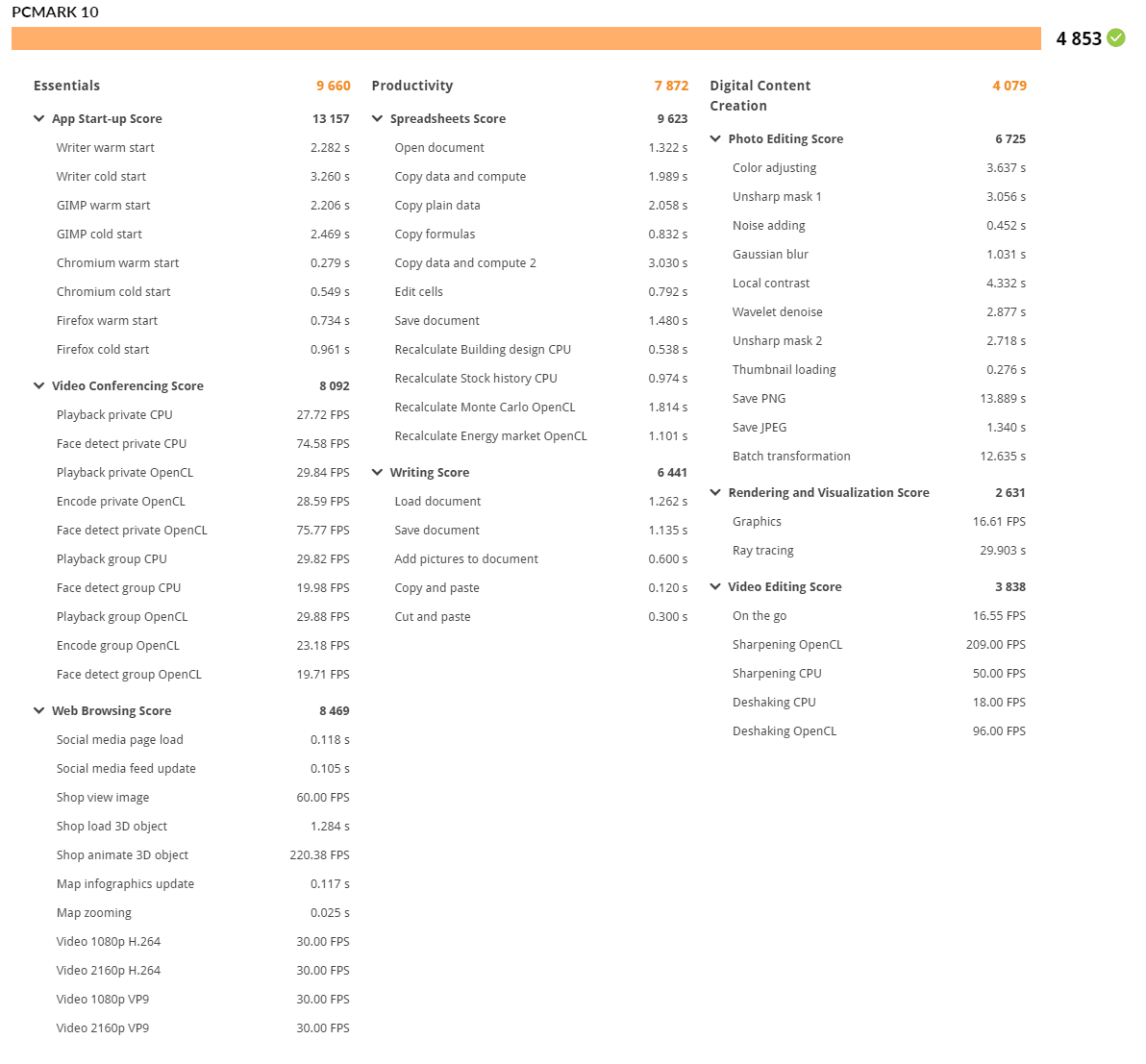

The first test is the PCMark10 benchmark, which is a system benchmark for Windows PCs with a focus on modern office tasks. It offers a variety of workloads categorized into three groups. The Essentials group includes web browsing, video conferencing, and app start-up time. The Productivity group includes tests based on spreadsheets and writing. The Digital Content Creation group includes photo editing, video editing, and a rendering and visualization test.

The Lenovo workstation some pretty good results for its class, including essentials (9,660) and productivity (7,872), digital content (4,073), the latter score being bogged down by the graphics and ray tracing tests. The overall score of 4,853 is right on target.

The next test is the SPECviewperf 13 benchmark, which is the worldwide standard for measuring graphics performance based on professional applications. SPECviewperf runs 9 benchmarks called “viewsets,” which represent graphics content and behavior from actual applications and include categories such as 3D Max, CATIA, Creo, Energy, Maya, Medical, Showcase, Siemens NX, and Solidworks.

SPECviewperf 13
Viewsets Lenovo ThinkPad X1 Extreme Gen 2
NVIDIA GeForce GTX 1650 Max-Q 4GB
HP ZBook x360 Intel Core i9-8950HK NVIDIA Quadro P2000
3dsmax-06 74.71 68.43
Catia-05 57.25 99.92
Creo-02 70.63 81.42
Energy-02 5.9 9
Maya-05 89.88 88.59
Medical-02 24.84 19.51
Showcase-02 37.85 25.88
Snx-03 21.03 110.65
Sw-04 53.85 90.94

The X1 showed some pretty solid results for its class in most of the tested areas. It outperformed the HP ZBook x2 G4 in categories like 3dsmax, maya, showcase, and medical (though it fell well behind in sw and snx).

We also ran SPECworkstation3, a test that specializes benchmark designed for testing all key aspects of workstation performance; it uses over 30 workloads to test CPU, graphics, I/O, and memory bandwidth. The workloads fall into broader categories such as Media and Entertainment, Financial Services, Product Development, Energy, Life Sciences, and General Operations. We are going to list the broad-category results for each, as opposed to the individual workloads. The results are an average of all the individual workloads in each category.

SPECworkstation3
Category Lenovo ThinkPad X1 Extreme Gen 2
NVIDIA GeForce GTX 1650 Max-Q 4GB
HP ZBook x360 Intel Core i9-8950HK NVIDIA Quadro P2000
M&E 1.71 1.33
ProdDev 1.78 1.48
LifeSci 1.4 1.14
Energy 1.04 0.95
FSI 1.53 1.43
GeneralOps 1.59
GPU Compute 0.84

In the SPECworkstation3 test, the Lenovo X1 showed some pretty solid scores, easily out-performing the ZBook x360 in every category.

Next up is the Environmental Systems Research Institute (Esri) benchmark. Esri is a supplier of Geographic Information System (GIS) software. Esri’s Performance Team designed their PerfTool add-in scripts to automatically launch the ArcGIS Pro. This application uses a “ZoomToBookmarks” function to browse various pre-defined bookmarks and create a log file with all the key data points required to predict the user experience. The script automatically loops the bookmarks three times to account for caching (memory and disk cache). In other words, this benchmark simulates heavy graphical use that one might see through Esri’s ArcGIS Pro software. The tests consist of three main datasets. Two are 3-D city views of Philadelphia, PA and Montreal, QC. These city views contain textured 3-D multipatch buildings draped on a terrain model and draped aerial images. The third dataset is a 2-D map view of the Portland, OR region. This data contains detailed information for roads, landuse parcels, parks and schools, rivers, lakes, and hillshaded terrain.

First up is Montreal. Here, the X1 posted an average draw time of 01:30.172, an average FPS of 146.61, and a minimum FPS of 57.65. The updated ZBook x360 showed an average drawtime of 0:01:30.172 with an average and minimum FPS of 197.309 and 89.785, respectively.

ESRI ArcGIS Pro 2.3 Montreal
Drawtime Average
Lenovo ThinkPad X1 Extreme Gen 2 00:01:30.205
HP ZBook x360 Update 00:01:30.172
Average FPS Average
Lenovo ThinkPad X1 Extreme Gen 2 146.61
HP ZBook x360 Update 197.309
Minimum FPS Average
HP ZBook x360 Update 88.785
Lenovo ThinkPad X1 Extreme Gen 2 57.65

Next up is our Philly model, where the Lenovo workstation showed an average drawtime of 00:01:00.248 , average FPS of 147.83 and a minimum FPS of 59.71.

the updated ZBook x360 posted an average drawtime of 00:01:00.932, while average and minimum FPS showed 195.531 and 102.111, respectively.

ESRI ArcGIS Pro 2.3 Philly
Drawtime Average
Lenovo ThinkPad X1 Extreme Gen 2 00:01:00.248
HP ZBook x360 Update 00:01:00.644
Average FPS Average
Lenovo ThinkPad X1 Extreme Gen 2 147.83
HP ZBook x360 Update 195.531
Minimum FPS Average
Lenovo ThinkPad X1 Extreme Gen 2 59.71
HP ZBook x360 Update 102.111

Our last model is of Portland. Here, the X1 posted an average drawtime, average FPS and minimum FPS of 00:00:31.274, 314.976, and 56.816, respectively. The updated x360 showed an average drawtime of 00:00:30.160, an average FPS of 1,529.226 and a minimum FPS of 816.674.

ESRI ArcGIS Pro 2.3 Portland
Drawtime Average
Lenovo ThinkPad X1 Extreme Gen 2 00:00:31.274
HP ZBook x360 Update 00:00:30.160
Average FPS Average
Lenovo ThinkPad X1 Extreme Gen 2 314.976
HP ZBook x360 Update 1,529.226
Minimum FPS Average
Lenovo ThinkPad X1 Extreme Gen 2 56.816
HP ZBook x360 Update 816.674

Conclusion

The new Lenovo ThinkPad X1 Extreme Gen 2 is a lightweight, ultra-portable mobile workstation and an overall solid performer for its class. Though not as customizable as other laptops we’ve seen, users still have a few options to choose from when building their X1, including several CPUs of the 9th Generation Intel Core i5-9000H processor line, up to 64GB of DDR4 2666 MHz RAM, 1TB of NVMe SSD storage, and a beautiful 15.6″ UHD (4K, 3840 x 2160) OLED display. The NVIDIA GeForce GTX 1650 is the only GPU available for the X1; this is a decent mid-range professional graphics card with 4GB of memory. That said, top builds cost just over $3,000, which is very reasonable for those on a workstation budget.

To analyze the overall performance of the Lenovo X1 Extreme during both resource-intensive and casual workloads, we it through a range of different benchmarks. Overall, the new ThinkPad showed strong results for its class. We started with the PCMark10 benchmark, which is a system benchmark for Windows PCs with a focus on modern office tasks. Here, the X1 showed a score of 9,660 in essentials and 7,872 in productivity and 4,073 in digital content. The last score was to a hit in the graphics and ray tracing tests (unsurprisingly), but the overall score of 4,853 is pretty much right where it should be.

We also ran SPECviewperf 13, which specializes in benchmarks designed for testing all key aspects of workstation performance. Specifically, it uses over 30 workloads to test CPU, graphics, I/O, and memory bandwidth. The X1 showed some very solid results again, outperforming the similarly-classed HP ZBook x2 G4 in all categories by a noticeable margin.

For graphics-intensive benchmarks, we ran SPECviewperf 13, the worldwide standard for measuring graphics performance based on professional applications, and the Esri benchmark. In SPECviewperf the X1 pretty good results with 3dsmax (74.71), Creo (70.63), Energy (5.9), Maya (89.88), Medical (24.84), and Showcase (37.85); though it lacked in CATIA (57.25), Siemens NX (21.03), and Solidworks (53.85) categories. The Esri benchmark performance ends our performance testing on a high note. The X1 showed decent results in the Philly and Montreal test, hovering around the 145 and 60 mark for average and minimum FPS, respectively, while Portland hit 315 FPS (average) and 57 FPS (minimum).

Though it certainly doesn’t boast the raw power of Lenovo’s recent P73, the Lenovo ThinkPad X1 Extreme Gen 2 is a great option for professionals looking for an affordable solution that can effectively handle most heavy workloads. This is also an extremely portable device (around 4 pounds) compared to others in its class, which is something that many users will put ahead of top-class performance.
