Lenovo ThinkStation P330 Workstation Review

by Lyle Smith

The Lenovo ThinkStation P330 is an entry-level tower workstation that can be configured to a fit a range of budgets, from builds under $1,500 to ones that can reach over $6,000. Though the P330 falls somewhere on the lower-end of the performance spectrum of workstations, it is highly customizable (which is par for the course with ThinkStation rigs), featuring the some of the latest-gen Intel Core vPro or Xeon CPUs, optional Optane memory and on-board M.2 storage support. Moreover, the Lenovo workstation is bundled with some pretty good security features, which includes Trusted Platform Module (TPM) data encryption and a lockable side panel.

The Lenovo ThinkStation P330 is an entry-level tower workstation that can be configured to a fit a range of budgets, from builds under $1,500 to ones that can reach over $6,000. Though the P330 falls somewhere on the lower-end of the performance spectrum of workstations, it is highly customizable (which is par for the course with ThinkStation rigs), featuring the some of the latest-gen Intel Core vPro or Xeon CPUs, optional Optane memory and on-board M.2 storage support. Moreover, the Lenovo workstation is bundled with some pretty good security features, which includes Trusted Platform Module (TPM) data encryption and a lockable side panel.

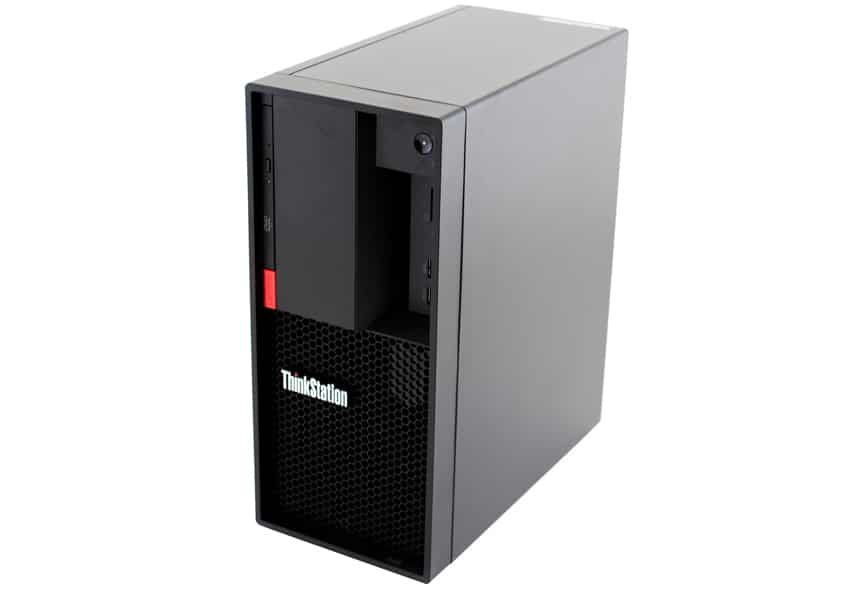

Lenovo ThinkStation P330 front view

As for configuring the Lenovo ThinkStation P330, users can choose from a dozen different processor options including an Intel Core i5-9400 (2.90GHz, up to 4.10GHz with Turbo Boost, 6 Cores) or an Intel Xeon E-2244G (3.80GHz, up to 4.80GHz with Turbo Boost, 4 Cores) to the powerful Intel Core i9-9900 vPro (3.10GHz, up to 5.0GHz with Turbo Boost, 8 Cores). Users can also add up to Up to 64GB 2666MHz DDR4 RAM via its four UDIMM slots as well as a range professional graphics cards, including the entry-level NVIDIA Quadro P620 2GB to the higher-end NVIDIA Quadro P5000 16GB. Users also can simply use the integrated graphics card if they do not need GPU power. If users decide populate the Lenovo ThinkStation P330 with the P5000, they will have a “certified” low-cost virtual reality rig ready to go.

The ThinkStation P330 also supports the Lenovo Performance Tuner. This handy, free downloadable software offers processor affinity (allows users to designate an app to run on specific cores), power management, resource monitoring and tuning, graphics management, and BIOS management tools.

Our build consists of an Intel e-2224, 16GB of RAM, NVIDIA Quadro P620 GPU, and an WDC SN730 512GB SSD, which is an entry build. It also is backed by a standard 3-year warranty.

Lenovo ThinkStation P330 Specifications

Processor
  • Up to 9th Generation Intel Core i9-9900 with vPro (3.10GHz, up to 5.0GHz with TurboBoost, 8 cores, 16MB Cache)
  • Up to Intel Xeon E-2226G Processor (3.40GHz, up to 4.70GHz with TurboBoost, 6 cores, 12MB Cache)
Operating System
  • Windows 10 Pro
  • Windows 10 Pro for Workstations
  • Redhat Linux (certified)
Memory Up to 64GB 2666MHz UDIMMs (for ECC & non-ECC)
Storage Up to 3 x 1 TB M.2 PCIe NVMe SSD and choice of:

  • Up to 3 x 3.5” SATA 7200 rpm up to 4 TB (12 TB total), or
  • Up to 4 x 2.5” SATA SSD up to 1TB (4 TB total)
Optical Drive Slim DVD-RW Multiburner (Optional)
Graphics
  • Integrated Graphics
  • NVIDIA® Quadro® RTX 4000 8 GB
  • NVIDIA® Quadro® P620 2GB
  • NVIDIA® Quadro® P1000 4GB
  • NVIDIA® Quadro® P2200 5GB
  • NVIDIA® Quadro® P5000 16GB
Connectivity Intel® Wireless-AC 9560 (2 x 2) + Bluetooth® 5.0
RAID 0, 1, 5, 10
Security
  • Kensington® lock slot to secure bottom door
  • Trusted Platform Module (TPM) 2.0
  • Padlock loop
Display Support Up to 8 independent displays
Green Certifications
  • GREENGUARD®
  • EPEAT® Gold
  • Energy Star 7.0
  • 80 PLUS® Platinum
Front Ports & Slots
  • USB-C
  • 2 x USB 3.1 Gen 1**
  • 2 x USB 3.1 Gen 2**
  • Microphone jack
  • Combo audio jack
  • Optional: 7-in-1 card reader
Rear Ports & Slots
  • 2 x USB 3.1 Gen 1**
  • 2 x USB 2.0
  • 2 x DisplayPort
  • HDMI / DisplayPort (optional)
  • RJ45 (1 Gb Ethernet)
  • PS/2 (optional)
  • Serial
  • Audio jack out
Expansion Cards Optional via PCIe slots:

  • Bitland BN8E88 1000M PCIe gigabit Ethernet adapter
  • Intel® I210-T1 single port gigabit Ethernet adapter
  • Intel I350-T2 dual ports gigabit Ethernet adapter
  • Rear USB-C PCIe adapter V1.1
Dimensions (W x D x H) 6.5” x 12.9” x 14.8” / 165 x 328 x 376 (mm)
Weight Starting at 23.4 lbs (10.6 kg)
ISV Certifications
  • Altair® HyperWorks®
  • Autodesk® Alias
  • Autodesk AutoCAD
  • Autodesk Inventor
  • Autodesk Revit
  • AVEVA PDMS
  • Barco Medical Displays
  • Bentley® MicroStation
  • Dassault® Catia™
  • Dassault® SOLIDWORKS
  • Nemetschek Vectorworks
  • PTC Creo®
  • Siemens® NX, Teamcenter, Tecnomatix
  • Siemens® Solid Edge
Power Supply Unit
  • 250W 92%
  • 400W 92%

Design and build

Weighing in at just under 24lbs (though it will get heavier has you add more components) and almost 15 inches tall, the Lenovo ThinkStation P330 is a small machine packing a big punch.

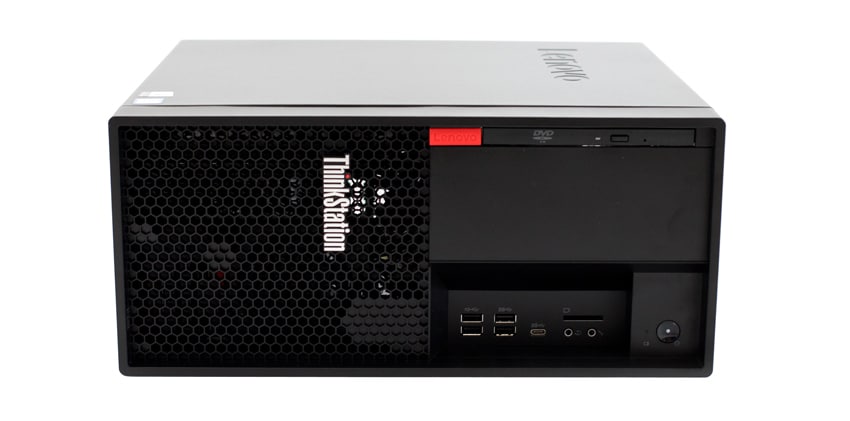

Lenovo ThinkStation P330 front view (horizontally placed)

The front of the P330 consists of two parts: the hexagonal-shaped ventilation at the bottom and the connectivity at the top. The former covers the lower half of the panel, helping to keep the system cooling and running smoothly. It also displays the ThinkStation logo at the top left.

All the connectivity is located at the top, residing in a recessed panel roughly a few inches deep just above the power button. Here, the panel includes a microphone jack/combo audio jack, an optional 7-in-1 card reader, a USB-C port, two USB 3.1 Gen 1 ports, and two USB 3.1 Gen 2 ports. To the left of the panel is the optional slim DVD ROM.

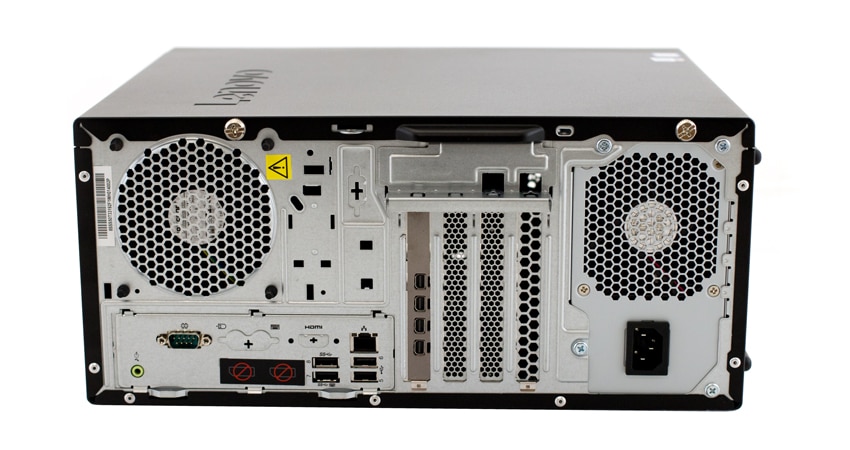

Lenovo ThinkStation P330 back view / back panel

Turning the P330 to the rear reveals the rest of the connectivity, including:

  • Audio jack out port
  • Serial port
  • PS/2 port
  • Two DisplayPorts
  • Two USB 3.1 Gen 1 ports
  • Optional HDMI/DP port
  • Two USB 2.0 ports
  • RJ45 (1 Gb Ethernet) port or optional 5 Gb port
  • Four optional DisplayPorts

We outfitted our Lenovo ThinkStation P330 review model with an NVIDIA Quadro P620 GPU. This lower/mid-range professional graphics card features a 512 CUDA core Pascal GPU, 2GB of GPU memory and a single-slot, low-profile form factor, the latter which makes it compatible with a range of workstations that have limited internal space to work with. It also supports for up to four 4K displays (4096×2160 @ 60 Hz) with HDR color, making it a decent option for creative professionals on a budget.

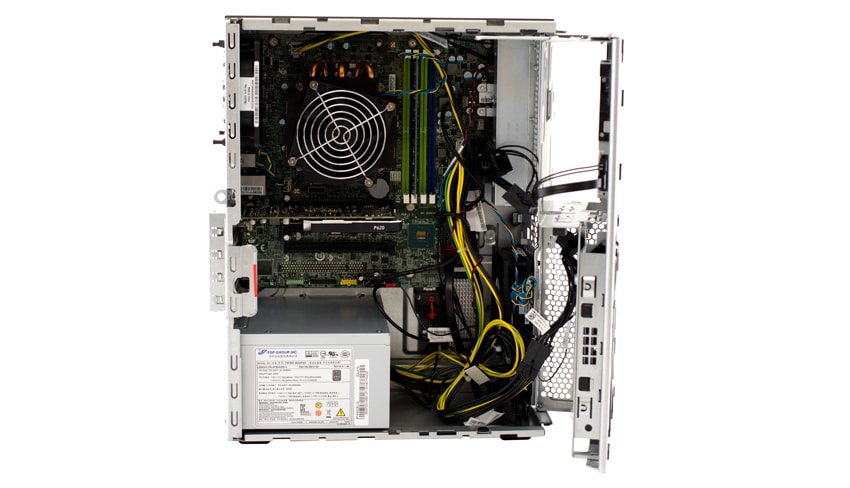

Lenovo ThinkStation P330 inside / interior view

The side panel features a metal loop that can be secured with a padlock or anything similar. This is pretty useful for those needing to protect the interior of the workstation from tampering or theft.

NVIDIA Quadro P620 Specifications

GPU Memory 2 GB GDDR5
Memory Interface 128-bit
Memory Bandwidth Up to 80 GB/s
NVIDIA CUDA Cores 512
System Interface PCI Express 3.0 x16
Max Power Consumption 40 W
Thermal Solution Active
Form Factor 2.713” H x 5.7” L,
Single Slot, Low Profile
Display Connectors 4x Mini DisplayPort 1.4
Max Simultaneous Displays 4 direct, 4x DisplayPort
1.4 Multi-Stream
Display Resolution 4x 4096×2160 @ 60 Hz
4x 5120×2880 @ 60Hz
Graphics APIs Shader Model 5.1,
OpenGL 4.5,
DirectX 12.0,
Vulkan 1.0
Compute APIs CUDA, DirectCompute, OpenCL

Lenovo equipped our workstation with an Intel e-2224, a low-cost 4 core/4 thread CPU released last year.

Intel e-2224 Specifications

Product Collection Intel® Xeon® E Processor
Code Name Products formerly Coffee Lake
Vertical Segment Server
Processor Number E-2224
Status Launched
Launch Date Q2’19
Lithography 14 nm
Recommended Customer Price $193.00 – $198.00
Performance Specifications
# of Cores 4
# of Threads 4
Processor Base Frequency 3.40 GHz
Max Turbo Frequency 4.60 GHz
Cache 8 MB Intel® Smart Cache
Bus Speed 8 GT/s
Intel® Turbo Boost Technology 2.0 Frequency‡ 4.60 GHz
TDP 71 W

Lenovo ThinkStation P330 Performance

To gauge the performance of the Lenovo ThinkStation P330 with our mid-range build, we put it through three resource-intensive tests. This will also give us a good indication of the capabilities of the NVIDIA Quadro P620. We also compared the P330 to the Lenovo ThinkStation P520, which features an Intel Xeon W-2145, NVIDIA Quadro P4000 8GB, 16GB RDIMM DDR4-2666 ECC RAM, and a 512GB M.2 PCIe NVMe Opal SSD.  Though this is certainly a much higher classed workstation, we wanted to demonstrate the differences between an entry-level tower and a performance-driven one.

This first test is the SPECviewperf 13 benchmark, which is the worldwide standard for measuring graphics performance based on professional applications. SPECviewperf runs 9 benchmarks called “viewsets,” which represent graphics content and behavior from actual applications and include categories such as 3D Max, CATIA, Creo, Energy, Maya, Medical, Showcase, Siemens NX, and Solidworks.

SPECviewperf 13
Viewsets Lenovo ThinkStation P330 – NVIDIA Quadro P620 Lenovo ThinkStation P520 –NVIDIA Quadro P4000
3dsmax-06 41.7 156.36
Catia-05 75.48 241.57
Creo-02 56.72 206.86
Energy-02 0.86 30.14
Maya-05 67.71 221.55
Medical-02 24.11 86.01
Showcase-02 20.93 75.88
Snx-03 146.24 472.68
Sw-04 90.89 165.81

As expected, the P330 was greatly out-performed by the P520 put up entry-level numbers with our configuration.

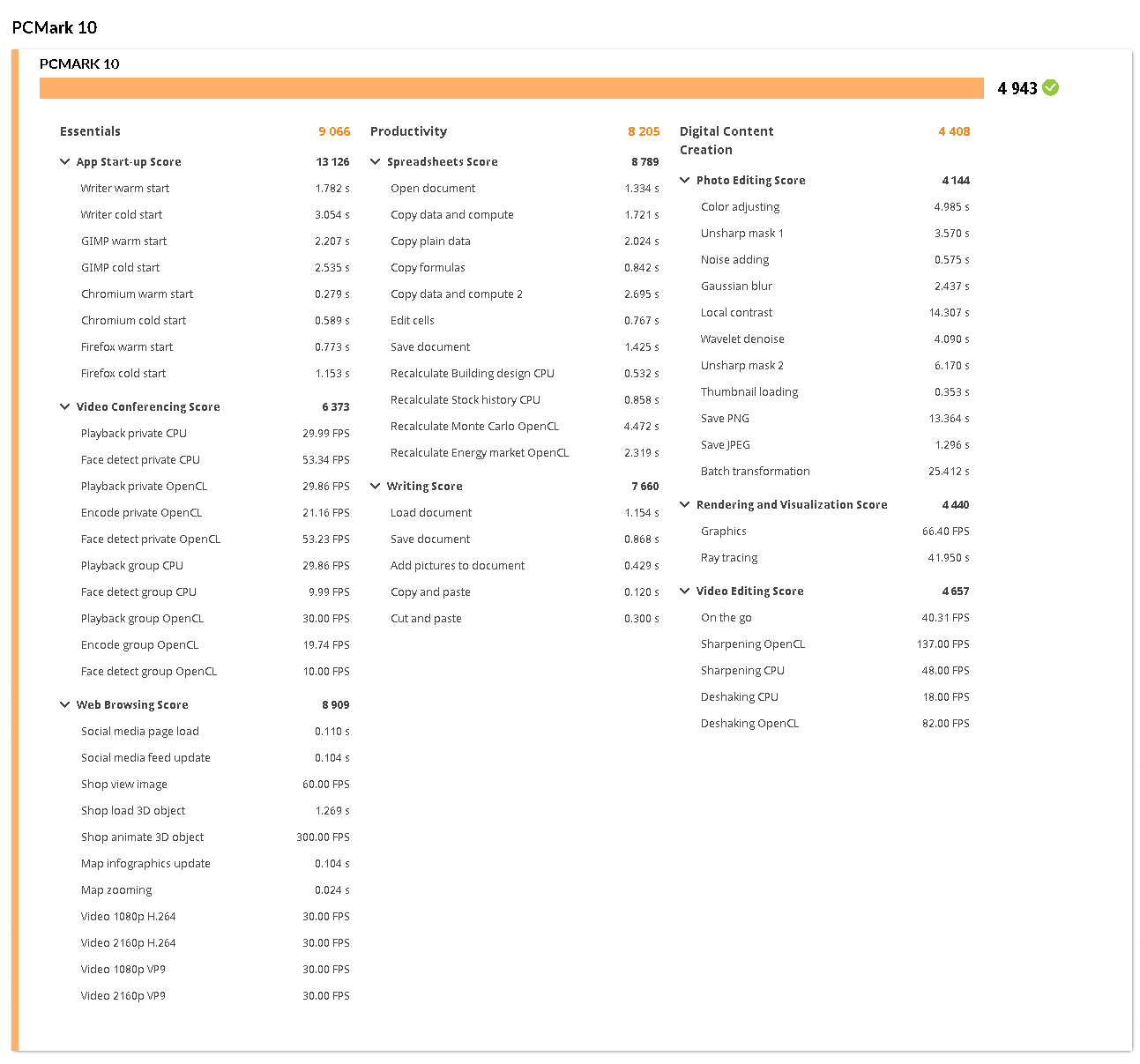

Moving on to the PCMark10 benchmark, which is a system benchmark for Windows PCs with a focus on modern office tasks, we look at range of workloads categorized into three groups. The Essentials group includes web browsing, video conferencing, and app start-up time. The Productivity group includes tests based on spreadsheets and writing. The Digital Content Creation group includes photo editing, video editing, and a rendering and visualization test.

Here, the ThinkStation P330 put up some decent numbers in the Essentials (9,066) and Productivity (8,205) categories, though it slowed down quite a big in the Digital Content Creation column (4,408), which expected due to its GPU and RAM configuration.

Next up is SPECworkstation3. This is a test that specializes benchmark designed for testing all key aspects of workstation performance; it uses over 30 workloads to test CPU, graphics, I/O, and memory bandwidth. The workloads fall into broader categories such as Media and Entertainment, Financial Services, Product Development, Energy, Life Sciences, and General Operations. We are going to list the broad-category results for each, as opposed to the individual workloads. The results are an average of all the individual workloads in each category.

SPECworkstation3
Category ThinkStation P330 ThinkStation P520
M&E 1.24 2.42
ProdDev 1.35 2.24
LifeSci 1.27 2.04
Energy 0.59 1.38
FSI 0.64 2.06
GeneralOps 1.63 1.93
GPU Compute 0.78 2.49

Though these scores were certainly in the low-range, the P330 fared quite well for its configuration, especially the general operations category.

Last up is the Environmental Systems Research Institute (Esri) benchmark. Esri is a supplier of Geographic Information System (GIS) software. Esri’s Performance Team designed their PerfTool add-in scripts to automatically launch the ArcGIS Pro. This application uses a “ZoomToBookmarks” function to browse various pre-defined bookmarks and create a log file with all the key data points required to predict the user experience. The script automatically loops the bookmarks three times to account for caching (memory and disk cache). In other words, this benchmark simulates heavy graphical use that one might see through Esri’s ArcGIS Pro software.

The tests consist of three main datasets: two are 3-D city views of Philadelphia, PA and Montreal, QC, which contain textured 3-D multipatch buildings draped on a terrain model and draped aerial images. The third dataset is a 2-D map view of the Portland, OR region. This data contains detailed information for roads, land use parcels, parks and schools, rivers, lakes, and hill shaded terrain.

Looking at Montreal drawtime, the ThinkStation P330 posted 00:01:30.26 in average drawtime, and 57.70 FPS and 30.60 FPS for average and minimum FPS, respectively.

ESRI ArcGIS Pro 2.3 Montreal
Drawtime Average
ThinkStation P330 w/ NVIDIA Quadro P620 00:01:30.26
ThinkStation P520 w/ NVIDIA Quadro P4000 00:01:30.18
Average FPS Average
ThinkStation P330 w/ NVIDIA Quadro P620 57.70
ThinkStation P520 w/ NVIDIA Quadro P4000 180.4
Minimum FPS Average
ThinkStation P330 w/ NVIDIA Quadro P620 30.60
ThinkStation P520 w/ NVIDIA Quadro P4000 87.2

Next, we look at our Philly model, where the P330 recorded 00:01:00.22 in average drawtime, 69.20 in average FPS and 39.60 in average minimum FPS.

ESRI ArcGIS Pro 2.3 Philly
Drawtime Average
ThinkStation P330 w/ NVIDIA Quadro P620 00:01:00.22
ThinkStation P520 w/ NVIDIA Quadro P4000 00:01:00.28
Average FPS Average
ThinkStation P330 w/ NVIDIA Quadro P620 69.20
ThinkStation P520 w/ NVIDIA Quadro P4000 160.46
Minimum FPS Average
ThinkStation P330 w/ NVIDIA Quadro P620 39.55
ThinkStation P520 w/ NVIDIA Quadro P4000 98.87

Lastly is the model of Portland. Here, the ThinkStation P330 recorded 00:00:30.70 in average drawtime, 585.39 in average FPS and 222.52 in average minimum FPS.



ESRI ArcGIS Pro 2.3 Portland
Drawtime Average
ThinkStation P330 w/ NVIDIA Quadro P620 00:00:30.70
ThinkStation P520 w/ NVIDIA Quadro P4000 00:00:30.259
Average FPS Average
ThinkStation P330 w/ NVIDIA Quadro P620 585.39
ThinkStation P520 w/ NVIDIA Quadro P4000 1,616.154
Minimum FPS Average
ThinkStation P330 w/ NVIDIA Quadro P620 222.52
ThinkStation P520 w/ NVIDIA Quadro P4000 637.923

Conclusion

The Lenovo ThinkStation P330 is a great entry-level workstation that can fit a range budgets due to its highly customizable build options. For high-end configurations, which reach as high as $6,000, users can equip the P330 with an Intel Core i9-9900 vPro (3.10GHz, 8 Cores, 16MB Cache) CPU, a Thunderbolt card, up to 64GB of RAM via its four 2666MHz UDIMMs, a NVIDIA Quadro P5000 16GB and two 1TB SSDs. Our review model was a bit on the lower end, however, with an Intel Xeon e-2224 (3.60GHz, Turbo Boost, 4 Cores, 8MB Cache), 16GB of RAM, NVIDIA Quadro P620 GPU, and an WDC SN730 512GB SSD. Though the higher-end Lenovo ThinkStation P330 configurations won’t be able to satisfy ultimate performance use cases, it certainly provides a ton of options for those who want an entry-level workstation all the way to mid-range needs.

For performance, we pitted the P330 against the higher-classed ThinkStation P520, where we ran our usual graphics heavy tests that include SPECviewperf 13, SPECworkstation3, and ESRI ArcGIS Pro. We also ran PCMark to gauge how workstation will function under basic workloads like essentials, productivity, and digital content creation.

Overall, the Lenovo ThinkStation P330 posted lower-end results; however, this was expected due to our lower-range build. For those looking to see what a high-performing Lenovo rig can do, we recommend checking out our recent P520 or P920 reviews. Regardless, the Lenovo ThinkStation P330 did well for the components we put in it. For SPECviewperf we saw scores of 3dsmax (41.7), Creo (56.72), CATIA (75.48), Energy (0.86), Maya (67.71), Medical (24.11), Showcase (20.93), Siemens NX (146.24), and Solidworks (90.89). The PCMark 10 test had solid results for a workstation of its class, posting a total score of 4,943, mostly due to the Essentials (9,066) and Productivity (8,205) categories. Digital Content Creation was expectedly low with 4,408. SPECworkstation gave us M&E (1.24), ProdDev (1.35), LifeSci (1.27), Energy (0.59), FSI (0.64), GeneralOps (1.63), and GPU compute (0.78). Lastly in ESRI, we saw average FPS rates of 57.70, 69.20 and 585.39 with Montreal, Philly and Portland, respectively.

Even though you can outfit the Lenovo ThinkStation P330 with some pretty good components, it is really aimed for lower-end to mid-range use cases. That said, this VR-ready workstation is a perfect entry-level solution for those on a budget as well as those who don’t have the need for best-of-class performance.
