Synology SAT5200 SSD Review

by Lyle Smith

Synology has entered the SSD world with the launch of SSD lines specifically designed to handle demanding environments like virtualization workloads, high traffic volume database storage, and AI and HPC projects within the NAS environment. One of these drives is the Synology SAT5200, a SATA SSD ideal for mixed and intensive 24/7 workloads while boasting consistent I/O performance, low latency and minimal operational downtime. Available in capacities up to 1.92TB, these drives are purpose built for ultimate compatibility and optimization in Synology NAS systems. The company also released an M.2 2280 model  (SNV3400) for the  M.2 slots used for caching.

Synology has entered the SSD world with the launch of SSD lines specifically designed to handle demanding environments like virtualization workloads, high traffic volume database storage, and AI and HPC projects within the NAS environment. One of these drives is the Synology SAT5200, a SATA SSD ideal for mixed and intensive 24/7 workloads while boasting consistent I/O performance, low latency and minimal operational downtime. Available in capacities up to 1.92TB, these drives are purpose built for ultimate compatibility and optimization in Synology NAS systems. The company also released an M.2 2280 model  (SNV3400) for the  M.2 slots used for caching.

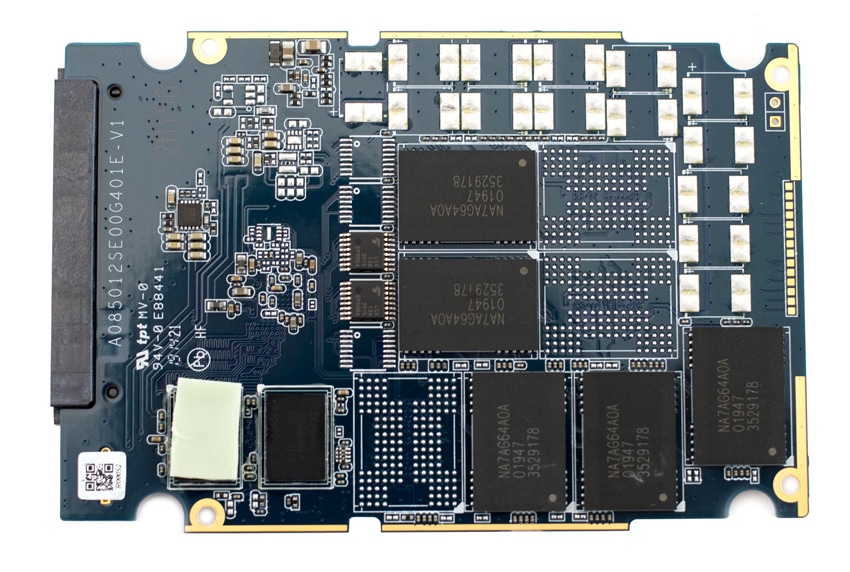

For performance, the Synology SAT5200 offers the regular SATA numbers, quoting sequential reads and writes up to 530MB/s and 500MB/s, respectively. For a SSD controller, the drive leverages Phison PS3112-S12DC. Random reads and writes are expected to reach up to 98,000 IOPS and 60,000 IOPS, respectively for the 1.92TB capacity model. What stands out in this release is the promise of sustained low latency. The SAT5200, unsurprisingly, also features strong endurance and reliable specifications with 1,145TB for TBW, 1.3 DWDP and 1.5 million hours for MTBF.

Moreover, the new Synology drive has end-to-end data protection to for further data integrity and consistency during data transfers, as well as a power loss protection circuit design, meaning that it has dedicated capacitors that provides enough power to flush data-in-flight into NAND flash during unexpected power losses.

The new Synology SSDs also feature full integration with the company’s comprehensive OS, DiskStation Manager (DSM). Users will be able to display lifetime analytics for each installed SAT5200 unit based on actual workloads.

Backed by a 5-year warranty, the Synology SAT5200 SSD is available in capacities of 480GB, 960GB and 1.92TB, priced at $180, $350, and $600 respectively. We will be looking at the 960GB model for this review.

Synology SAT5200 Specifications

1 SAT5200-480G SAT5200-960G SAT5200-1920G
General Capacity 480 GB 960 GB 1.92 TB
Form Factor 2.5″ 7mm 2.5″ 7mm 2.5″ 7mm
Interface SATA 6 Gb/s SATA 6 Gb/s SATA 6 Gb/s
Performance Sequential Read (128KB, QD32) 530 MB/s 530 MB/s 530 MB/s
Sequential Write (128KB, QD32) 500 MB/s 500 MB/s 500 MB/s
Random Read (4KB, QD32) 95,000 IOPS 98,000 IOPS 98,000 IOPS
Random Write (4KB, QD32) 55,000 IOPS 67,000 IOPS 60,000 IOPS
Endurance and Reliability Terabytes Written (TBW)* 1145 TB 2290 TB 4581 TB
Drive Writes Per Day (DWPD) 1.3 1.3 1.3
Mean Time Between Failures (MTBF) 1.5 million hours 1.5 million hours 1.5 million hours
Uncorrectable Bit Error Rate (UBER) < 1 sector per 1017 bits read < 1 sector per 1017 bits read < 1 sector per 1017 bits read
Power Loss Protection
Warranty* 5 Years 5 Years 5 Years
Power Consumption Supply Voltage 5V (± 10%) 5V (± 10%) 5V (± 10%)
Active Read (Typ.) 2.6 W 2.9 W 3.1 W
Active Write (Typ.) 4.2 W 4.6 W 5.1 W
Idle 1.4 W 1.5 W 1.6 W
Temperature Operating Temperature 0°C to 70°C (32°F to 158°F) 0°C to 70°C (32°F to 158°F) 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F) -40°C to 85°C (-40°F to 185°F) -40°C to 85°C (-40°F to 185°F)
Others Size (Height x Width x Depth) 7 mm x 69.85 mm x 100 mm 7 mm x 69.85 mm x 100 mm 7 mm x 69.85 mm x 100 mm
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • KC
  • RoHS

Synology SAT5200 Performance

Testbed

Our Enterprise SSD reviews leverage a Lenovo ThinkSystem SR850 for application tests (Note: we had to use an adapter card instead of a front bay slot due to a compatibility issue) and a Dell PowerEdge R740xd for synthetic benchmarks. The ThinkSystem SR850 is a well-equipped quad-CPU platform, offering CPU power well in excess of what’s needed to stress high-performance local storage. Synthetic tests that don’t require a lot of CPU resources use the more traditional dual-processor server. In both cases, the intent is to showcase local storage in the best light possible that aligns with storage vendor maximum drive specs.

Lenovo ThinkSystem SR850

  • 4 x Intel Platinum 8160 CPU (2.1GHz x 24 Cores)
  • 16 x 32GB DDR4-2666Mhz ECC DRAM
  • 2 x RAID 930-8i 12Gb/s RAID Cards
  • 8 NVMe Bays
  • VMware ESXI 6.5

Dell PowerEdge R740xd

  • 2 x Intel Gold 6130 CPU (2.1GHz x 16 Cores)
  • 4 x 16GB DDR4-2666MHz ECC DRAM
  • 1x PERC 730 2GB 12Gb/s RAID Card
  • Add-in NVMe Adapter
  • Ubuntu-16.04.3-desktop-amd64

Testing Background and Comparables

The StorageReview Enterprise Test Lab provides a flexible architecture for conducting benchmarks of enterprise storage devices in an environment comparable to what administrators encounter in real deployments. The Enterprise Test Lab incorporates a variety of servers, networking, power conditioning, and other network infrastructure that allows our staff to establish real-world conditions to accurately gauge performance during our reviews.

We incorporate these details about the lab environment and protocols into reviews so that IT professionals and those responsible for storage acquisition can understand the conditions under which we have achieved the following results. None of our reviews are paid for or overseen by the manufacturer of equipment we are testing. Additional details about the StorageReview Enterprise Test Lab and an overview of its networking capabilities are available on those respective pages.

VDBench Workload Analysis

When it comes to benchmarking storage devices, application testing is best, and synthetic testing comes in second place. While not a perfect representation of actual workloads, synthetic tests do help to baseline storage devices with a repeatability factor that makes it easy to do apples-to-apples comparison between competing solutions. These workloads offer a range of different testing profiles ranging from “four corners” tests, common database transfer size tests, to trace captures from different VDI environments. All of these tests leverage the common vdBench workload generator, with a scripting engine to automate and capture results over a large compute testing cluster. This allows us to repeat the same workloads across a wide range of storage devices, including flash arrays and individual storage devices. Our testing process for these benchmarks fills the entire drive surface with data, then partitions a drive section equal to 25% of the drive capacity to simulate how the drive might respond to application workloads. This is different than full entropy tests which use 100% of the drive and takes them into steady state. As a result, these figures will reflect higher-sustained write speeds.

Profiles:

  • 4K Random Read: 100% Read, 128 threads, 0-120% iorate
  • 4K Random Write: 100% Write, 64 threads, 0-120% iorate
  • 64K Sequential Read: 100% Read, 16 threads, 0-120% iorate
  • 64K Sequential Write: 100% Write, 8 threads, 0-120% iorate

Comparables:

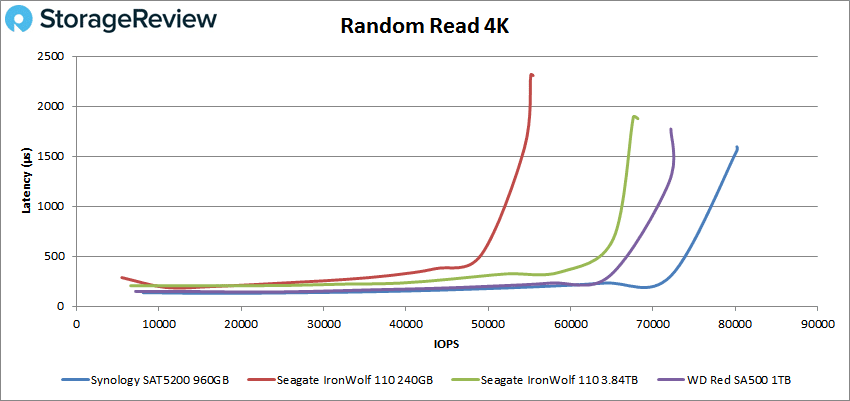

In our first VDBench Workload Analysis, Random 4K Read, the Synology SAT5200 took top spot with a peak performance of 80,213 IOPS at a latency of 1,594.6µs.  Synology SAT5200 Random Read 4K performance

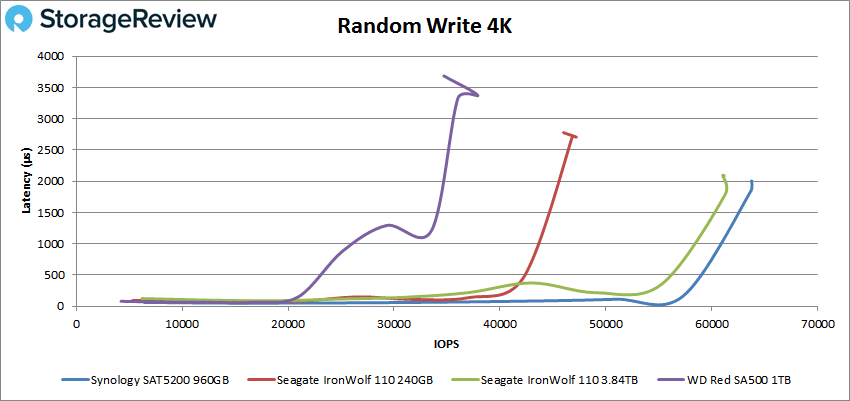

In 4K random write, the SAT5200 was the best performing drive again, with a peak performance of 63,758 IOPS at a latency of 2,004.8µs.

Synology SAT5200 Random Write 4K performance

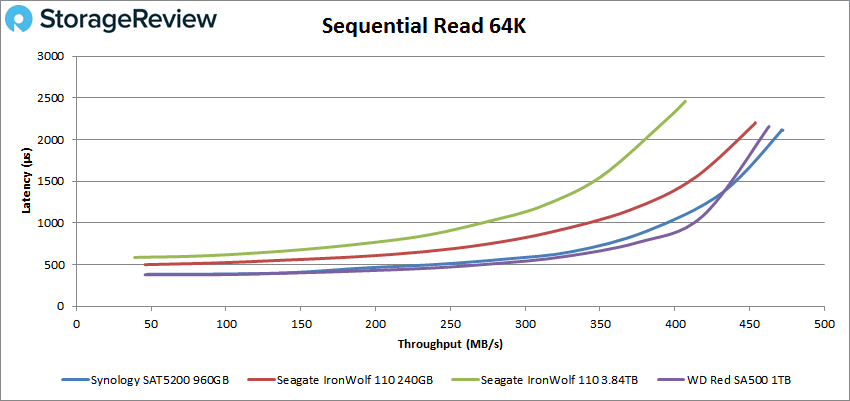

Switching over to 64k sequential workloads, the SAT5200 once again took the top spot in 64K read with a peak of 7,558 IOPS or 472.3MB/s at a latency of 2,111.8µs.

Synology SAT5200 Random Read 64K performance

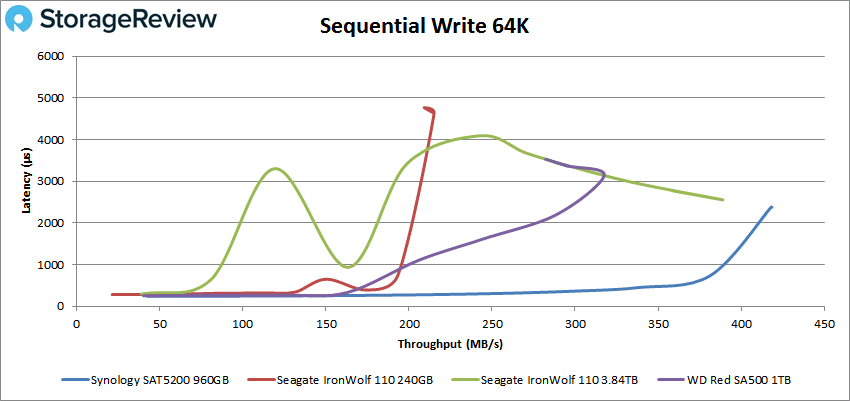

64K write told a similar story, with the new Synology drive taking the top spot with 6,696 IOPS or 418.5MB/s at a latency of 2,3764 µs (it showed very low latency until the very end of the test).

Synology SAT5200 Random Write 64K performanceConclusion

Synology’s surprise entry into the SSD market is certainly a welcomed one, as the new SAT5200 line proved it can outperform most NAS drives in its class. The company’s freshman drives are available in capacities of 480GB, 960GB and 1.92TB and are specifically optimized for Synology NAS systems in 24/7 environments and demanding workloads that need minimal operational downtime. They are also highlighted by a range of reliability and longevity features, including end-to-end data protection and power loss protection circuit technology coupled with 1,145TB TBW, 1.3 DWDP and 1.5 million hours MTBF.

For performance, we looked at VDBench tests and compared the Synology SAT5200 to other similar NAS SATA SSDs. Here, the SAT5200 boasted consistent I/O performance and low latency, taking top spot in all of our tests. In 4K random performance, peak performance of 80,213 IOPS and 63,758 IOPS for reads and writes, respectively, while sequential speeds showed 7,558 IOPS (or 472.3MB/s) read and 6,696 IOPS (or 418.5MB/s) write.

Overall, Synology’s first SSD release is a successful endeavor. If you’re looking for a consistent, high-performing, and low latency NAS drive, you will find that the SAT5200 is a perfect fit. This is especially true if you already have a Synology NAS, as they have been specifically optimized for these systems.
