Lenovo ThinkStation P360 Ultra Workstation Review

by Charles P. Jefferies
Lenovo ThinkStation P360 Ultra Front

The Lenovo ThinkStation P360 Ultra is a workstation mini-PC. Despite its size, it supports 125-watt Intel processors, 128GB of DDR5 RAM, and two PCIe Gen4 SSDs. Graphics come from Nvidia’s RTX A-class mobile cards. For its size, it’s hard to beat the power in this little workstation.

The Lenovo ThinkStation P360 Ultra is a workstation mini-PC. Despite its size, it supports 125-watt Intel processors, 128GB of DDR5 RAM, and two PCIe Gen4 SSDs. Graphics come from Nvidia’s RTX A-class mobile cards. For its size, it’s hard to beat the power in this little workstation.

Lenovo ThinkStation P360 Ultra Specifications

The ThinkStation P360 Ultra is aimed at space-conscious professionals who don’t need the power or expansion of a mid- or full-size tower. It’s based around Intel’s “Alder Lake” Core series processors and uses the workstation-class W680 chipset. Core i3 through Core i9 processors are available.

Dedicated graphics options start with the Nvidia RTX A2000 and scale to the RTX A5000. Note this is the mobile (laptop) graphics and thus won’t have the performance of the number-equivalent desktop card, but that’s understandable given the P360 Ultra’s dimensions. The standard graphics card is the Intel UHD 770 Graphics silicon built into the processor, but to support the P360 Ultra’s maximum of eight monitors, you’ll need dedicated graphics.

Intriguingly, the P360 has four instead of the expected two SODIMM slots and supports up to 128GB of DDR5 RAM (four 32GB modules). Both non-ECC and ECC options are available. You also get two M.2 2280 PCIe Gen 4 slots and a 2.5-inch bay.

The full specifications of the ThinkStation P360 Ultra are as follows:

Processor 12th Gen Intel Core i3, i5, i7, i9 (up to 16 cores, up to 5.2GHz)
Chipset Intel W680
Graphics Discrete: Up to Nvidia RTX A5000 mobile 16GB VRAM

Processor integrated: Intel UHD Graphics 770

Total Memory Up to 128GB DDR5-4000 ECC or non-ECC, 4 SODIMM slots
Total Storage Up to 3 drives: two M.2 2280 PCIe Gen4, one 2.5-inch bay

RAID 0/1 supported

Power Supply 170/230/300 watts, 89% efficient
Dimensions (WDH) 3.4 by 8.7 by 7.9 inches
Weight Starting at 3.96 pounds
Front Ports One USB 3.2 Gen 2 Type-A, two Thunderbolt 4, one audio combo jack
Rear Ports Four USB 3.2 Gen 2 Type-A, three DisplayPort, one 2.5GbE, one 1GbE
WLAN Intel Wi-Fi 6 AX201 non-vPro + BT 5.0 or Intel Wi-Fi 6E AX211 vPro + BT5.1
Expansion Slots One PCIe 4.0 x16, one PCIe 3.0 x4
Operating System Windows 10 or 11

Ubuntu Linux

Red Hat Enterprise Linux (certified)

ISV Certification Including AVID, Altair, Autodesk, ANSYS, Bentley, Dassault, Nemetschek, PTC, Siemens, Barco, McKesson
Security Lenovo ThinkShield: TPM 2.0, Self-healing BIOS, Power on password, UEFI Secure Boot, Kensington Lock Slot
Sustainability ENERGY STAR, EPEAT Gold, RoHS Complaint, TCO 9.0

Lenovo ThinkStation P360 Ultra Build and Design

The ThinkStation P360 Ultra is one tiny PC. Its 3.4 x 8.7 x 7.9-inch case (WDH) comes out to just 3.9 liters or a tenth of the volume of a typical mid-tower. It fits just about anywhere. Its starting weight is 3.96 pounds but it can weigh almost eight pounds fully configured.

Lenovo ThinkStation P360 Ultra Front

The P360 Ultra is well built; Lenovo puts it through 12 military-grade tests. The case is nearly all metal. The front airflow grate is plastic. Front-panel connectivity includes one USB 3.2 Gen 2 Type-A port, two Thunderbolt 4 ports, and an audio combo jack.

Lenovo ThinkStation P360 Ultra Front Ports

Rear ports include four USB 3.2 Gen 2 Type-A, three DisplayPort, one 2.5GbE, and one 1GbE. The Nvidia RTX A5000 graphics card in our review unit adds four mini-DisplayPort video outputs.

Lenovo ThinkStation P360 Ultra Rear Ports

The gold-plated jack back here is for the stubby wireless antenna. The standard wireless is an Intel AX201 card supporting Wi-Fi 6 and Bluetooth 5.0, but higher-end models like ours come with a Wi-Fi 6E and Bluetooth 5.1-supporting Intel AX211.

The P360 Ultra uses an external laptop-style power adapter, which isn’t uncommon for a mini-PC. You’ll also find a Kensington-style lock slot on the back, an important feature on a mini-PC that’s going to be used in public or semi-public places.

The top of the case slides off for interior access. This underside view shows the cooling solution for the Nvidia RTX A5000 graphics card and two of the SODIMM slots.

Lenovo ThinkStation P360 Ultra Interior Access

The other half of the chassis shows more cooling; notice the shrouds over the heatsinks. Fan noise was minimal during normal use, although expect to hear things ratchet up if you push the CPU and GPU to their limits. The other two SODIMM slots are accessible here.

Lenovo ThinkStation P360 Ultra Upgrades

Lenovo ThinkStation P360 Ultra Performance

Our ThinkStation P360 Ultra review unit has the following specifications:

  • Windows 11 Pro
  • Intel Core i9-12900 processor (8 performance cores, 8 Efficient cores, 24 threads, 65-watt base power, 3.8GHz base, up to 5.2GHz Turbo Boost)
  • Nvidia RTX A5000 Laptop GPU 16GB
  • 32GB DDR5-4000 non-ECC RAM (1x 32GB)
  • 1TB PCIe Gen4 SSD
  • Intel AX211 Wi-Fi 6E/Bluetooth 5.1
  • 3-year onsite warranty w/ Lenovo Premiere support

The base model starts at $1,699 but this one is over $4,000. The most expensive upgrades are the Core i9 processor and the Nvidia RTX A5000 graphics. The P360 Ultra is also available with Intel K-class CPUs (125 watts base power), but those limit your graphics card selection since those CPUs require extra cooling.

Let’s get onto the performance testing. We will be comparing the ThinkStation P360 Ultra to two other powerful mini-PCs. The first is the HP Z2 Mini G9, which we reviewed with a Core i9-12900K, 64GB of RAM, and an RTX A2000. The other is the Intel NUC 12 Extreme, which we tested with a Core i9-12900, 32GB of RAM, and an RTX A4000.

SPECworkstation 3

Our first test is SPECworkstation3, which specializes in benchmarks designed for testing all key aspects of workstation performance. It uses over 30 workloads to test CPU, graphics, I/O, and memory bandwidth. The workloads fall into broader categories such as Media and Entertainment, Financial Services, Product Development, Energy, Life Sciences, and General Operations. We are going to list the broad-category results for each, as opposed to the individual workloads. The results are an average of all the individual workloads in each category.

The P360 Ultra is competitive throughout. Most surprising is its GPU Compute score of 5.56, which beats the NUC 12 Extreme’s 5.52. This suggests the P360’s RTX A5000 mobile card might be as strong as the NUC 12 Extreme’s desktop RTX A4000.

Lenovo ThinkStation P360 Ultra (Core i9-12900, RTX A5000 Mobile) HP Z2 Mini G9 (Core i9-12900K, RTX A2000) Intel NUC 12 Extreme (Core i9-12900, RTX A4000)
M&E 3.89 N/A N/A
ProdDev 4.22 4.09 3.88
LifeSci 3.69 3.53 3.43
FSI 3.49 4.24 3.24
Energy 4.02 4.36 4.52
GeneralOps 2.91 2.85 2.77
GPU Compute 5.56 N/A 5.52

SPECviewperf 2020

Our next test is SPECviewperf 2020, the worldwide standard for measuring graphics performance of professional applications under the OpenGL and Direct X application programming interfaces. The viewsets (or benchmarks) represent graphics content and behavior from actual applications, without having to install the applications themselves. The newest version of this benchmark went through major updates late last year, including new viewsets taken from traces of the latest versions of 3ds Max, Catia, Maya, and Solidworks applications. In addition, they added support within all viewsets for both 2K and 4K resolution displays.

We did run this on the Z2 Mini G9, but I excluded its results since we had run the test on it at 1920 x 1080, not 3840 x 2160. The P360 Ultra again performs closely to the NUC 12 Extreme.

Viewsets Lenovo ThinkStation P360 Ultra (Core i9-12900, RTX A5000 Mobile) Intel NUC 12 Extreme (Core i9-12900, RTX A4000)
3dsmax-07 90.02 92.45
Catia-06 69.51 69.78
Creo-03 118.21 118.65
Energy-03 21.17 21.73
Maya-06 225.13 227.22
Medical-03 21.38 19.98
Snx-04 528.13 298.97
Sw-05 129.36 107.7

ESRI

Next up is the Environmental Systems Research Institute (Esri) benchmark. Esri is a supplier of Geographic Information System (GIS) software. Esri’s Performance Team designed their PerfTool add-in scripts to automatically launch the ArcGIS Pro. This application uses a “ZoomToBookmarks” function to browse various predefined bookmarks and create a log file with all the key data points required to predict the user experience. The script automatically loops the bookmarks three times to account for caching (memory and disk cache). In other words, this benchmark simulates heavy graphical use that one might see through Esri’s ArcGIS Pro software.

The tests consist of three main datasets. Two are 3-D city views of Philadelphia, PA, and Montreal, QC. These city views contain textured 3-D multipatch buildings draped on a terrain model and draped aerial images. The third dataset is a 2-D map view of the Portland, OR region. This data contains detailed information for roads, land use parcels, parks and schools, rivers, lakes, and hill shaded terrain.

The P360 Ultra continues showing strong performance, trading places with the NUC 12 Extreme. The Z2 Mini G9’s RTX A2000 is a much weaker GPU, and its numbers reflect that.

ESRI ArcGIS Pro 2.3 Montreal
Lenovo ThinkStation P360 Ultra (Core i9-12900, RTX A5000 Mobile) HP Z2 Mini G9 (Core i9-12900K, RTX A2000) Intel NUC 12 Extreme (Core i9-12900, RTX A4000)
Average FPS 355.55 165.13 356.88
Minimum FPS 167.61 78.02 179.89
ESRI ArcGIS Pro 2.3 Philly
Average FPS 268.97 125.07 266.31
Minimum FPS 155.58 83.47 166.07
ESRI ArcGIS Pro 2.3 Portland
Average FPS 2,479.61 1,742.84 2,529.59
Minimum FPS 960.74 645.55 984.32

7-Zip Compression

We have also started running 7-Zip’s built-in memory benchmark. This test responds well to faster memory with lower latencies.

The scores usually aren’t radically different between the P360 Ultra and the NUC 12 Extreme, which makes sense since they use the same Core i9-12900 processor. The Z2 Mini G9’s Core i9-12900K shows its strength.

7-Zip Compression Benchmark
  Lenovo ThinkStation P360 Ultra (Core i9-12900, RTX A5000 Mobile) HP Z2 Mini G9 (Core i9-12900K, RTX A2000) Intel NUC 12 Extreme (Core i9-12900, RTX A4000)
Compressing
Current CPU Usage 1231% 2033% 1979%
Current Rating/Usage 4.080 GIPS 4.372 GIPS 2.953 GIPS
Current Rating 50.236 GIPS 88.990 GIPS 58.434 GIPS
Resulting CPU Usage 1251% 2049% 1975%
Resulting Rating/Usage 3.998 GIPS 4.864 GIPS 2.970 GIPS
Resulting Rating 19.995 GIPS 91.456 GIPS 58.633 GIPS
Decompressing
Current CPU Usage 2352% 2245% 2330%
Current Rating/Usage 4.096 GIPS 4.642 GIPS 4.117 GIPS
Current Rating 96.327 GIPS 108.383 GIPS 95.932 GIPS
Resulting CPU Usage 2344% 2341% 2352%
Resulting Rating/Usage 4.178 GIPS 4.772 GIPS 4.062 GIPS
Resulting Rating 97.915 GIPS 111.692 GIPS 95.542 GIPS
Total Rating
Total CPU Usage 1798% 2195% 2163%
Total Rating/Usage 4.088 GIPS 4.618 GIPS 3.516 GIPS
Total Rating 73.955 GIPS 101.574 GIPS 77.088 GIPS

Blender OptiX

Next up is Blender, an open-source 3D modeling application. This benchmark was run using the Blender Benchmark utility. NVIDIA OptiX was the chosen render method. The score is in samples per minute, with higher being better.

The story is similar to what we saw in SPECviewperf, the P360 Ultra and the NUC 12 Extreme scoring closely.

Blender OptiX, samples per minute (higher is better)
Category Lenovo ThinkStation P360 Ultra (Core i9-12900, RTX A5000 Mobile) HP Z2 Mini G9 (Core i9-12900K, RTX A2000) Intel NUC 12 Extreme (Core i9-12900, RTX A4000)
Monster 1,617 954 1,621
Junkshop 981 584 929
Classroom 840 511 834

Luxmark

Now we’ll try LuxMark, an OpenCL GPU benchmarking utility. The P360 Ultra actually edges out the NUC 12 Extreme kit in both tests. We don’t have results for the Z2 Mini G9.

Luxmark (Higher is better)
Lenovo ThinkStation P360 Ultra (Core i9-12900, RTX A5000 Mobile) Intel NUC 12 Extreme (Core i9-12900, RTX A4000)
Hallbench 14,226 13,590
food 5,499 5,423

OctaneBench

OctaneBench is a benchmarking utility for OctaneRender, which is a 3D renderer with RTX support that is similar to V-Ray. Like Luxmark, OctaneBench is large GPU-dependent.

It’s becoming clear that the P360 Ultra’s RTX A5000 mobile card is a bit stronger than the NUC 12 Extreme’s desktop RTX A4000, which is remarkable.

Scene Kernel Lenovo ThinkStation P360 Ultra (Core i9-12900, RTX A5000 Mobile) HP Z2 Mini G9 (Core i9-12900K, RTX A2000) Intel NUC 12 Extreme (Core i9-12900, RTX A4000)
Interior Info channels 11.66 8.04 11.14
Interior Direct lighting 42.00 25.04 39.12
Interior Path tracing 52.64 31.60 49.57
Idea Info channels 7.19 4.76 6.78
Idea Direct lighting 32.47 18.73 29.88
Idea Path tracing 39.83 22.77 36.24
ATV Info channels 17.58 11.03 16.81
ATV Direct lighting 45.28 25.61 43.13
ATV Path tracing 57.31 32.08 52.16
Box Info channels 10.04 6.50 9.33
Box Direct lighting 40.49 23.38 38.33
Box Path tracing 46.42 26.29 42.21



SiSoftware Sandra 2021

We also run the popular SiSoftware Sandra 2021 suite. Higher numbers are better in all subtests.

The P360 Ultra is well behind the NUC 12 Extreme here. (We don’t have numbers for the Z2 Mini G9.) The unit Lenovo sent us unfortunately uses single-channel memory, which is probably what hampers its performance in this test.

SiSoftware Sandra 2021 Lenovo ThinkStation P360 Ultra (Core i9-12900, RTX A5000 Mobile) Intel NUC 12 Extreme (Core i9-12900, RTX A4000)
Memory Bandwidth 26.594GB/s 39.481GB/s
Cache & Memory Latency 36.9ns 32.8ns
Cache & Memory Bandwidth 356.338GB/s 398.745GB/s
Overall Memory Score 1.61kPT 1.98kPT

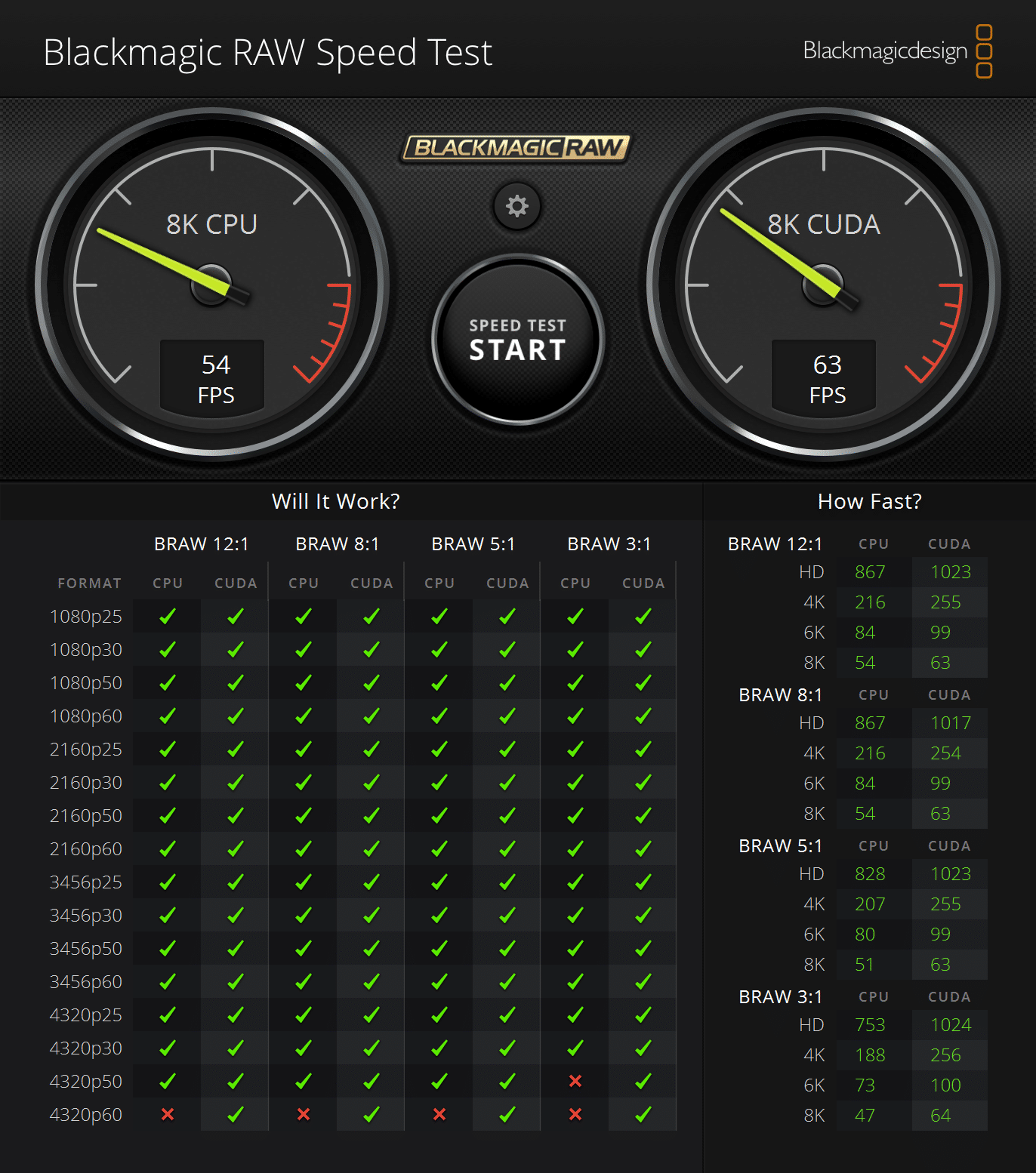

Blackmagic RAW Speed Test

Our next to last test is the new Blackmagic RAW speed test, which tests decoding speed of Blackmagic RAW frames. The P360 Ultra scored 54 fps in 8K CPU and 63 fps in 8K CUDA. We just started running this, so we only have results for the P360 Ultra.

Lenovo ThinkStation P360 Ultra Blackmagic RAW

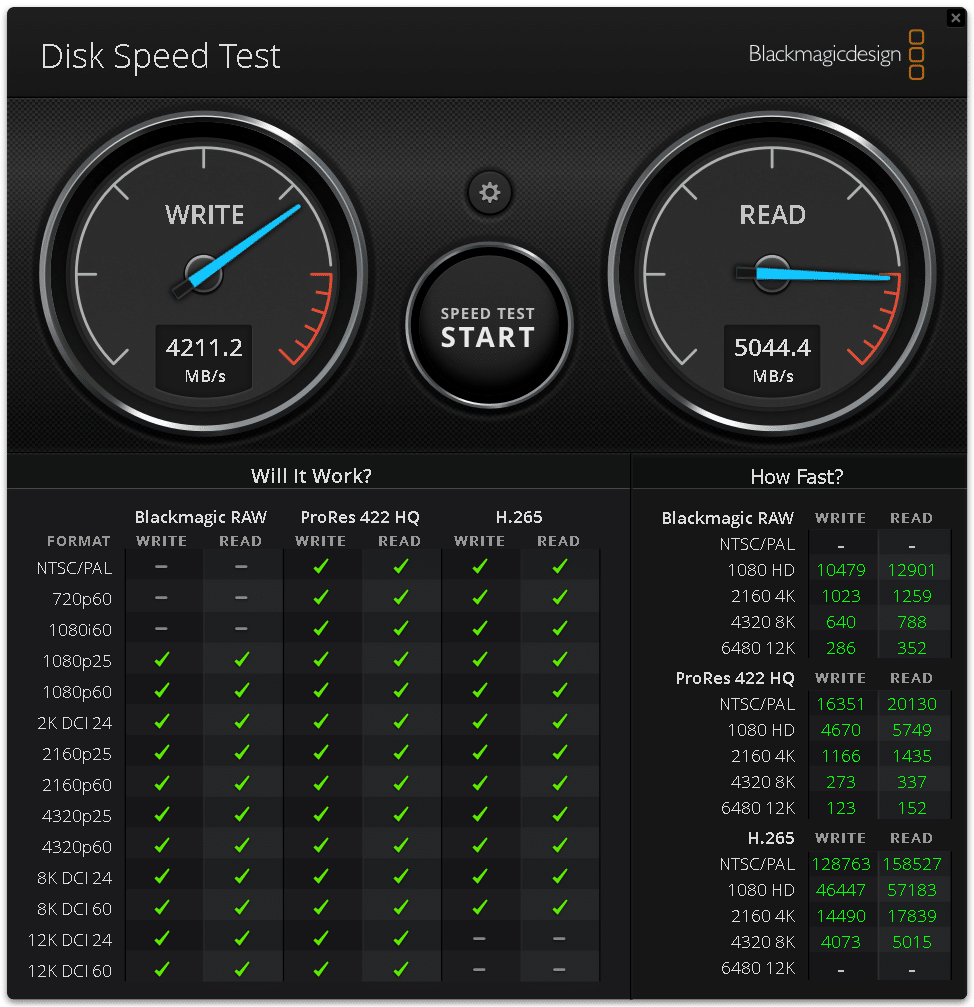

Blackmagic Disk Speed Test

Last is the popular Blackmagic Disk Speed Test. The 1TB PCIe Gen4 SSD in the P360 Ultra had 5,044.4MB/s read and 4,211.2MB/s write.

Lenovo ThinkStation P360 Ultra Blackmagic Disk Speed Test

Conclusion

The ThinkStation P360 Ultra performs extremely well for a mini-PC workstation. Our test unit, equipped with a Core i9-12900 and an Nvidia RTX A5000 mobile GPU, performed similarly to an Intel NUC 12 Extreme with the same CPU but an RTX A4000 desktop card, and that’s impressive.

This mini-PC’s main limitation as a workstation is expansion, but that’s a given for a PC that’s a tenth of the size of a typical mid-tower. Lenovo still managed to fit four SODIMM slots supporting 128GB of RAM, two M.2 PCIe Gen4 slots, and a 2.5-inch bay for storage. There are also two Thunderbolt 4 ports for fast external connections.

Lenovo ThinkStation P360 Ultra Front Ports

The P360 Ultra’s main competition is the HP Z2 Mini G9. The P360 Ultra generally outperformed it in our GPU-sensitive testing because of its stronger (albeit mobile) graphics card, though HP’s Intel K-class CPU gave it the edge in our CPU benchmarks. The P360 Ultra can also be had with K-class chips, though you won’t be able to get the top GPU options.

The P360 Ultra’s pricing seems steep (over $4,000 as tested) but that’s the price of going so small with so much capability. The only other major downside we see with this little PC is GPU upgradeability; it’s not like a traditional desktop where you can simply switch out the card for the latest model. But if that limitation doesn’t bother you and you don’t need (or want) the expansion of a full-size tower, the ThinkStation P360 Ultra is a sensible workstation pick. It gets our recommendation.
