Lexar NQ100 SSD Review

by Adam Armstrong
Lexar nq100 box

The Lexar NQ100 is a 2.5” SSD that is designed for the most entry-level needs. While not being a high-performance drive, it is immensely better than using hard drives. Users will see a massive gap up in performance, not to mention the NQ100 will use less power and make no noise compared to legacy spinning disks. The Lexar NQ100 comes in three capacities; 240GB, 480GB, and 960GB.

The Lexar NQ100 is a 2.5” SSD that is designed for the most entry-level needs. While not being a high-performance drive, it is immensely better than using hard drives. Users will see a massive gap up in performance, not to mention the NQ100 will use less power and make no noise compared to legacy spinning disks. The Lexar NQ100 comes in three capacities; 240GB, 480GB, and 960GB.

Lexar nq100 front

The NQ100 leverages the SATA III interface. This interface can provide up to 550MB/s with the NQ100, not quite near the speeds we see in NVMe consumer drives nowadays, however, this drive can be picked up for as little as $30. Also, being a SATA makes it an ideal drop-in and replace of an HDD. Users will see faster boot-up times, quicker application load times, and faster data transfers.

lexar nq100 back

The Lexar NQ100 comes with a 3-year limited warranty and goes for as little as $31 for the 240GB, $53 for the 480GB, and it doesn’t look like the 960GB is available at the moment. For our review, we used the 240GB capacity.

Lexar NQ100 SSD Specifications

Capacity 240GB, 480GB, 960GB
Interface 2.5” SATA III (6Gb/s)
Speed 240GB —sequential read up to 550MB/s
480GB —sequential read up to 550MB/s
960GB —sequential read up to 550MB/s
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Shock Resistant 1500G, duration 0.5ms, Half Sine Wave
Vibration Resistant 7~800Hz, 3.08Grm, 20G, 1 Oct/min, 30min/axis(X,Y,Z)
TBW 120GB: 84TB, 240GB: 168TB, 480GB: 336TB
DWPD 0.32
Dimension (L x W x H) 69.85mm x 100.2mm x 7mm / 2.75” x 3.94” x 0.28”
Weight 34g

Lexar NQ100 SSD Performance

We used our Dell EMC PowerEdge R740xd test platform to perform the benchmarks on the Lexar NQ100.

VDBench Workload Analysis

When it comes to benchmarking storage devices, application testing is best, and synthetic testing comes in second place. While not a perfect representation of actual workloads, synthetic tests do help to baseline storage devices with a repeatability factor that makes it easy to do apples-to-apples comparison between competing solutions. These workloads offer a range of different testing profiles ranging from “four corners” tests, common database transfer size tests, to trace captures from different VDI environments.

All of these tests leverage the common vdBench workload generator, with a scripting engine to automate and capture results over a large compute testing cluster. This allows us to repeat the same workloads across a wide range of storage devices, including flash arrays and individual storage devices. Our testing process for these benchmarks fills the entire drive surface with data, then partitions a drive section equal to 5% of the drive capacity to simulate how the drive might respond to application workloads. This is different than full entropy tests which use 100% of the drive and take them into steady state. As a result, these figures will reflect higher-sustained write speeds.

Profiles:

  • 4K Random Read: 100% Read, 128 threads, 0-120% iorate
  • 4K Random Write: 100% Write, 64 threads, 0-120% iorate
  • 64K Sequential Read: 100% Read, 16 threads, 0-120% iorate
  • 64K Sequential Write: 100% Write, 8 threads, 0-120% iorate

Normally we run SSDs against a handful of comparable drives to give users an idea of what to expect. With the Lexar NQ100, we don’t have a good comparison as it is an entry-level drive and most of the drives we’ve looked at over the last 12 months or so have been more on the high-performance side and have been higher in capacity. So in this case, we are just looking at the results as sheer numbers versus how it places.

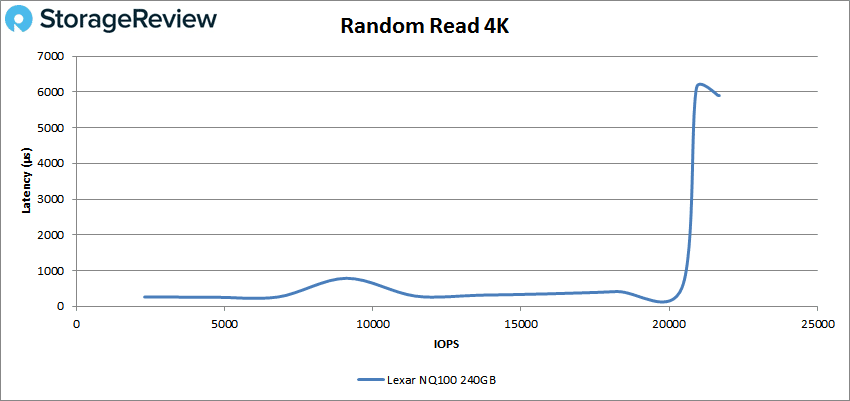

The first up is 4K random read. The NQ100 maintained sub-millisecond latency until over 20K IOPS and peaked at 21,687 IOPS with a latency of 5.9ms.

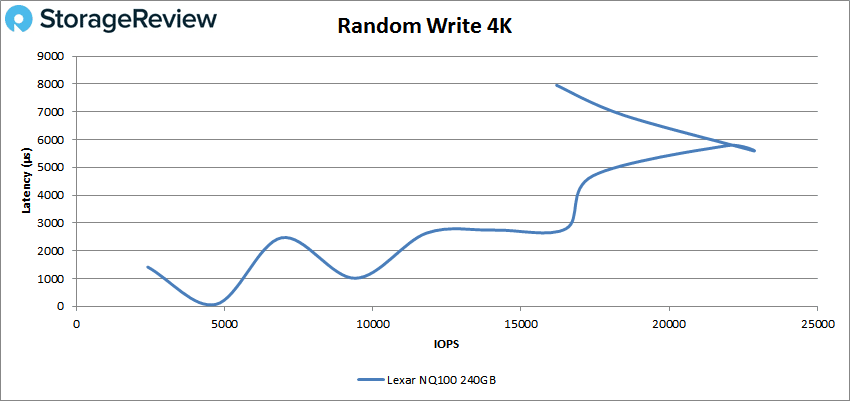

In 4K random write the drive mainly stayed over 1ms and peaked at 22,813 IOPS at 5.6ms.

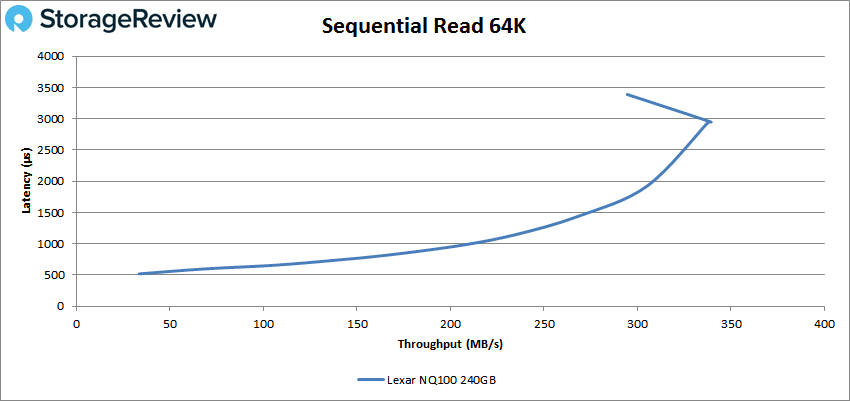

Switch over to sequential work, first we look at 64K sequential read. Here the drive stayed below 1ms until about 3,400 IOPS or 210MB/s and went on to peak at 5,429 IOPS or 339MB/s at a latency of 2.9ms.

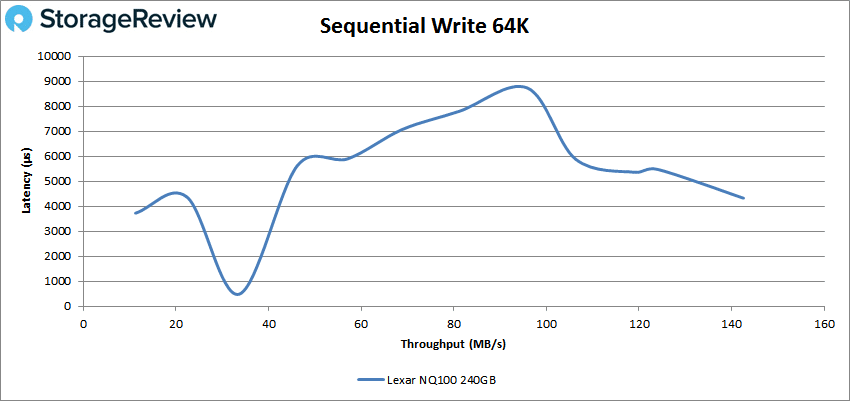

In 64K write the Lexar peaked at 2,280 IOPS or 142MB/s at a latency of 4.3ms.

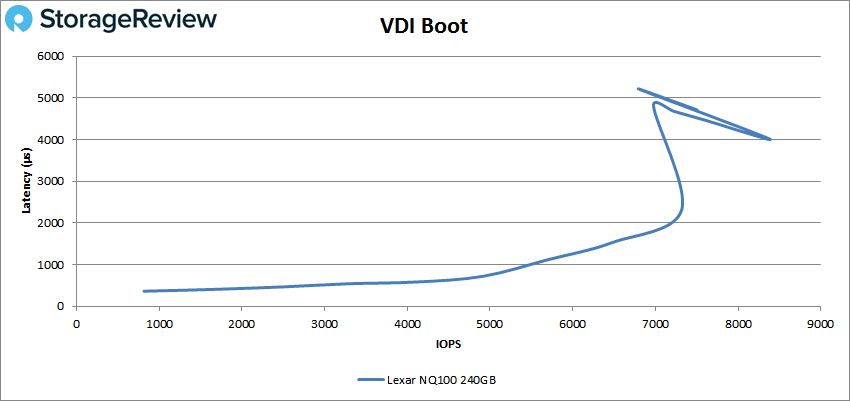

Next, we looked at our VDI benchmarks, which are designed to tax the drives even further. These tests include Boot, Initial Login, and Monday Login. Looking at the Boot test, the NQ100 had sub-millisecond latency until about 5,500 IOPS and peaked at 8,375 IOPS with 4ms for latency.

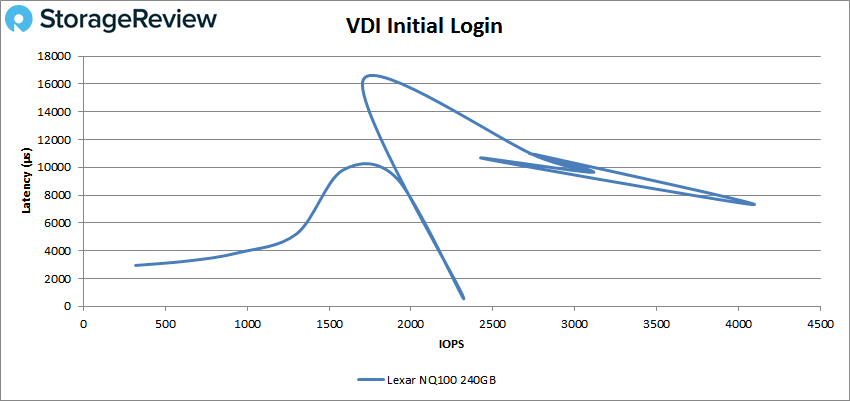

For VDI Initial Login the drive peaked at 4,093 IOPS with a latency of 7.3ms.

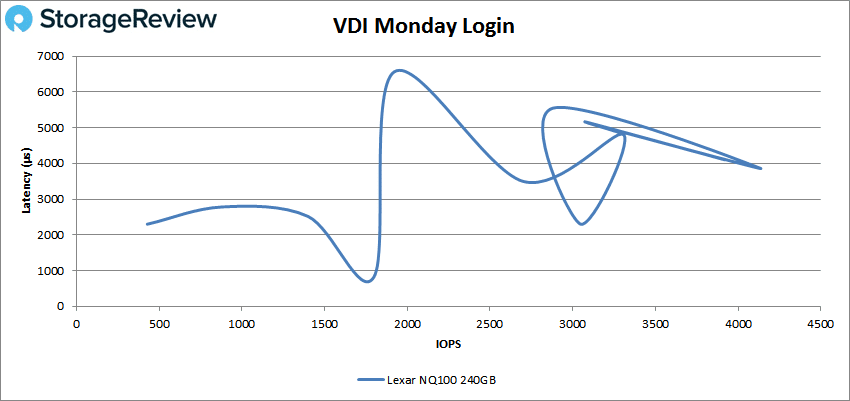

Finally, for VDI Monday Login the NQ100 peaked at 4,136 IOPS with a latency of 3.9ms.

Conclusion

The Lexar NQ100 is a 2.5” SATA SSD that is aimed at giving an entry-level computer a boost in performance. Specifically, if one is using spinning disks and is looking for a pick me up in boot, application load times, and data transfers. Lexar claims the drive can hit up to 550MB/s (the interface limit) and is priced pretty low at around $30 for the 240GB capacity. Though, those that need a bit more storage and get the drive in a 960GB capacity in the near future.

For performance, he ran the drive through our VDBench tests. The NQ100 performed as expected, not fantastic but not bad for a SATA aimed at entry-level. Highlights include 22K IOPS in 4K read, 23K IOPS in 4K write, 339MB/s in 64K read, and 142MB/s in 64K write. In our VDI benchmarks, the drive gave us 8K IOPS in boot, 4K IOPS in Initial Login, and 4K in Monday Login.

If you have an HDD in an older computer and want a bit of a pick me up, the Lexar NQ100 fits that bill nicely and for as little as $30. To further illustrate the point, we’ve purchased an old HDD-based PC for $110 off NewEgg and intend to show off exactly what a low-cost SSD can do in that scenario.
