HP Z2 G8 Tower Workstation Review

by Charles P. Jefferies

HP’s Z2 G8 Tower is an entry-level workstation desktop based on Intel’s “Rocket Lake” Core and Xeon processors. It supports a single CPU, two GPUs, 128GB of memory, two M.2 PCIe SSDs (including one Gen4), and one 2.5-inch and two 3.5-inch drives. It has excellent performance potential for content creation, 3D modeling, and is also suitable for scientific and financial use.

HP’s Z2 G8 Tower is an entry-level workstation desktop based on Intel’s “Rocket Lake” Core and Xeon processors. It supports a single CPU, two GPUs, 128GB of memory, two M.2 PCIe SSDs (including one Gen4), and one 2.5-inch and two 3.5-inch drives. It has excellent performance potential for content creation, 3D modeling, and is also suitable for scientific and financial use.

Though it doesn’t offer advanced workstation features such as dedicated RAID cards and hot-swappable drives, this tower’s purpose is to provide affordable workstation-grade performance. It does that very well based on our testing and comes highly recommended.

HP Z2 G8 Tower Specifications

HP’s Z2 workstation line starts with the Z2 Mini, a tiny yet powerful desktop that can be mounted behind a monitor. Up from there is the small-form-factor Z2 SFF G8, which is more of a true desktop. The third and largest model is the mid-tower Z2 G8 Tower under review here. Next to the SFF model, the Z2 G8 Tower offers the same CPU and memory options but more powerful GPUs (up to the 24GB Nvidia RTX A5000) and more storage drives.

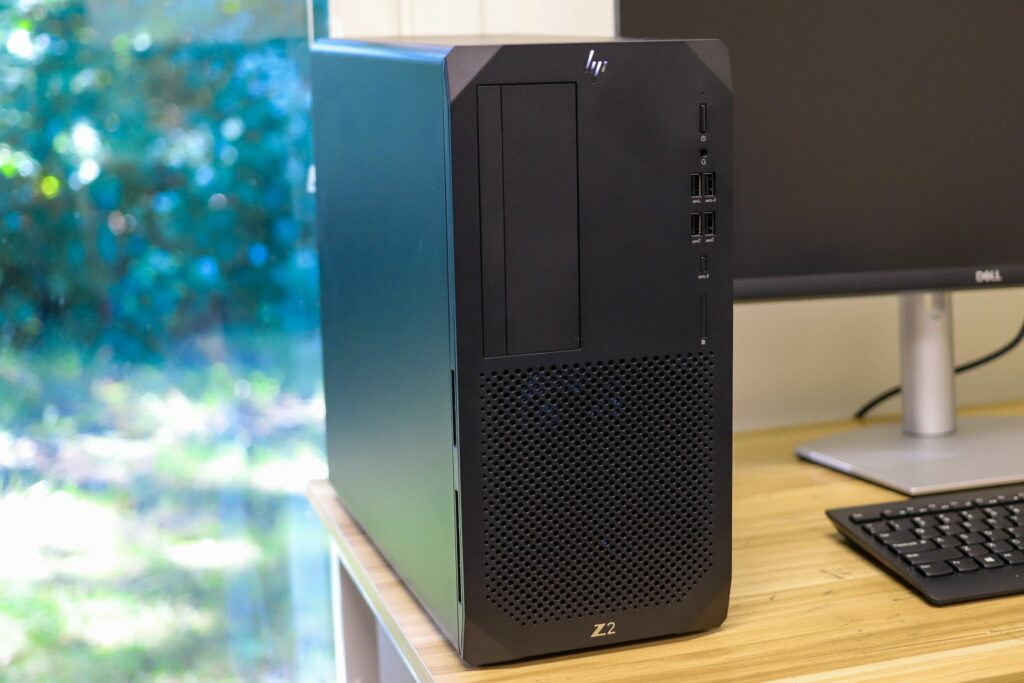

HP Z2 G8 Tower Front

The Z2 G8 Tower is based on Intel’s W580 chipset and “Rocket Lake” Core and Xeon processors, which allow it to support PCIe Gen4. The top CPU choices are the eight-core, 95-watt Core i9-11900K and the 125-watt Xeon W-1390P, both capable of a scorching 5.3GHz. The Xeon options are required for Error Correcting Code (ECC) memory support but unless you need it, the Core chips offer superior value.

Memory options top out at 128GB via four slots. That’s not nearly as much as HP’s significant step-up Z4 Tower (its maximum is 512GB), but for the tasks for which this tower is intended, it’s appropriate. Meanwhile, storage is plentiful with two M.2 Type-2280 PCIe slots, one of which is PCIe Gen4, and one 2.5-inch and two 3.5-inch bays. More internal M.2 drives can be added via a caddy.

What you won’t find on an entry-level workstation like this are dedicated RAID controllers (it offers just RAID 0 and 1), extensive PCIe expansion, and externally accessible or hot-swappable drives. Including such features would defeat the Z2 G8 Tower’s purpose of providing a value option for those that want a business-grade i.e., highly dependable platform yet do not require advanced workstation features.

That said, the Z2 G8 Tower isn’t bereft of remote tools; it can be accessed from anywhere with ZCentral Remote Boost, which we covered in our video walkthrough.

HP Z2 G8 Tower Specifications

Operating System
  • Windows 10 Home, Pro, or Pro for Workstations
  • Ubuntu Linux 20.04
Processor Intel 11th Generation “Rocket Lake” Core and Xeon processors

65-watt:

  • Core i5-11400/11400F (6-core, 12MB cache, 2.6 to 4.4GHz)
  • Core i5-11500 (6-core, 12MB cache, 2.7-4.6GHz)
  • Core i5-11600 (6-core, 12MB cache, 2.8-4.8GHz)
  • Core i7-11700 (8-core, 16MB cache, 2.5-4.9GHz)
  • Core i9-11900 (8-core, 16MB cache, 2.5-5.2GHz)

80-watt:

  • Xeon W-1350 (6-core, 12MB cache, 3.3-5GHz)
  • Xeon W-1370 (8-core, 16MB cache, 2.9-5.1GHz)
  • Xeon W-1390 (8-core, 16MB cache, 2.8-5.2GHz)

95-watt:

  • Core i5-11600K (6-core, 12MB cache, 3.9-4.9GHz)
  • Core i7-11700K (8-core, 16MB cache, 3.6-5GHz)
  • Core i9-11900K (8-core, 16MB cache, 3.5-5.3GHz)
  • 125-watt:
  • Xeon W-1350P (6-core, 12MB cache, 4-5.1GHz)
  • Xeon W-1370P (8-core, 16MB cache, 3.6-5.2GHz)
  • Xeon W-1390P (8-core, 16MB cache, 3.5-5.3GHz)
Power Supply
  • 350-watt (92% efficient)
  • 500-watt (90% efficient)
  • 700-watt (92% efficient)
Memory Four UDIMM slots support up to 128GB DDR-3200 memory, including ECC options
Storage
  • Two M.2 Type-2280 PCIe x4 slots, one Gen4 and one Gen3
  • Two 3.5-inch bays
  • One 2.5-inch bay
  • Additional M.2 slots available via HP QX310 removable frame/carrier
  • RAID 0/1 available
Graphics card Standard: Intel UHD 730 integrated graphics

Optional with up to two Nvidia or AMD cards. (* indicates only available as primary card):

  • Nvidia Quadro P400 (2GB GDDR5)
  • Nvidia T400 (2GB GDDR6)
  • AMD Radeon Pro WX 3200 (4GB GDDR5)
  • Nvidia T600 (2GB GDDR6)
  • Nvidia T1000 (4GB GDDR5)
  • AMD Radeon Pro W5500 (8GB GDDR6)*
  • AMD Radeon Pro W5700 (8GB GDDR6)*
  • Nvidia RTX A4000 (16GB GDDR6 ECC)*
  • Nvidia RTX A5000 (24GB GDDR6 ECC)*



Networking Options
  • Intel Wi-Fi 6 AX201 w/ Bluetooth 5
  • Intel Ethernet Adapter I225-T1
  • Intel Ethernet Server I350-T2
  • Aquantia NBASE-T 5GbE PCIe NIC
  • Intel X550-T2 10GbE Dual Port NIC
Optical Drive Optional 9.5mm DVD-ROM or SuperMulti DVDRW
Media Reader SD card reader
Optional Security Features
  • HP Remove Computrace BIOS Module
  • HP TPM
  • Hood sensor
  • Solenoid Lock and Intrusion Sensor
Warranty Standard one-year warranty; optional three-year warranty
Port Selection Front:

  • (2) USB 3.2 Gen 2 Type-A
  • (2) USB 3.2 Gen 1 Type-A
  • Universal audio jack

Rear:

  • RJ-45 Ethernet
  • (2) DisplayPort 1.4
  • (2) USB 3.2 Gen 2 Type-A
  • (1) USB 3.2 Gen 1 Type-A
  • (3) USB 2.0 Legacy
  • Line-in
  • Line-out

Optional:

  • (1) Front USB 3.2 Gen 2 Type-C
Expansion Slots
  • (1) PCIe 4 x16 (x16 connector)
  • (1) PCIe 3 x4 (x16 connector)
  • (1) PCIe 3 x4 (x4 connector)
  • (1) PCIe 3 x1 (x4 connector)
  • (1) PCIe 4 x4 M.2 Type-2280
  • (1) PCIe 3 x4 M.2 Type-2280
  • (1) PCIe 3 x1 M.2 Type-2230
Weight Starts at 15.43 pounds
Dimensions (HWD) 15.2 by 14 by 6.7 inches

HP Z2 G8 Tower Design and Build

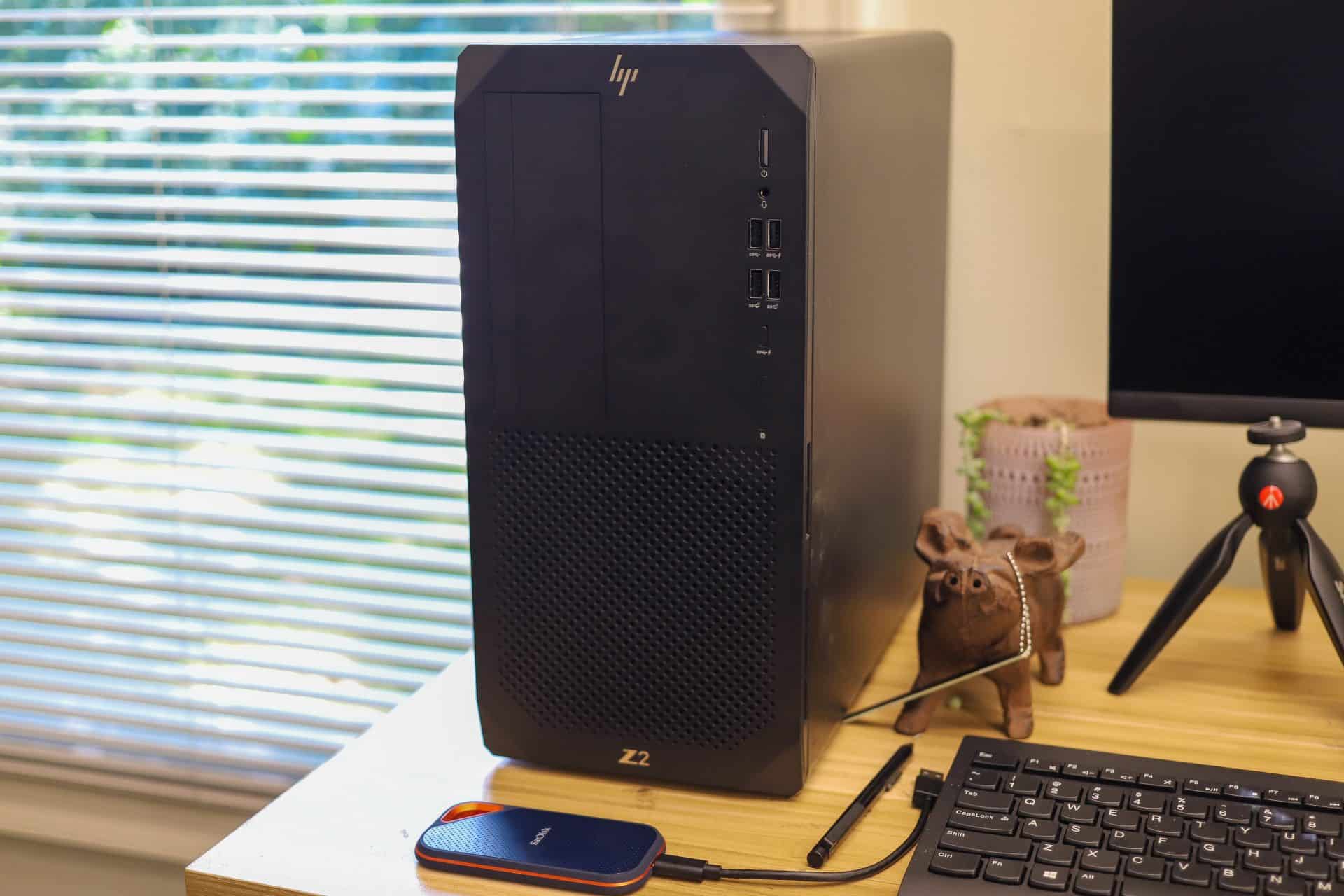

The Z2 G8 Tower’s professional look comes from its all-black case and conventional lines. The folded-in front corners and HP’s reflective logo give it a little style. The front panel is plastic, but the rest of the tower is sturdy steel.

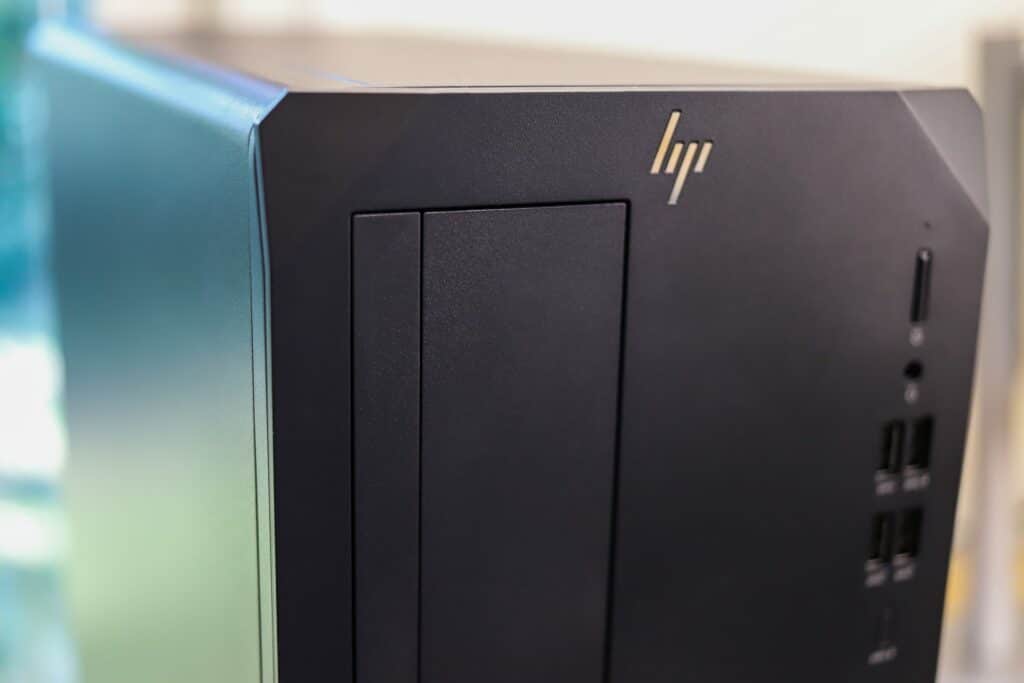

HP Z2 G8 Tower Front Logo

The Z2 G8 Tower measures 15.2 by 14 by 6.7 inches (HWD) and starts at 15.4 pounds, which is within expectations for a mid-tower. You can see its relative footprint here with a USB storage drive for scale.

HP Z2 G8 Tower Front Detail

The front ports include two USB 3.2 Gen 2 Type-A, two USB 3.2 Gen 1 Type-A, and a universal audio jack. Our unit has a full-size SD card reader but lacks the optional USB 3.2 Gen 2 Type-C port, which is filled in. It also doesn’t have anything in the 5.25-inch bay.

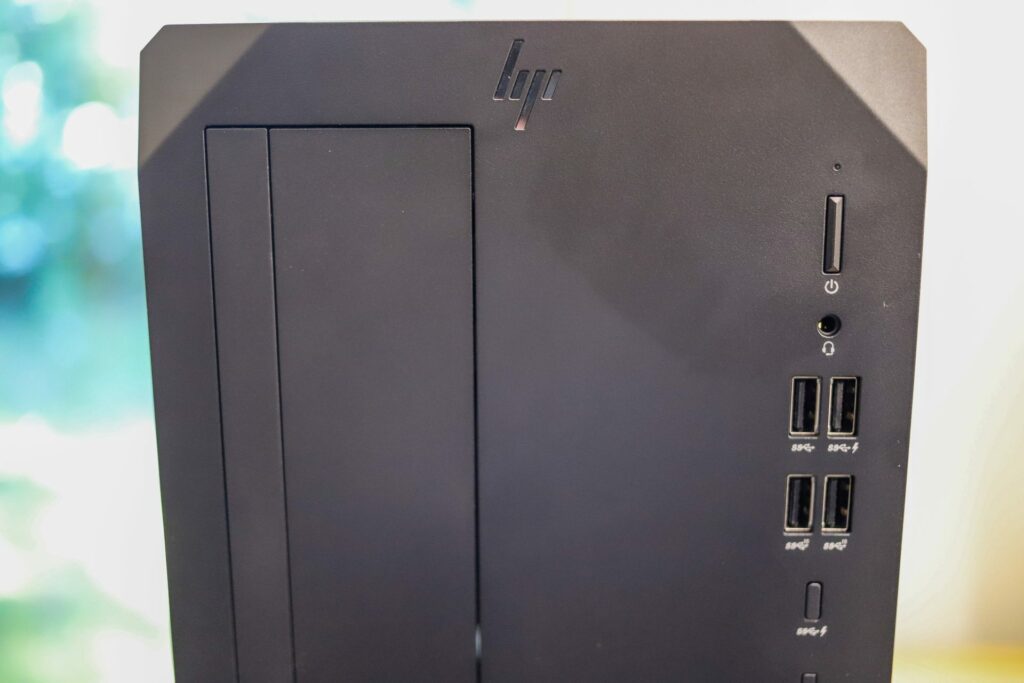

HP Z2 G8 Tower Front Ports

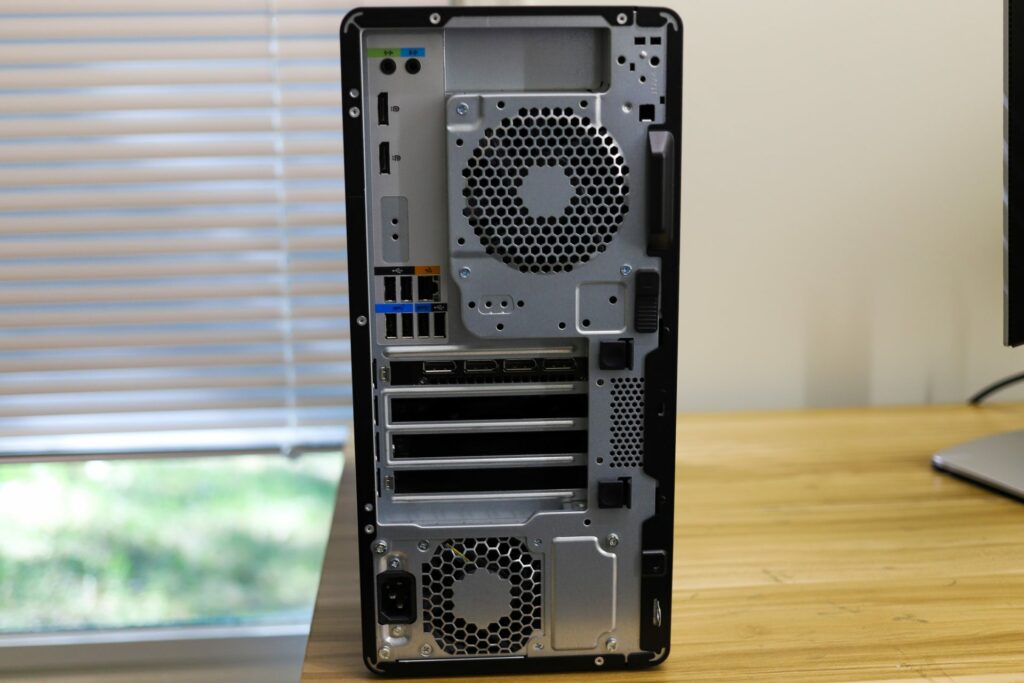

The rear connectivity includes six more USB Type-A ports (two 3.2 Gen 2, one 3.2 Gen 1, and three legacy 2.0), RJ-45 Ethernet, line-in and line-out audio jacks, and a pair of DisplayPort connectors. The latter are disabled since our review unit has a dedicated Nvidia graphics card with four of its own DisplayPort connectors. The filler just above the USB port cluster can host an optional serial port.

HP Z2 G8 Tower Rear

HP offers a variety of networking cards and wireless connectivity, of which our unit isn’t equipped. (The motherboard has a PCIe 3 x1 M.2 Type-2230 slot for wireless cards.) Also visible behind the tower are the rear-facing exhaust fan and the power supply; our unit has the most powerful 700-watt model since it is outfitted with an eight-core CPU and an upper-end GPU. The CPU is air-cooled by a tower-style heatsink. The system remained quiet under load and didn’t make itself heard above the usual office background noise.

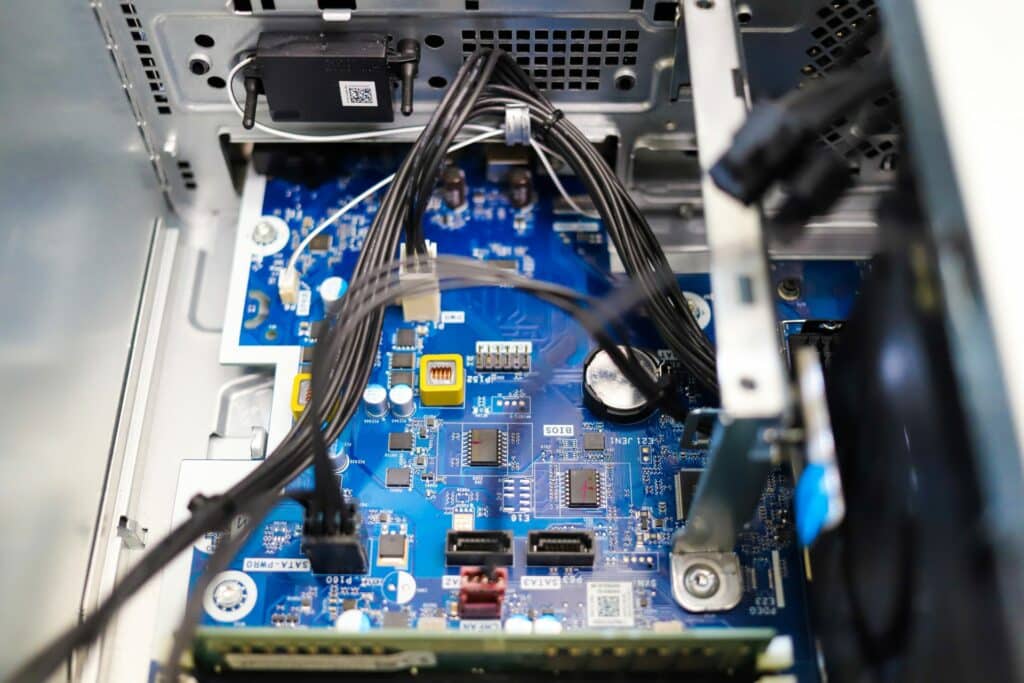

The left-side panel comes off with a tug after sliding a switch for easy access. As this isn’t a showy gaming desktop, the bare metal insides and average cable management are forgivable (and certainly help keep the cost down).

HP Z2 G8 Tower Interior

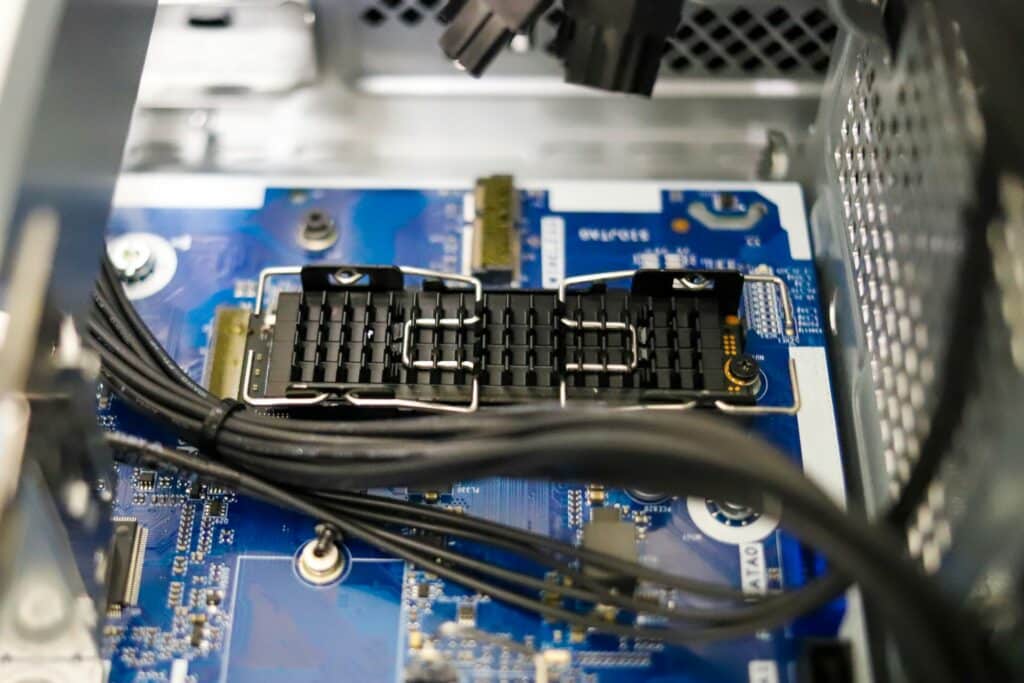

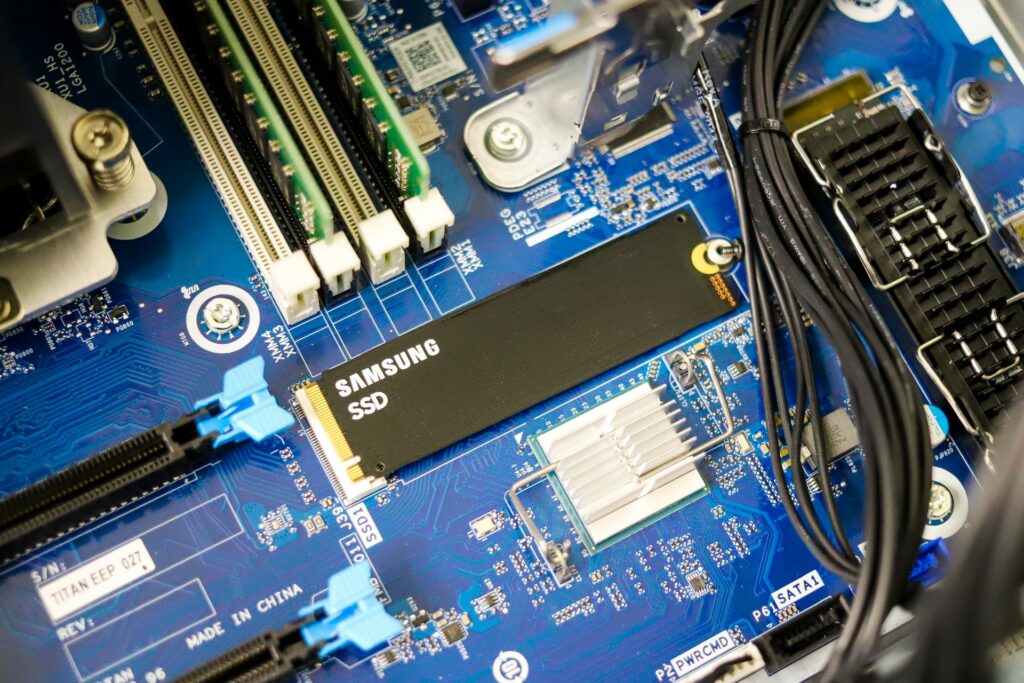

Our review unit has two M.2 Type-2280 solid-state drives; the one with the Samsung logo is a Samsung PM9A1 Gen4 drive. HP brands it as a Z Turbo SSD and does not guarantee the same drive is used in all configurations. The other M.2 Type-2280 slot is Gen3. Both M.2 Type-2280 slots are x4.

HP Z2 G8 Tower M.2 SSD

HP Z2 G8 Tower Z Turbo SSD

Just above it are four UDIMM slots; the Z2 G8 Tower tops out at 128GB of memory, including ECC options with Xeon CPUs. Our Core-based unit has two 16GB DDR4-3200 modules for 32GB total running in dual-channel mode.

For additional storage, the Z2 G8 Tower supports up to two 3.5-inch and one 2.5-inch drive. A PCIe card can also be installed to host additional M.2 drives.

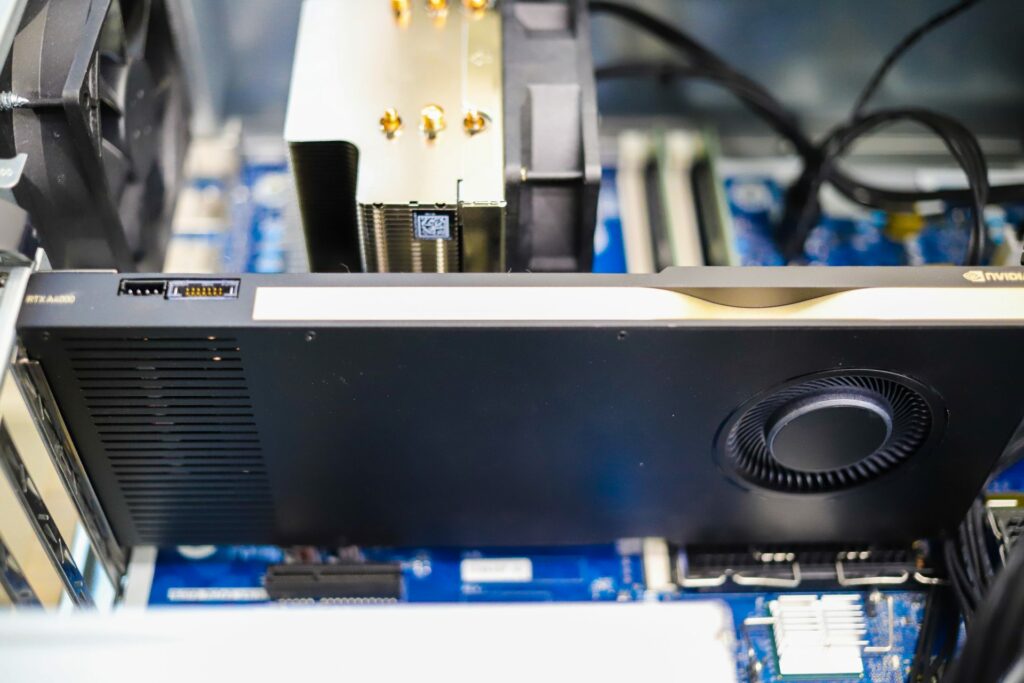

We tested the Z2 G8 Tower with both an Nvidia T1000 and a more power-hungry RTX A4000, both single-slot cards that leave the remaining PCIe slots open. (The latter is pictured below.) The GPU is installed in the only PCIe Gen4 x16 (x16 connector) slot. The other three PCIe slots are Gen3, which include two x4 slots (one x16 connector and one x4 connector) and an x1 slot (x4 connector).

HP Z2 G8 Tower Nvidia GPU

HP Z2 G8 Tower Performance

The Z2 G8 Tower being tested here has these specifications:

  • Windows 10 Pro
  • Intel Core i7-11700 eight-core CPU (2.5GHz base, 4.9GHz Turbo, 65-watt TDP)
  • 32GB DDR4-3200 dual-channel RAM (2x 16GB)
  • 1TB PCIe Gen4 NVMe M.2 SSD (Samsung PM9A1)
  • Nvidia T1000 (4GB GDDR5) or Nvidia RTX A4000 (16GB GDDR6 ECC)
  • 700-watt power supply

The Z2 G8 Tower starts at a teasingly low $1,219, but that price does not include a dedicated GPU, just relying on the Intel CPU’s UHD 730 integrated GPU, which does not qualify it as a workstation in our view. It also has just a six-core Core i5 processor. On the contrary, our upper-end review unit is nicely balanced with an eight-core Core i7-11700 CPU, 32GB of memory (non-ECC), and a 1TB PCIe Gen4 NVMe SSD. We were able to test it with two GPUs; it goes for $2,538 with the Nvidia T1000 (4GB GDDR5) and $3,110 with the RTX A4000 (16GB GDDR6 ECC). Those prices include a three-year warranty, though the base model has just one year. The pricing can vary greatly depending on how you purchase the Z2 G8 Tower, especially if you have access to fleet discounts.

The Core i7-11700 CPU deserves a callout. It’s offered as the 65-watt chip, or as the K-series Core i7-11700K which comes in at 125 watts. The K-series chip will be superior for long-running tasks that continuously stress the CPU since its higher power limit will allow it to sustain higher clocks. The performance between the two will be similar for everything else.

Also notable about the Core CPUs is that they don’t require a pricey Windows 10 Pro for Workstations license, which is required with the Xeon chips that HP offers in this model. You can, of course, spec it with Linux for no cost.

Competition for the Z2 G8 Tower chiefly comes from the Dell Precision 3650 and the Lenovo ThinkStation P340, also mid-towers. Like HP, they too do not offer advanced workstation features to keep their prices down. Highlighting this segment’s competitiveness, their CPU, GPU, memory, and storage options are almost identical to what HP offers.

Let’s get testing. For tests that engage the GPU, we have result sets with the Nvidia T1000 and the RTX A4000 cards, as HP was nice enough to send us both.

Disk Speed Test

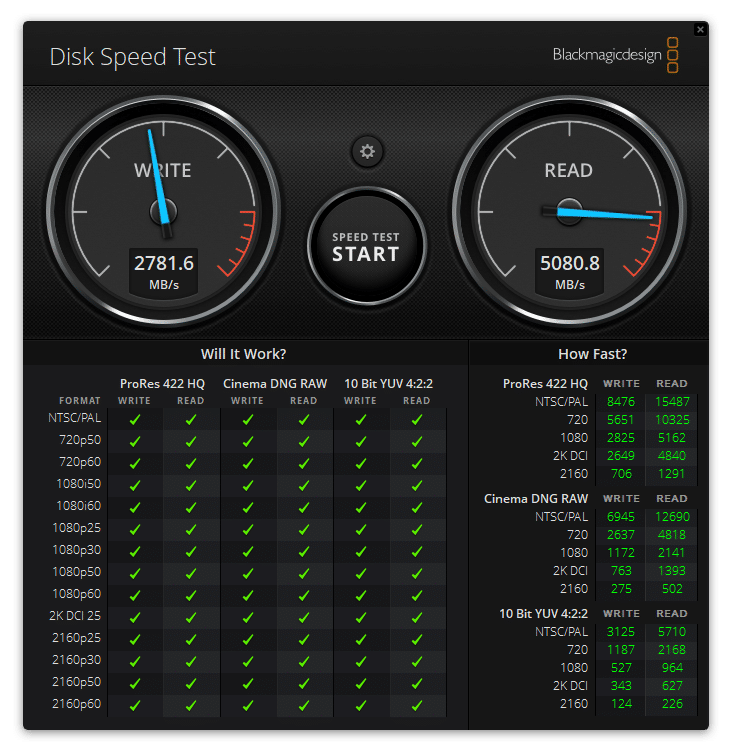

We start the performance testing with Disk Speed Test. The Z Turbo SSD posted 2,782MB/s write and 5,081MB/s read.

HP Z2 G8 Tower Z Turbo Drive Disk Speed Test

PCMark 10

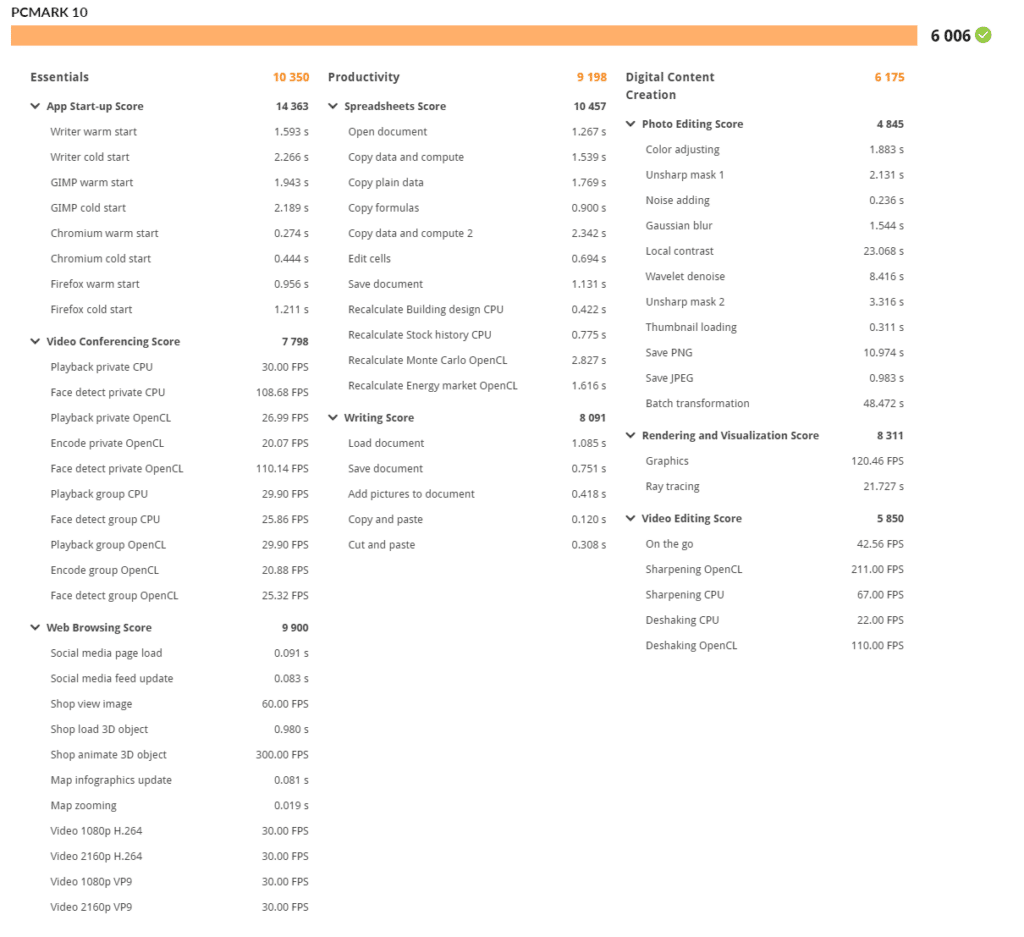

Next, we move onto UL Labs’ PCMark 10 for general system performance assessment. The Z2 G8 Tower scored 6,006 points with the Nvidia T1000 and 7,071 points with the Nvidia RTX A4000, scores indicative of a high-performance desktop. The test isn’t GPU-heavy, so the RTX A4000 didn’t make a massive difference. The full results are below; this is with the T1000:

HP Z2 G8 Tower PCMark 10 T1000

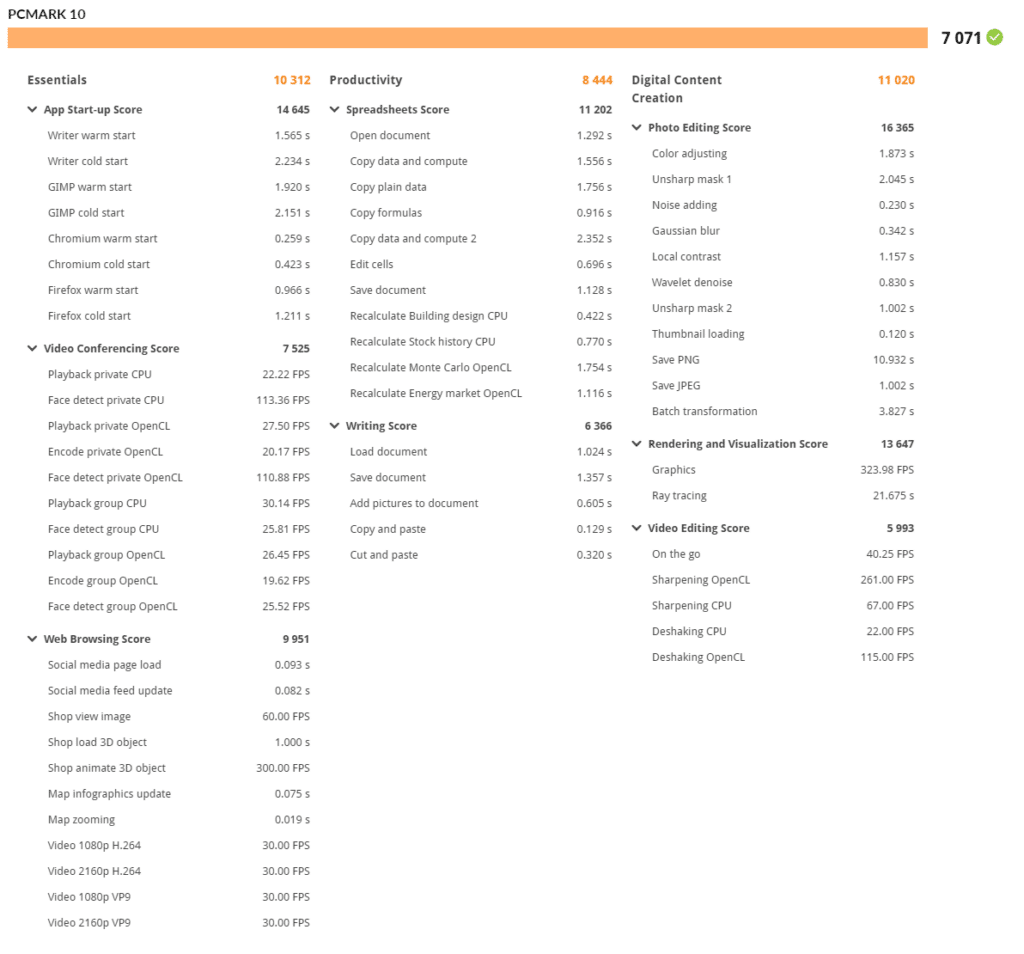

…and this is with the RTX A4000:

HP Z2 G8 Tower PCMark 10 RTX A4000

Next is SPECviewperf 2020, the worldwide standard for measuring graphics performance of professional applications running under the OpenGL and Direct X application programming interfaces. The viewsets (or benchmarks) represent graphics content and behavior from actual applications, without having to install the applications themselves. The newest version of this benchmark went through some major updates late last year, including new viewsets taken from traces of the latest versions of 3ds Max, Catia, Maya, and Solidworks applications. In addition, they added support within all viewsets for both 2K and 4K resolution displays. Our tests were run with a windowed resolution of 3800×2120.

As expected, the Nvidia RTX A4000 shows vast performance improvements over the T1000. The RTX A4000’s 16GB of dedicated memory is noteworthy for its ECC support, making it suitable for scientific and financial applications.

SPECviewperf 2020 (Higher is better)
Viewsets HP Z2 G8 Tower (Nvidia T1000) HP Z2 G8 Tower (Nvidia RTX 4000)
3dsmax-07 23.02 87.38
Catia-06 16.59 67.49
Creo-03 41.62 113.14
Energy-03 6.65 20.59
Medical-03 6.09 19.36
Snx-04 97.8 298.95
Sw-05 16.92 103.3

Moving on with our performance benchmarks, we ran SPECworkstation3. This is a test that specializes in benchmrks designed for testing all key aspects of workstation performance; it uses over 30 workloads to test CPU, graphics, I/O, and memory bandwidth. The workloads fall into broader categories such as Media and Entertainment, Financial Services, Product Development, Energy, Life Sciences, and General Operations. We are going to list the broad-category results for each, as opposed to the individual workloads. The results are an average of all the individual workloads in each category.

SPECworkstation 3 (Higher is better)
Category HP Z2 G8 Tower (Nvidia T1000) HP Z2 G8 Tower (Nvidia RTX A4000)
M&E 2.34 2.82
ProdDev 2.57 3.21
LifeSci 2.38 2.94
Energy 1.43 1.7
FSI 1.87 1.87
GeneralOps 2.54 2.55
GPU Compute 2.01 5.57

Some numbers are largely unchanged with the faster RTX A4000 (for instance, FSI and GeneralOps) because they aren’t GPU-bound. That said, the GPU Compute results clearly shows the RTX A4000’s power.

Next up is Blender, an open-source 3D modeling application. This benchmark was run using the Blender Benchmark utility. NVIDIA OptiX was the chosen render method. The score is in seconds, with lower being better. These scores again illustrate the RTX A4000’s superior performance; it’s simply in a different class (when is especially apparent when considering the upgrade cost from the T1000).

Blender OptiX, rendering time in seconds (lower is better)
Category HP Z2 G8 Tower (Nvidia T1000) HP Z2 G8 Tower (Nvidia RTX A4000)
bmw27 141.50 18.16
classroom 545.15 60.19
fishy_cat 288.96 35.82
koro 370.92 80.09
pavilion_barcelona 790.37 85.12

Another 3D benchmark we will be looking at is LuxMark, an OpenCL GPU benchmarking utility, where the Z2 G8 Tower scored 13,728 with the RTX A4000, 3.5 times higher than it did with the T1000.

LuxMark (Higher is better)
Category HP Z2 G8 Tower (Nvidia T1000) HP Z2 G8 Tower (Nvidia RTX A4000)
hallbench 3876 13728

Next up is the Environmental Systems Research Institute (Esri) benchmark. Esri is a supplier of Geographic Information System (GIS) software. Esri’s Performance Team designed their PerfTool add-in scripts to automatically launch the ArcGIS Pro. This application uses a “ZoomToBookmarks” function to browse various predefined bookmarks and create a log file with all the key data points required to predict the user experience. The script automatically loops the bookmarks three times to account for caching (memory and disk cache). In other words, this benchmark simulates heavy graphical use that one might see through Esri’s ArcGIS Pro software.

First up is the Montreal model, where the Z2 G8 Tower continued showing solid gains when equipped with the RTX A4000 instead of the T1000. We also observed this effect in the other two models.

ESRI ArcGIS Pro 2.3 Montreal
Average FPS Average
HP Z2 G8 Tower (Nvidia T1000) 103.56
HP Z2 G8 Tower (Nvidia RTX A4000) 335.52
Minimum FPS Average
HP Z2 G8 Tower (Nvidia T1000) 56.84
HP Z2 G8 Tower (Nvidia RTX A4000) 153.99

The Philly model is next.

ESRI ArcGIS Pro 2.3 Philly
Average FPS Average
HP Z2 G8 Tower (Nvidia T1000) 89.69
HP Z2 G8 Tower (Nvidia RTX A4000) 251.59
Minimum FPS Average
HP Z2 G8 Tower (Nvidia T1000) 55.67
HP Z2 G8 Tower (Nvidia RTX A4000) 141.57

Last up is the Portland animation.

ESRI ArcGIS Pro 2.3 Portland
Average FPS Average
HP Z2 G8 Tower (Nvidia T1000) 957.73
HP Z2 G8 Tower (Nvidia RTX A4000) 2036.80
Minimum FPS Average
HP Z2 G8 Tower (Nvidia T1000) 353.59
HP Z2 G8 Tower (Nvidia RTX A4000) 680.23

Conclusion

HP’s Z2 G8 Tower is a credit to what an entry-level workstation can do with its ample performance, expansion, and factory configurability. This mid-tower is the largest model in HP’s Z2 lineup, offering more powerful GPUs and power supplies than the smaller Z2 SFF G8. Our review unit’s “Rocket Lake” Core i7 processor and PCIe Gen4 SSD performed well throughout our testing, especially when paired with the Nvidia RTX A4000 GPU.

Pricing is an important buying factor with workstations, and that’s where the Z2 G8 Tower shines, not making you pay for advanced workstation features if you don’t need them (as you might find on HP’s Z4 tower and equivalent towers from Dell and Lenovo). This is especially evident with the CPU options, which include Intel’s consumer-class Core line; you aren’t forced to pay for Xeon chips with ECC memory, though they are available. Though the CPU options top out at eight cores, they’re sufficiently powerful for tasks that are appropriate for a workstation in this class.

Simply put, for more advanced features and scalable performance, you’ll need to step up to the next workstation tier. Otherwise, the Z2 G8 Tower is an excellent entry-level option.
