Seagate Xbox Game Drive SSD Review

by Conner Crull
xbox game drive xbox x

The all-new Seagate Xbox SSD is the newest SSD in their line-up, featuring 1TB of capacity. It has the ability to access games from the Xbox Series X, Xbox Series S, any Xbox One, and any title associated with the Game Pass. Connectivity is handled through a single USB 3.2 port that allows players to take it on the go.

The all-new Seagate Xbox SSD is the newest SSD in their line-up, featuring 1TB of capacity. It has the ability to access games from the Xbox Series X, Xbox Series S, any Xbox One, and any title associated with the Game Pass. Connectivity is handled through a single USB 3.2 port that allows players to take it on the go.

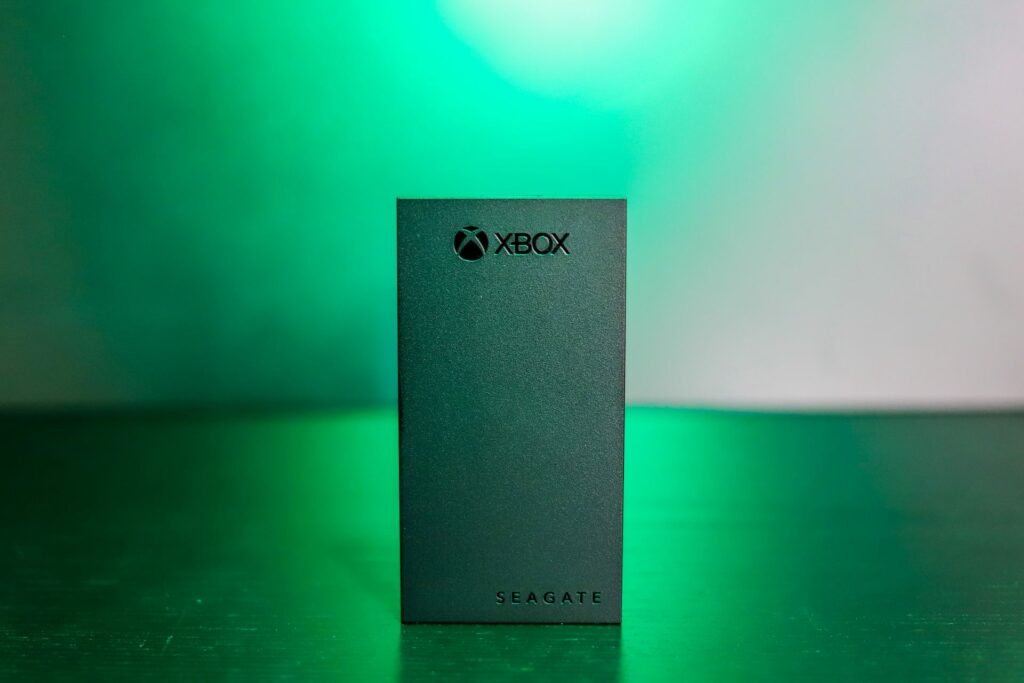

Seagate Xbox SSD Front

Seagate Xbox Game Drive 1TB SSD – What is it?

The all-new game drives for the Xbox have been split between 3 different storage capacities, there is the 1TB SSD Drive, the 4TB HDD Drive, and the 8TB Hub. In our case, we will be reviewing the 1TB SSD Drive, which goes for $169.99. Currently, typing the product name into a search bar will likely yield you the older model of the game drive, so be careful when researching. The previous model, which was designed for the Xbox One, can be found on various websites, running around $115.00 on Walmart.

The release of these drives seems to line up with the end of the year sales and holiday season. Gearing up for a large number of sales for the current Xbox, players more often than not will need more storage than what their consoles have inside, so Seagate has released these drives early enough to allow for orders. However, while designed for Xbox and compatible with Xbox Series X and Series S, and any generation of Xbox One, it merely adds storage to a console that allows players to expand their library. Most games must still be run off of internal storage on the console, and the only games that would be available to play off this drive would be legacy titles. For an expansion that allows you to run the game from the storage itself, buyers would need to move up to the Seagate Xbox Expansion Card which just got upgraded to 2TB at the high-end.

Interestingly, the Seagate Xbox Game Drive SSD also comes with Seagate’s promise of “Rescue Data Recovery Services.” This is a service that is known to be provided by Seagate in the event of a drive failing, water damage, or a natural disaster, checking availability and the warranty of a drive is easy as going on the website and either contacting support or the “Check Your Warranty” button. For an Xbox-targeted SSD, data recovery may not be a needed item, most data failures would result in just downloading the game or games again. Personal data on a home user/business type drive generally involves data that can’t be easily reproduced in that same way. That said, it’s still a nice to have offering.

Seagate Xbox Game Drive 1TB SSD – Build and Design

Each of these drives comes with a sleek, box-like design that is reminiscent of the actual build of an Xbox.  Compared to each other, the 1TB SSD comes in as the smallest out of the 3 drives, with dimensions of 0.433in x 1.969in x 3.78in, and a weight of 0.11lbs. The drives come in a standard Xbox black color.  The included light bar on the drive can tell the player when the drive is connected and powered on.

Seagate Xbox SSD port

Seagate Xbox Game Drive 1TB SSD – Performance

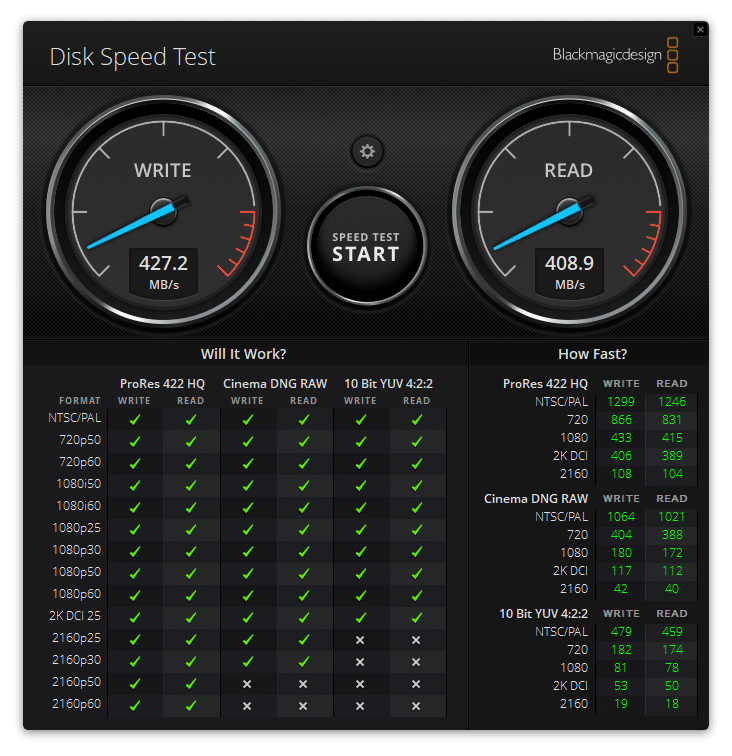

As for testing of the drive, one of the first tests that were performed was the Blackmagic Disk Speed Test.  The 1TB SSD managed to get 408.9 MB/s read and 427.2 MB/s write.  This drive gives the user a fairly decent turnaround time when running, transferring, or downloading games.

Seagate Xbox SSD Perf

The next test is IOMeter, in which we looked at 2MB sequential read and write, 2MB random read and write, and then 4K random read and write.  From the results, the results are still fairly decent when it comes to writing and reading, until 4K random read, where there is a big difference between read and write for 4K. Overall being USB 3.2-based, the drive won’t win any external storage benchmarks, but it doesn’t need to for its design purposes.

IOMeter
Test Results
2MB sequential write 404.38 MB/s
2MB sequential read 378.30 MB/s
2MB random write 404.06 MB/s
2MB random read 379.36 MB/s
4K random Write 12979.77 IOps
4K random Read 4114.27 IOps

Conclusion

The Seagate Xbox Game Drive 1TB SSD hits many of the right checkmarks when it comes to a reasonably quick, portable drive that anyone can use on their Xbox.  With its sleek design and green-lit bar across the front, it will fit right in with the Xbox aesthetic.

xbox game drive xbox x

You really have to want this drive for the matched Xbox branding. There are many USB SATA SSDs that will be less expensive, the Samsung T5 for instance has been around for ages and costs a few bucks less. On the other hand, if you’re wanting to use the drive for something other than Xbox, there are dozens of faster options like Seagate’s FireCuda Gaming SSD.

At the end of the day, this drive is very much about design and on that front, it scores well. The drive undoubtedly looks the part for the dedicated Xbox gamer.
