NVIDIA RTX A6000 Review

by Lyle Smith

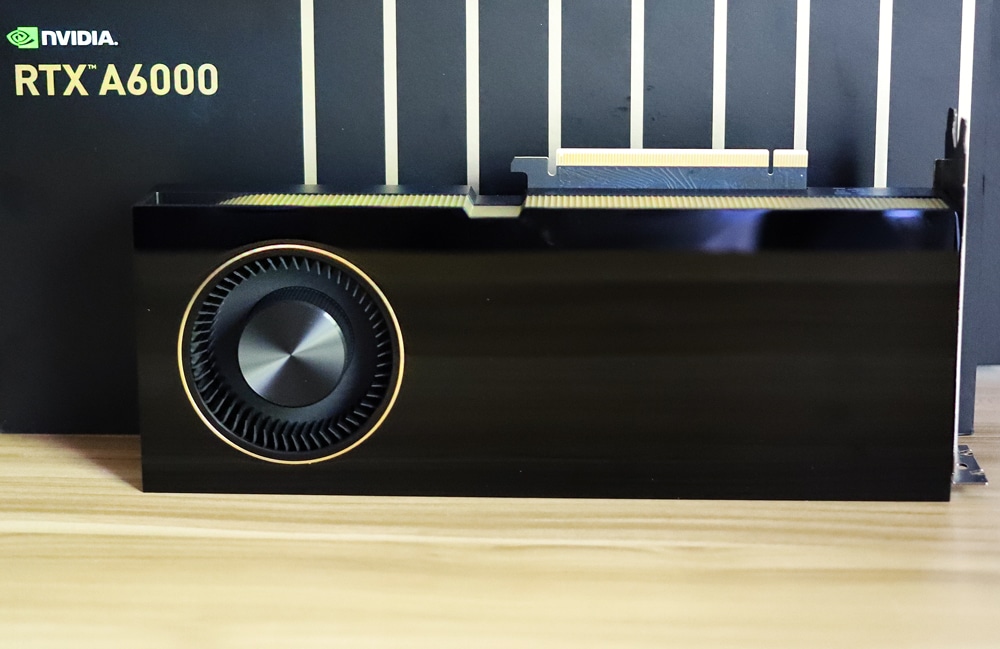

Nvidia RTX A6000

The NVIDIA RTX A6000 is the company’s newest release that leverages second-generation RTX architecture. Coupling 10,752 CUDA processing cores with its 84 next-generation RT cores, the new GPU offers top-class performance in both real-time ray-tracing and professional final frame ray-tracing output. Though NVIDIA considers the RTX A6000 as a successor to the RTX 6000, it is essentially a direct replacement of the RTX 8000.

The NVIDIA RTX A6000 is the company’s newest release that leverages second-generation RTX architecture. Coupling 10,752 CUDA processing cores with its 84 next-generation RT cores, the new GPU offers top-class performance in both real-time ray-tracing and professional final frame ray-tracing output. Though NVIDIA considers the RTX A6000 as a successor to the RTX 6000, it is essentially a direct replacement of the RTX 8000.

The RTX 8000 is roughly 3 years old as of this review, so it’s certainly nice to finally see a replacement to NVIDIA’s former best-of-class workstation GPU. The company recently stopped using the Quadro name to identify their professional solutions; however, the RTX A6000 still features all the same professional features, hardware and software certifications, certified drivers as the Quadro line.

Nvidia RTX A6000

NVIDIA RTX A6000 vs. RTX 6000 vs. RTX 8000

The RTX A6000 is a huge upgrade no matter which last-gen card you compare it to, offering a more realistic output of moving objects and support for hardware-accelerated motion blur (the latter which is used to improve the final image’s overall realism when rendering moving objects). It also features accelerated AI denoising, which means higher quality output using fewer rendering passes and thus faster render times.  Moreover, the A6000 is NVIDIA’s first professional graphics card that supports the PCIe Gen4 standard.

The new NVIDIA card doubles the memory size of the RTX 6000 to 48GB of GDDR6 (the same as the RTX 8000), allowing it to work with larger 3D datasets. This also means creative professionals can render large 3D scenes without having to reduce scene complexity. For professionals that have larger budgets and workloads that require more than 48GB of memory, two A6000 cards can be connected via the NVIDIA NVLink for 96GB of combined GPU memory.

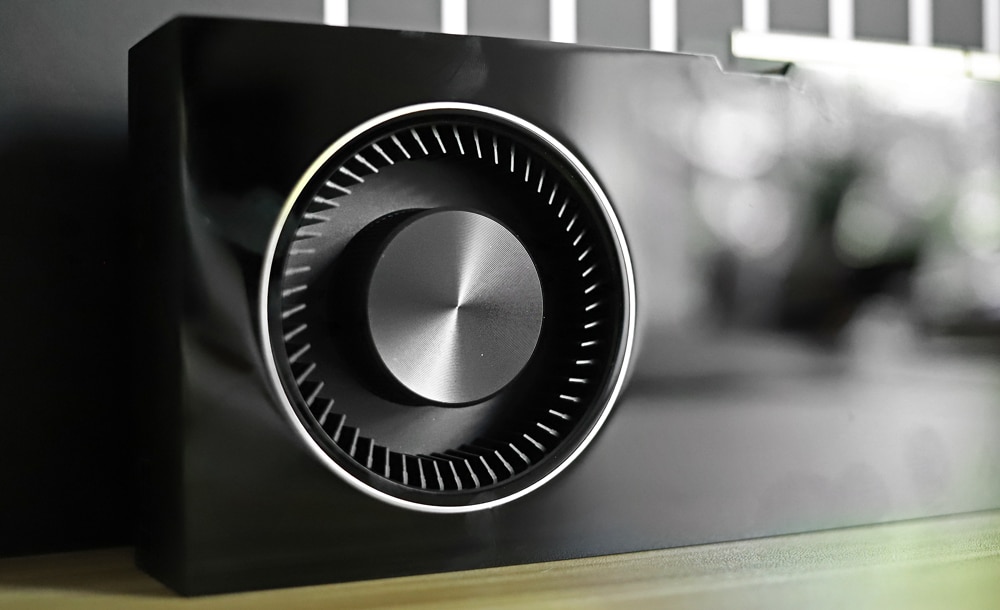

Nvidia RTX A6000 fan closeup

Perhaps the most significant upgrade with the RTX A6000 is NVIDIA Ampere, a new architecture that uses Samsung’s 8nm NVIDIA custom process featuring 28 billion transistors. As you will see in the performance charts below, this new architecture will blow the RTX 6000 out of the water in most of our tests.

Other Ampere highlights include:

  • an improved streaming multiprocessor
  • second-generation Ray Tracing cores, which improve ray tracing hardware acceleration
  • third-generation Tensor Cores, which improve AI inference performance and DLSS resulting in better performance at higher resolutions

The Ampere architecture also increases CUDA cores by up to double the single-precision floating-point compared to last-gen models. This means noticeable performance improvements in areas such as 3D model development and compute like desktop simulation for computer-aided engineering.

NVIDIA RTX A6000 vs. RTX 3090

Yes, the RTX A6000 is a direct replacement of the RTX 8000 and technically the successor to the RTX 6000, but it is actually more in line with the RTX 3090 in many ways, as far as specifications and potential performance output go. Both cards leverage the new Ampere (8nm) architecture and feature a similar CUDA and RT core count.

Any difference in performance between the two cards is likely due to the RTX 3090’s improved driver optimization and newer RAM (3090’s GDDR6X vs the A6000’s GDDR6). Nonetheless, the RTX A6000 is a massive release by NVIDIA and will outperform pretty much anything else available on the market in certain areas, so deciding on which card is best for you really comes down to your specific use case as our review benchmarks will show.

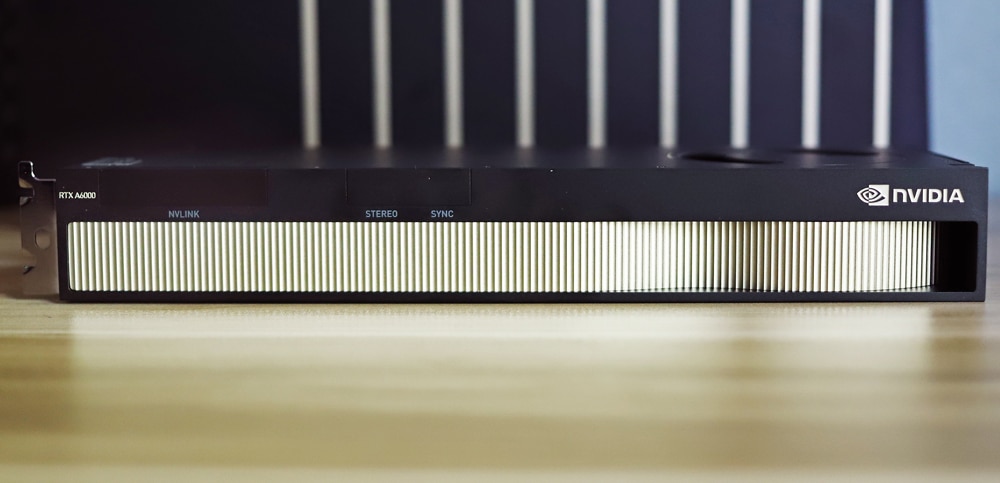

Nvidia RTX A6000 front

NVIDIA RTX A6000 Specifications

GPU RTX A6000
Architecture Ampere
Foundry Samsung
Process Size 8nm
Transistors 28.3 billion
Die Size 628.4 mm2
CUDA Parallel Processing Cores 10,752
NVIDIA Tensor Cores 336
NVIDIA RT Cores 84
GPU Memory 48 GB GDDR6 with ECC
Memory Interface 384-bit
Memory Bandwidth 768 GB/s
Max Power Consumption 300W
Graphics Bus PCI Express 4.0 x16
Display Connectors DP 1.4 (4)
Form Factor 4.4” H x 10.5” L Dual Slot
Product Weight 1.179 kg
Thermal Solution Active
vGPU Software Support NVIDIA GRID, NVIDIA Quadro Virtual Data Center Workstation, NVIDIA Virtual Compute Server
vGPU Profiles Supported 1 GB, 2 GB, 3 GB, 4 GB, 6 GB, 8 GB,

12 GB, 16 GB, 24 GB, 48 GB

NVIDIA® 3D Vision® and 3D Vision Pro Support via 3 pin mini DIN
Frame lock Compatible (with Quadro Sync II)
NVLink 2-way low profile (2-slot and 3-slot bridges)

Connect 2x RTX A6000

NVLink Interconnect 112.5 GB/s (bidirectional)
Power Connector 1x 8-pin CPU
NVENC | NVDEC 1x | 2x (+AV1 decode)

Performance

To gauge its performance, we put the RTX A6000 through a series of resource-intensive tests and compared it to the RTX 8000 and the RTX 3090 FE. We installed the RTX A6000 in both the HP ZCentral 4R and the P620 workstations, which the RTX 8000 also used in some of our benchmarks:

HP ZCentral 4R:

  • Intel Xeon 2295 (3.0 GHz base frequency, up to 4.6 GHz with Intel vPro Technology)
  • 64GB of DDR4-2933 ECC SDRAM
  • 1TB M.2 SSD

Lenovo ThinkStation P620:

  • AMD Ryzen Threadripper Pro 3995WX Processor (2.70 GHz, up to 4.20 GHz Max Boost, 64 Cores, 128 Threads, 32 MB Cache)
  • 64GB of DDR4 RAM
  • 1TB PM981 SSD

We installed the RTX 8000 and RTX 3090 in a custom consumer-build for our Blender and LuxMark tests:

  • AMD Ryzen 9 3900X
  • 4x8GB (32GB) G.Skill TridentZ Neo 3600MHz CL16
  • 2TB Samsung 970 Pro
  • ASRock X570 Taichi (BIOS v4.00, PCIe Gen4)

SPECviewperf 2020

First up is the SPECviewperf 2020 benchmark, the worldwide standard for measuring graphics performance of professional applications running under the OpenGL and Direct X application programming interfaces. The viewsets (or benchmarks) represent graphics content and behavior from actual applications, without having to install the applications themselves. These viewsets include 3D Max, CATIA, Creo, Energy, Maya, Medical, Siemens NX, and Solidworks.

Note: we used a 4K resolution (3800 x 2120) for this test and both were installed in the HP ZCentral 4R.

Viewsets NVIDIA RTX A6000
Lenovo ThinkStation P620
NVIDIA RTX A6000
HP ZCentral 4R
NVIDIA RTX 8000
Lenovo ThinkStation P620
3dsmax-07 131.96 127.89 110.01
Catia-06 90.99 75.32 69.37
Creo-03 125.88 99.54 108.11
Energy-03 42.22 38.83 27.11
Maya-06 314.82 273.01 238.84
Medical-03 34.87 30.58 27.67
Snx-04 450.72 422.01 375.83
Sw-05 161.4 152.19 136.5

For this benchmark, the RTX A6000 showed a dramatic improvement over the last-gen model inside both workstations, especially in the Siemens NX category. As we stated earlier, the Ampere architecture is a huge leap forward in performance, so this was certainly expected and you will see this performance trend continue in the rest of our benchmarks.

Next, we ran SPECworkstation3, a test that specializes in benchmarks designed for testing all key aspects of workstation performance; it uses over 30 workloads to test CPU, graphics, I/O, and memory bandwidth. The workloads fall into broader categories such as Media and Entertainment, Financial Services, Product Development, Energy, Life Sciences, and General Operations. We are going to list the broad-category results for each, as opposed to the individual workloads. The results are an average of all the individual workloads in each category.

SPECworkstation3

Category NVIDIA RTX A6000
Lenovo ThinkStation P620
NVIDIA RTX A6000
HP ZCentral 4R
NVIDIA RTX 8000
Lenovo ThinkStation P620
M&E 6.04 3.49 3.82
ProdDev 5.49 3.63 3.97
LifeSci 4.61 3.76 4.07
Energy 5.58 2.79 did not complete
FSI 9.49 3.38 4.08
GeneralOps 2.14 1.63 2.1
GPU Compute 7.44 7.22 5.88

Overall, we saw another significant leap in performance with most of the categories when installed inside the P620, sometimes more than doubling the result over the RTX 8000. When populated inside the HP ZCentral workstation, it showed lower numbers with the exception of the GPU Compute.

Environmental Systems Research Institute (Esri)

Next up is the Environmental Systems Research Institute (Esri) benchmark. Esri is a supplier of Geographic Information System (GIS) software while their Performance Team designed their PerfTool add-in scripts to automatically launch the ArcGIS Pro.

This application uses a “ZoomToBookmarks” function to browse various predefined bookmarks and create a log file with all the key data points required to predict the user experience. The script automatically loops the bookmarks three times to account for caching (memory and disk cache). In other words, this benchmark simulates heavy graphical use that one might see through Esri’s ArcGIS Pro software.

The tests consist of three main datasets. Two are 3-D city views of Philadelphia, PA, and Montreal, QC. These city views contain textured 3-D multipatch buildings draped on a terrain model and draped aerial images. The third dataset is a 2-D map view of the Portland, OR region. This data contains detailed information for roads, land use parcels, parks and schools, rivers, lakes, and hill shaded terrain.

First up is Montreal. Here, the RTX A6000 hit an average FPS of 614.03 and a minimum FPS of 238.18.

ESRI ArcGIS Pro 2.3 Montreal
Average FPS
NVIDIA RTX 8000 471.58
NVIDIA RTX A6000 614.03
Minimum FPS
NVIDIA RTX 8000 220.36
NVIDIA RTX A6000 238.18

Next up is Philly where the RTX A6000 hit an average FPS of 542.70, and a minimum FPS of 237.54.

ESRI ArcGIS Pro 2.3 Philly
Average FPS
NVIDIA RTX 8000 509.31
NVIDIA RTX A6000 542.70
Minimum FPS
NVIDIA RTX 8000 271.01
NVIDIA RTX A6000 237.54

Our last model is of Portland. Here, the RTX A6000 had an average FPS of 2,756.82, and a minimum FPS of 906.17.

ESRI ArcGIS Pro 2.3 Portland
Average FPS
NVIDIA RTX 8000 2,270.52
NVIDIA RTX A6000 2,756.82
Minimum FPS
NVIDIA RTX 8000 965.13
NVIDIA RTX A6000 906.17

Blender

Next up is the ubiquitous Blender, an open-source 3D modeling application. This benchmark was run using the Blender Benchmark utility. NVIDIA OptiX was the chosen render method, as opposed to CUDA, as the A6000 and its comparables can utilize RTX. In this benchmark measured in seconds, lower is better.

The A6000 showed huge gains in all categories (except Koro) over the RTX 8000 in both the HP and Lenovo workstation. Though it trailed the RTX 3090 in all categories, the RTX A6000 gave the gaming-behemoth GPU a run for its money.

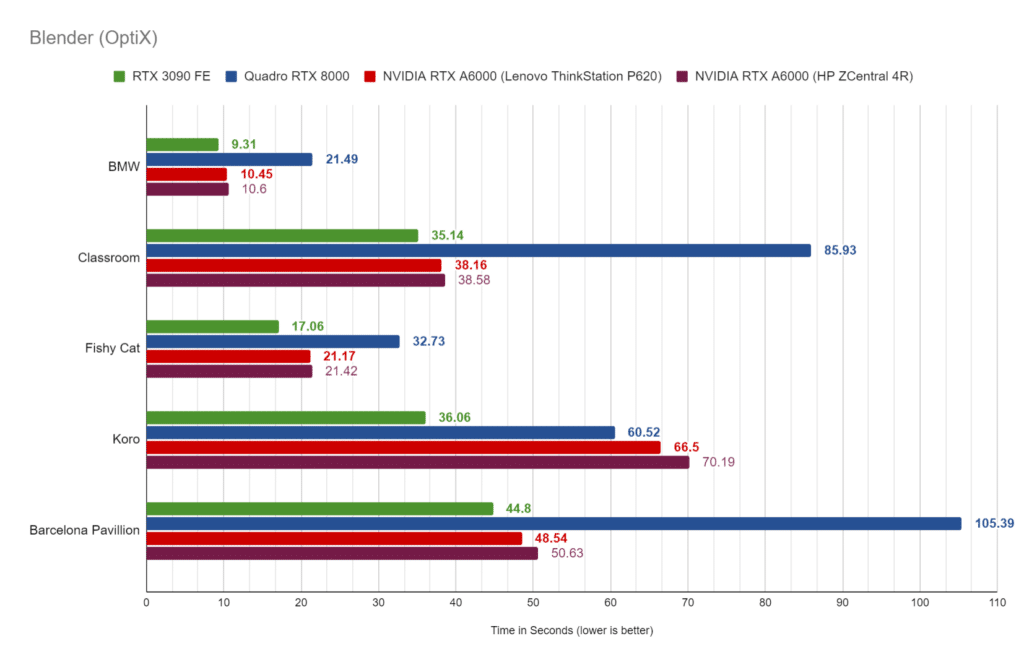

NVIDIA RTX A6000 Blender results

LuxMark

LuxMark is an OpenCL cross-platform benchmarking tool from those who maintain the open-source 3D rending engine, LuxRender. This tool looks at GPU performance in the areas of 3D modeling, lighting, and video work. For this review, we used the newest version, v4alpha0. In LuxMark, higher is better when it comes to the score.

In the food rendering category, the RTX A6000 scored 8,088 when inside the Lenovo P620, which more than doubled that of the RTX 8000 (which posted 3,337) and slightly trailed the RTX 3090 (which posted 8,929). In the Hallbench rendering category, the new NVIDIA card again more than double the last-gen card with 20,983 (vs. 9,794), while trailing the RTX 3090’s 23,555. Inside an HP ZCentral 4R, the RTX A6000 posted a score of 7,123 and 20,246 for the food and Hallbench categories, respectively.

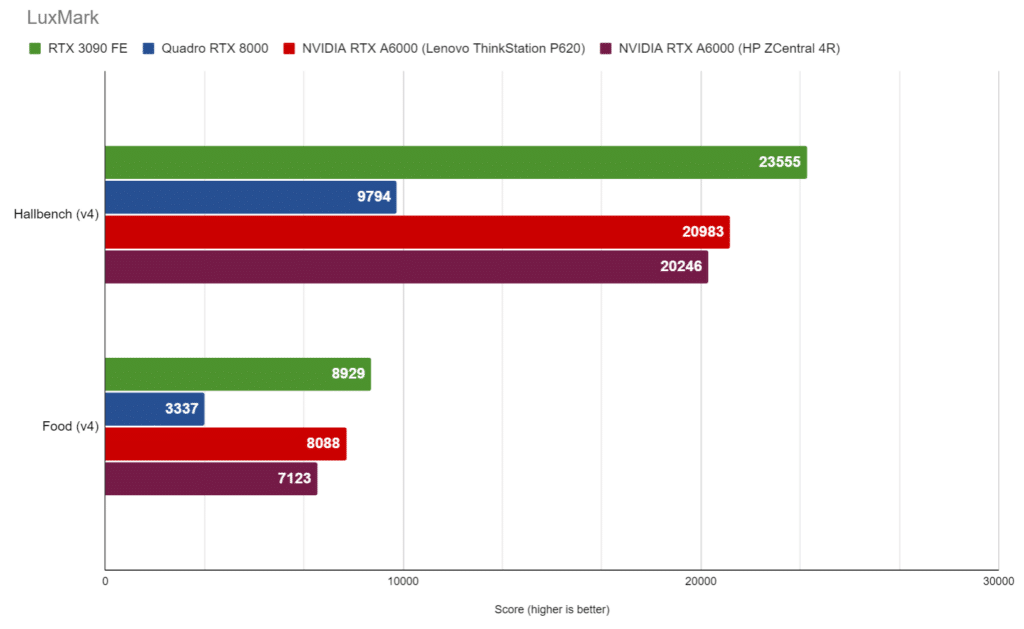

NVIDIA RTX A6000 LuxMark results

OctaneBench

Lastly, we look at OctaneBench. This is a benchmarking utility for OctaneRender and another 3D renderer with RTX support (similar to V-Ray).

RTX A6000 Total Score: 664.40
Lenovo ThinkStation P620
Scene Kernel Ms/s Ratio Weight Score
Interior info channels 386.4874 7.502 10 18.75424
Interior direct lighting 120.6423 6.778 40 67.77658
Interior path tracing 60.07888 7.035 50 87.93748
Idea info channels 403.6568 4.694 10 11.73557
Idea direct lighting 112.0406 5.323 40 53.22593
Idea path tracing 101.651 5.245 50 65.56436
ATV info channels 369.6832 11.777 10 29.44275
ATV direct lighting 114.5929 7.534 40 75.34053
ATV path tracing 97.79354 7.569 50 94.61449
Box info channels 423.7369 6.445 10 16.11167
Box direct lighting 93.5092 6.756 40 67.56445
Box path tracing 82.13356 6.107 50 76.33231



RTX A6000 Total Score: Total score: 651.2823
HP ZCentral 4R
Scene Kernel Ms/s Ratio Weight Score
Interior info channels 381.9805 7.414 10 18.53555
Interior direct lighting 119.4807 6.712 40 67.12399
Interior path tracing 58.97741 6.906 50 86.32525
Idea info channels 393.9745 4.582 10 11.45408
Idea direct lighting 109.6025 5.207 40 52.06769
Idea path tracing 99.80163 5.15 50 64.37154
ATV info channels 363.1271 11.568 10 28.92061
ATV direct lighting 112.0573 7.367 40 73.67342
ATV path tracing 95.76828 7.412 50 92.65507
Box info channels 414.6209 6.306 10 15.76505
Box direct lighting 91.09318 6.582 40 65.81877
Box path tracing 80.23866 5.966 50 74.57125

Here, we see an overall score of 664.40 and 651.28 when used inside the HP and Lenovo workstations, respectively, which was very similar to the RTX 3090 (which had an overall score of 671.02). In addition, this more than doubled the score of the RTX 8000 (which had an overall score of 315.02).

Conclusion

The RTX A6000 is an impressive release by NVIDIA, to say the least. This new professional graphics card features 10,752 CUDA processing cores, 84 next-generation RT cores, 48GB of GDDR6 RAM, and supports the PCI Express 4.0 x16 interface. The new NVIDIA card doubles the GPU memory size of the RTX 6000 to 48GB GDDR6, allowing it to work with larger and more complex 3D datasets. Professionals who have bigger pockets and need more than 48GB of memory can install two A6000 cards via the NVIDIA NVLink for a combined 96GB of DDR6 RAM.

While the RTX A6000 is technically the successor to the RTX 6000, it’s more of a direct replacement of the RTX 8000–NVIDIA’s former top workstation GPU. And even then, it’s exponentially more than just an iterative upgrade vs this last-gen model: it’s a monumental leap in performance.rtx A6000 closeup

So how is the possible? The most important factor is NVIDIA Ampere. This architecture uses Samsung’s 8nm NVIDIA custom process (featuring 28 billion transistors), an improved streaming multiprocessor, second-generation Ray Tracing cores, and greatly improved ray tracing hardware acceleration. It also uses third-generation Tensor Cores, which helps to improve AI inference performance and DLSS resulting in better performance at higher resolutions. These are just a few of the highlights Ampere brings to the table and thus allows the RTX A8000 to offer a huge leap forward, which was certainly evident in our performance tests.

Another interesting feature for those who have the means to do it (and necessity) is the RTX A6000’s support for the Quadro Sync II add-in card. This allows the GPU to synchronize both the display and image output from various compatible GPUs within a single system (or a cluster of systems), as each Quadro Sync II card can synchronize the output of up to four RTX A6000 cards. That is, users can install up to two Quadro Sync II cards on a single system, which means a workstation with eight GPUs (each with four active independent display outputs) has the ability to support up to 32 synchronized video displays.

Even though the RTX A6000 is a replacement to the RTX 8000, it is actually more comparable to the RTX 3090, where it trailed ever so slightly in our benchmark tests. As we mentioned earlier, this minor performance difference is likely because of Quadro driver optimizations and newer RAM.

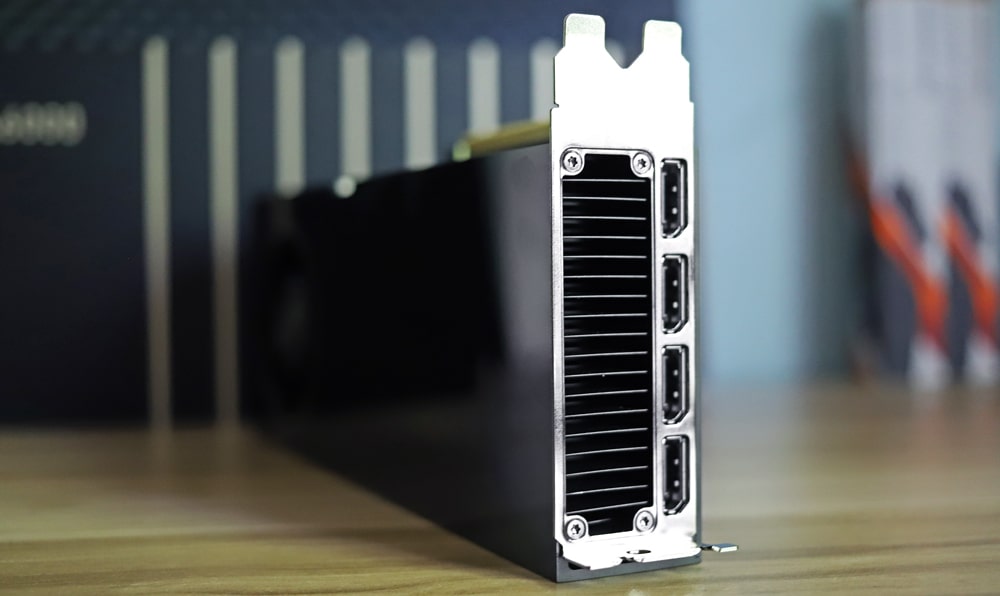

rtx a6000 ports

So, who is the RTX A6000 meant for and should I buy an RTX 3090 instead? Well, it depends. Deciding which GPU to get should be based on whatever your workflow is or what it might be in the short-term future. It’s incredibly hard to get a hold of any RTX card these days, but if you are in a position to do so, the RTX A6000 best suits those who work primarily in CAD (more specifically, in scientific fields with applications like Creo and CATIA), as the RTX 3090 doesn’t provide the necessary driver optimizations that come with the Quadro line of cards. Though we did not test the RTX A6000 in any game experience benchmarks, the RTX 3090 is certainly the best gaming GPU money can buy, especially with games that leverage ray-tracing and DLSS 2.0.

With all this said, the Ampere-based RTX A6000 will greatly outperform pretty much anything else available on the market in certain areas, so if you’re a professional that needs a powerful visual-computing GPU for your desktop workstation, the RTX A6000 is the best card available right now.
