The Tripp Lite AVR750UNC UPS with Eaton’s Brightlayer Remote Monitoring is easy to set up and allows IT to oversee multiple UPSs remotely.
The Tripp Lite AVR750UNC 750VA UPS is a line-interactive, uninterruptible power supply that offers essential backup power and surge protection for various electronics. With 750VA/450W capacity, it ensures protection during power outages and voltage fluctuations.
The main draw is its cloud-connected remote monitoring via Eaton’s Brightlayer Remote Monitoring platform, making it particularly beneficial for businesses with multiple locations, like retail chains, where IT staff can oversee and manage equipment such as cash registers from a central or remote location.
Tripp Lite AVR750UNC Overview
The Tripp Lite AVR750UNC is suitable for home office users, small business owners, and IT professionals who need a dependable UPS to protect sensitive electronics such as computers, routers, gaming consoles, and network devices. With its 750VA capacity, this UPS can handle moderate power loads, making it an excellent choice for users who require a balance between performance and affordability.
Cloud-based remote monitoring through Eaton’s Brightlayer platform is an excellent option for managing multiple sites or devices. It allows for real-time tracking, remote shutdowns, and alerts, thus reducing the need for physical presence on-site. Its comprehensive surge protection and noise filtering capabilities make it a reliable solution for environments where power quality is a concern.
Compared to traditional rackmount UPS systems from Eaton or Tripp Lite, which typically range from $500 to $1000 with an additional $300 for a remote management card, the AVR750UNC offers a cost-effective solution. The non-managed version of this UPS costs around $120, while the managed version is available at approximately $170. This pricing strategy makes the AVR750UNC an attractive option for businesses requiring remote monitoring capabilities without the significant investment typically associated with UPS solutions.
Tripp Lite AVR750UNC UPS Features
The AVR750UNC provides 750VA or 450W of backup power, supporting devices that need up to 450 watts to run. The main job of a UPS like this is to protect sensitive electronics by giving you enough time to either keep using them for a bit during a power outage or shut them down safely to avoid data loss or damage. At full load—using the total 450W—it offers about 3 minutes of runtime, which is usually enough to save any open files and start the shutdown process. If you’re using around half the power or 225W, you’ll get around 11 minutes of runtime.
The AVR750UNC also includes an automatic restart feature, which is handy when power is restored. It ensures that the UPS and connected devices turn back on automatically without requiring the user to restart them manually, thus reducing downtime and providing continuous protection.
Another key feature is its 316 joules of surge suppression, which helps protect your devices from power surges and sudden voltage spikes that can cause damage or data loss. This level of protection is suitable for smaller electronics or peripherals, like routers or external hard drives. However, for more power-hungry equipment, like gaming PCs or home theater systems, you might want a UPS with a higher joule rating for better protection.
In addition to surge protection, the UPS also features noise filtering capabilities to eliminate electromagnetic interference (EMI) and radio frequency interference (RFI). These types of interference can cause malfunctions or disruptions in the performance of sensitive electronics, such as desktop computers, home entertainment systems, or networking equipment.
Lastly, the AVR750UNC is equipped with an AVR that automatically adjusts voltage fluctuations to safe levels without using battery power. This feature is essential for environments with frequent brownouts or overvoltages, as it extends the life of the UPS and connected devices by preventing unnecessary battery use and reducing wear and tear on sensitive components.
Tripp Lite AVR750UNC UPS Specifications | |
Model | AVR750UNC |
Capacity | 750VA / 450W |
UPS Type | Line-Interactive |
Nominal Input Voltage | 120V AC |
Input Plug Type | NEMA 5-15P |
Input Cord Length | 5 ft (1.52m) |
Output Voltage (Line Mode) | 120V (+6%/-12%) |
Output Voltage (Battery Mode) | 120V +/-10% |
Output Capacity | 450W / 0.45kW |
Output Receptacles | 12 NEMA 5-15R (6 surge-only, 6 battery backup) |
Battery Type | Valve Regulated Lead Acid (VRLA) |
Runtime (Full Load) | 3 minutes (450W) |
Runtime (Half Load) | 11 minutes (225W) |
Surge Protection | 316 Joules |
Noise Filtering | Yes (EMI/RFI) |
Automatic Voltage Regulation (AVR) | Yes (Corrects voltage to 120V from 89V to 145V) |
Network Monitoring | Yes (Cloud-enabled via Eaton’s app) |
Operating Temperature Range | 32°F to 104°F (0°C to 40°C) |
Dimensions | 4.18 x 7.48 x 12.01 in (105 x 190 x 305 mm) |
Weight | 15.84 lbs (7.18 kg) |
Warranty | 3-year limited warranty |
Certifications | ENERGY STAR Qualified, UL 1778, FCC Part 15 Class A |
Tripp Lite AVR750UNC Design and Build

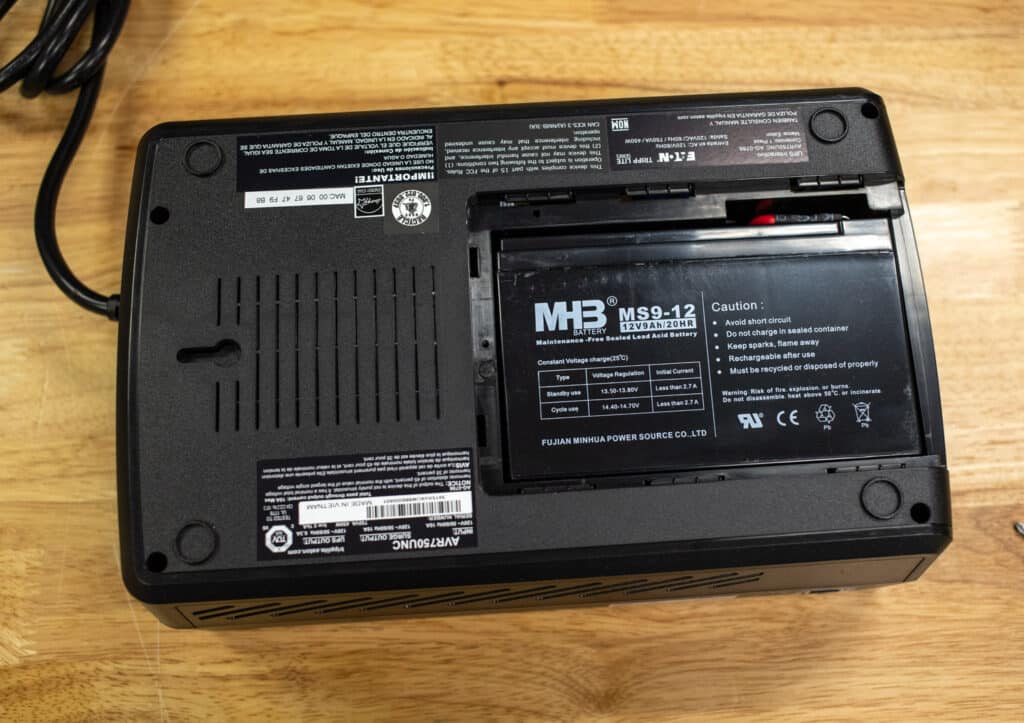

The Tripp Lite AVR750UNC has a compact, flatpack housing made of durable ABS plastic. This makes it suitable for a variety of installation options, including desktop, wall-mounted, or floor placement. Inside, it uses a 12V 9A SLA battery following a common form factor for easy long-term replacement options.
The UPS features keyhole slots for wall mounting, allowing users to optimize their workspace by securely attaching the unit to a wall. Its durable build, small footprint, and lightweight design (7.18 kg) make it easy to position in tight spaces or move as needed. We had no problem tucking this away or installing it on the lab walls.

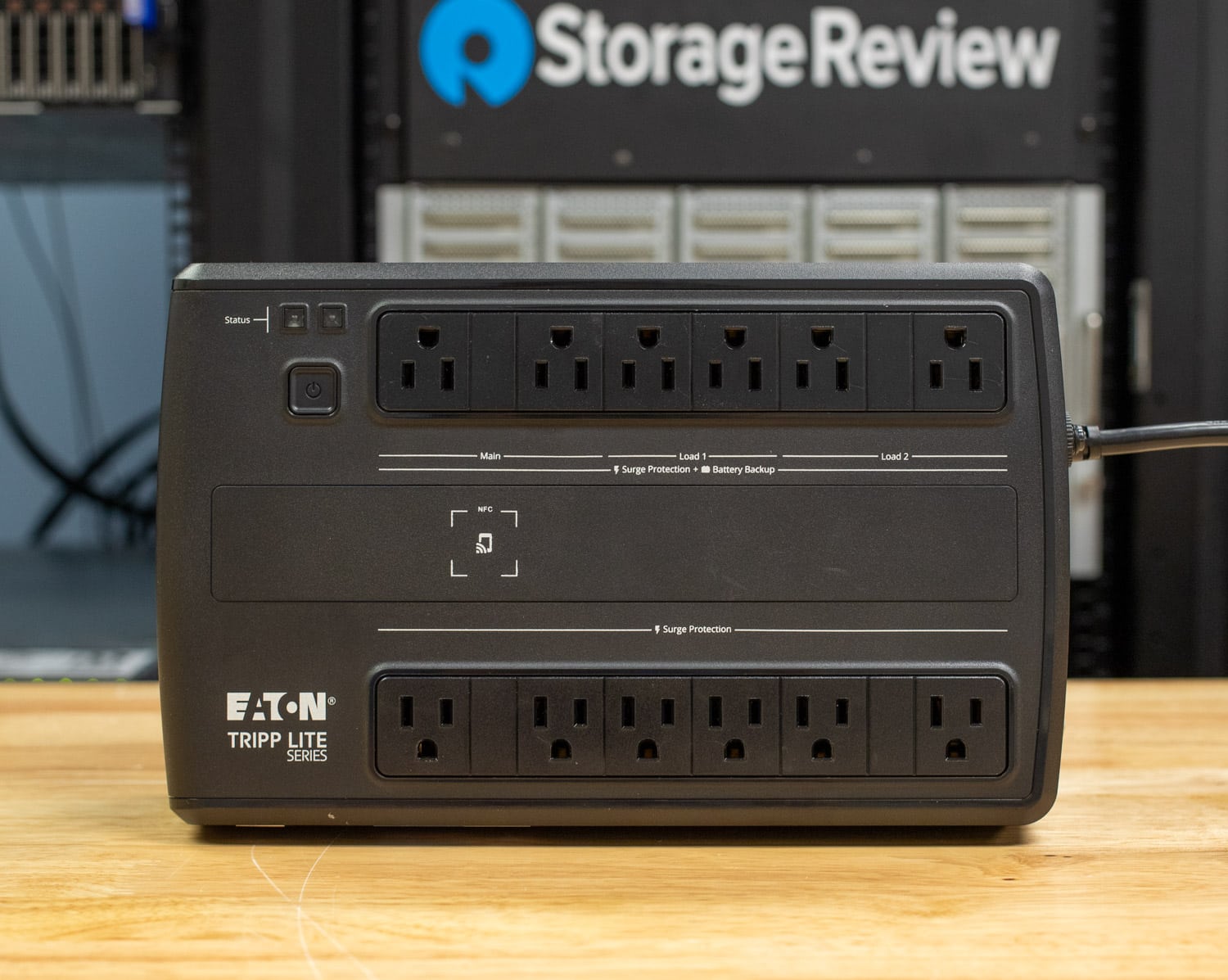

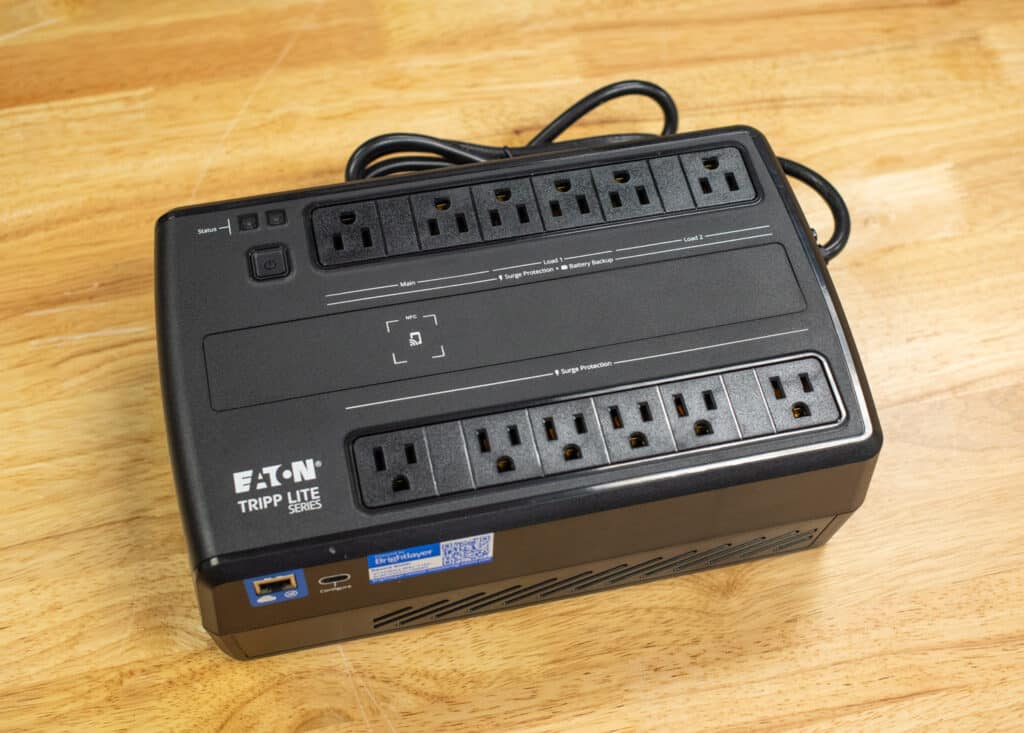

The AVR750UNC also includes 12 NEMA 5-15R outlets, six of which provide surge protection and battery backup and six of which offer surge protection only. Additionally, the unit features two switched load banks, allowing users to prioritize power distribution to critical devices during an outage. This load management capability is beneficial for optimizing battery life and ensuring that essential equipment remains operational.

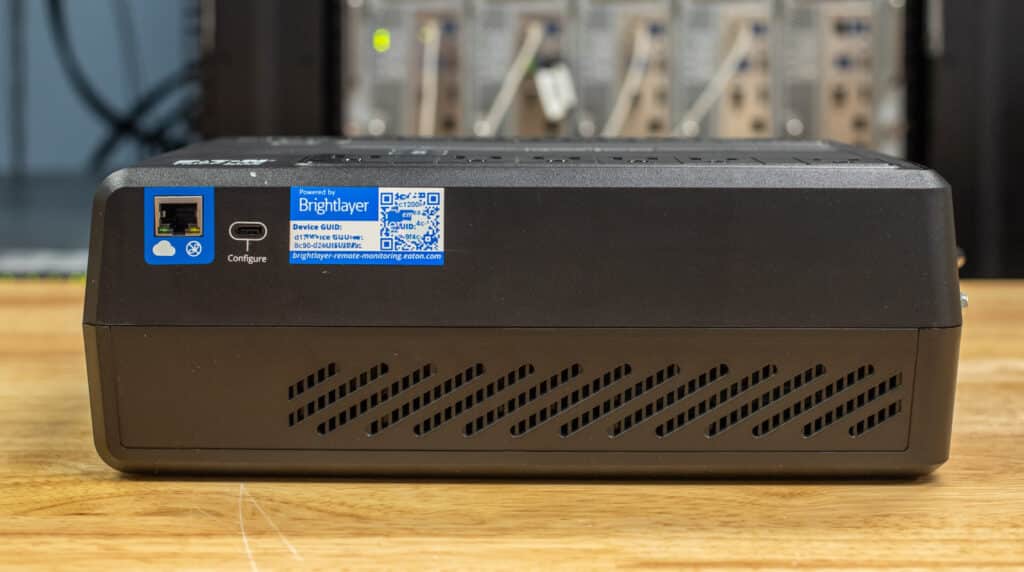

For network communication and remote management, the UPS includes an Ethernet port (RJ45), a USB-C port, and Near Field Communication (NFC) technology. The Ethernet port allows integration into a local network, enabling remote monitoring and management through Eaton’s cloud-based platform. The USB-C port facilitates easy firmware updates and direct computer connections for local management. NFC technology simplifies the initial setup by allowing users to configure network settings directly from a smartphone or other NFC-enabled device.
The UPS also features a range of diagnostic LEDs and audible alarms that provide transparent status updates and alerts. The green LED indicates regular operation and battery mode status, while a red LED warns of overloads or faults. Audible alarms notify users of power loss, low battery, or overload conditions, which can also be managed remotely through the monitoring app to reduce noise disruptions in quiet environments.
With an operating temperature range of 32°F to 104°F (0°C to 40°C), this UPS can handle warmer environments and can also operate at elevations up to 10,000 feet. The five-foot power cord adds some flexibility in where you can place it, making it easy to connect to any nearby AC outlet.
Tripp Lite AVR750UNC Configuration and Management
Setting up the Tripp Lite AVR750UNC is simple and can be done via the mobile app or a desktop web interface. We used the iOS app, which mainly worked smoothly with just a few bumps. Start by downloading the Eaton Remote Monitoring app and creating an account. The process briefly switches between the app and a browser for activation, and one tester found a bug that made him initially miss the step for entering an activation code, but it’s otherwise easy to follow.
On the hardware side, a network cable can be connected to the UPS to establish an outbound web connection. The UPS will begin communicating with Eaton, and from there, you can add the device by scanning its QR code. If needed, you can also manually input the serial number.
Once the initial setup is complete, you can access Eaton’s Brightlayer Remote Monitoring software, which gives you complete control and real-time insights into UPS performance, such as voltage, power conditions, and battery health. You can also access detailed logs and trends to help with proactive maintenance and quick responses to power events. The software is user-friendly overall, making it easy to navigate the various UPS settings and manage everything remotely. Let’s look at some of the key sections you’ll find in Brightlayer.

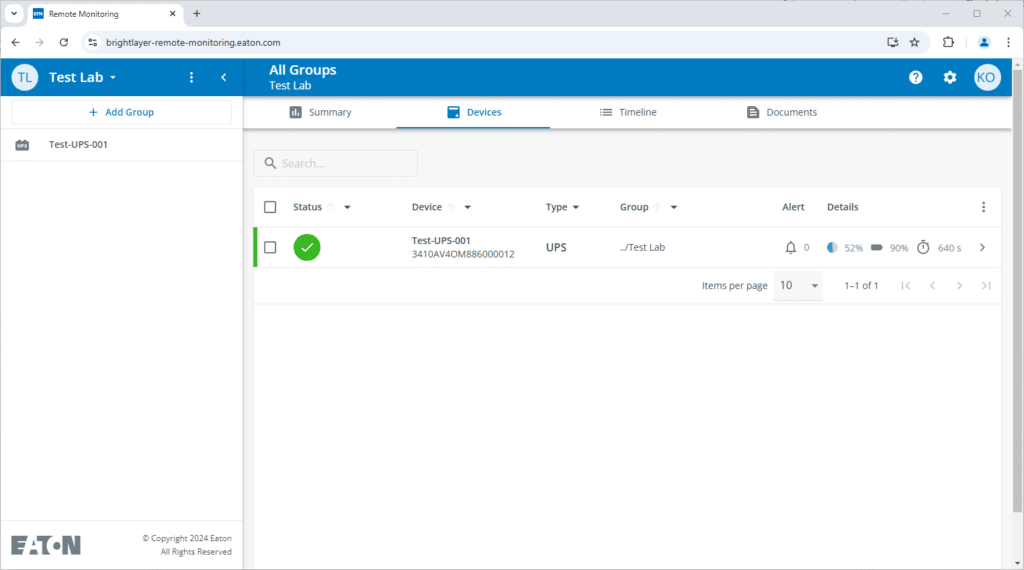

The group management section allows users to organize multiple UPS devices into manageable groups. This is particularly useful in environments with multiple UPS systems, giving users centralized monitoring and management. Users can view summarized statuses of all grouped devices, streamline configuration processes, and set collective parameters or alerts.

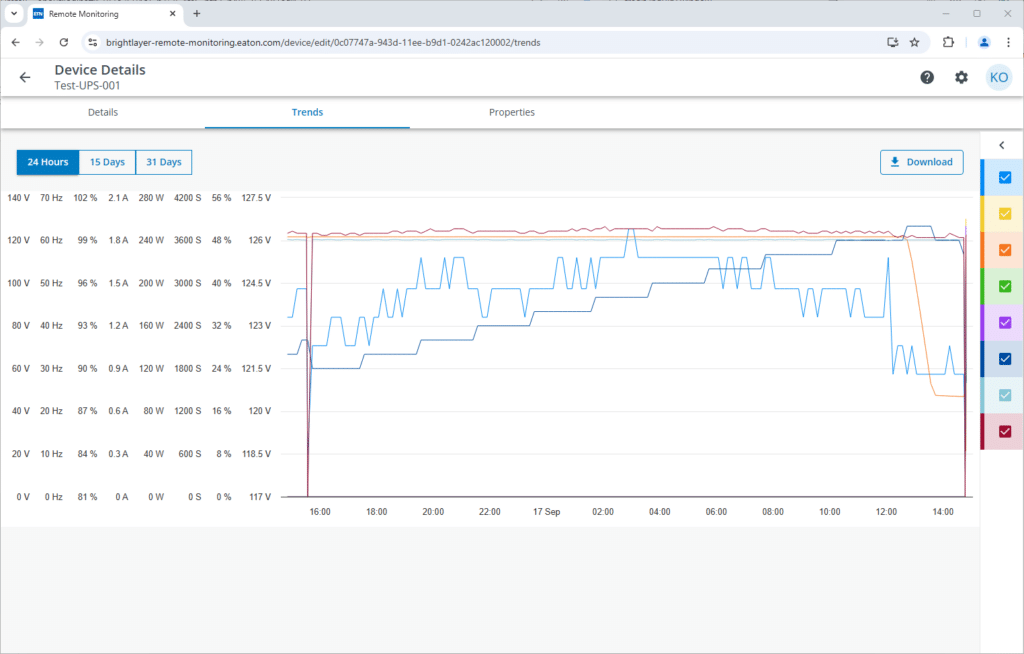

The Trend Analysis section provides a graphical representation of various operational parameters over selectable time frames such as 24 hours, 15 days, or 31 days. Users can analyze voltage, frequency, power output, and battery health trends. This tool can help predict potential issues by assessing UPS’s performance over time and allows users to make informed decisions regarding maintenance and operations.

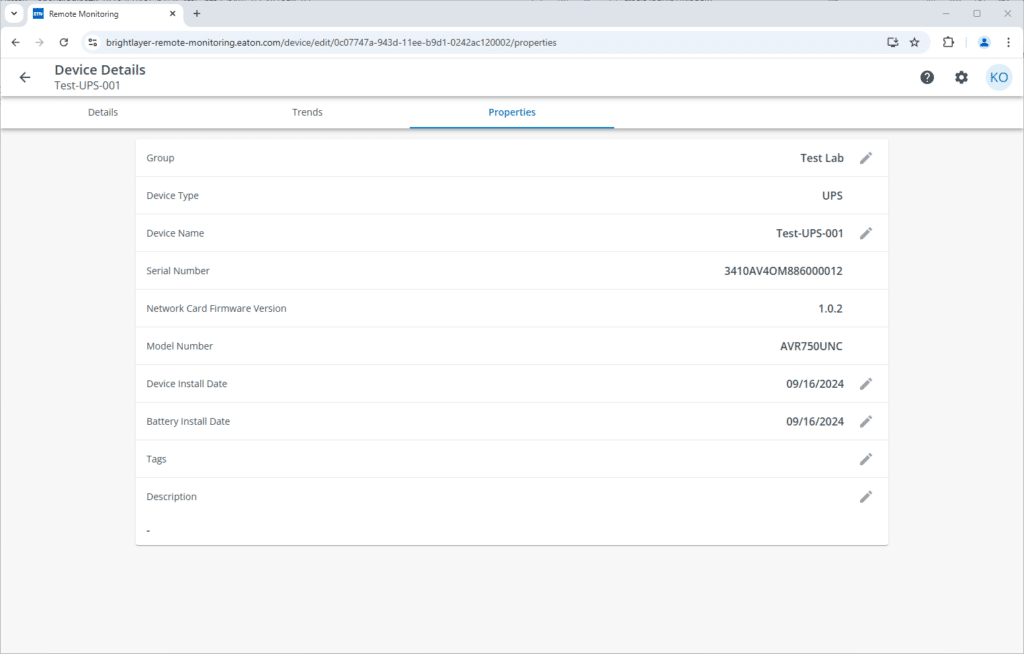

In the Device Details section, users can view and edit detailed UPS properties, including device name, serial number, network card firmware version, and installation dates. This section is crucial for managing device settings and maintaining accurate records for support and maintenance purposes.

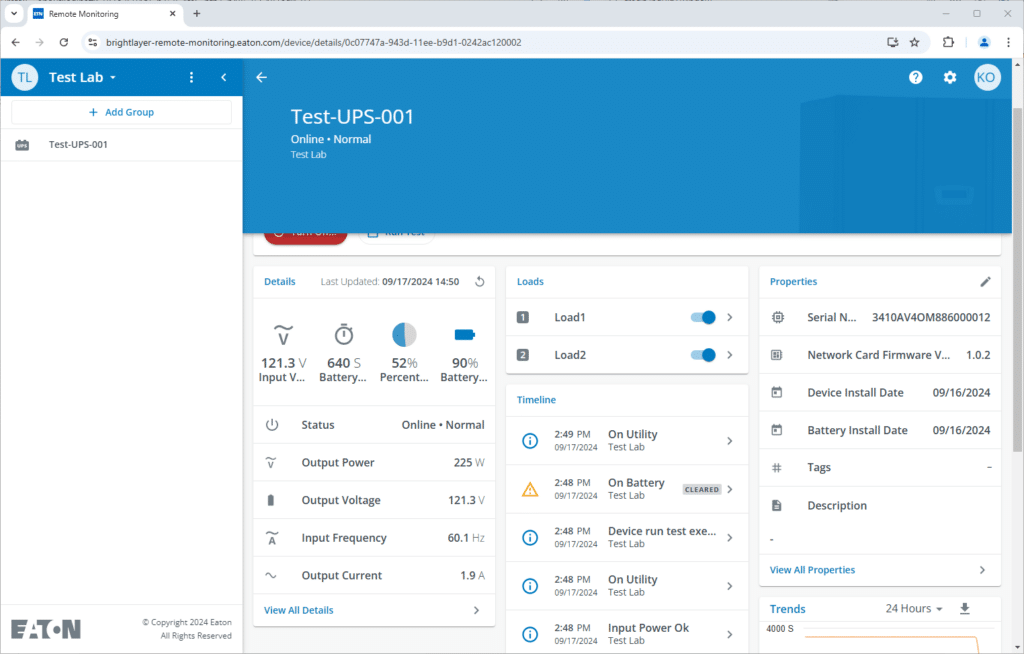

The Dashboard allows users to quickly view critical information about the UPS status, such as current power input, battery charge level, and output power. The interface is very streamlined, providing immediate access to status updates, load levels, and recent events, making it easy to monitor the health and performance of the UPS system in real-time.
Final Thoughts
The Tripp Lite AVR750UNC 750VA UPS is an excellent option for small to medium-sized businesses that need reliable power protection for smaller, less power-hungry equipment—without the high cost of enterprise-level solutions. Priced at around $170, it offers a budget-friendly solution for setups where multiple devices or locations need centralized remote monitoring. This makes it especially appealing compared to other UPS systems offering similar features but with a much higher price tag, particularly when you factor in remote management capabilities.
Its integration with Eaton’s Brightlayer Remote Monitoring is easy to set up. It allows IT managers to oversee multiple UPS systems remotely—an essential feature for businesses with dispersed infrastructure like retail chains or remote office setups. This cloud-based capability reduces the need for physical site visits, saving time and resources while enhancing the overall efficiency of power management across various locations.
The UPS’s blend of affordability, functionality, and the convenience of advanced cloud-connected features makes it attractive for dependable and straightforward power protection and management solutions.
