Chenbro RB23712 12-Bay Rackmount Server Now Available

by Lyle Smith

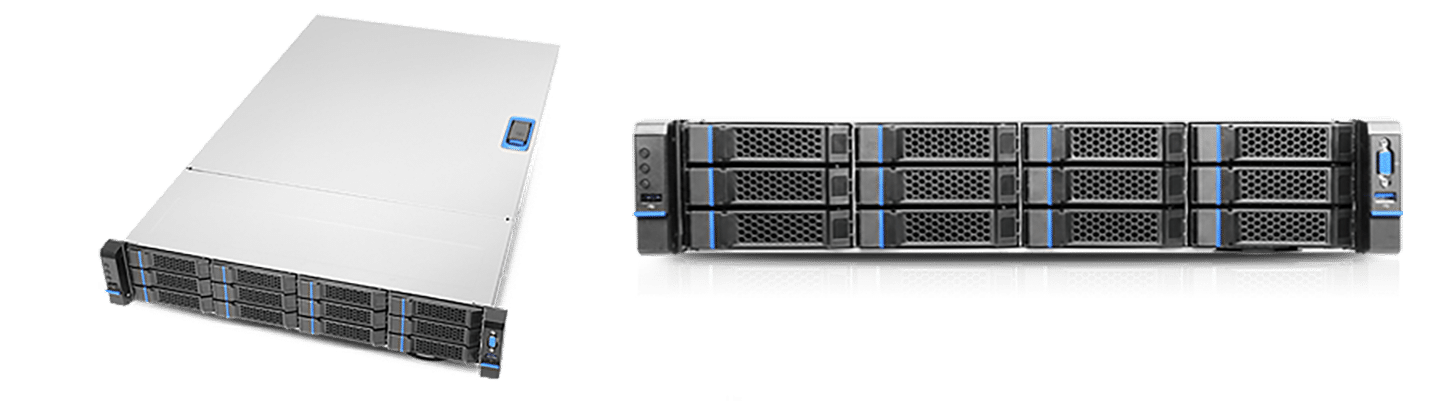

Chenbro RB23712

Chenbro has announced the availability of the RB23712, a 12-bay Level 6, 2U rackmount server barebone purpose-built for storage-focused applications in the Data Center and HPC Enterprise. This easy-to-use server pre-integrates an Intel Server Board S2600WFTR and supports up to two 2nd-gen Intel Xeon Scalable Processors, making it a flexible, scalable system that can meet a range of deployment needs and assuring mission-critical reliability.

Chenbro has announced the availability of the RB23712, a 12-bay Level 6, 2U rackmount server barebone purpose-built for storage-focused applications in the Data Center and HPC Enterprise. This easy-to-use server pre-integrates an Intel Server Board S2600WFTR and supports up to two 2nd-gen Intel Xeon Scalable Processors, making it a flexible, scalable system that can meet a range of deployment needs and assuring mission-critical reliability.

Chenbro RB23712

The Chenbro RB23712 complies with Apache Pass, IPMI 2.0 and Redfish, and comes with Intel RSTe/Intel VROC options. Chenbro indicates that this makes it an ideal solution for hosting Video, IMS, SaaS and similar storage-focused applications for both public and private Cloud services.

The RB23712 chassis is equipped with twelve 3.5-inch hot-swap storage bays for easy drive maintenance, installation and removal. It also features 4X FHFL, 2X FHHL, 2X HHHL upgrade options for internal AIB expansion. Chenbro has also optimized cable routing throughout the build and features hot-swappable 17K RPM cooling fans and airflow ducts that help ensure reliable cooling for up to 165W CPUs, high-performance PCI-Express expansion cards, and installed drives.

The Intel Server Board support up to two 2nd Generation Intel Xeon Scalable Processors and 24X ECC UDIMM 2933MT/s slots (12 per processor), the latter which allows for an impressive 7.5TB of memory. It also features two 10GbE via RJ45 (as well as one remote management port) and a premium 800W CRPS 80Plus Platinum grade PSU with enough expansion space for an additional CRPS PSU.

Those looking for branding options can have the RB23712 customized with personalized silkscreens, logo plates, and tailor-made bezels to create a Data Center Rackmount.

Chenbro RB23712 Specifications

Form Factor 2U
MB Intel S2600WFTR (Wolf Pass)
CPU Dual 2nd Generation Intel Xeon Scalable Processors, up to 165W
Chipset Intel C624 Chipset
CPU Heatsink 1U Passive
Memory Type DDR4 UDIMM ECC, 2933 MT/s, 1.2V
Memory Capacity Up to 7.5TB
Max DIMM Slot 24 x DDR4 DIMM Slot, 6 x Channel per processor
Dimensions (D x W x H) 735 x 438 x 87 (mm), 28.94″ x 17.24″ x 3.43″
Drive Bay 3.5″ Hot-swap:12
PSU Form Factor 1+1 CRPS, 80+ Platinum
Indicator 1 x Power Status
2 x LAN Activity
1 x UID”
Front Control 1 x Power On/Off
1 x System Reset
1 x UID
1 x VGA
1 x USB3.0
1 x USB2.0″
Cooling Fan 60 x 38 mm (6), 17KRPM, Hot-swap
Expansion Slot Riser Card 1&2:
– 1 x PCIe x16 slot (Gen3 x8), FHFL
– 1 x PCIe x16 slot (Gen3 x8), FHFL
– 1 x PCIe x8 slot (Gen3 x8), FHHL
Riser Card 3:
– 1 x PCIe x8 slot (Gen3 x8), HHHL
– 1 x PCIe x8 slot (Gen3 x4), HHHL
1 x I/O Module
1 x Integrated RAID Module
HDD Backplane 3.5″ 12-port 12Gbps SAS/SATA Backplane
I/O Module 1 x UID
2 x 10GbE Base-T, RJ-45
1 x MGNT
3 x USB3.0
TPM Version 2.0
Ethernet Dual RJ45, Network Interface Connectors supporting 1GBASE-T Single RJ45-Dedicated, 1GbE Server Management port
Net Weight 16.63 Kg

Chenbro RB23712 Availability

The Chenbro RB23712 is available now through Chenbro offices and partners.
