GIGABYTE S251-3O0 Hits Over 400TB In 2U

by Adam Armstrong
GIGABYTE S251-3O0 side

Today GIGABYTE Technology announced a highly dense storage server with the ability to hit over 400TB in 2U, the GIGABYTE S251-3O0. In order to do this, the server has up to 26 drive bays and seven expansion slots. The S251-3O0 is an Intel Xeon-based server and is aimed at software-defined storage, big data, virtualization, and media & content storage.

Today GIGABYTE Technology announced a highly dense storage server with the ability to hit over 400TB in 2U, the GIGABYTE S251-3O0. In order to do this, the server has up to 26 drive bays and seven expansion slots. The S251-3O0 is an Intel Xeon-based server and is aimed at software-defined storage, big data, virtualization, and media & content storage.

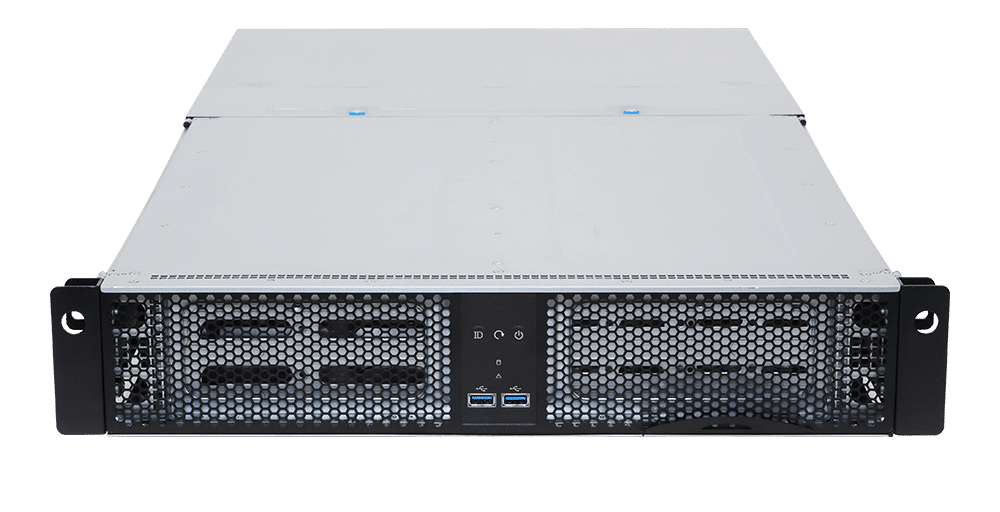

GIGABYTE S251-3O0

The server is a single socket, leveraging either Intel Xeon or Intel Scalable processors up to 28 cores. The GIGABYTE S251-3O0 supports a mix of DDR4 RAM and/or Intel Optane PMem. There is plenty of room for expansion in the rear to add NICs, storage, or accelerators. And like most things GIGABYTE, users can utilize GMC for remote and multiple server management.

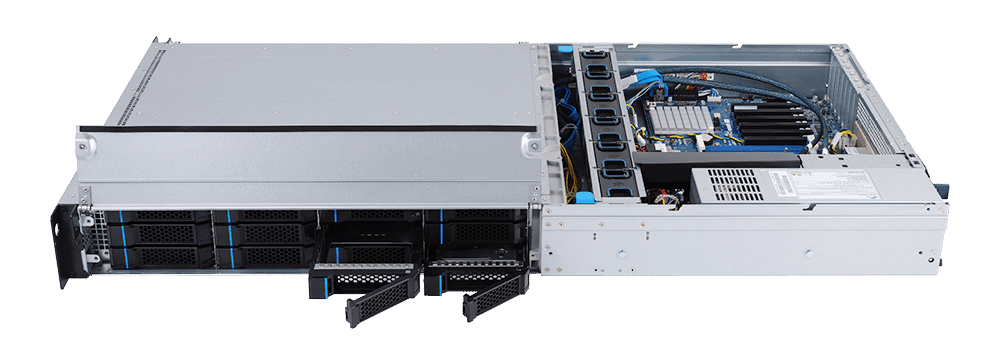

GIGABYTE S251-3O0 side

While it is good to know what the server provides in terms of hardware, storage is where the GIGABYTE S251-3O0 sets itself apart. The server has 24 3.5” drive bays in a 2U footprint with a unique design. 24 2.5” is pretty common and nearly standard but not seen in the larger drive bay format. The front of a 2U server only has enough physical room for 12 bays. So, GIGABYTE is using the sides. Lifting up flaps on either side reveals 12 3.5” SATA/SAS drive bays on each side. This is showing some real ingenuity for getting around restraints to beef up storage.

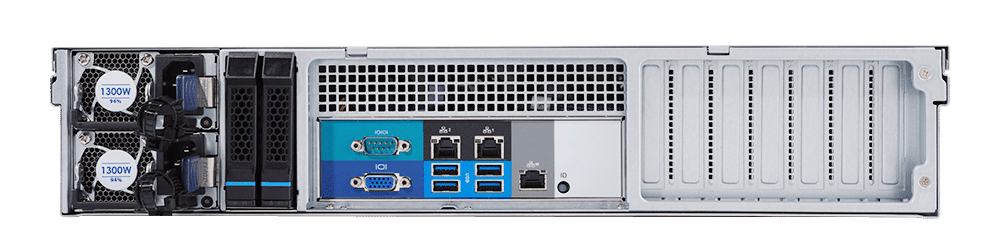

GIGABYTE S251-3O0 back

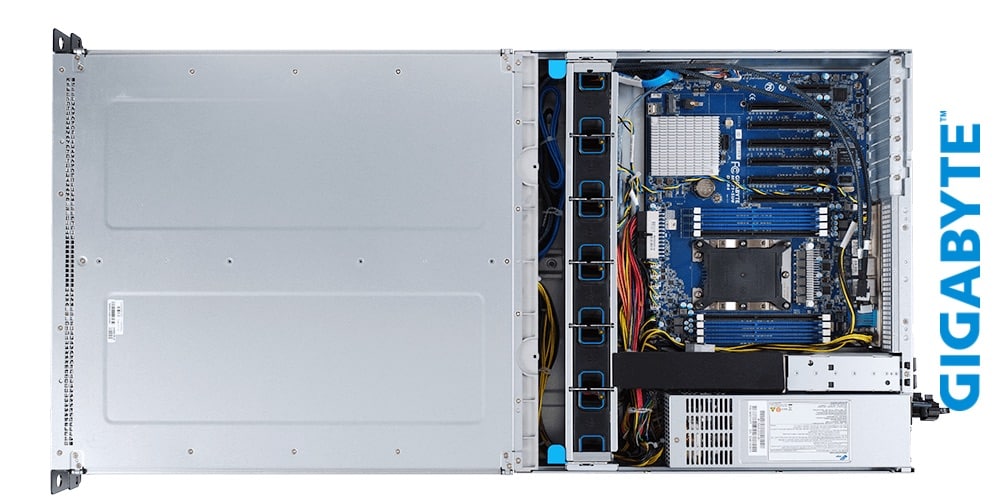

The back comes with two 2.5” bays standard. However, there are also several PCIe expansion slots, making the possibility of adding even more storage there. And finally, opening up the server we see an M.2 slot right by the chipset.

GIGABYTE S251-3O0 open

GIGABYTE S251-3O0 Specifications

Form Factor 2U
Motherboard MU71-SU0
CPU 2‎nd Generation Intel Xeon Scalable Processors
Intel Xeon Platinum Processor, Intel Xeon Gold Processor, Intel Xeon Silver Processor and Intel Xeon Bronze Processor
Intel Xeon W-3200 Processor Family
Socket 1‎ x LGA 3647 Socket P
Chipset Intel C621 Express Chipset
Memory 8‎ x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM modules up to 128GB supported
Supports Intel Optane Persistent Memory (PMem)
1.2V modules: 2933/2666/2400/2133 MHz
LAN 2‎ x 1Gb/s LAN ports (Intel I210-AT)
1 x 10/100/1000 management LAN
Video Integrated in Aspeed AST2500
2D Video Graphic Adapter with PCIe bus interface
1920×[email protected] 32bpp, DDR4 SDRAM
Storage
Side-accessed 24 x 3.5″ SAS/SATA hot-swappable HDD/SSD bays
LSI SAS35x36R expander
SAS card is required to enable 24 drive bays
Rear Side 2 x 2.5″ SATA hot-swappable HDD/SSD bays, NVMe supported with optional CNV3022 NVMe Card
Default configuration supports 2 x SATA drives in rear side
SATA Supported
SAS Supported via add-on SAS Card
Expansion Slots
Total 7 x low profile PCIe Gen3 expansion slots
Slot_7 1 x PCIe x16 (Gen3 x0 or x8 bus) slot
Slot_6 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_7
Slot_5 1 x PCIe x16 (Gen3 x0 or x8 bus) slot
Slot_4 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_5
Slot_3 1 x PCIe x16 (Gen3 x0 or x8 bus) slot, reserved for optional NVMe Card
Slot_2 1 x PCIe x16 (Gen3 x16 or x8 bus) slot, shared with Slot_3, reserved for optional SAS Card
Slot_1 1 x PCIe x4 (Gen3 x4 bus) slot
1 x M.2 slot – M-key
– PCIe Gen3 x4 per slot
– Supports NGFF-2280 cards
Internal I/O 1‎ x M.2 slot
1 x CPU fan header
6 x System fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Buzzer
Front I/O 2‎ x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x System status LED
1 x HDD activity LED
2 x LAN activity LEDs
Rear I/O 4‎ x USB 3.0
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED
Backplane I/O Left Side: CBPD2C0: 12 x 3.5″ SAS/SATA ports with expander
Right Side: CBPD2C1: 12 x 3.5″ SAS/SATA ports
Rear Side: CBPD020: 2 x 2.5″ NVMe/SATA hybrid ports
TPM 1‎ x TPM header with SPI interface
Optional TPM2.0 kit: CTM010
Power Supply 1‎+1 80 PLUS Platinum 1300W redundant PSU
80 PLUS Platinum
AC Input – 100-240V~/ 12-7A, 50-60Hz
– 200-240V~/ 8A, 50-60Hz
DC Input 240Vdc/ 6.5A
DC Output – Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
– Max 1300W/ 200-240V~ or 240Vdc Input
+12V/ 105.4A
+12Vsb/ 3A
OS Compatibility Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Red Hat Enterprise Linux 7.6 (x64) or later
Red Hat Enterprise Linux 8.0 (x64) or later
SUSE Linux Enterprise Server 12.3 (x64) or later
SUSE Linux Enterprise Server 15 (x64) or later
Ubuntu 18.04 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later
Weight Net Weight: 22.2 kg
Gross Weight: 30.5 kg
System Fans 6‎ x 60x60x38mm hot-swappable fan modules
Operating Properties
Operating temperature 10°C to 35°C
Operating humidity 8-80% (non-condensing)
Non-operating temperature -40°C to 60°C
Non-operating humidity 20%-95% (non-condensing)
Dimensions (WxHxD, mm) 438 x 87 x 880

GIGABYTE S251-3O0 Product page
