QNAP QSW-1105-5T Now Available

by Lyle Smith

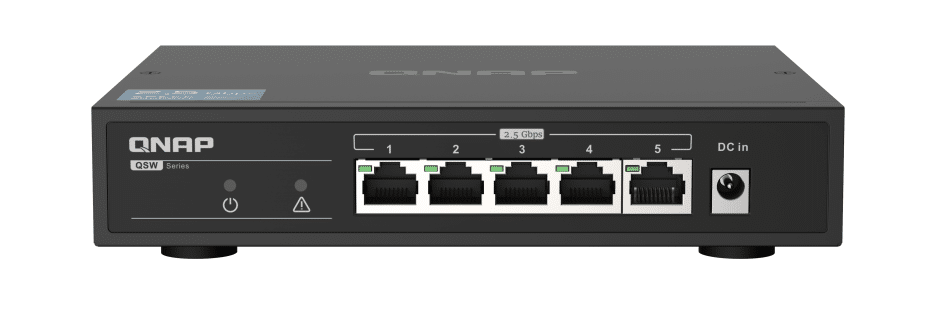

QNAP QSW-1105-5T

QNAP Systems has launched the QSW-1105-5T, the company’s first 2.5GbE network switch. The QNAP QSW-1105-5T comes equipped with five 2.5GbE ports (which support next-generation 2.5GbE devices. 2.5G/1G/100M transfer speeds), plug-and-play installation, automatic loop detection and blocking, and auto-negotiation functions. The QSW-1105-5T essentially gives customers an easy way to build a 2.5GbE network setup for their home or business: simply connect your devices to the QSW-1105-5T and it’s ready to go.

QNAP Systems has launched the QSW-1105-5T, the company’s first 2.5GbE network switch. The QNAP QSW-1105-5T comes equipped with five 2.5GbE ports (which support next-generation 2.5GbE devices. 2.5G/1G/100M transfer speeds), plug-and-play installation, automatic loop detection and blocking, and auto-negotiation functions. The QSW-1105-5T essentially gives customers an easy way to build a 2.5GbE network setup for their home or business: simply connect your devices to the QSW-1105-5T and it’s ready to go.

QNAP QSW-1105-5T

The auto-negotiation feature optimizes transfer speeds and performance for each connected device, while the built-in management functionality promotes consistent and effective transmission of network packets. In addition, the network loop detection automatically locks looped ports so that the network environment can resume normal operation as quickly as possible. The QSW-1105-5T also leverages a fanless design, which allows for quiet operation via the company’s unique ventilated cooling design.

QSW-1105-5T Specifications

Management Type Unmanaged
Number of Ports 5
2.5GbE (RJ45) 5
Power Supply Description Adapter
Max. Power Consumption 12 W
Input Power Type AC
Input Voltage Range 100~240 VAC, 50/60Hz
MAC Address Table 16K
Switching Capacity 25Gbps
Fan Fanless
Fanless
Supported Standards IEEE 802.3 Ethernet
IEEE 802.3u 100BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3bz 2.5GBase-T
IEEE 802.3x Full-Duplex Flow Control
Form Factor Desktop
LED Indicators Per Port: Speed/Link/Activity
Loop LED: Loop
Per System: Power/Status
Dimensions (HxWxD) 34 x 180 x 145 mm
Weight (Net) 0.577 kg
Operating Temperature 0˚C to 40°C (32°F to 104°F)
Relative Humidity 10% to 90% (non-condensing)
Certifications FCC, CE, BSMI, VCCI, LVD,CCC,KCC,ASNZ
Electromagnetic Compliance Class B
Jumbo Frames 9K

QNAP QSW-1105-5T Availability

The QNAP QSW-1105-5T network switch is available now.
