QNAP has announced the immediate availability of their dual-CPU, NVMe all-flash storage TDS-h2489FU NAS, which is purpose-built for HPC, virtualization, file servers, and 4K/8K multimedia applications. The new NAS is highlighted by its Intel Xeon Silver 4300 processors (16 or 32 Cores) and twenty-four U.2 NVMe Gen 4 x4 SSD bays and is quoted over 1 million iSCSI 4K random read IOPS performance with ultra-low latency.
QNAP has announced the immediate availability of their dual-CPU, NVMe all-flash storage TDS-h2489FU NAS, which is purpose-built for HPC, virtualization, file servers, and 4K/8K multimedia applications.

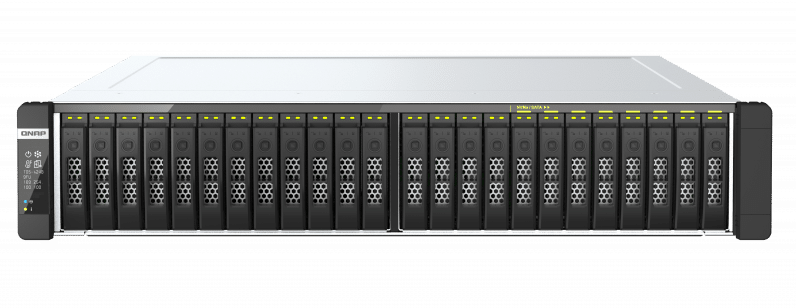

QNAP TDS-h2489FU
The new NAS is highlighted by its Intel Xeon Silver 4300 processors (16 or 32 Cores) and twenty-four U.2 NVMe Gen 4 x4 SSD bays and is quoted over 1 million iSCSI 4K random read IOPS performance with ultra-low latency.

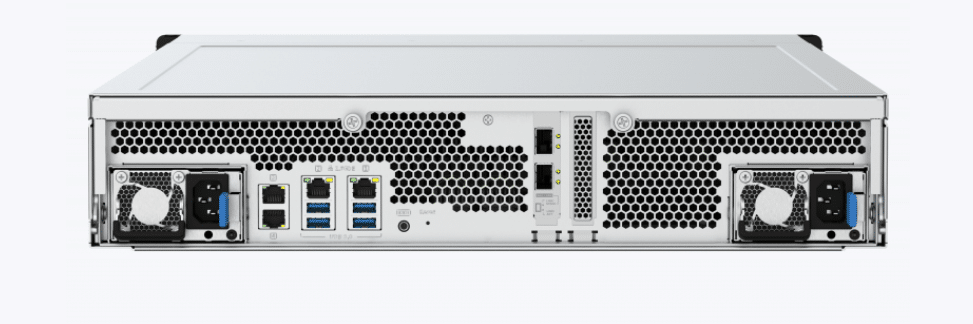

It comes equipped with dual 25GbE SFP28 ports, four 2.5GbE RJ45 LAN ports, two PCIe Gen 4 slots, and 1200W redundant power supplies. Moreover, it leverages the ZFS-based QuTS hero operating system, which provides significant data reduction and SSD optimization tools.
Its dual-processor allows for multiplied core performance and up to 1TB DDR4 ECC memory with 8-channel modules and 32 Long-DIMM slots. As noted, the SSD bays are Gen4. This is the first time we’ve seen a packaged NAS like this offer so many Gen4 bays, which should allow the NAS to produce fast application response times.

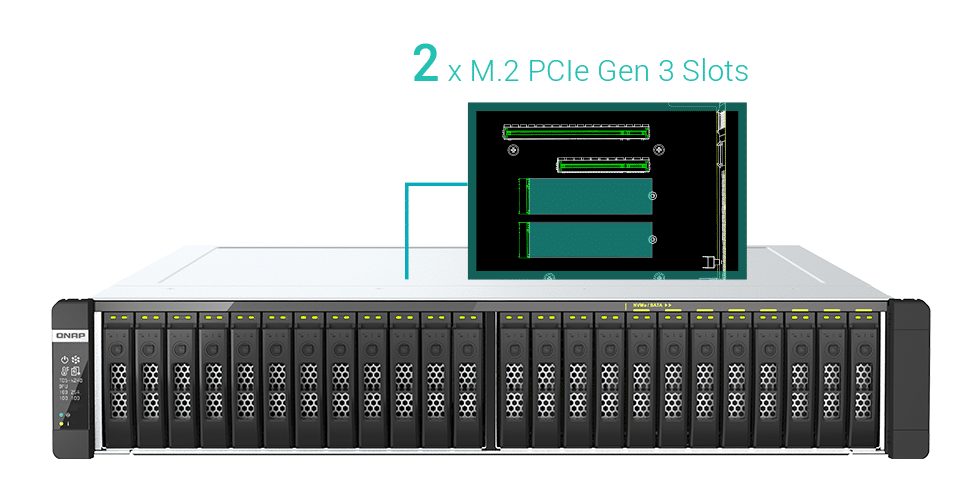

The QNAP TDS-h2489FU comes with two M.2 PCIe Gen 3/SATA 6Gbps slots, which can be populated with data center SSDs to boost ZIL performance. It also has two PCIe Gen 4 slots (one of which comes pre-installed with a dual-port 25GbE NIC), giving users even more flexibility to customize the NAS. For example, users can add high-speed network interface cards, QM2 cards (where you can install M.2 SSDs or add 2.5GbE/10GbE connectivity), Fibre Channel cards, or storage expansion cards to achieve maximum storage capacity.
The TDS-h2489FU is powered by the ZFS-based QuTS hero, which means more data integrity with self-healing and SSD-optimizing features such as Write Coalescing, TRIM, and Pool Over-provisioning. Additionally, QuTS hero supports near-unlimited snapshots and versioning to improve data protection and prevent simultaneous multi-SSD failures.
The QNAP’s App Center expands on the TDS-h2489FU’s capabilities such as hosting virtual machines and containers, facilitating VM backup, simplifying local, remote, and cloud backups, and setting up cloud storage gateways.
QNAP TDS-h2489FU Specifications
| CPU | 2 x Intel® Xeon® Silver 4309Y 8-core/16-thread processor, up to 3.6 GHz (TDS-h2489FU-4309Y-64G)
2 x Intel Xeon Silver 4314 16-core/32-thread processor, up to 3.4 GHz (TDS-h2489FU-4314-128G/256G 512G/1TBG) |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | (AES-NI) |
| System Memory | Up to 1TB RDIMM DDR4 ECC |
| Memory Slot | 32 x RDIMM DDR4 ECC (16 x slots per socket) |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 24 x 2.5-inch
The system is shipped without SSDs |
| Drive Compatibility | 2.5-inch bays: 2.5-inch SATA hard disk drives (#17-24) 2.5-inch SATA solid state drives (#17-24) 2.5-inch U.2 NVMe PCIe Gen4 x4 solid state drives |
| Hot-swappable | |
| M.2 Slot | 2 Slot 1: M.2 2280 NVMe PCIe Gen 3 x4 or SATA 6Gb/s Slot 2: M.2 2280 NVMe PCIe Gen 3 x2 or SATA 6Gb/s |
| SSD Cache Acceleration Support | |
| SR-IOV | |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 4 (also support 10M) |
| 25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
| Wake on LAN (WOL) | Only the 2.5GbE port |
| Jumbo Frame | |
| PCIe Slot | 2 Slot 1: PCIe Gen4 x16 Slot 2: PCIe Gen4 x8*Slot 2 is preinstalled with a 25GbE network adapter. **Slot 1 provides the width of PCIe Gen4 x16 when Slot 2 is not in use, and provides the width of PCIe Gen4 x8 when Slot 2 is in use. |
| USB 3.2 Gen 1 port | 4 |
| Form Factor | Rackmount |

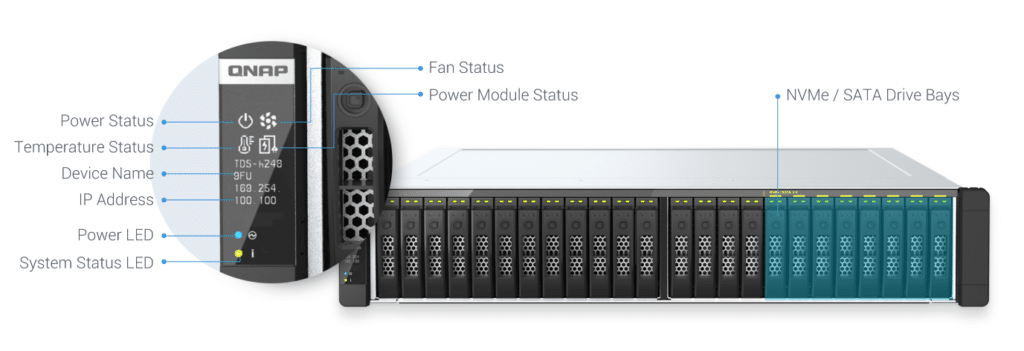

| LED Indicators | SSD, Status, Power, Fan, Temperaure, Power Module Status, Device Name, IP Address |
| Buttons | Power, Reset, OLED |
| Dimensions (HxWxD) | 3.48 × 17.57 × 28.08 inch |
| Weight (Net) | 46.98 lbs |
| Weight (Gross) | 60.85 lbs |
| Operating temperature | 0 – 35°C (32°F – 95°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 1200W PSU(x2), 100-240Vac Max Wattage: 1200W@200-240Vac 1000W@100-127Vac |
| Power Consumption: Operating Mode, Typical | 467.59 W
Tested with drives fully populated. |
| Fan | 6 x 60mm, 12VDC |
| System Warning | Buzzer |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 10,000 |
Availability
Backed by a 5-year warranty, the QNAP TDS-h2489FU is available now.
