QNAP TS-h1677XU-RP and TS-h2477XU-RP Rackmounts Released

by Lyle Smith

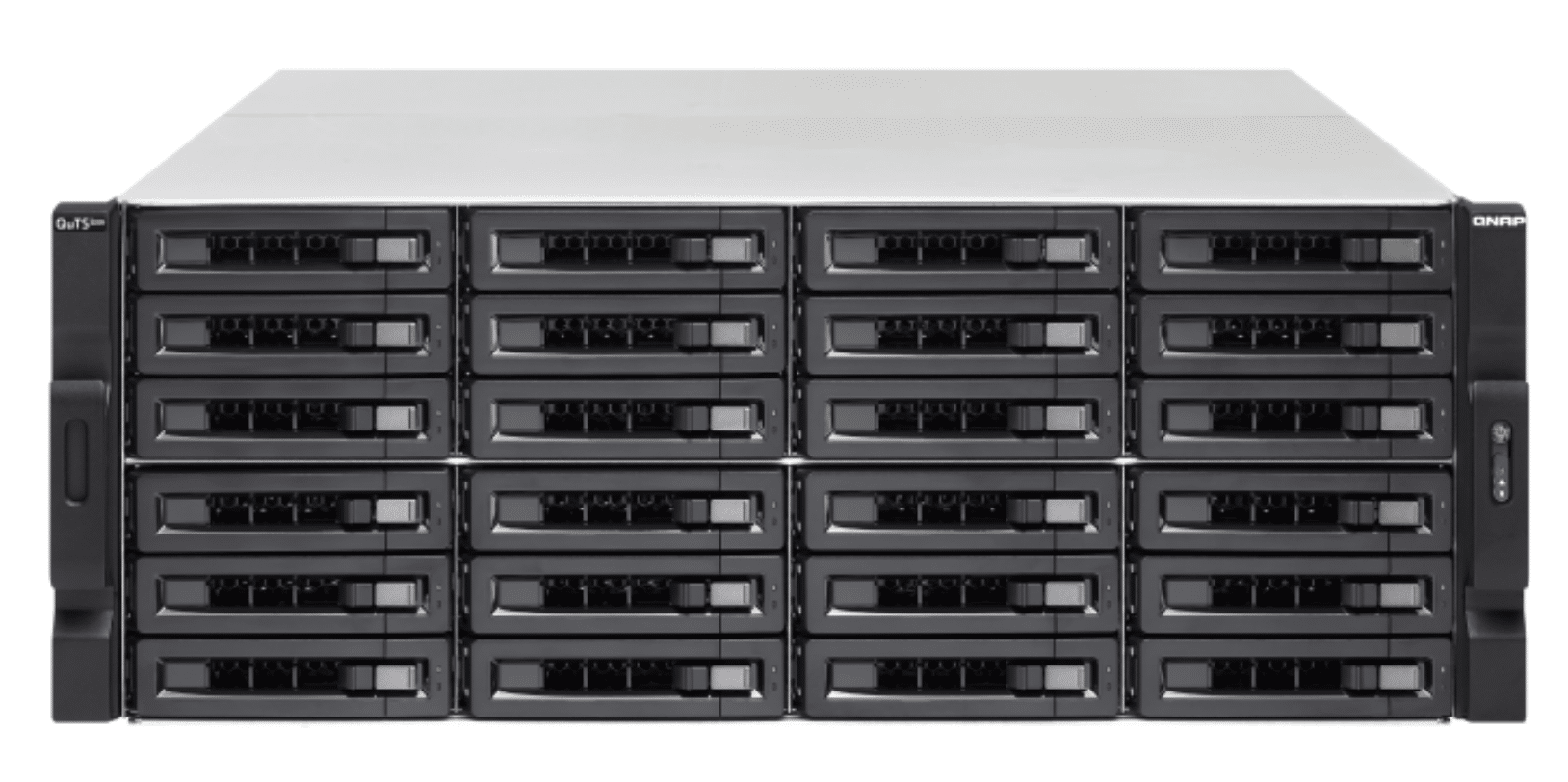

QNAP TS-h2477XU-RP

QNAP has added to the TS-hx77XU QuTS hero NAS series with the 16-bay TS-h1677XU-RP and 24-bay TS-h2477XU-RP rackmount models. The new additions feature AMD Ryzen 7, two 10GbE ports, AES-NI encryption, several PCIe slots, and a redundant power supply. In addition, the NAS rackmounts feature the advanced ZFS-based QuTS hero operating system and offer up to one petabyte capacity per shared folder making them both highly reliable systems with cost-efficient benefits. QNAP indicates they are best-suited for small/medium business use cases.

QNAP has added to the TS-hx77XU QuTS hero NAS series with the 16-bay TS-h1677XU-RP and 24-bay TS-h2477XU-RP rackmount models. The new additions feature AMD Ryzen 7, two 10GbE ports, AES-NI encryption, several PCIe slots, and a redundant power supply. In addition, the NAS rackmounts feature the advanced ZFS-based QuTS hero operating system and offer up to one petabyte capacity per shared folder making them both highly reliable systems with cost-efficient benefits. QNAP indicates they are best-suited for small/medium business use cases.

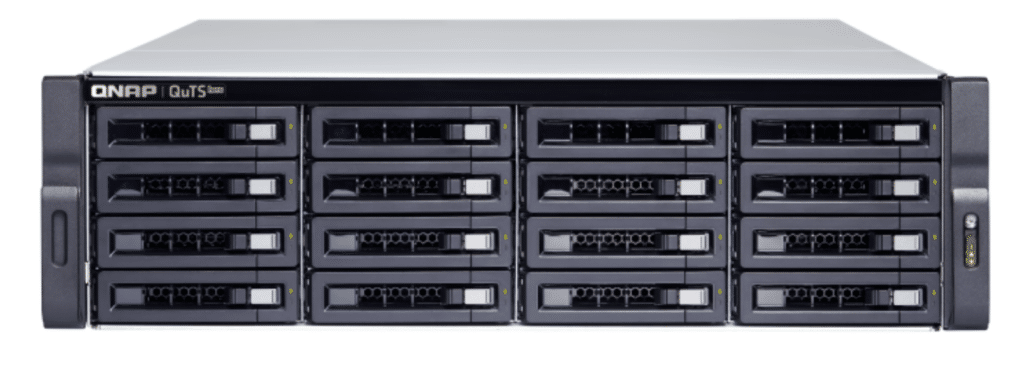

QNAP TS-h1677XU-RP

For components, the TS-h1677XU-RP and TS-h2477XU-RP are outfitted with the new AMD Ryzen 7 3700X 8 cores/16 threads 3.6 GHz processor (Turbo Core 4.4 GHz) and can be equipped with up to 128 GB DDR4 RAM, making it ideal for multi-tasking capabilities with virtual machine performance support.

Both models feature two iSER-enabled 10GbE SFP+ SmartNIC ports, which work well with SSD caching to improve overall IOPS and 10GbE performance. This makes it great for business virtualization, large file sharing, high-speed backup/restoration, and multimedia editing/transfer. Users can also outfit the NAS with different PCIe cards to increase its versatility, such as 10/25GbE network cards to add extra network I/O ports, QM2 cards for more M.2 SSD space, Fibre Channel cards for SAN storage, and QXP storage expansion cards for more storage scalability options.

QNAP TS-h2477XU-RP

With QuTS hero, the QNAP’s new NAS solutions offer extensive data integrity and self-healing capabilities with a range of possible RAID configurations, RAID Triple Parity, and Triple Mirror. It also features inline data deduplication, compression, and compaction, which helps to reduce the overall storage footprint, improves random write performance, and increases the total lifespan of populated SSDs.

Like all QNAP solutions, the TS-h1677XU-RP and TS-h2477XU-RP have access to the company’s extensive App Center, which features software to improve versatility. This includes apps that allow users to host virtual machines and containers, simplify backups, implement backup solutions for Google Workspace and Microsoft 365, and centralize VMware and Hyper-V virtual machine backups.

QNAP TS-h1677XU-RP and TS-h2477XU-RP Specifications

CPU AMD Ryzen™ 7 3700X 8-core/16-thread 3.6 GHz processor, Turbo Core 4.4 GHz
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine  (AES-NI)
System Memory 32 GB UDIMM DDR4 (2 x 16GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x Long-DIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay TS-h1677XU-RP: 16 x 3.5-inch SATA 6Gb/s, 3Gb/s

TS-h2477XU-RP: 24 x 3.5-inch SATA 6Gb/s, 3Gb/s

Drive Compatibility 3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid-state drives
Hot-swappable
SSD Cache Acceleration Support
Gigabit Ethernet Port (RJ45) 2
10 Gigabit Ethernet Port 2 x 10GbE SFP+ SmartNIC port
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot TS-h1677XU-RP:

  • Slot 1: PCIe Gen 3 x4
  • Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4
  • Slot 3: PCIe Gen 3 x4
  • Slot 4: PCIe Gen 3 x8 or PCIe Gen 3 x4

TS-h2477XU-RP

  • Slot 1: PCIe Gen 3 x4
  • Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4
  • Slot 3: PCIe Gen 3 x8 or PCIe Gen 3 x4
  • Slot 4: PCIe Gen 3 x4
USB 3.2 Gen 1 port 4
USB 3.2 Gen 2 (10Gbps) Port 1 x Type-C USB 3.2 Gen 2 10Gbps
1 x Type-A USB 3.2 Gen 2 10Gbps
Form Factor 3U Rackmount
LED Indicators HDD 1-16, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 5.12 × 18.94 × 22.58 inch
Weight (Net) 33.64 lbs / 49.96 lbs
Operating temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Fan System fan: 4 x 92mm, 12VDC
Sound Level 46.6 db(A)
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 5000

Availability

The QNAP 16-bay TS-h1677XU-RP and 24-bay TS-h2477XU-RP rackmounts are available now.

QNAP TS-h1677XU-RP

QNAP TS-h2477XU-RP
