QNAP TS-h1886XU-RP R2 Rackmount NAS Now Available

by Lyle Smith

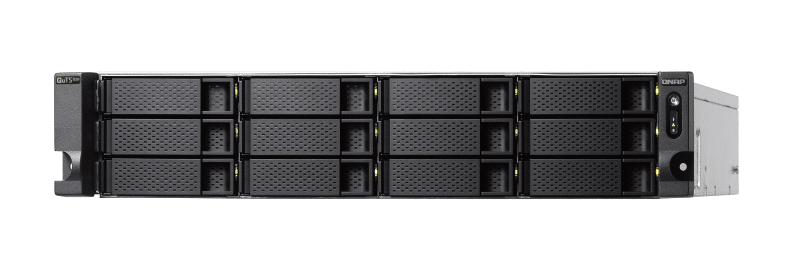

QNAP TS-h1886XU-RP R2 Rackmount NAS front view

QNAP has announced the launch of their new enterprise-grade rackmount NAS, the TS-h1886XU-RP R2. The new 2U NAS is equipped with twelve 3.5-inch SATA 6Gb/s drive-bays and six 2.5-inch SATA 6Gb/s SSD slots. It is based on the ZFS-based file system QuTS hero, powered by an Intel Xeon D-1622 processor, and designed to offer server-grade performance to help enterprises with high-speed centralized file storage, virtualization, backup, disaster recovery, and cloud storage gateways.

QNAP has announced the launch of their new enterprise-grade rackmount NAS, the TS-h1886XU-RP R2. The new 2U NAS is equipped with twelve 3.5-inch SATA 6Gb/s drive-bays and six 2.5-inch SATA 6Gb/s SSD slots. It is based on the ZFS-based file system QuTS hero, powered by an Intel Xeon D-1622 processor, and designed to offer server-grade performance to help enterprises with high-speed centralized file storage, virtualization, backup, disaster recovery, and cloud storage gateways.

QNAP TS-h1886XU-RP R2 Rackmount NAS front view The TS-h1886XU-RP R2 comes with 32GB (expandable to 128GB) dual-channel DDR4 ECC (which is designed to detect and correct single-bit errors) and has dual redundant power supplies to ensure maximum uptime and system reliability. One of the three PCIe slots features a pre-installed dual-port 10GbE SFP+ network expansion card that supports high-performance RDMA protocols (including RoCE and RoCEv2). This helps to reduce CPU load and application latency.

In addition, users can expand the functionality of the NAS by adding a high-speed 25GbE network card, an entry-level graphics card, a QM2 card (for M.2 SSD caching), or a SAS expansion card, the latter of which can connect to multiple storage expansion devices to significantly increase capacity.

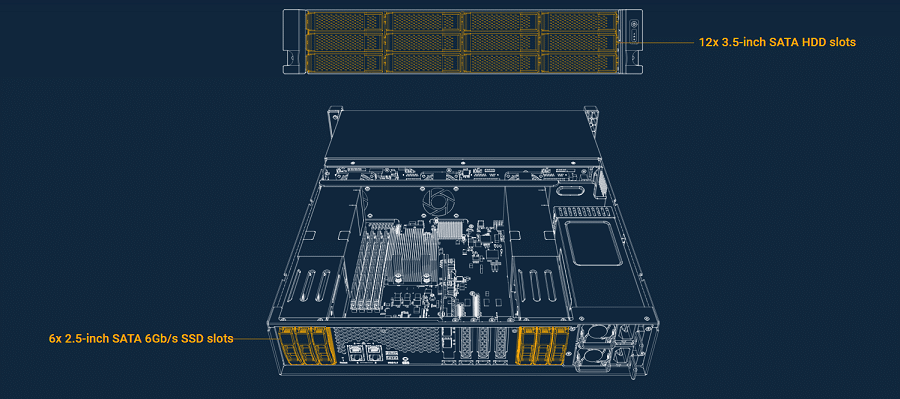

QNAP TS-h1886XU-RP R2 Rackmount NAS interior

As we indicated above, the TS-h1886XU-RP R2 uses the ZFS-based QuTS hero operating system, which

  • is self-healing and WORM (Write Once, Read Many Times) compliant.
  • supports block-level inline data deduplication and compression technology for optimal storage utilization, faster data transfer, and a longer SSD lifespan.
  • features up to 65,535 snapshots and real-time SnapSync to fully record system status and data.

Also available is the QNAP App Center, which offers a wide range of apps to expand NAS potential. This includes natively hosting virtual machines and containers, flexible local/remote/cloud backup, Google Workspace and Microsoft 365 backup, VMware and Hyper-V virtual machine backup, and setting up cloud storage gateways to deploy a hybrid cloud with WireGuard VPN support.

QNAP TS-h1886XU-RP R2 Key Specifications

  • TS-h1886XU-RP-R2-D1622-32G: Intel Xeon D-1622 4 cores/8 threads 2.6 GHz processor (burst up to 3.2 GHz), 32 GB DDR4 ECC RAM (2 x 16 GB, up to 128 GB); uses the QuTS hero operating system
  • 2U rackmount, 12 x 3.5-inch SATA drive bays, 6 x 2.5-inch SSD slots, hot-swappable SATA 6 Gb/s drives, DDR4 ECC memory up to 128 GB; 4 x 2.5GbE RJ45 ports, 2 x PCIe Gen 3 x4 slots (one of which is preinstalled with a dual-port 10GbE SFP+ Smart NIC), 1 x PCIe Gen 2 x4 slot; 2 x USB 3.2 Gen 1 (5Gbps) ports, 550 W dual power supplies. Flexibly switch QuTS hero/QTS operating systems.

QNAP TS-h1886XU-RP R2 Full Specifications

CPU Intel Xeon D-1622 4-core processor, burst up to 3.2 GHz
CPU Architecture 64-bit x86
Floating Point Unit Yes
Encryption Engine (AES-NI)
System Memory 32 GB UDIMM DDR4 ECC (2 x 16GB)
Maximum Memory 128 GB (4 x 32 GB)
Memory Slot 4 x UDIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay
  • Front: 12 x 3.5-inch SATA 6Gb/s, 3Gb/s
  • Rear: 6 x 2.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:

  • 3.5-inch SATA hard disk drives
  • 2.5-inch SATA hard disk drives
  • 2.5-inch SATA solid state drives

2.5-inch bays:

  • 2.5-inch SATA solid state drives
Hot-swappable Yes
SSD Cache Acceleration Support Yes
SR-IOV Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 4
10 Gigabit Ethernet Port
  • 2 x 10GbE SFP+ SmartNIC port
  • Pre-installed with a 10GbE PCIe adapter
Wake on LAN (WOL) Yes
Jumbo Frame Yes
PCIe Slot
  • Slot 1: PCIe Gen 2 x4 (x8 Slot)
  • Slot 2: PCIe Gen 3 x4
  • Slot 3: PCIe Gen 3 x8 or x4 (x8 Slot)

*Slot 3 is preinstalled with a 10GbE network adapter.

**Slot 3 provides the width of PCIe Gen 3 x8 when Slot 2 is not in use, and provides the width of PCIe Gen 3 x4 when Slot 2 is in use.

USB 3.2 Gen 1 port 2
Form Factor Rackmount
LED Indicators HDD, SSD, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 3.48 × 18.98 × 21.64 inch
Weight (Net) 28.06 lbs
Weight (Gross) 41.2 lbs
Operating temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 550W(x2), 100-240V
Power Consumption: Operating Mode, Typical 117.92 W

Tested with drives fully populated.

Fan System fan: 3 x 60mm, 12VDC
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 10000

QNAP TS-h1886XU-RP R2 Availability

Going for roughly $3,000 for the 32GB RAM model, the QNAP TS-h1886XU-RP R2 is available now.
