Home Enterprise Synology FlashStation FS3410 Now Available

Synology FlashStation FS3410 Now Available

by Lyle Smith

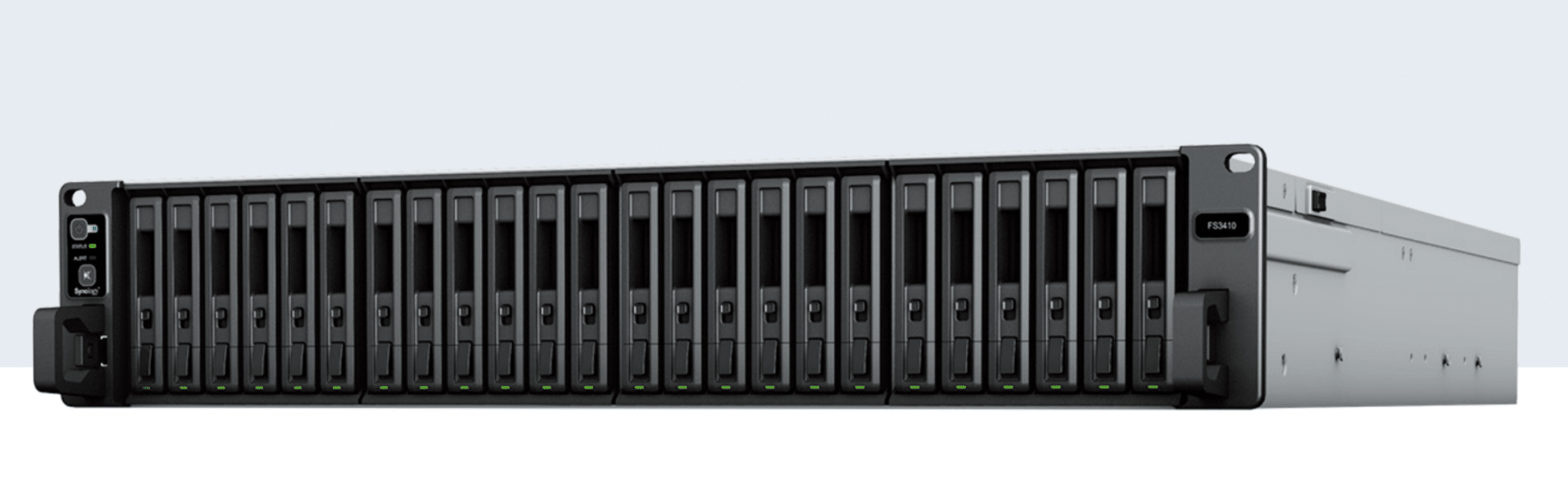

Synology has announced the immediate availability of the FS3410 dual-purpose NAS and SAN solution, the company’s latest addition to their FlashStation line of all-flash network-attached storage servers.

Synology has announced the immediate availability of the FS3410 dual-purpose NAS and SAN solution, the company’s latest addition to their FlashStation line of all-flash network-attached storage servers.

The 2U 24-bay FS3410 is considered a mid-range 3000-series unit, so it features a balance of cost and power combined with comprehensive networking capabilities out-of-the-box. As such, Synology indicates the FS3410 is ideal for demanding high-performance storage, such as VM storage and protection, file syncing, and business application hosting.

The FS3410 is managed by Synology DiskStation Manager (DSM) and is equipped with an Intel Xeon 8-core processor,  four 1GbE RJ-45 ports/dual 10GbE ports right out of the box (upgradable to 25/40GbE through PCIe 3.0 expansion cards), and USB 3.2 Gen1 connectivity as shown below. You can also outfit the FS3410 with up to 128GB of DDR4 ECC RDIMM RAM with 16GB standard.

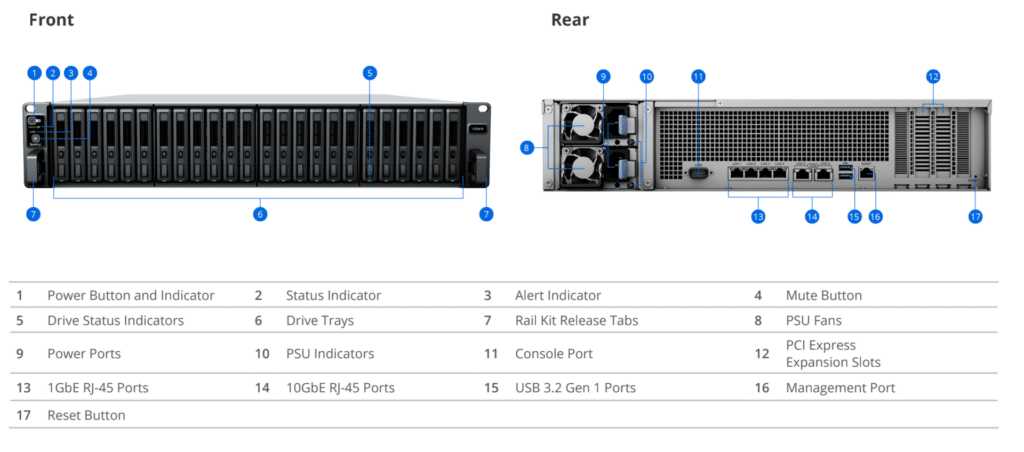

Synology FS3410 Hardware

Performance-wise, it is quoted to deliver over 356,000 IOPS and 129,000 IOPS in 4K random reads and writes, respectively.  With these speeds, Synology claims that it will work well as a file server, block storage, or light application server role that requires high availability and reliability.

The FS3410 is also fully certified to support VMware vSphere, Microsoft Hyper-V, Citrix XenServer, OpenStack Cinder, and Kubernetes CSI. Its advanced storage management and LUN functionality (combined with VMware VAAI and Windows ODX support) can improve VM performance. In addition, it offers speedy snapshot creation, recovery, and cloning, while volume-level deduplication ensures highly efficient storage space reduction.

With Synology High Availability, the FS3410 can reach maximum service availability when paired with another identical unit to create a high-availability cluster. Moreover, the active/passive architecture makes the automatic service transition process complete very quickly, which helps to help prepare for unexpected downtime on one unit.

Synology FS3410 Specifications

CPU CPU Model Intel Xeon D-1541
  CPU Quantity 1
  CPU Architecture 64-bit
  CPU Frequency 8-core 2.1 (base) / 2.7 (turbo) GHz
  Hardware Encryption Engine (AES-NI)  Yes
Memory System Memory 16 GB DDR4 ECC RDIMM
  Memory Module Pre-installed 16 GB (16 GB x 1)
  Total Memory Slots 4
  Maximum Memory Capacity 128 GB (32 GB x 4)
Storage Drive Bays 24
  Compatible Drive Type 2.5″ SATA SSD
  Hot Swappable Drive  Yes
External Ports RJ-45 1GbE LAN Port* 4 (with Link Aggregation / Failover support)
  RJ-45 10GbE LAN Port 2 (with Link Aggregation / Failover support)
  Management LAN Port 1
  Max. number of LAN ports 15
  USB 3.2 Gen 1 Port* 2
PCIe PCIe Expansion 2 x Gen3 x8 slots (x8 link)
File System Internal Drives
  • Btrfs
  • EXT4
  External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
Appearance Form Factor (RU) 2U
  Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
  Weight 15.0 kg
  Rack Installation Support* 4-post 19″ rack (Synology Rail Kit)
  Notes The rail kit is sold separately
Others System Fan 80 mm x 80 mm x 4 pcs
  Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  Easy Replacement System Fan  Yes
  Power Recovery  Yes
  Noise Level* 46.1 dB(A)
  Scheduled Power On / Off  Yes
  Wake on LAN / WAN  Yes
  Power Supply Unit / Adapter 550 W
  Redundant Power Supply  Yes
  AC Input Power Voltage 100V to 240V AC
  Power Frequency 50/60 Hz, Single Phase
  Power Consumption* 113.84 W (Access)
  British Thermal Unit 388.70 BTU/hr (Access)
Temperature Operating Temperature 0°C to 35°C (32°F to 95°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • UL
Warranty 5 Years
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
  • DDR4 ECC RDIMM: D4ER01-16G*/D4ER01-32G
  • 2.5″ SATA SSD: SAT5210
  • 25GbE Network Interface Card: E25G21-F2
  • 10GbE Network Interface Card: E10G21-F2/E10G18-T2/E10G18-T1
  • Rail Kit Sliding: RKS-02
  • VisualStation: VS360HD
  • Surveillance Device License Pack

Synology FS3410 Availability

Synology FS3410 is now available for purchase.

Synology FS3410
