Kingston DC1000M Enterprise NVMe SSD Released

by Brian Beeler

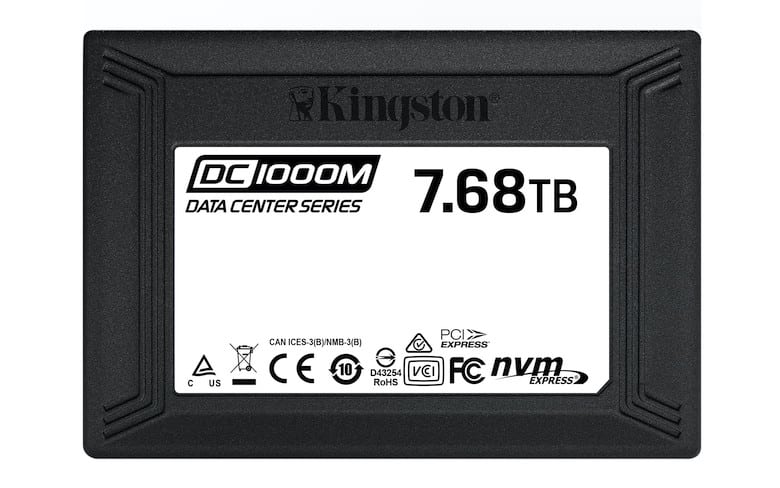

Kingston DC1000M

Today Kingston Digital, Inc. has launched their latest SSD, the DC1000M. Designed to be an affordable drive with NVMe performance, the DC1000M targets enterprises looking to replace aging SATA or SAS-based systems. The drive comes in a U.2 form factor and capacities up to 7.68TB. At the high end, performance is specced at 3,100MB/s sequential read and 2,800MB/s sequential write in the 7.68TB drive. 4k read IOPS top out at 540,000 on the 1.92TB drive and write IOPS hit 210,000 on the 3.84TB and 7.68TB drives.

Today Kingston Digital, Inc. has launched their latest SSD, the DC1000M. Designed to be an affordable drive with NVMe performance, the DC1000M targets enterprises looking to replace aging SATA or SAS-based systems. The drive comes in a U.2 form factor and capacities up to 7.68TB. At the high end, performance is specced at 3,100MB/s sequential read and 2,800MB/s sequential write in the 7.68TB drive. 4k read IOPS top out at 540,000 on the 1.92TB drive and write IOPS hit 210,000 on the 3.84TB and 7.68TB drives.

Kingston DC1000M

Kingston has been on quite a tear lately, launching several SSDs to target increasingly specific use cases in the enterprise. In their entry-enterprise SATA category we reviewed the DC500R, DC500M, and the DC450R. We also took at look at the DC1000B, an M.2 NVMe drive. By adding the DC1000M, Kingston creates further breadth in their NVMe portfolio, which will make up an increasing number of unit sales as SATA and SAS drives edge toward retirement.

Kingston DC1000M Specifications

    • Form Factor: U.2, 2.5″ x 15mm
    • Interface: NVMe PCIe Gen 3.0 x4
    • Capacities: 960GB, 1.92TB, 3.84TB, 7.68TB
    • NAND: 3D TLC
    • Sequential Read/Write:
      • 960GB – 3,100MBs/1,330MBs
      • 1.92TB – 3,100MBs/2,600MBs
      • 3.84TB – 3,100MBs/2,700MBs
      • 7.68TB – 3,100MBs/2,800MBs
    • Steady-State 4k Read/Write:
      • 960GB – 400,000/125,000 IOPS
      • 1.92TB – 540,000/205,000 IOPS
      • 3.84TB – 525,000/210,000 IOPS
      • 7.68TB – 485,000/210,000 IOPS
    • Latency: TYP Read/Write: <300 µs / <1 ms
    • Static and Dynamic Wear Leveling
    • Power Loss Protection (Power Caps)
    • Enterprise SMART tools: Reliability tracking, usage statistics, SSD life remaining, wear leveling, temperature
    • Endurance:
      • 960GB — (1 DWPD/5yrs)
      • 1.92TB — (1 DWPD/5yrs)
      • 3.84TB — (1 DWPD/5yrs)
      • 7.68TB — (1 DWPD/5yrs)
    • Power Consumption:
      • 960GB:   Idle: 5.14W   Average Read: 5.25W    Average Write: 9.10W    Max Read: 5.64W     Max Write: 9.80W
      • 1.92TB:  Idle: 5.22W   Average Read: 5.31W    Average Write: 13.1W    Max Read: 5.70W     Max Write: 13.92W
      • 3.84TB:   Idle: 5.54W  Average Read: 5.31W    Average Write: 14.69W   Max Read: 6.10W     Max Write: 15.5W
      • 7.68TB:   Idle: 5.74W  Average Read: 5.99W   Average Write: 17.06W   Max Read: 6.63W     Max Write: 17.88W
    • Storage temperature: -40°C ~ 85°C
    • Operating temperature: 0°C ~ 70°C
    • Dimensions: 100.09mm x 69.84mm x 14.75mm
    • Weight: 160(g)
    • Vibration operating: 2.17G Peak (7–800Hz)
    • Vibration non-operating: 20G Peak (10–2000Hz)
    • MTBF: 2 million hours
    • Warranty/support: Limited 5-year warranty with free technical support

Availability

The DC1000M comes in 960GB (SEDC1000M/960G), 1.92TB (SEDC1000M/1920G), 3.84TB (SEDC1000M/3840G) and 7.68TB SEDC1000M/7680G) capacities with five-year warranty and are available now.
