Home Enterprise Seagate Expands Its Nytro Line With New Flash Products

Seagate Expands Its Nytro Line With New Flash Products

by Adam Armstrong

Today Seagate Technology announced that it was expanded its Nytro line with three new products, Nytro XF1440 2.5”, Nytro XM1440 M.2 NVMe SSD, and the Nytro XP6500 Flash Accelerator Card. These new flash additions will extend Seagate’s flash products while working in conjunction with Seagate’s existing storage products.


Today Seagate Technology announced that it was expanded its Nytro line with three new products, Nytro XF1440 2.5”, Nytro XM1440 M.2 NVMe SSD, and the Nytro XP6500 Flash Accelerator Card. These new flash additions will extend Seagate’s flash products while working in conjunction with Seagate’s existing storage products.

Flash is increasingly being adopted in enterprise environments. Seagate’s new line of Nytro products are aimed at OEMs and system partners that need high performance, reliability, and endurance. The new Nytro line is ideal for OLTP, HPC, data warehousing, data mining, and data analytics. The drives and card are also well-suited for workloads with mixed IO sizes and multiple applications running simultaneously.

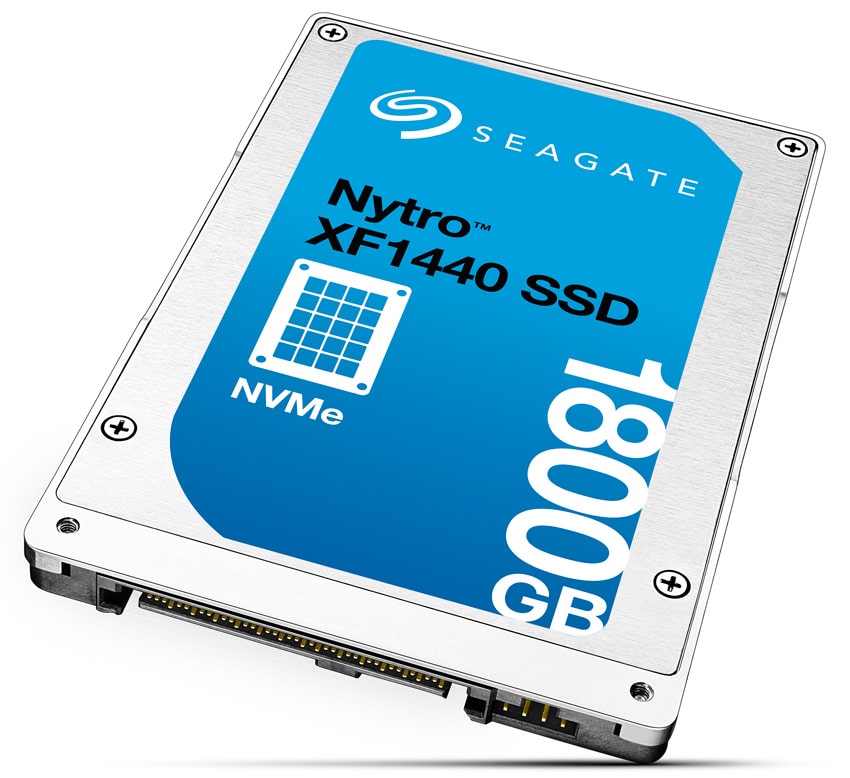

Nytro XF1440 specifications:

  • Form factor: 2.5”
  • Capacity
    • Endurance Optimized: 400GB, 800GB, 1.6TB
    • Capacity Optimized: 480GB, 960GB, 1.8TB
  • Interface: PCIe Gen3 ×4 NVMe 1.1b
  • NAND: eMLC
  • Performance:
    • Endurance Optimized:
      • Sequential Read (MB/s) Peak, 128KB: 2,700
      • Sequential Write (MB/s) Peak, 128KB: 1,200 (600 on the 400GB model)
      • Random Read (IOPS) Peak, 4KB QD32: 200,000
      • Random Write (IOPS) Peak, 4KB QD32: 34,000
    • Capacity Optimized:
      • Sequential Read (MB/s) Peak, 128KB: 2,700
      • Sequential Write (MB/s) Peak, 128KB: 1,200 (600 on the 400GB model)
      • Random Read (IOPS) Peak, 4KB QD32: 200,000
      • Random Write (IOPS) Peak, 4KB QD32: 3,000/7,000/6,000
  • Endurance:
    • DWPD: 3 Endurance optimized, 0.3 capacity optimized
    • Nonrecoverable Read Errors per Bits Read: 1 per 10E16
    • MTBF: 2M
  • 5-year warranty

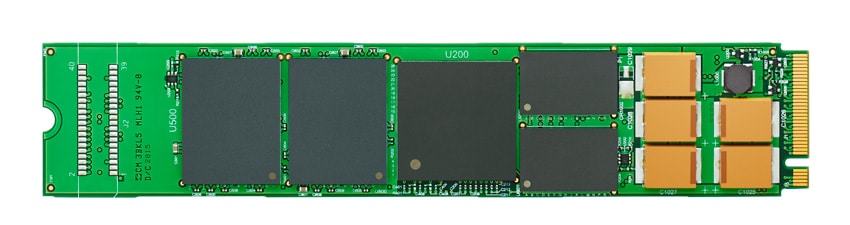

Nytro XM1440 specifications:

  • From factor: M.2
  • Capacity
    • Endurance Optimized: 400GB, 800GB
    • Capacity Optimized: 480GB, 960GB
  • Interface: PCIe Gen3 ×4 NVMe 1.1b
  • NAND: MLC+
  • Endurance:
    • DWPD: 3 Endurance optimized, 0.3 capacity optimized
    • Nonrecoverable Read Errors per Bits Read: 1 per 10E16
    • MTBF: 2M
  • 5-year warranty

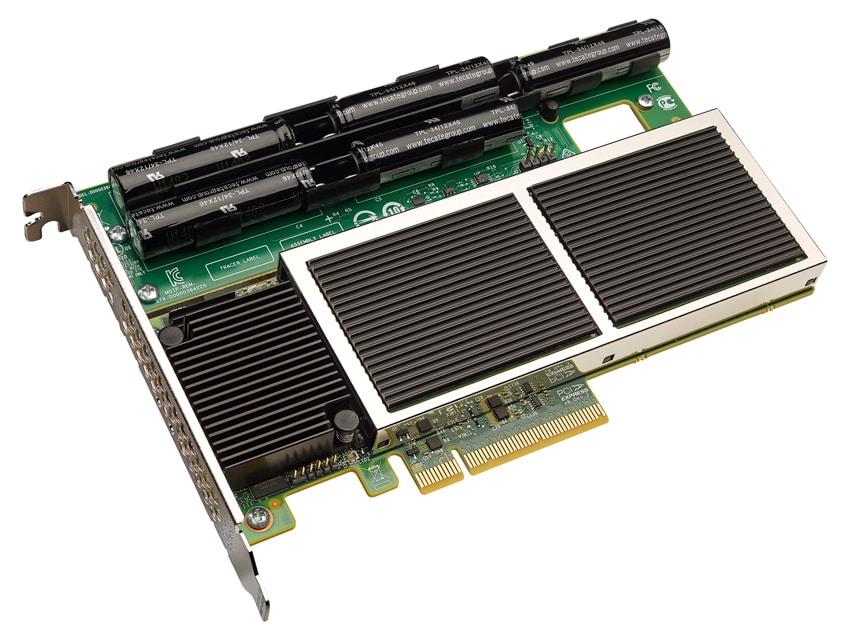

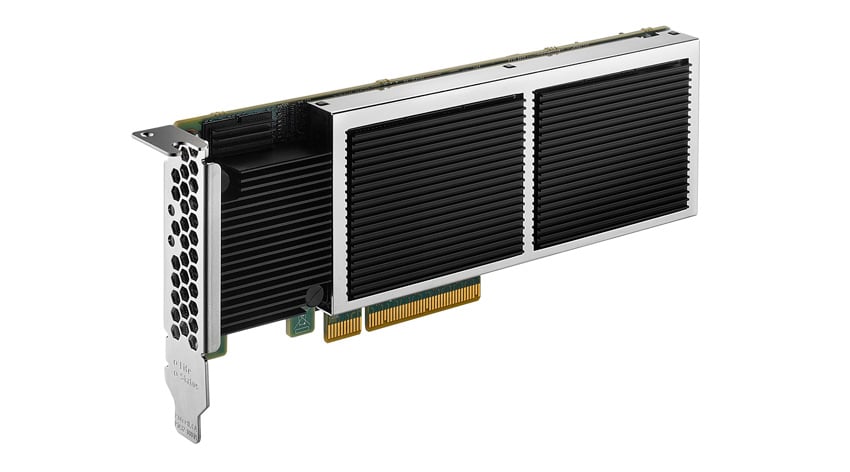

Nytro XP6500 specifications:

  • Form factor: HHHL, FHHL
  • Capacity:
    • Raw: 1.5TB, 4TB
    • Usable: 1.3TB, 3.4TB
  • Host Bus Type: 8-lane PCIe 3.0
  • Cache Capacity: 2GB DRAM, 4GB DRAM
  • Performance:
    • Read Bandwidth: Up to 4.0GB
    • Write Bandwidth: Up to 1.5GB, Up to 2.2GB
    • Read IOPS: Up to 300,000, Up to 275,000
    • Write IOPS: Up to 100,000, Up to 75,000
    • Read Latency (Queue Depth=1): 200μs, 210μs
    • Write Latency (Queue Depth=1): 14μs
    • NAND Petabyte Writes: 8PB, 20PB
  • Flash Memory Type: MLC
  • 5-year limited warranty

Availability

The Seagate Nytro XP6500 Flash Accelerator Card is available today. The Nytro XF1440 SSD is expected to be available in October this year and the XM1440 SSD is expected to be available in the first part of 2016.
