Eaton 9PX11KG2 Review: 11 kW of Clean, Efficient Power in a 4U Form Factor

Eaton’s 9PX11KG2 UPS delivers 11 kW of clean, efficient power in a compact 4U design with advanced remote management.

The Eaton 9PX Gen2 UPS is built for IT and industrial environments where uptime and power stability are critical. Sitting between Eaton’s 8 kVA and 15 kVA models, the 9PX11KG2 delivers 11 kVA (11 kW) of usable power with a unity (1.0) output power factor and a clean sine-wave output. Its mix of efficiency, configurability, and compact design makes it a practical fit for server rooms, telecom systems, and industrial control setups where power stability matters. The 9PX11KG2 moves to a more compact 4U rack/tower form factor, reducing height while improving efficiency. The unit includes the NETWORK-M3 Gigabit card, standard mounting hardware, and both rack and tower configuration options.

The 9PX11KG2 fits perfectly in environments where power reliability and system uptime are essential to their operations. As such, you may see it running in server rooms, network hubs, or edge sites, as well as in automation and technical facilities that can’t afford interruptions. IT teams managing data centers or enterprise systems will appreciate how straightforward its remote tools are for monitoring equipment off-site. Outside the IT world, it’s also a solid fit for industrial automation, healthcare, and lab setups that depend on steady, well-regulated power to keep sensitive equipment safe and running smoothly.

The 9PX uses a true online double-conversion design that fully isolates connected loads from voltage swings, noise, or harmonic distortion. Incoming AC is rectified to DC, then inverted back to AC to produce a stable sine-wave output that holds within ±1 percent voltage regulation. It supports 50/60 Hz operation and selectable nominal voltages of 200, 208, 220, 230, 240, or 250 V. Efficiency peaks at 97% at maximum load, reducing heat output and improving energy efficiency without sacrificing protection. An internal bypass circuit keeps power flowing to equipment during faults or maintenance, preventing interruptions.

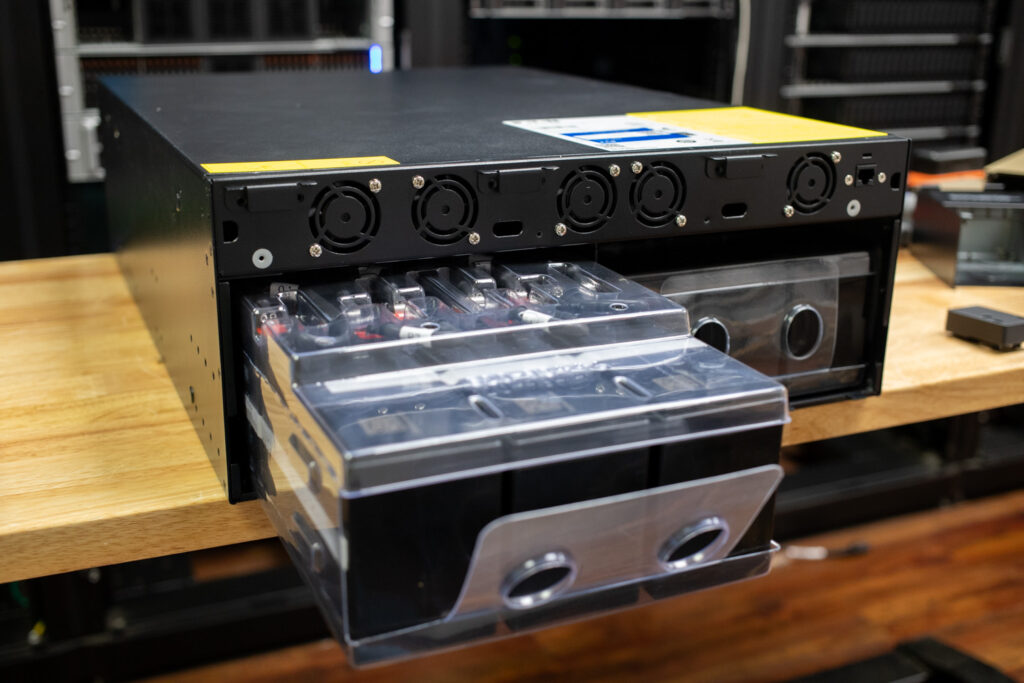

Eaton’s updated ABM+ battery management system uses predictive analytics to determine replacement timing and reduce unnecessary charge cycles, improving long-term reliability. The unit uses hot-swappable sealed lead-acid batteries that can be replaced without shutting down connected gear. For extended runtime, the 9PX11KG2 supports up to 12 external battery modules (9PXEBM240RTG2), each containing EBP-2003 batteries. The UPS automatically tracks runtime and charge levels, displaying them on the front LCD and in network software for easy maintenance planning.

Eaton includes a three-year warranty for electronics and batteries, with optional five-year depot or on-site service plans.

Eaton 9PX11KG2 Specifications

Eaton 9PX11KG2 UPS Design and Build

The Eaton 9PX11KG2 uses a compact 4U rack-and-tower chassis that balances high output capacity with excellent serviceability. Measuring 28.5 inches deep and weighing approximately 173.7 pounds, the unit is engineered for continuous operation and long-term reliability in demanding IT and industrial environments. Its dual-orientation design allows deployment either horizontally in a standard four-post rack or vertically using the included tower pedestals.

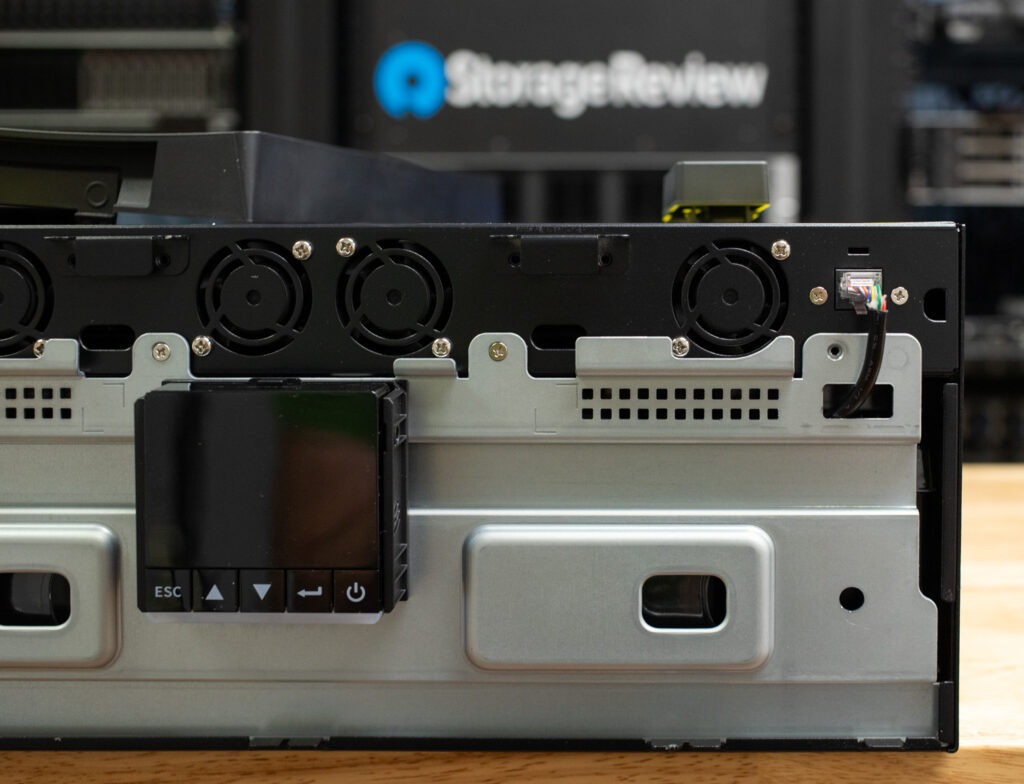

The UPS features front-to-rear airflow, ensuring efficient thermal management even in dense rack installations. This design promotes even cooling across the major power components, including the rectifier and inverter stages, helping maintain optimal operating temperatures and extending the life of internal components. The heavy-gauge steel chassis and reinforced mounting rails further contribute to the unit’s durability and vibration resistance, supporting around-the-clock uptime in mission-critical settings.

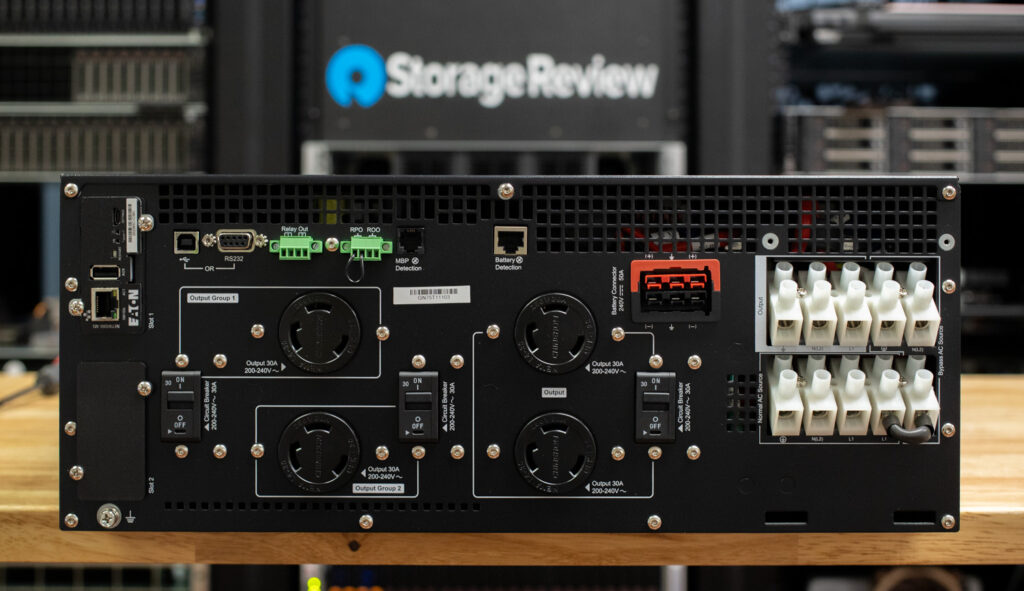

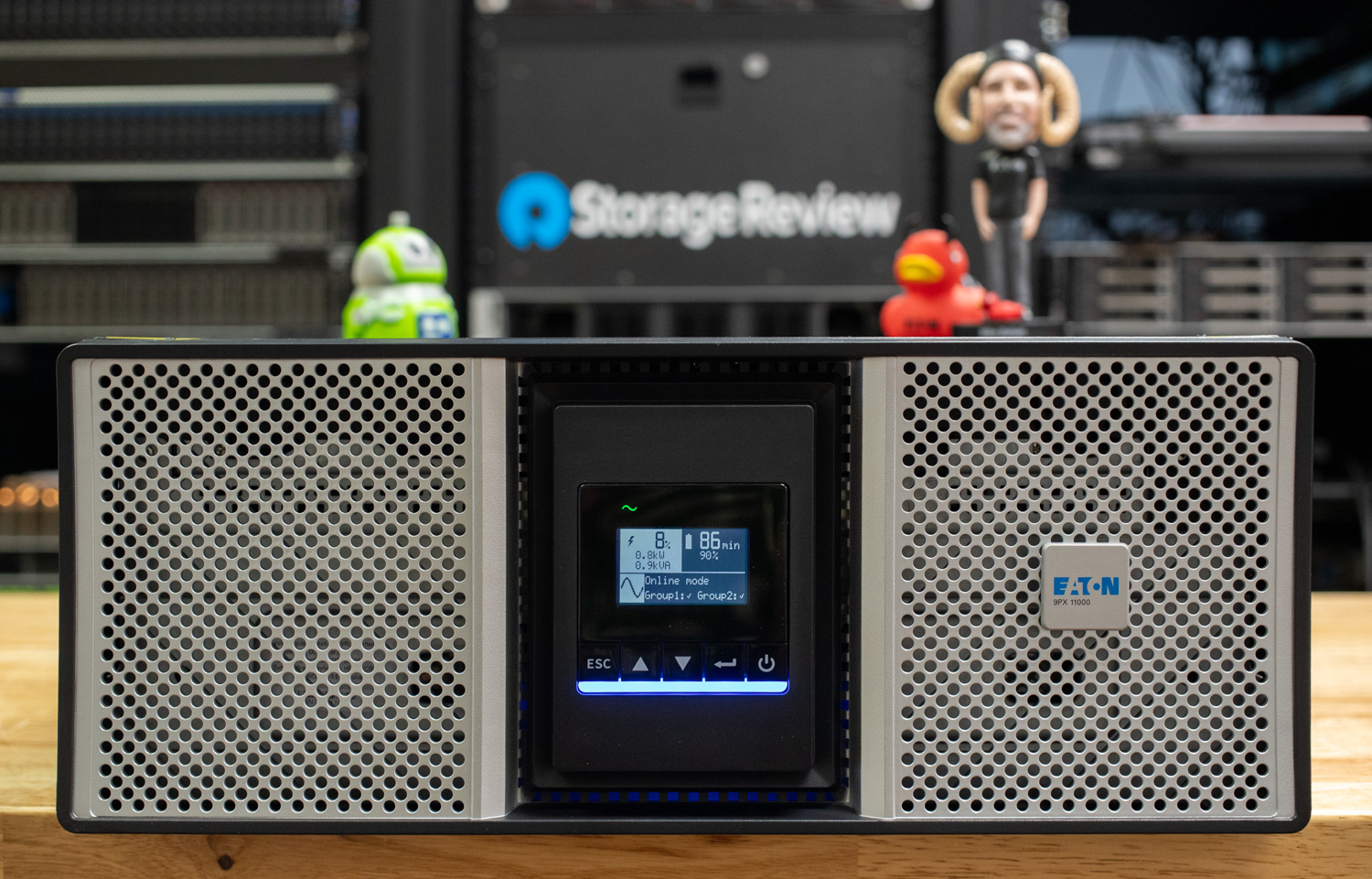

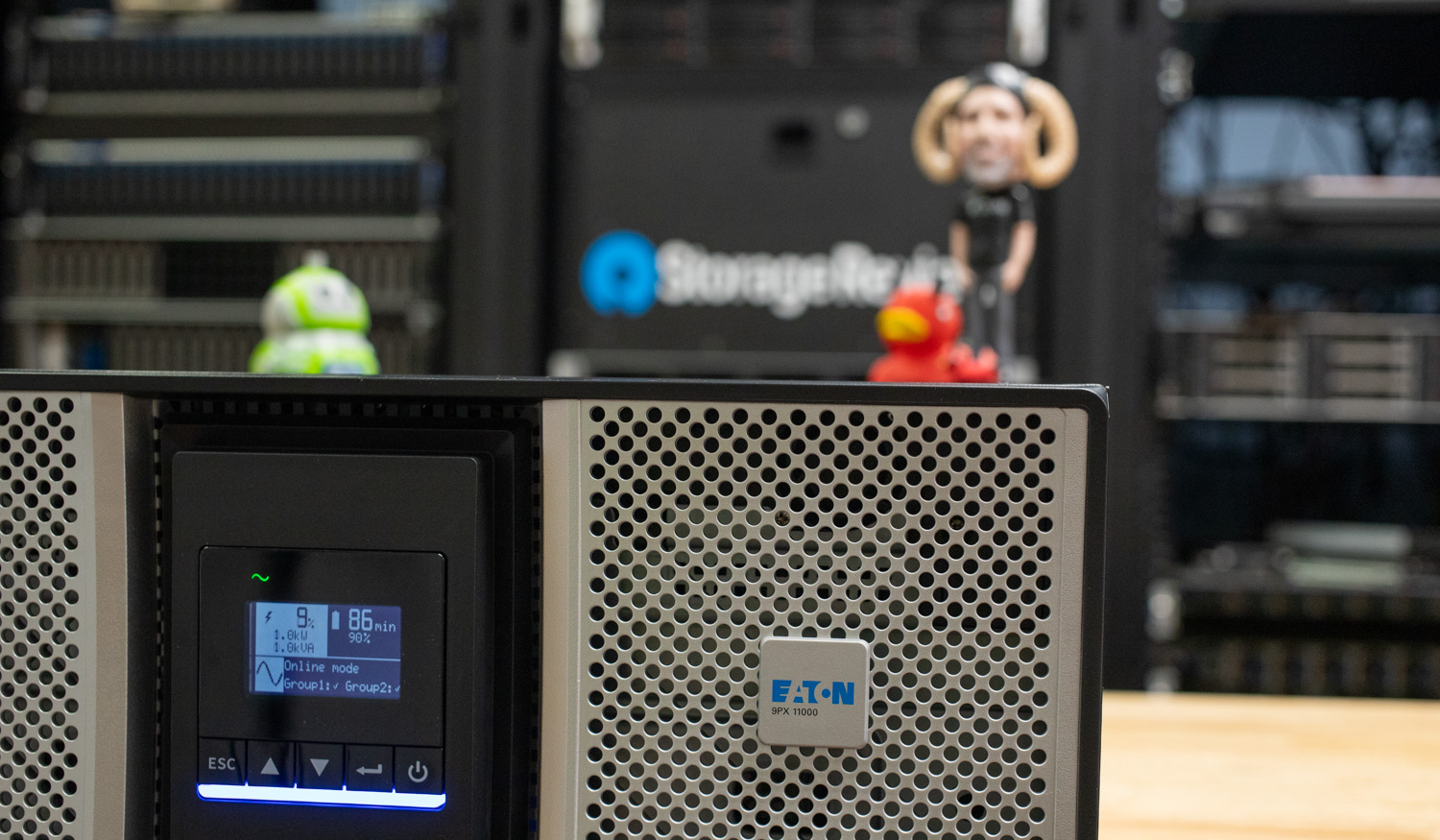

Externally, the 9PX11KG2 features hardwired input and output terminals, as well as four NEMA L6-30R receptacles, providing flexibility for both fixed wiring and modular equipment configurations. The graphical LCD on the front panel provides an intuitive interface with five programmable navigation buttons, allowing users to monitor load percentage, input and output voltage, battery status, and event history in real time. A multi-color LED indicator provides an at-a-glance operational status.

Connectivity is robust, including USB, RS-232 serial, and mini-terminal blocks for remote dry-contact control. Eaton also includes a factory-installed NETWORK-M3 Gigabit Network Card that supports SNMP and web-based management through the Brightlayer Data Centers suite, making integration with network monitoring platforms easy.

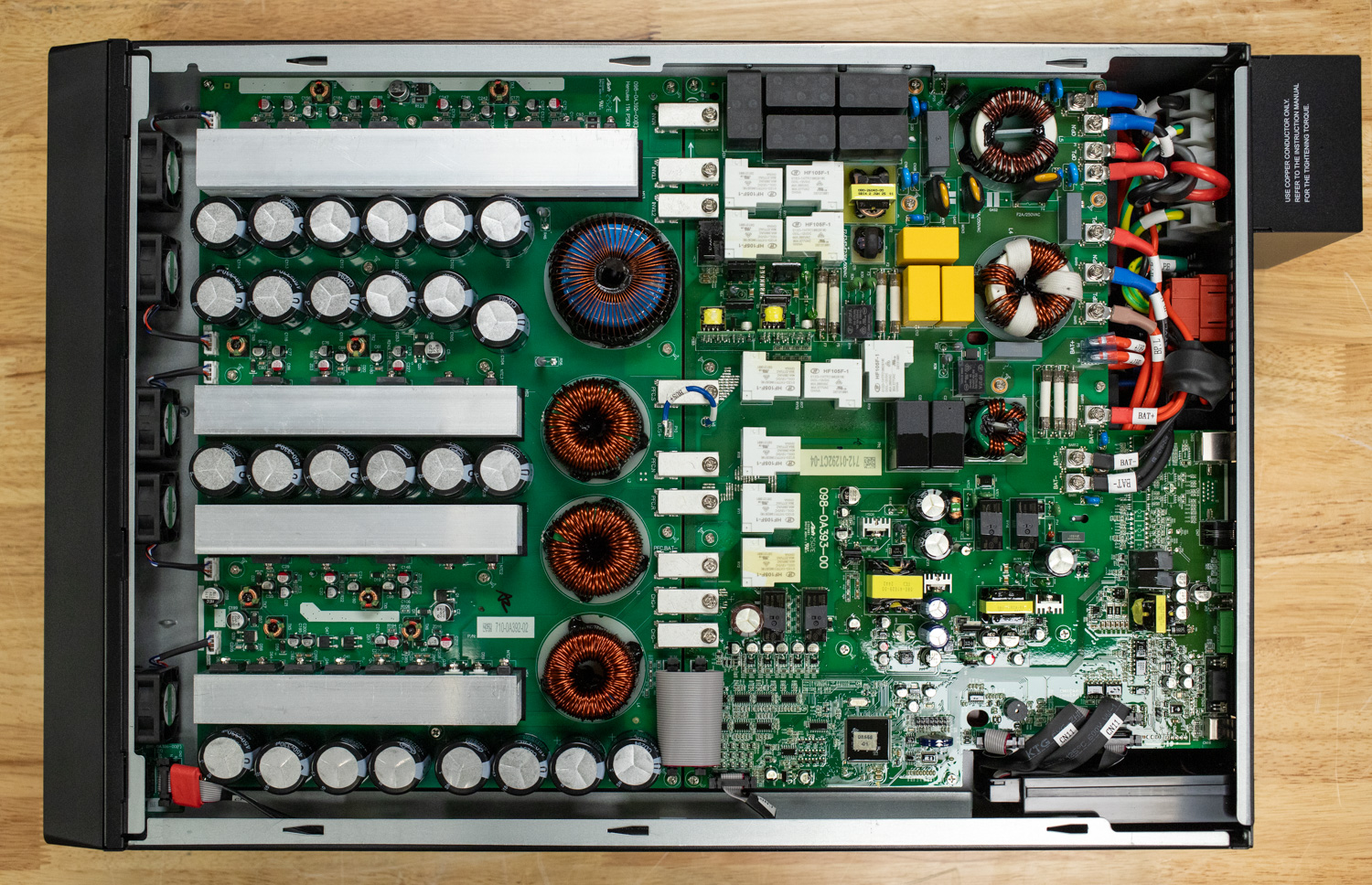

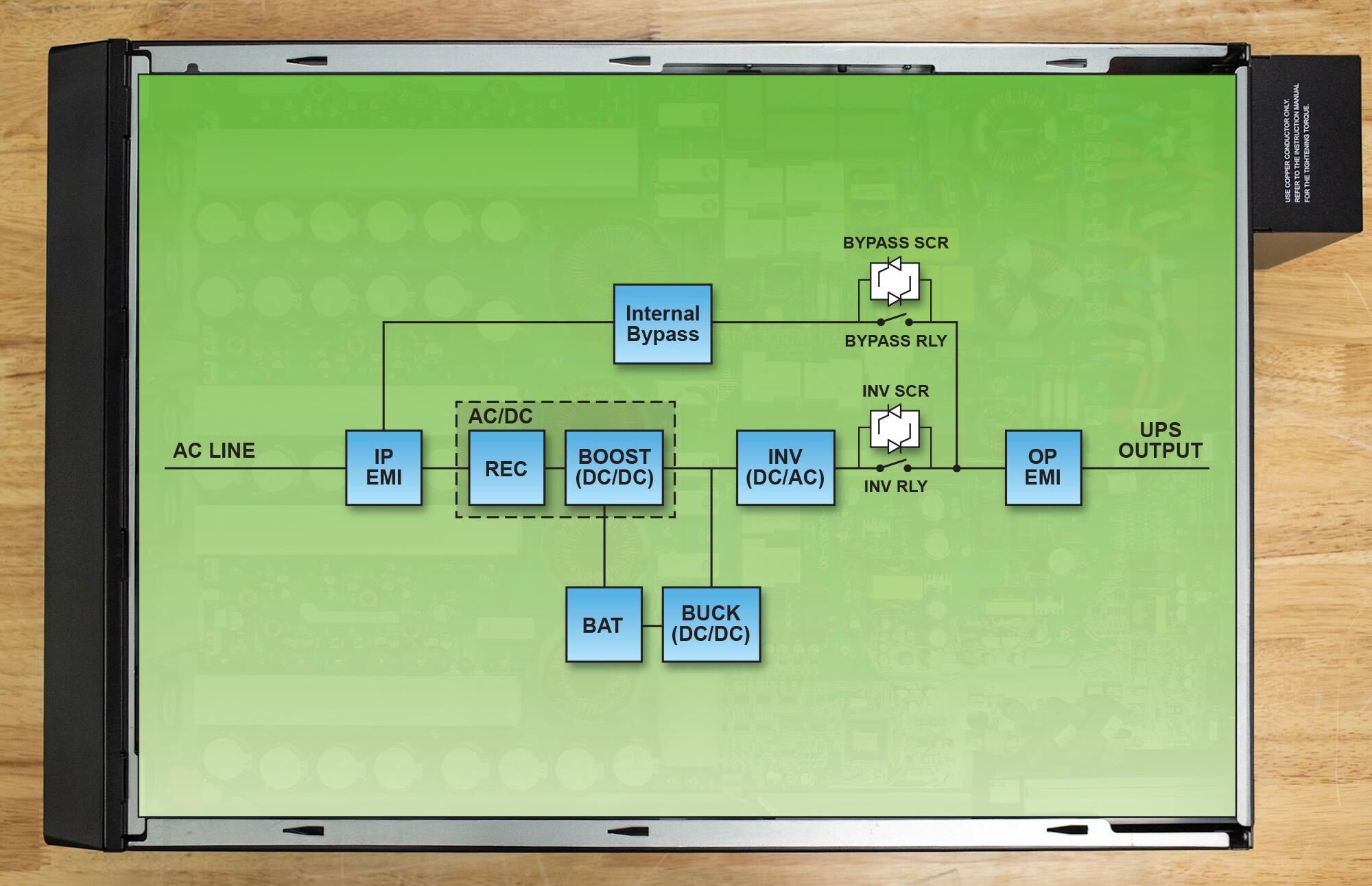

Inside the chassis, the UPS uses a standard online double-conversion topology to ensure continuous, clean power delivery to connected equipment. During normal operation, incoming AC power passes through an input EMI filter that suppresses electromagnetic interference before reaching the rectifier stage. The rectifier converts the AC input into DC, which is then stabilized and boosted through a DC-DC converter to maintain a consistent internal voltage.

This DC power feeds both the battery pack and the inverter section. The inverter converts DC back into AC power, which is then cleaned again through an output EMI filter before being sent to the UPS output. The boost and buck converters work together to regulate voltage levels, ensuring the system maintains precise output even during minor input fluctuations or transitions between line and battery operation.

For added reliability, the UPS incorporates an internal bypass circuit that automatically routes AC input power directly to the output in the event of a system fault or overload. This bypass path, controlled by relays and SCRs, allows connected devices to continue receiving power without interruption while isolating the inverter and rectifier sections for protection or maintenance. The bypass can also be manually engaged by the user if required.

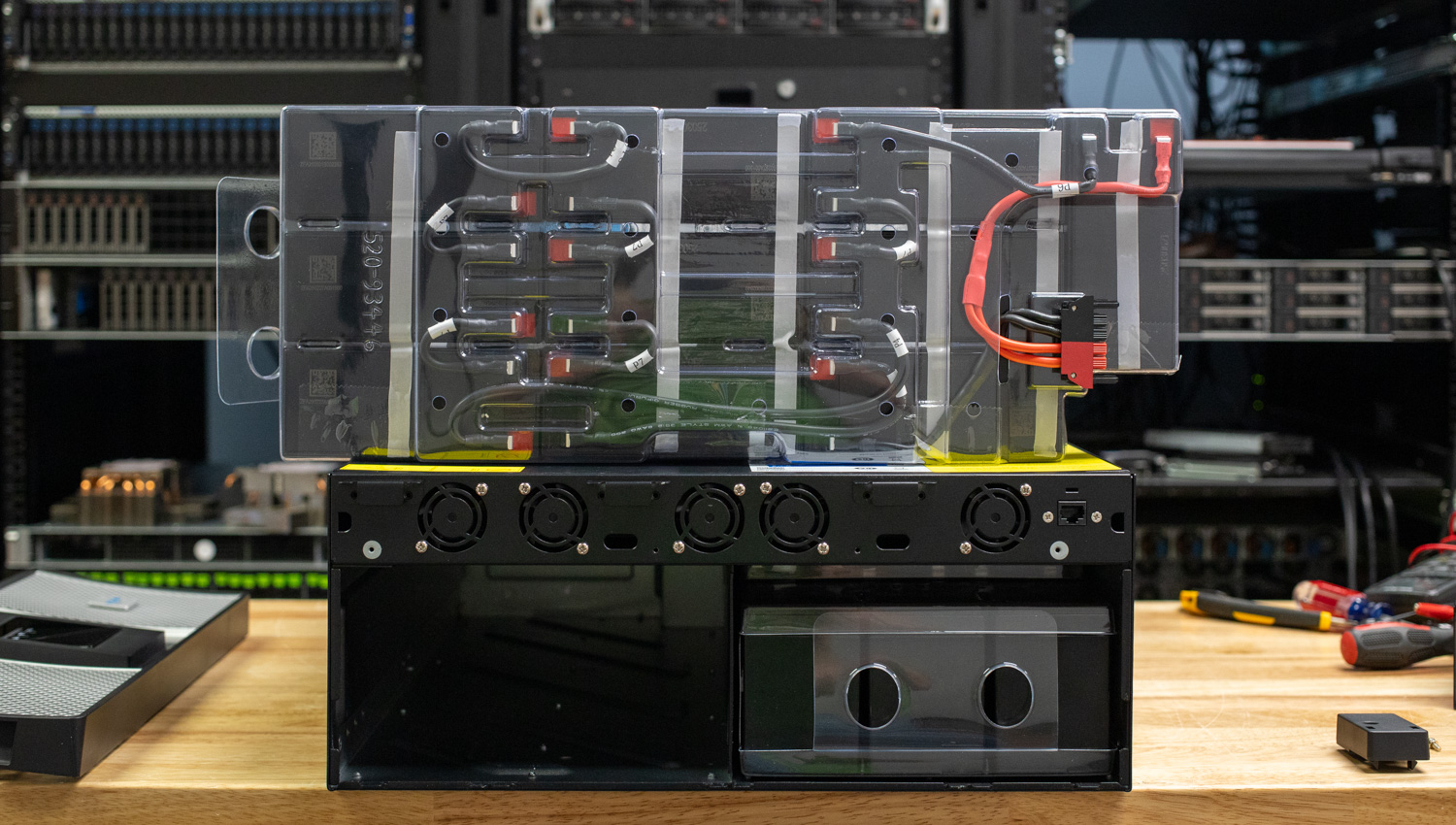

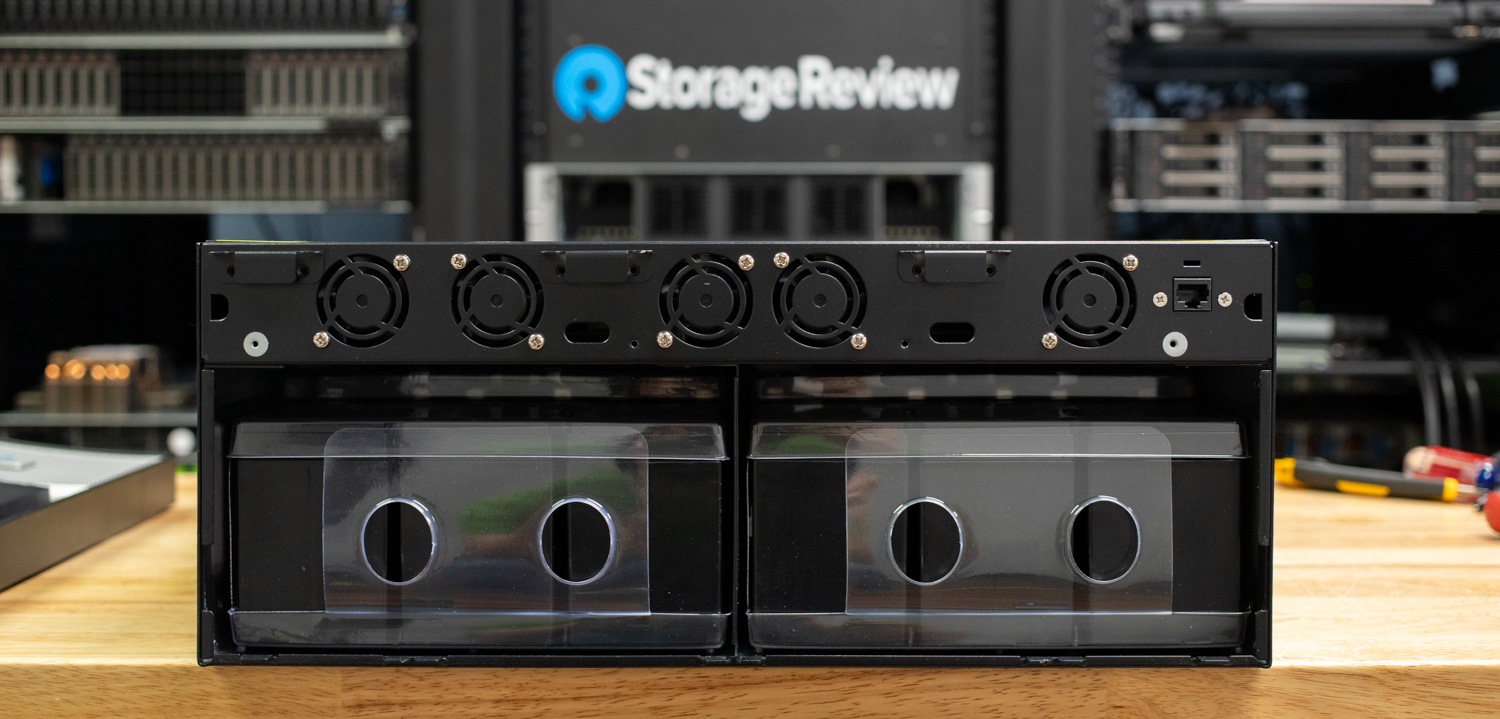

Energy storage is handled by two sealed lead-acid EBP-2003 battery modules featuring ABM+ technology, which intelligently manages the charge and discharge cycles to extend service life and minimize maintenance. This system periodically tests and calibrates charging behavior, reducing the risk of premature aging associated with traditional float charging.

For extended runtime, the 9PX11KG2 supports up to 12 external battery modules (EBMs), part number 9PXEBM240RTG2, enabling scalable runtime that can expand exponentially based on power demand and the number of modules connected. This makes the system adaptable to a wide range of applications, from edge networking environments to critical rack-mounted infrastructure that requires long-duration backup.

Altogether, the UPS’s internal layout emphasizes electrical cleanliness, serviceability, and fault tolerance. The combination of double-conversion power conditioning, intelligent battery management, and scalable runtime capability makes it well-suited for mission-critical IT and networking deployments.

Eaton 9PX11KG2 UPS Management and Interface

The 9PX11KG2’s management system is centered on the built-in NETWORK-M3 card, which gives you a full web interface for control and monitoring. You can log in from any browser to view status, adjust settings, and monitor performance remotely. It’s designed for clarity and reliability, mirroring Eaton’s industrial design philosophy. This platform serves as the central management hub for the UPS, providing insight into every layer of its operations. Here are a few examples of what this management system offers.

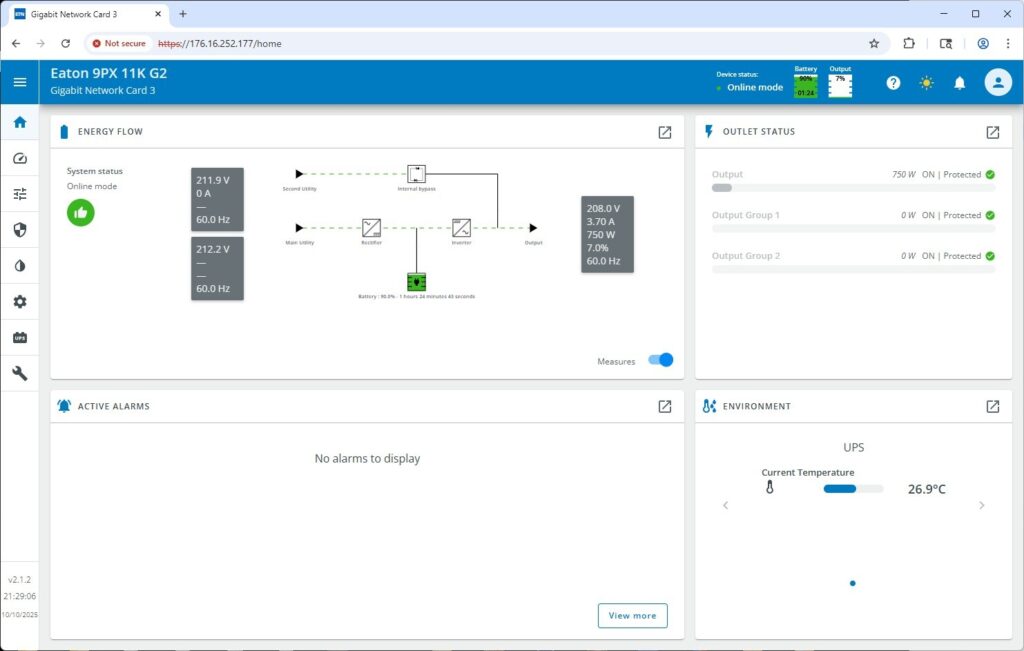

The main dashboard displays a live energy flow diagram showing the relationships among the utility input, the rectifier, the inverter, and the internal bypass. Voltage and frequency readings from both primary and secondary utility lines are displayed alongside real-time load data. In the example shown, the system is operating in online mode with both input sources active, maintaining 208 V output at roughly 750 W load and 7% capacity. The battery state, temperature, and environmental metrics are easily visible in the same view. Below that, the interface confirms that no alarms are active, reassuring operators that the system is running cleanly.

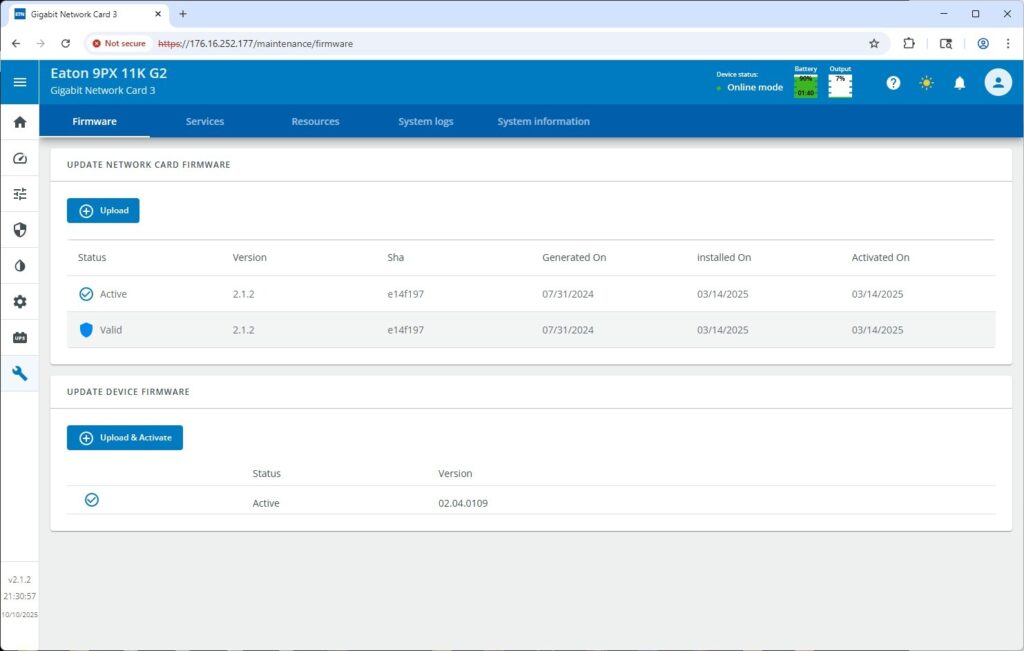

The firmware management panel provides full control over both the network card and UPS firmware. Users can upload, validate, and activate firmware directly through the browser, reducing the need for manual intervention or downtime. It also provides admins with detailed logs showing generation, installation, and activation dates.

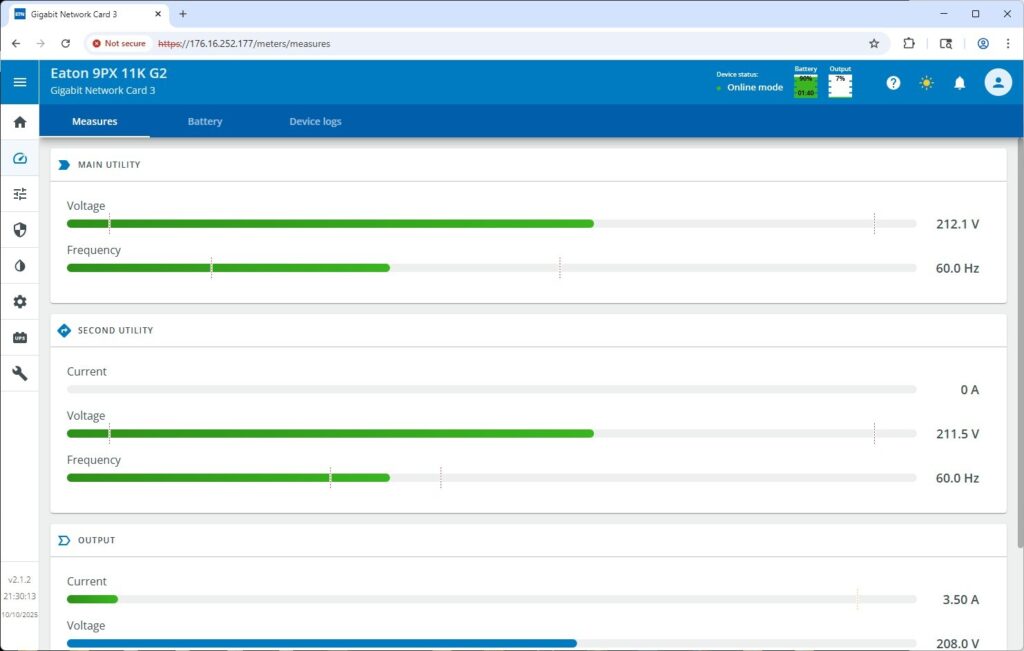

The measurements screen offers real-time electrical monitoring with detailed readouts for input, secondary utility, and output sections. Voltage, current, and frequency levels are visualized through clear green progress bars, providing a quick visual reference to confirm balanced input and stable output conditions. The displayed readings below (i.e., around 212 V input and 208 V output at 3.5 A) indicate tight regulation and stable operation under load. This section is helpful for engineers verifying line stability or diagnosing irregularities without using external meters.

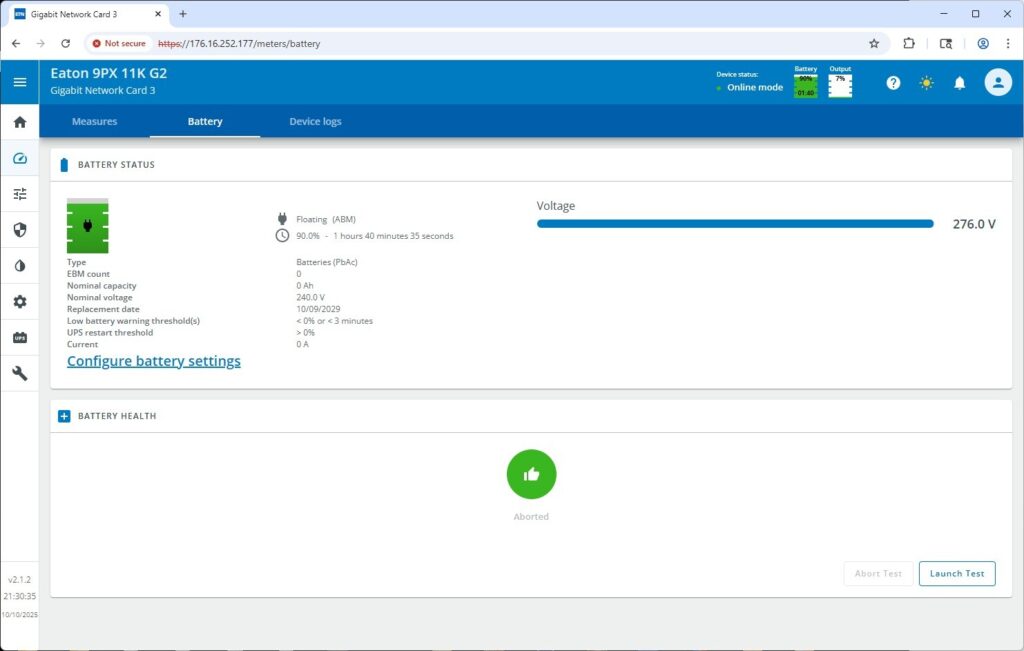

The battery management view provides an in-depth view of battery status, including floating charge mode, voltage, replacement date, and health indicators. For example, below, the battery is at 90% charge with 276 V DC, providing roughly 1 hour and 40 minutes of runtime. Eaton’s ABM+ (Advanced Battery Management Plus) system extends battery lifespan by optimizing charge cycles, and the interface allows configuration of low-battery thresholds, restart conditions, and EBM (External Battery Module) settings.

Conclusion

Packing 11kW of power into a relatively compact 4U footprint, Eaton’s 9PX11KG2 features a solid balance between output, size, and usability. It offers one of the best power densities in its class, delivering 11kW in a 4U chassis, which is ideal for space-constrained data centers and industrial racks. Despite that density, maintenance access remains simple, and the cooling system keeps the unit stable and consistent even under sustained load.

The double-conversion design ensures stable, isolated power delivery to connected systems, while the integrated NETWORK-M3 card extends monitoring and management to any browser or network console. Everything from battery health to firmware updates can be handled remotely through a clean, well-organized interface, simplifying oversight for larger deployments.

For IT teams, integrators, or facilities engineers who need dependable backup power in dense rack configurations, the 9PX11KG2 is an excellent fit. It’s efficient, easy to monitor, and scalable through additional battery modules when a longer runtime is required. Features like hot-swappable batteries, intuitive management software, and effective cooling make this an effective, long-term solution for critical power infrastructure.
