As surveillance systems, enterprise WiFi deployments, and IoT infrastructure continue to evolve, network bandwidth demands are steadily increasing. Devices such as high-resolution security cameras, WiFi 7 access points, and industrial IoT sensors frequently require multi-gigabit connectivity and reliable power delivery.
The UniFi Switch Flex 2.5G 8 PoE (USW-Flex-2.5G-8-PoE), available for $199.00 on the Ubiquiti Store, is designed specifically to address this challenge. Acting as a compact edge or “leaf” switch, it extends high-speed connectivity and Power over Ethernet (PoE) capabilities to remote clusters of devices while maintaining a simple uplink back to the core network. Rather than requiring each device to run a direct cable back to the central rack, this switch enables localized distribution of both data and power.
This architecture is particularly valuable in surveillance deployments, office expansions, warehouses, and outdoor installations where devices may be physically grouped but located far from the primary switching infrastructure. By combining multi-gigabit ports with a flexible power input design, the Flex 2.5G 8 PoE provides a versatile solution for environments that need both performance and deployment flexibility. One of the most distinctive aspects of the switch is its adaptable power architecture. The device can operate entirely on a high-wattage PoE+++ uplink supplied by a larger upstream switch, or draw power from a dedicated external AC adapter when additional PoE output capacity is required. This flexibility allows administrators to tailor installations based on available power sources and total PoE budget requirements.
| Specification | USW-Flex-2.5G-8-PoE Specifications |
|---|---|
| Overview | |
| Dimensions | 212.9 × 99.4 × 33.5 mm (8.4 × 3.9 × 1.3 in) |
| Weight | 567 g (20 oz) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Form Factor | Compact desktop, wall mount, DIN rail, or magnetic mounting |
| Networking & PoE | |
| 2.5 GbE RJ45 Ports | 8 (All PoE++) — 2.5G / 1G / 100M / 10M |
| 10 GbE RJ45 Port | 1 (PoE+++ Input) — 10G / 5G / 2.5G / 1G / 100M |
| 10G SFP+ Port | 1 (10G / 1G) |
| Maximum PoE Output | Up to PoE++ (64W per port) |
| Total PoE Availability | PoE+++ Input: 76W PoE++ Input: 46W PoE+ Input: 16W 210W AC Adapter: 196W |
| Performance | |
| Switching Capacity | 60 Gbps |
| Total Non-Blocking Throughput | 30 Gbps |
| Forwarding Rate | 45 Mpps |
| Supported VLANs | 256 |
| MAC Address Table Size | 4,000 |
| Hardware & Power | |
| Power Method | (1) AC/DC Adapter (optional)(1) PoE+++ |
| Max Power Consumption | 14W (excluding PoE output) with PoE input, 17W (excluding PoE output) with AC adapter input, 210W maximum, including PoE output |
| Operating Temperature | -20 to 45°C (-4 to 113°F) |
| Operating Humidity | 10–90% non-condensing |
Build and Design
The Flex 2.5G 8 PoE features a compact polycarbonate chassis measuring just 8.4 × 3.9 × 1.3 inches. This small form factor is intentional and reflects the switch’s intended role as a remote distribution point rather than a rack-mounted core device. Its lightweight construction allows it to be easily mounted in locations where traditional rack equipment would be impractical, such as inside media cabinets, under desks, in network boxes, or in outdoor enclosures.

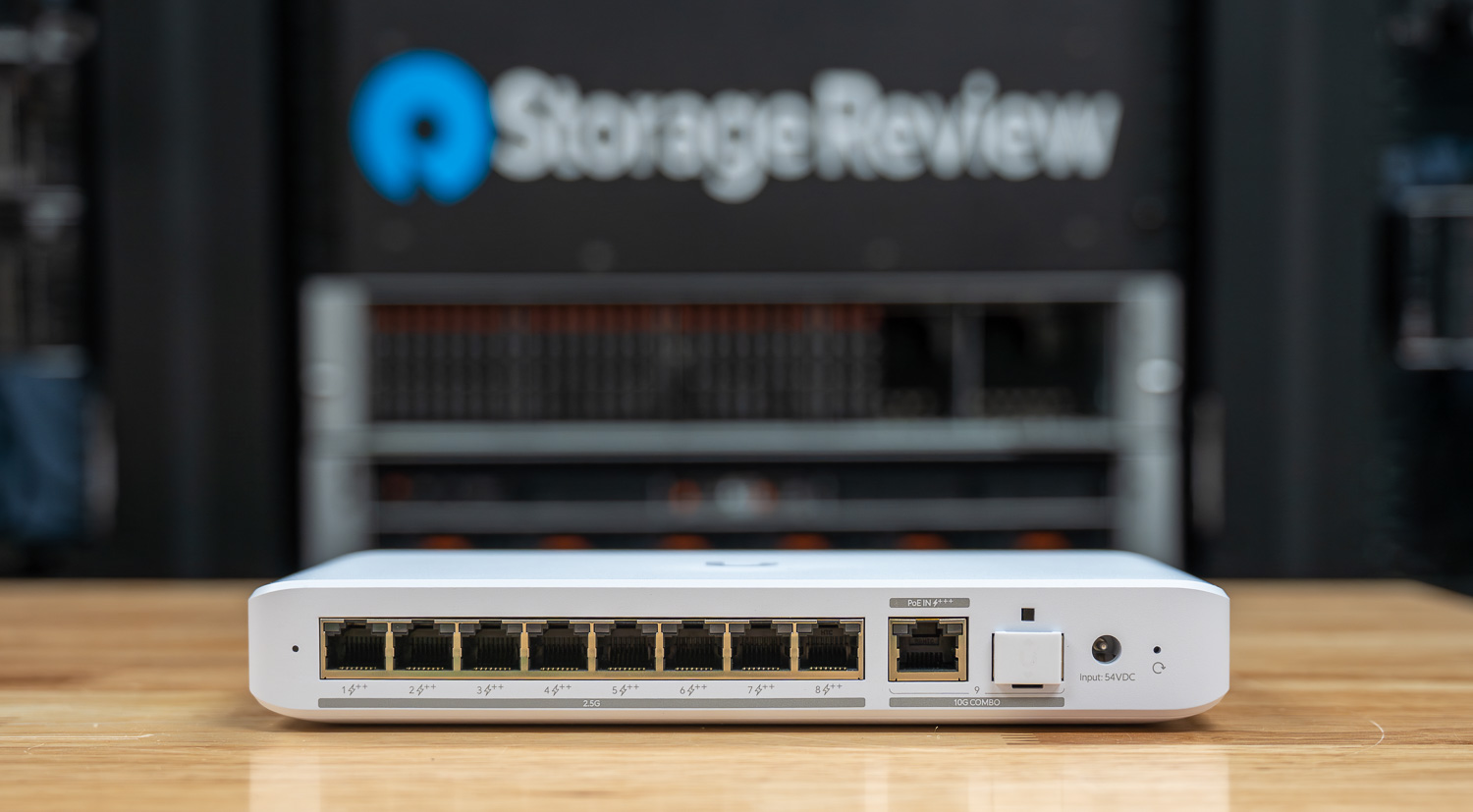

Despite its small footprint, the switch is engineered for high-density connectivity. The panel houses eight 2.5GbE RJ45 ports designed for downstream devices, each capable of delivering PoE++ power. These ports support multiple Ethernet speeds, including 10 Mbps, 100 Mbps, 1 Gbps, and 2.5 Gbps, ensuring compatibility with both legacy equipment and modern multi-gigabit hardware.
For uplink connectivity, the switch includes a versatile 10-gigabit combo interface consisting of both a 10G SFP+ slot and a 10GbE RJ45 port. This design allows administrators to choose between fiber and copper uplinks based on the network infrastructure. The presence of a 10GbE backhaul is particularly important because it ensures that aggregated traffic from multiple 2.5GbE devices does not overwhelm the uplink.
Additional interface features include a system LED that provides quick status information and a recessed reset button located near the power input. These simple diagnostic tools allow administrators to quickly identify operational issues or restore the device during troubleshooting.
Power Architecture
One of the defining features of the Flex 2.5G 8 PoE is its adaptable PoE power budget. Unlike traditional switches with fixed internal power supplies, this model can operate under multiple power scenarios depending on its power source.
In environments where running a new electrical circuit is impractical, the switch can be powered directly through its 10GbE RJ45 uplink using PoE+++ (90W). When supplied with this high-power PoE input, the switch redistributes approximately 76W of usable power across its downstream ports. This configuration enables a fully cable-simplified installation in which both data and power are delivered via a single Ethernet connection from the upstream switch.
For deployments requiring greater power capacity, administrators can connect the optional 210W external AC adapter ($79.00, available on the Ubiquiti Store). This dramatically increases the available PoE budget to approximately 196W, allowing the switch to power more high-consumption devices simultaneously. In high-density installations with multiple access points or advanced surveillance cameras, this expanded power budget becomes essential.
Management & Layer 2 Features
Managing the Flex 2.5G 8 PoE integrates smoothly with the UniFi Network application (requiring Version 9.0.114 or later). Despite its edge-deployment focus, it retains a robust suite of Layer 2 features. Administrators can leverage Jumbo Frames to maximize throughput for large file transfers, while Spanning Tree Protocols (STP & RSTP) provide essential loop protection. Additional traffic management tools, such as port isolation, storm control, and egress rate limiting, give network engineers granular control over how data behaves before it travels back across the 10GbE uplink.
Use Case: Surveillance
A common deployment scenario for the Flex 2.5G 8 PoE is as a remote hub for surveillance infrastructure. Instead of routing each camera cable individually back to the central rack, administrators can deploy this switch near the camera cluster. A single 10GbE fiber or copper connection then links the remote switch back to the main network. This approach significantly reduces cabling complexity while maintaining high network performance. Cameras can be powered directly by the switch while their video streams are aggregated and transmitted back to the recording server over the high-speed uplink.
| Camera Type | Average Power Draw | Example 76W Budget (PoE+++) | Example 196W Budget (AC) |
|---|---|---|---|
| G5 Turret Ultra | ~4W | Up to 8 cameras (32W total) | Up to 8 cameras |
| G5 Pro | ~10W | Up to 7 cameras (70W total) | Up to 8 cameras |
| G5 PTZ | ~14W | Up to 5 cameras | Up to 8 cameras |
| G4 PTZ | ~43W | 1 camera | Up to 4 cameras |
As these examples illustrate, power availability can significantly impact deployment capacity. For standard camera arrays such as the G5 Turret or G5 Bullet models, the PoE+++-powered configuration provides more than enough power for a full cluster. However, installations involving high-draw devices such as PTZ cameras benefit greatly from the larger AC-powered PoE budget.
Use Case: Creative Workspaces and Video Editing
Beyond surveillance, the shift to 2.5GbE is a massive quality-of-life upgrade for creative workflows. When performing heavy video editing, standard Gigabit Ethernet quickly becomes a severe bottleneck. The Flex 2.5G 8 PoE serves as an excellent local studio switch for connecting a high-speed multi-bay storage enclosure or NAS directly to editing workstations. Leveraging the 10GbE uplink to the core network and 2.5GbE to the machines ensures smooth timeline playback and rapid file transfers without the latency of wireless or legacy gigabit connections.
Deployment Flexibility
Ubiquiti designed the Flex 2.5G 8 PoE with versatile mounting options to accommodate a wide variety of installation environments. The switch can be placed on a desktop, mounted directly to a wall using the included bracket, or attached to a DIN rail with an optional mounting kit. Magnetic mounting is also supported, allowing the device to be secured to metal surfaces in industrial or utility installations.
For outdoor or harsh-environment deployments, the switch is compatible with the Flex Utility Pro enclosure. This optional enclosure provides an IPX6-rated weather-resistant housing that protects the switch and its power supply from environmental exposure. When combined with the enclosure and appropriate cabling, the Flex 2.5G can be deployed in locations such as building exteriors, parking structures, and remote monitoring stations.
UniFi Network Overview
During testing, the USW Flex 2.5G 8 PoE was deployed in a real-world configuration to evaluate its performance under uplink-only power conditions. The switch received a single PoE uplink from a larger upstream switch, in this case, a USW Pro 8 PoE, with no external AC adapter connected. Drawing power entirely from that uplink, the switch simultaneously powered a single wireless access point via PoE and provided wired connectivity to two workstations. As reflected in the UniFi Network dashboard, total PoE consumption was just 10.3W out of the available 76W budget, demonstrating that even without the optional AC adapter, the switch comfortably handles a modest but practical device cluster with significant power headroom to spare.
Manageability will feel immediately familiar to anyone who has worked within the UniFi ecosystem. The port manager interface provides the same port-by-port control seen across the broader lineup, including switches we have previously reviewed, such as the USW Pro XG 8 PoE, USW Pro XG 10 PoE, and USW Pro Max 16 PoE. Each port can be individually monitored for PoE mode, link speed, and traffic activity, meaning administrators already comfortable with the platform can deploy and manage the Flex 2.5G 8 PoE without any additional learning curve.
Conclusion
The UniFi Switch Flex 2.5G 8 PoE is a high-performance “Swiss Army knife” for modern edge networks, packing eight 2.5GbE ports and a 10GbE uplink into a remarkably compact frame. Its real genius lies in its power flexibility as it can run purely on a PoE+++ uplink for a clean, single-cable install or use an optional 210W AC adapter to drive power-hungry PTZ cameras and WiFi 7 access points. By moving multi-gigabit switching closer to your devices, it eliminates the “last hundred feet” bottleneck while keeping deployment logistics simple.
Priced at $199.00, this switch offers a future-proofed solution that integrates seamlessly into the UniFi ecosystem. It provides enterprise-grade Layer 2 features without the noise or footprint of traditional rack hardware, making it ideal for everything from creative studios to outdoor surveillance hubs. Ultimately, the Flex 2.5G is a strategic, low-profile powerhouse that ensures your network edge is ready for tomorrow’s high-bandwidth demands.
