Lenovo ThinkSystem SR645 & SR665 Announced

by Adam Armstrong
Lenovo ThinkSystem SR645

Today the Lenovo Data Center Group (DCG) announced the launch of two new servers, the Lenovo ThinkSystem SR645 and SR665. Both of the new servers are dual-socket and leverage the AMD EPYC 7002 processors. This follows in the line of over AMD EPYC servers being released such as the Lenovo ThinkSystem SR635.

Today the Lenovo Data Center Group (DCG) announced the launch of two new servers, the Lenovo ThinkSystem SR645 and SR665. Both of the new servers are dual-socket and leverage the AMD EPYC 7002 processors. This follows in the line of over AMD EPYC servers being released such as the Lenovo ThinkSystem SR635.

Certain industries, financial services, retail, and manufacturing, need higher performance. The bottom line is that there is a deep need for faster transaction processing, improved data analytics, and greater grid-computing capacity. Of course, the performance needs to come in both cost effective and for a good TCO. Lenovo has turned its eyes to the AMD EPYC line for this cost-effective performance. Leveraging these high core count CPUs not only add more threads, it also allows for more RAM, and PCIe 4.0 devices like storage and GPUs.

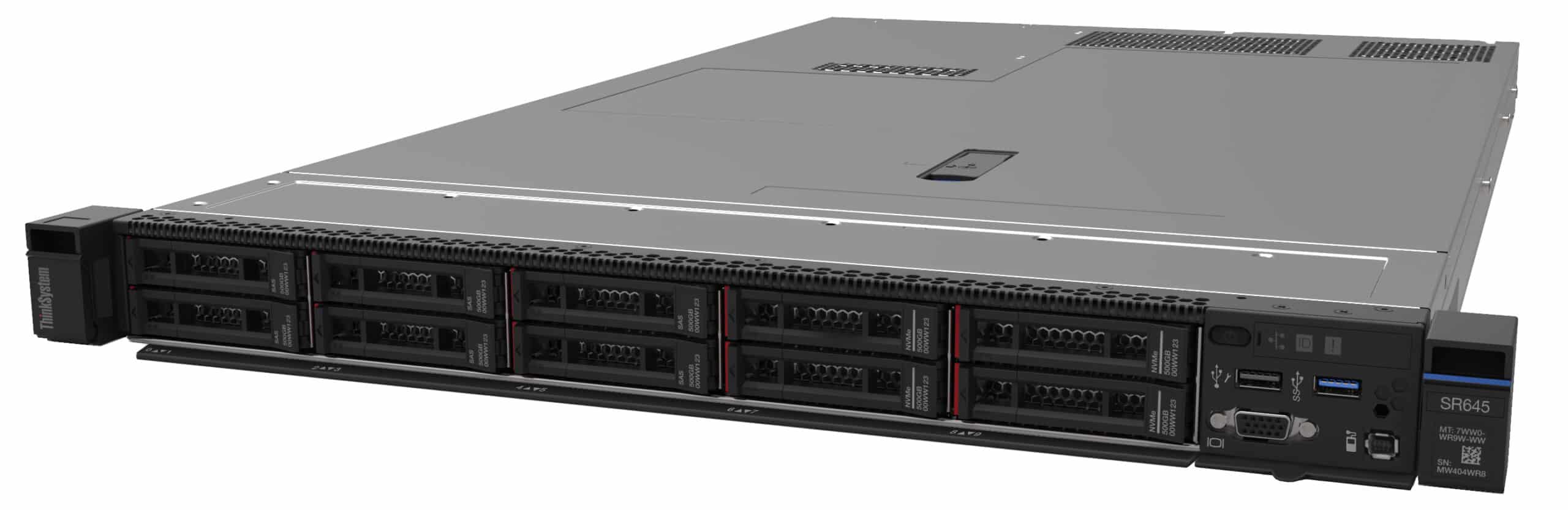

Lenovo ThinkSystem SR645

First up with the 1U Lenovo ThinkSystem SR645. While it is a small server, it can house two second gen AMD EPYC CPUs, up to 4TB of memory, up to 10 NVMe drives, and an up to three PCIe 4.0 expansion slots. This makes the SR645 a tiny powerhouse and should decrease network bottlenecks in HPCworkloads.

Lenovo ThinkSystem SR645 Specifications

Form Factor1U rack server
ProcessorsUp to two (2) AMD EPYC 7002 Generation Processors, up to 64C, 280W
Memory32  DDR4 memory slots; Maximum 4TB using 128GB RDIMMs; up to 1DPC at 3200MHz, 2DPC at3200MHz
Drive BaysUp to 4x 3.5-inch or 12x 2.5-inch drives; Maximum of 10x NVMe drives with 1:1 connection
Expansion SlotsUp to 3x PCIe 4.0 slots, 1x OCP 3.0 adapter slot
GPUUp to 3x single-width 75W GPUs
Network InterfaceOCP 3.0 mezz adapter, PCIe adapters
PowerDual redundant PSUs (up to 1800W Platinum)
PortsFront: 1x USB 3.0, 1x USB 2.0, 1x VGA (optional)
Rear: 3x USB 3.1, 1x Serial port (optional) 1x RJ-45 (management)
Systems ManagementLenovo XClarity Controller
OS SupportMicrosoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESXi
Limited Warranty1- and 3-year

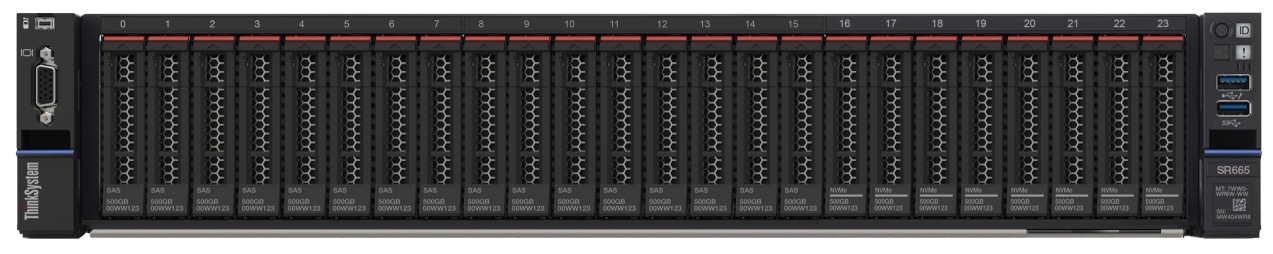

Lenovo ThinkSystem SR665

For the 2U side of things, there is the Lenovo ThinkSystem SR665. This server is geared more for software-defined workloads, database, big data & analytics,virtualization, virtualized desktop infrastructure (VDI),and HPC/AI workloads. This server also houses two AMD EPYC CPUs and up to 4TB of memory. However, the SR665 can have up to 32 NVMe drives and up to six single width GPUs (or three double width).

Lenovo ThinkSystem SR665 Specifications

Form Factor2U rack server
ProcessorsUp to two (2) AMD EPYC 7002 Generation Processors, up to 64C, 280W
Memory32x DDR4 memory slots; Maximum 4TB using 128GB RDIMMs; up to 1DPC at 3200MHz, 2DPC at3200MHz
Drive BaysUp to 20x 3.5-inch or 40x 2.5-inch drives; Maximum of 32x NVMe drives with 1:2 connection
Expansion SlotsUp to 8x PCIe 4.0 slots, 1x OCP 3.0 adapter slot
GPUUp to 6x single-width 150W GPUs or 3x double-width 300WGPUs
Network InterfaceOCP 3.0 mezz adapter, PCIe adapters
PowerDual redundant PSUs (up to 1800W Platinum)
PortsFront: 1x USB 3.0, 1x USB 2.0, 1x VGA (optional)
Rear: 3x USB 3.1, 1x Serial port (optional) 1x RJ-45 (management)
System ManagementLenovo XClarity Controller
OS SupportMicrosoft Windows Server, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, VMware ESXi
Limited Warranty1- and 3-year

Features of the Lenovo ThinkSystem SR645 & SR665 include:

  • Next-generation technologies, including PCIe 4 support, which doubles I/O bandwidth eliminating potential bottlenecks found in previous generation servers increase networking capabilities essential for I/O intensive applications
  • Increased GPU support (up to 8x 75W NVidia T4s) allowing customers to efficiently implement video analytics and inference solutions for artificial intelligence
  • Increased onboard storage up to 40 2.5” drives or up to 32 NVMe drives allowing for dense software defined storage solutions

Benefits to the higher core count in the servers include:

  • In the financial services industry, typically, servers are in a premium space located near the exchanges so saving rack space is paramount
  • In retail environments, faster video analytics results can identify high-traffic areas in stores to strategically place products
  • In manufacturing, processes rely on efficiency, therefore the ability to quickly process analytics data allows for better quality control and improved throughput. This results in higher yields and better forecasting of warranty needs
  • In high performance computing (HPC) environments like scientific research, higher throughput means faster results, yielding earlier discoveries
