QNAP TS-832PX NAS Now Available

by Lyle Smith

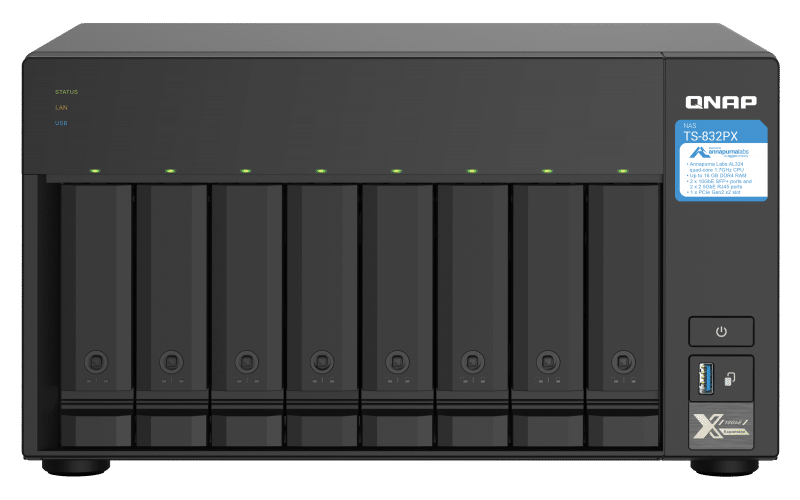

QNAP TS-832PX front

QNAP Systems has announced the immediate availability of the TS-832PX, the company’s newest 8-bay NAS highlighted by two 10GbE SFP+, 2.5GbE RJ45 ports and a PCIe Gen2 x2 slot for added flexibility. The TS-832PX also supports multi-cloud backup, cloud storage gateways, remote access, AI photo management and others to help small businesses build an effective high-speed network environment.

QNAP Systems has announced the immediate availability of the TS-832PX, the company’s newest 8-bay NAS highlighted by two 10GbE SFP+, 2.5GbE RJ45 ports and a PCIe Gen2 x2 slot for added flexibility. The TS-832PX also supports multi-cloud backup, cloud storage gateways, remote access, AI photo management and others to help small businesses build an effective high-speed network environment.

QNAP TS-832PX front

Under the hood is a quad-core 1.7 GHz processor, standard 4GB DDR4 RAM (which is expandable up to 16GB), two 10GbE SFP+ ports, and two 2.5GbE ports. Moreover, the PCIe Gen2 x2 slot allows users to install a range of components, including a 5GbE/2.5GbE network card, a QXP-W6-AX200 Wi-Fi 6 (802.11ax) wireless adapter, or a QXP-10G2U3A USB 3.2 Gen 2 (10Gbps) card, making this another adaptable QNAP release.

TS-832PX’s operating also provides many different solutions to suit a range of business needs, including:

  • HybridMount and VJBOD Cloud provides file-based and block-based cloud gateways for cloud storage
  • QVR Pro provides a professional-quality surveillance solution
  • HBS features backup, restoration and synchronization tools to ensure that your data is well preserved
  • Notification Center, which centralizes all system alerts and warnings for simplified administration tasks
  • Security Counselor which features anti-malware scanning and provides advice for strengthening your security settings

QNAP TS-832PX Specifications

CPU AnnapurnaLabs Alpine AL324 ARM® Cortex-A57 quad-core 1.7GHz processor
CPU Architecture 64-bit ARM
Floating Point Unit Yes
Encryption Engine Yes
System Memory 4 GB SODIMM DDR4(1 x 4 GB)
Maximum Memory 16 GB (1 x 16 GB)
Memory Slot 1 x SO-DIMM DDR4
Flash Memory 512 MB (Dual boot OS protection)
Drive Bay 8 x 3.5-inch SATA 6Gb/s, 3Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
Hot-swappable Yes
M.2 SSD Slot Optional via a PCIe adapter
SSD Cache Acceleration Support Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (also support 10M)
10 Gigabit Ethernet Port 2 x 10GbE SFP+
Wake on LAN (WOL)
Only the 2.5GbE port
Jumbo Frame Yes
PCIe Slot Slot 1: PCIe Gen 2 x2
PCIe bandwidth limitations will restrict the NAS 10GbE performance.
USB 3.2 Gen 1 port 3
Form Factor Tower
LED Indicators System Status, LAN, USB, HDD1~8
Buttons Power, Reset, USB Copy
Dimensions (HxWxD) 7.41 × 12.96 × 11.06 inch
Weight (Net) 14.07 lbs
Weight (Gross) 18.98 lbs
Operating temperature 0 – 40 °C (32°F – 104°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 250W, 100-240V AC, 50/60Hz, 3.5A
Power Consumption: HDD Sleep Mode 27.949 W
Power Consumption: Operating Mode, Typical 50.858 W

Tested with drives fully populated.
Fan System fan: 2 x 120mm, 12VDC
CPU fan: 1 x 60mm
Sound Level 19.6 db(A)
System Warning Voice prompts or Buzzer
Kensington Security Slot Yes
Max. Number of Concurrent Connections (CIFS) 1500

Availability

The QNAP TS-832 is available now.

QNAP Systems
