QNAP TS-h1090FU NVMe All-flash NAS Announced

by Lyle Smith

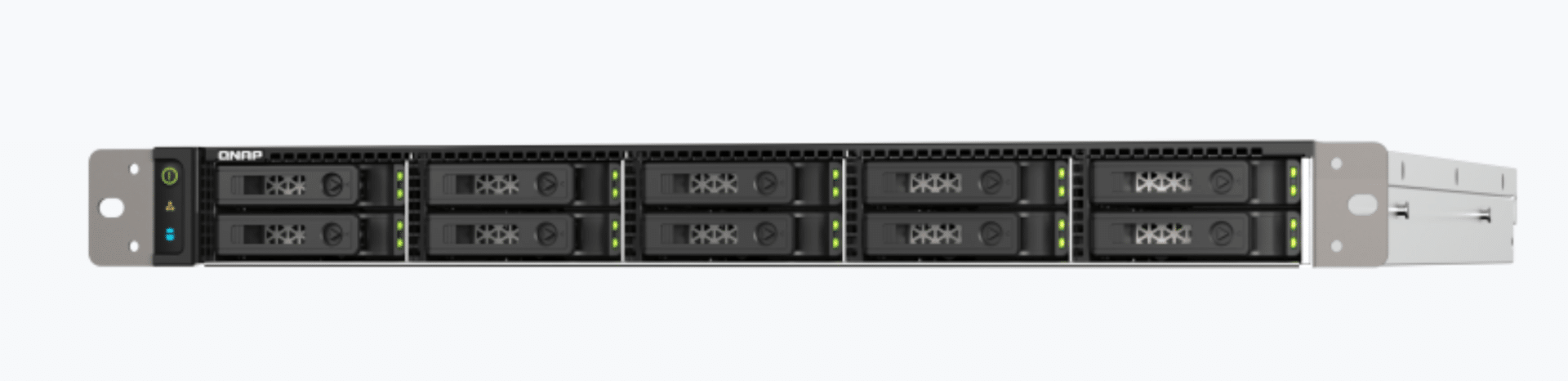

QNAP TS-h1090FU front

QNAP Systems, Inc. has announced the availability of the TS-h1090FU, the company’s newest high-density NVMe all-flash NAS that features U.2 NVMe PCIe Gen 4 x4 SSD architecture. Purpose-built for high throughput and low latency workloads, it comes equipped with dual-port 25GbE connectivity, PCIe Gen 4 expandability, ZFS reliability, and QNAP’s SSD optimization technologies.

QNAP Systems, Inc. has announced the availability of the TS-h1090FU, the company’s newest high-density NVMe all-flash NAS that features U.2 NVMe PCIe Gen 4 x4 SSD architecture. Purpose-built for high throughput and low latency workloads, it comes equipped with dual-port 25GbE connectivity, PCIe Gen 4 expandability, ZFS reliability, and QNAP’s SSD optimization technologies.

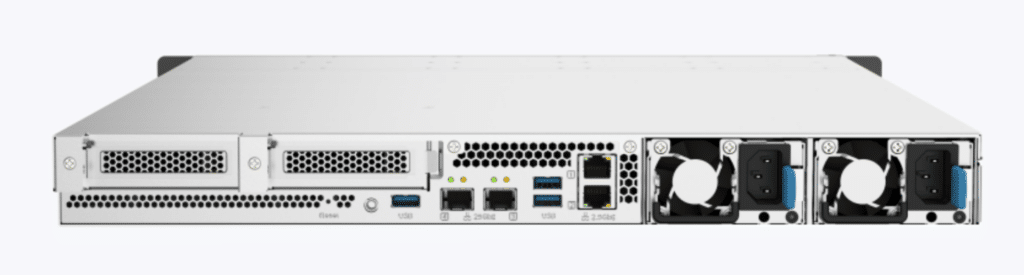

QNAP TS-h1090FU rear The TS-h1090FU features 10 drive bays with U.2 NVMe PCIe Gen 4 SSDs support (or SATA 6Gb/s SSDs) within a 58cm depth 1U rackmount chassis. It is powered by a 2nd-Gen AMD EPYC 7002 series processor and features DDR4 ECC memory with 12 Long-DIMM slots for up to 1TB memory for memory-intensive workloads.  For connectivity, the TS-h1090FU offers 2.5GbE, 25GbE (with iSER support) and PCIe expandability for 100GbE ultra-high speed network connectivity.

QNAP’s new high-density NAS runs the ZFS-based QuTS hero operating system, which focuses on data integrity and protection with self-healing storage, near-limitless snapshots, and versioning. It also features Write Coalescing, TRIM, and Pool Over-provisioning to help organizations and users get the best performance and lifespan possible from their NAS SSDs. In addition, QNAP includes their exclusive QNAP SSD Antiwear Leveling (QSAL) technology to help prevent simultaneous SSD failure.

QNAP TS-h1090FU front

Users also have access to the QNAP’s App Center, which comprises many install-on-demand apps, further expanding the versatility of the TS-h1090FU. This includes use cases such as:

  • hosting virtual machines and containers (supports LXD, Docker and Kata Containers),
  • facilitating VMware/Hyper-V VM backup, streamlining local/remote/cloud backups,
  • simplifying Google Workspace and Microsoft 365 backup

QNAP TS-h1090FU-7302P Specifications

CPU
  • TS-h1090FU-7302P-256G: AMD EPYC™ 7302P 16 cores/32 threads processor (up to 3.3 GHz)
  • TS-h1090FU-7302P-128G: AMD EPYC™ 7302P 16 cores/32 threads processor (up to 3.3 GHz)
  • TS-h1090FU-7232P-64G: AMD EPYC™ 7232P 8 cores/16 threads processor (up to 3.2 GHz)
CPU Architecture 64-bit x86
Encryption Engine  (AES-NI)
System Memory 64-256 GB RDIMM DDR4 ECC
Maximum Memory 1 TB+ (12 x 128 GB)
Memory Slot 12 x RDIMM DDR4
Flash Memory 5GB (Dual boot OS protection)
Drive Bay 10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps

(The system is shipped without SSD)

Drive Compatibility 2.5-inch U.2 NVMe Gen 4 x4 solid state drives
2.5-inch SATA solid state drives
Hot-swappable  Yes
SSD Cache Acceleration Support  Yes
SR-IOV  Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M) 2 (2.5G/1G/100M/10M)
25 Gigabit Ethernet Port 2 x 25GbE SFP28 SmartNIC port
Wake on LAN (WOL) Only the 2.5GbE port
Jumbo Frame  Yes
PCIe Slot 2:

  • Slot 1: PCIe Gen4 x16
  • Slot 2: PCIe Gen4 x16

For low-profile PCIe cards only

USB 3.2 Gen 1 port 3
Form Factor Rackmount
LED Indicators Disk, Status, LAN, storage expansion port status
Buttons Power, Reset
Dimensions (HxWxD) 44 × 430 × 580 mm
Weight (Net) 10.42 kg
Weight (Gross) 13.47 kg
Operating Temperature 0 – 40 °C (32°F – 104°F)
Storage Temperature -20 – 70°C (-4°F – 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit 550W PSU (x2), AC 100-240 V
Power Consumption: Operating Mode, Typical 157.97W

Tested with drives fully populated.

Fan 5 x 60mm, 12VDC
System Warning Buzzer
Max. Number of Concurrent Connections (CIFS) – with Max. Memory 10,000

QNAP TS-h1090FU Product Page
