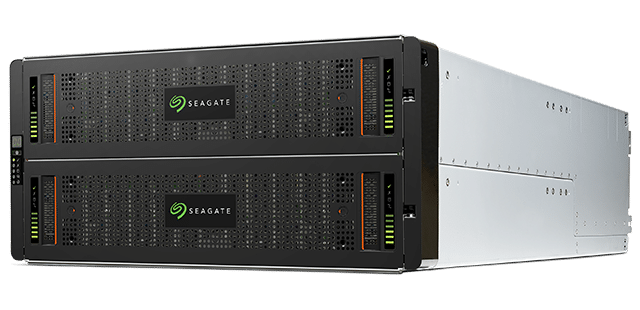

The Seagate Exos CORVAULT 5U84 storage system was revealed at the International Broadcasting Convention (IBC) 2023. The system is specifically designed for the Media and Entertainment (M&E) industry, as it not only offers high-performance storage but also aligns with sustainable practices.
The Seagate Exos CORVAULT 5U84 storage system was revealed at the International Broadcasting Convention (IBC) 2023. The system is specifically designed for the Media and Entertainment (M&E) industry, as it not only offers high-performance storage but also aligns with sustainable practices.
Seagate’s new system is designed to be energy-efficient and minimize electronic waste. This is in part due to its Advanced Distributed Autonomic Protection Technology (ADAPT) and autonomous drive regeneration features, which cut power consumption by up to 50% in software-defined data centers.
The Exos CORVAULT 5U84 sets itself apart from conventional storage solutions with its user-friendly interface, rapid deployment capabilities, and simplified data management. Previously, Seagate provided a 4U form factor optimized for larger 1.2-meter-deep racks. However, the new 5U model is tailored for 1-meter-deep racks, more commonly found in M&E companies and most enterprises.
What makes this system particularly compelling for the M&E sector is its high degree of scalability, reliability, and flexibility. In partnership with pixitmedia, Seagate has combined this new storage system with pixstor software to offer a solution that can handle demanding media workflows without compromising on the total cost of ownership or security.
Seagate Exos CORVAULT 5U84 Specifications
| Standard Model Number | R5U84I1500S001 |
| System Capacity | 1.5PB, no expansion |
| Limited warranty | 5 Years |
| System Performance | 12 GB/s sequential read throughput, 10 GB/s sequential write throughput |
| Device Support | Exos self-encrypting SAS HDDs |
| System Data Protection | Seagate ADAPT erasure coding |
| Disk Drive Self-healing technology | Autonomous Drive Regeneration (ADR) |
| Controllers | Redundant, active-active, VelosCT Controllers |
| Hot-Swappable Components | Hard Drives, controllers, fans, power supplies, expander cards |
| Host I/O Ports | Four mini-SAS-3 HD ports on each controller |
| Physical | 5U:
|
| Management | |
| Interface Types | 10/100/1000 Ethernet |
| Management Consoles | Web-based GUI or Command Line Interface (CLI) |
| Management Software | Seagate Systems storage management console | One-button configuration | remote diagnostics | nondisruptive updates |
| Power Requirements—AC Input | |
| Input Power Requirements | 200V-240V AC, 50Hz-60Hz |
| Power Consumption | Max: 2000W |
| Environmental/Temperature Ranges | |
| Operating/Nonoperating Temperature | 5°C to 35°C (41°F to 95°F) / –40°C to +70°C (–40°F to +158°F) |
| Operating/Nonoperating Humidity | –12°C DP/10 to 80% / –12°C DP/5 to 100% |
| Operating/Nonoperating Shock | 3.0 g, 11 ms (per axis) / 20.0 g, 7ms, 10 shock pulses OR ISTA 3H |
| Operating/Nonoperating Vibration | 0.18Grms, 5 Hz to 500 Hz, 30 min per axis / 0.54G rms 6Hz to 200 Hz (ISTA 3E) |
| Standards/Approvals | |
| Standard Marks/Approvals | United States, Canada, European Union (EU), Australia/New Zealand, Japan, China (PRC), Russia, Mexico, Germany, South Korea, Taiwan, India |
| Safety Certifications | UL 62368-1 | CAN/CSA-C22.2 No.62368-1- 19 | CE to EN 62368-1 | CB IEC 62368-1 | Power Supplies CCC & BIS |
| Emissions (EMC) | FCC CFR 47 Part 15 Subpart B Class A | ICES/NMB-003 Class A | EN 55032:2015 Class A |AS/NZS CISPR 22/CISPR 32 Class A | VCCI Class A | KN 32/KN 35 Class A | CNS 15936 Class A |
| Harmonics & Flicker | EN 61000-3-2 | EN 61000-3-3 |
| Immunity | EN 55032 | KN 32/KN 35 |
| Environmental Standards | The RoHS Directive (2011/65/EU) | The WEEE Directive (2012/19/EU) | The REACH Directive (EC) No. 1907/2006 and WFD Directive (EU) 2018/815 |
| Power Supply Units | Commission Regulation (EU) 2019/424 (Directive 2009/125/EC) |
|
Power Supply |
|
|
Power Supply |
|
Addressing a wide range of challenges in the M&E industry, including the exponential growth of streaming services, viewership demands, and security concerns, the Exos CORVAULT 5U84 emerges as an integral part of Seagate’s complete storage portfolio. It aims to improve data flow, ensure data availability, and offer long-term cost predictability. With this new storage system, it’s clear that Seagate is pushing itself as an innovator in both storage solutions and sustainability, presenting a viable option for organizations keen on balancing performance and ecological responsibility.
For a deeper dive into its impact on the industry, read our comprehensive paper on Exos CORVAULT as well as our YouTube video below, the latter of which explores the 4U form factor version.
As we discuss in the paper mentioned above, Seagate has developed CORVAULT with an eye toward simplifying system configuration, making it a one-stop solution for varying industry requirements. Key features like ADAPT and ADR (autonomous drive regeneration) significantly lighten the workload on IT staff by automating maintenance tasks. From a sustainability perspective, CORVAULT stands out with its power-saving modes and waste reduction.
In addition, the system’s robust security measures include self-encrypting hard drives and secure file transfer protocols, all without putting undue strain on controllers. These advancements are receiving high praise across the board from industry partners, who point out the system’s exceptional resilience and density.
